AIRTAC GFR200-08/GFR300-10/GFR400-15 Filter Pressure Regulator - All-in-One Air Treatment for Automation, CNC Machines & Industrial Pneumatics, 1/4

AIRTAC Filter Pressure Regulator - All-in-One Air Treatment for Automation CNC Machines & Industrial Pneumatics 1/4" 3/8'' 1/2'' NPT Port


Size:	GFR200-08 GFR300-10 GFR400-15
Availability:

Quantity:



Inquiry Add to Basket

The Airtac GFR Series Filter Regulator combines precision air filtration and pressure regulation in a single compact unit, delivering clean, stable compressed air for industrial pneumatic systems. Designed for reliability in demanding environments, it ensures optimal equipment performance while reducing maintenance costs.

Model:
GFR200-08/GFR300-10/GFR400-15
Brand:
WAALPC
Code:
8481804090

Product Description

The Airtac GFR Series Filter Regulator Advantages

The Airtac GFR Series Filter Regulator

1. Dual-Function Design

Integrated filtration (5μm) removes water, oil aerosols, and particulate matter Precision pressure regulation (0.15-0.9MPa) with locking knob for stable output

2. Maintenance-Optimized Design

Clear polycarbonate bowl with sediment visibility Auto-drain or manual drain options prevent liquid accumulation Tool-free element replacement reduces downtime

3. Smart Performance

Enhancements Gauge port for system pressure monitoring (optional) Upstream/downstream pressure taps for diagnostics Anti-vibration design maintains calibration in dynamic application

The Airtac GFR Series Filter Regulator Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Model	GFR200-06	GFR200-08	GFR300-08	GFR300-10	GFR300-15	GFR400-10	GFR400-15	GFR600-20	GFR600-25
Port Size	PT1/8	PT1/4	PT1/4	PT3/8	PT1/2	PT3/8	PT1/2	PT3/4	PT1
Grade of Filtration	40um or 5um
pressure regulating range	Automatic and different pressure drain: 0.15~0.9Mpa; Manual drain: 0.05~0.9Mpa
Pressure Resistance	1.5MPa (215Psi)
Max. Opreating Pressure	1.5MPa(215Psi)
Operating temperature range	-5~70℃
Pressure regulating range	0.05~0.9Mpa (7-130Psi)
Filter Cup Capacity	10CC		40CC			80CC		230CC
Weight	220g		500g			1030g		2400g

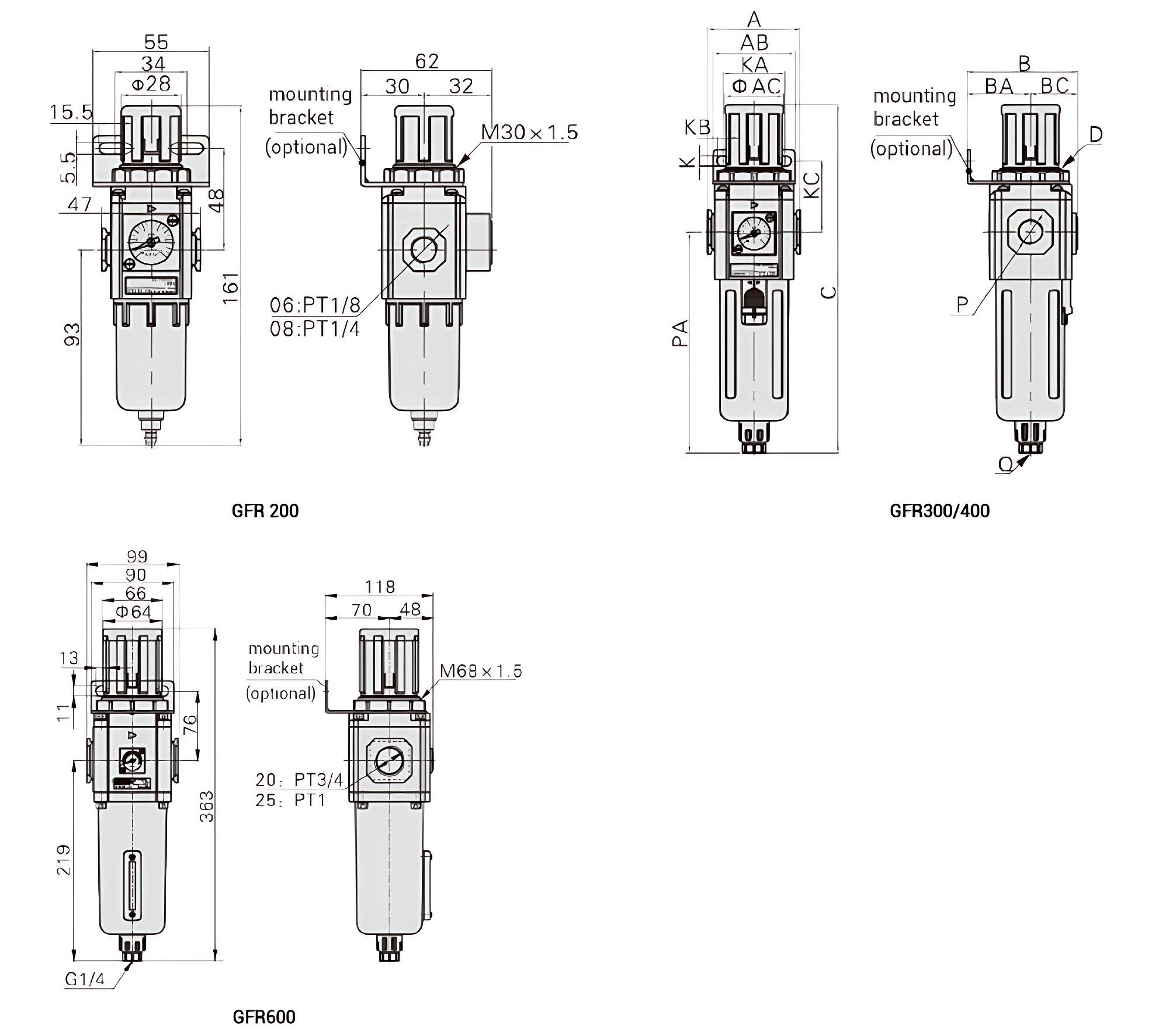

STRUCTURE

The Airtac GFR Series Filter Regulator

Model	A		AB	AC	B	BA	BC	C	D	K	KA	KB	KC	P	PA	Q
GFR300-08		60	53	38	72	41	31	225.5	M40X1.5	6.5	40	8	46	PT1/4	143	G1/8
GFR300-10		60	53	38	72	41	31	225.5	M40X1.5	6.5	40	8	46	PT3/8	143	G1/8
GFR300-15		60	53	38	72	41	31	225.5	M40X1.5	6.5	40	8	46	PT1/2	143	G1/8
GFR400-10		80	72	52	90	50	40	270.5	M55X2.0	8.5	52	11	53	PT3/8	166.5	G1/4
GFR400-15		80	72	52	90	50	40	270.5	M55X2.0	8.5	52	11	53	PT1/2	166.5	G1/4
