AIRTAC GF200 Compressed Air Filter, 5 μm 40μm Precision, 1/8

Compressed Air Filter AIRTAC 5um 40μm Precision 1/4 3/8 1/2 PT Aluminum Housing for Pneumatic Tools And CNC Machinery 10/40/80 Cup Capacity


Size:	GF200 GF300 GF400
Availability:

Quantity:



Inquiry Add to Basket

The Airtac GF Serie Air Filter is a precision-engineered component designed to remove contaminants (water, oil aerosols, particulates, and debris) from compressed air systems. Built for durability and efficiency, it ensures clean air delivery to protect downstream pneumatic equipment, reduce maintenance costs, and optimize system performance in industrial automation and manufacturing applications.

Model:
GF Series
Brand:
WAALPC
Code:
8421299090

Product Description

1.High-Efficiency Filtration

Removes water, oil, and particulates to prevent equipment wear and clogging.

2.Robust & Lightweight Design

Corrosion-resistant aluminum housing for harsh industrial environments.

3.Easy Maintenance

Modular design enables quick filter element replacement and bowl cleaning.

Transparent bowl for visual monitoring of contamination levels.

4.Energy Efficiency

Low pressure drop minimizes energy loss in compressed air systems.

5.Versatile Configuration

Compatible with Airtac pressure regulators (GR series) and lubricators (AL series) to form complete FRL (Filter-Regulator-Lubricator) units.

Technical Parameters

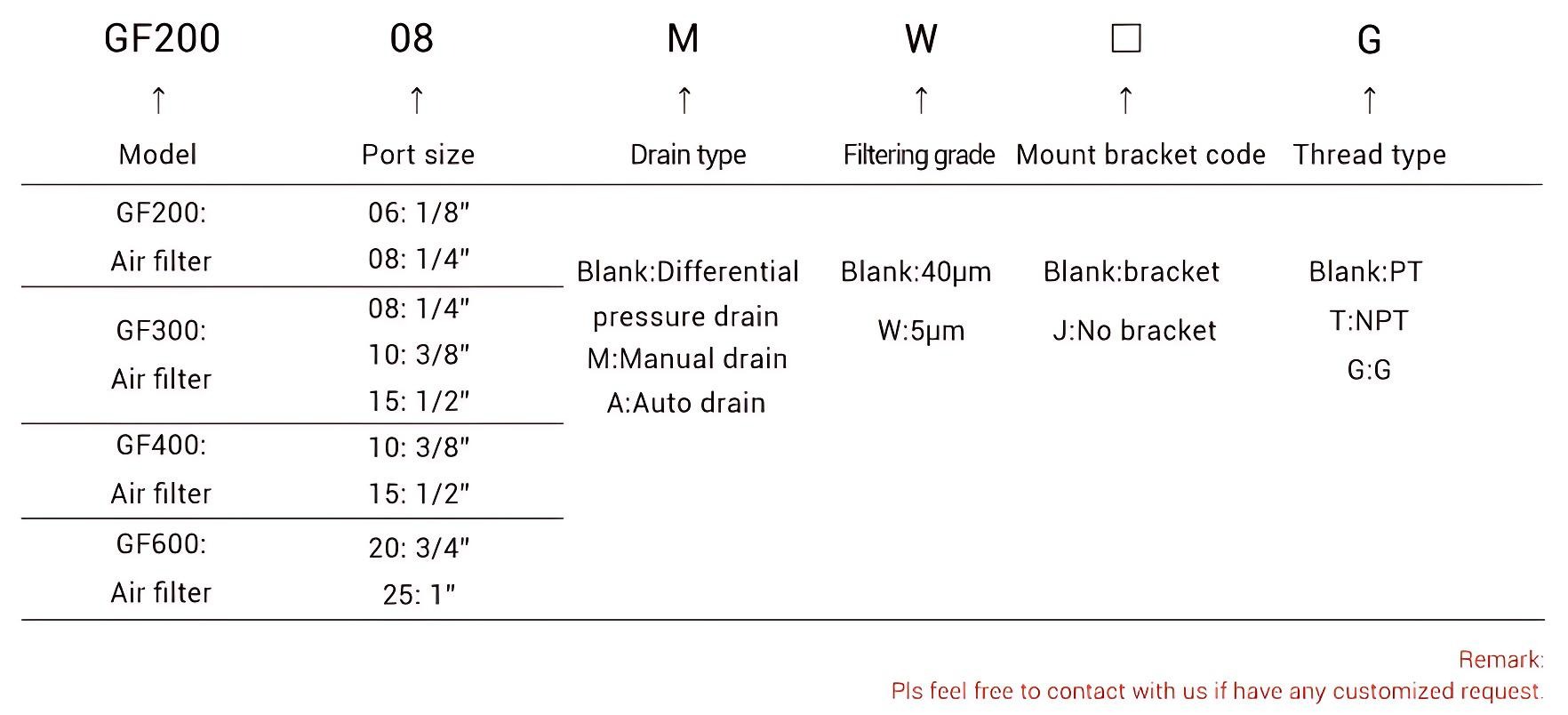

Ordering Code

DATA SHEET

Model	GF200-06	GF200-08	GF300-08	GF300-10	GF300-15	GF400-10	GF400-15	GF600-20	GF600-25
Port Size	PT1/8	PT1/4	PT1/4	PT3/8	PT1/2	PT3/8	PT1/2	PT3/4	PT1
Grade of Filtration	40um or 5um
pressure regulating range	Automatic and different pressure drain: 0.15~1.0Mpa; Manual drain: 0~0.9Mpa(0~145psi)
Pressure Resistance	1.5MPa (215Psi)
Operating temperature range	-5~70℃
Pressure regulating range	0.05~0.9Mpa (7-130Psi)
Filter Cup Capacity	10CC		40CC			80CC		230CC
Weight	135g		360g			680g		1440g

STRUCTURE

GF structure

Model	A		B	BA	C	CA	K	KA	KB	KC	P	PA	Q
GF300-08		60	67.5	41	182	164	6.5	40	8	27	PT1/4	143	G1/8
GF300-10		60	67.5	41	182	164	6.5	40	8	27	PT3/8	143	G1/8
GF300-15		60	67.5	41	182	164	6.5	40	8	27	PT1/2	143	G1/8
GF400-10		80	85.5	50	208	191.5	8.5	55	11	33.5	PT3/8	166.5	G1/4
GF400-15		80	85.5	50	208	191.5	8.5	55	11	33.5	PT1/2	166.5	G1/4
