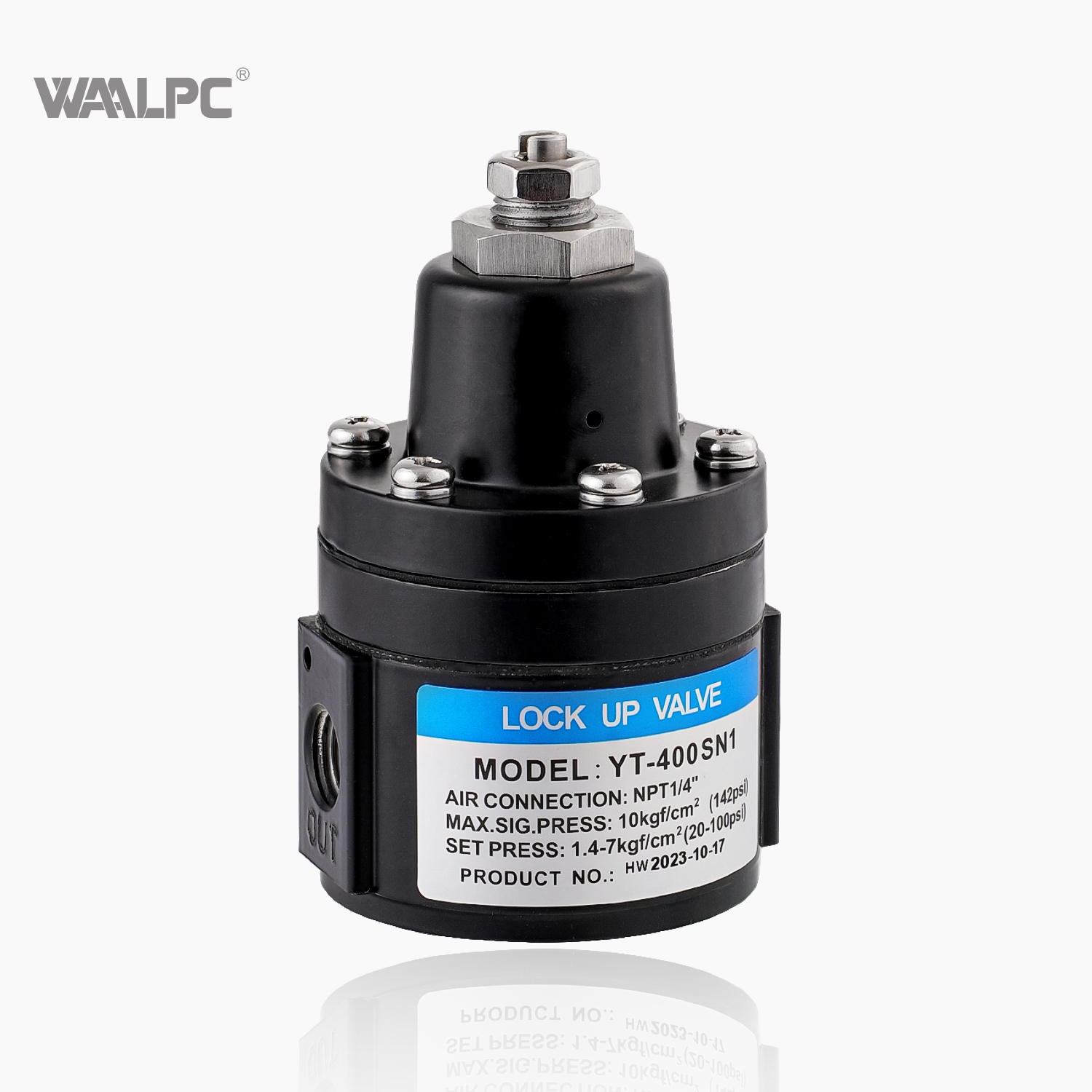

Advanced Single acting Air Lock Up Valves Superior Pressure & Flow Control for Diverse Industrial Applications

Advanced Single acting Air Lock Up Valves Superior Pressure & Flow Control for Diverse Industrial Applications


Size:	1 2
Availability:

Quantity:



Inquiry Add to Basket

The single - acting air lock valve is a specialized gas - control device that operates on a unique principle. It relies on a single - direction air supply to drive its operation. When pressurized air is introduced, the valve opens, allowing gas to flow through; once the air pressure is removed, a built - in spring mechanism automatically closes the valve. This straightforward yet efficient working mode makes it highly suitable for applications where simple and reliable gas flow control is required, such as in basic pneumatic systems, small - scale industrial processes, and some automated equipment with unidirectional gas flow needs. Its compact structure and clear operational logic ensure stable performance under normal working conditions.

Model:
YT400S
Brand:
WAALPC
Code:
8481901000

Product Description

The single - acting air lock valve Advantages

Single-acting air lock up valve

1. Simple and Efficient Operation

The single - acting air lock valve features an intuitive and easy - to - understand operation mechanism. With only one air - input port for actuation, its control process is simplified compared to multi - acting counterparts. This simplicity reduces the complexity of the overall system, making it easier for operators to install, use, and maintain. It also allows for quick response times, as the valve can rapidly switch between the open and closed states according to the presence or absence of air pressure, ensuring efficient gas flow regulation in real - time.

2. Cost - Effective Solution

Thanks to its relatively simple design and fewer components, the single - acting air lock valve offers significant cost advantages. It requires less material for manufacturing, resulting in a lower production cost, which is reflected in a more affordable price for customers. Additionally, its straightforward operation means reduced energy consumption, as it only uses air pressure when needed to open the valve. Maintenance costs are also minimized due to the lack of complex parts that may require frequent replacement or adjustment, making it an economical choice for various projects with budget constraints.

The single - acting air lock valve Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

Data sheet

Type-Name	Pressure Regulating Air Lock Up Valve
Model	YT-400S	YT-400D	YT-405S	YT-405D	YT-420S	YT-420D	YT-430S	YT-430D
Max. input/output pressure	Max. 1.0MPa(10bar)
Max. signal pressure	Max.0.7MPa(7bar)
Pressure setting range	0.14MPa~0.7MPa(1.4~7bar)
Flow coefficient	0.9				2.6		1.8
Port size	PT(NPT)1/4		NPT1/4		NPT1/2		NPT3/8
Signal pressure port size	PT(NPT)1/4		NPT1/4		NPT1/4
Action differential pressure	Lower than 0.1kgf/cm(1.4psi)				Lower than 0.01MPa(0.1bar)
Hysteresis	1%
Temperature range	-20~70℃				-20~70℃(standard), -20~120℃(low temperature), -40~70℃(low temperature)
Material	Die-cast aluminum		316 stainless steel		Aluminum alloy
Weight	0.45kg	0.7kg	1.1kg	1.5kg	1.3kg	2.3kg	1.3kg	2.3kg

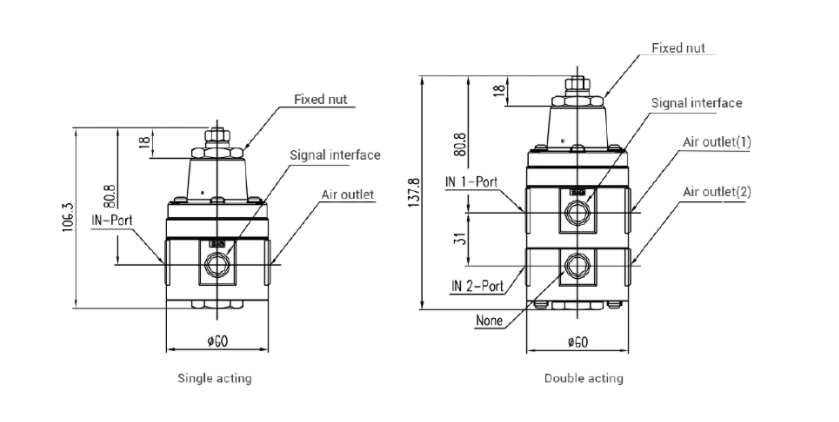

Overalldimension & Structure

The single - acting air lock valve

Specification Download

WAALPC Pressure Regulating Air Lock Valve .pdf.pdf
