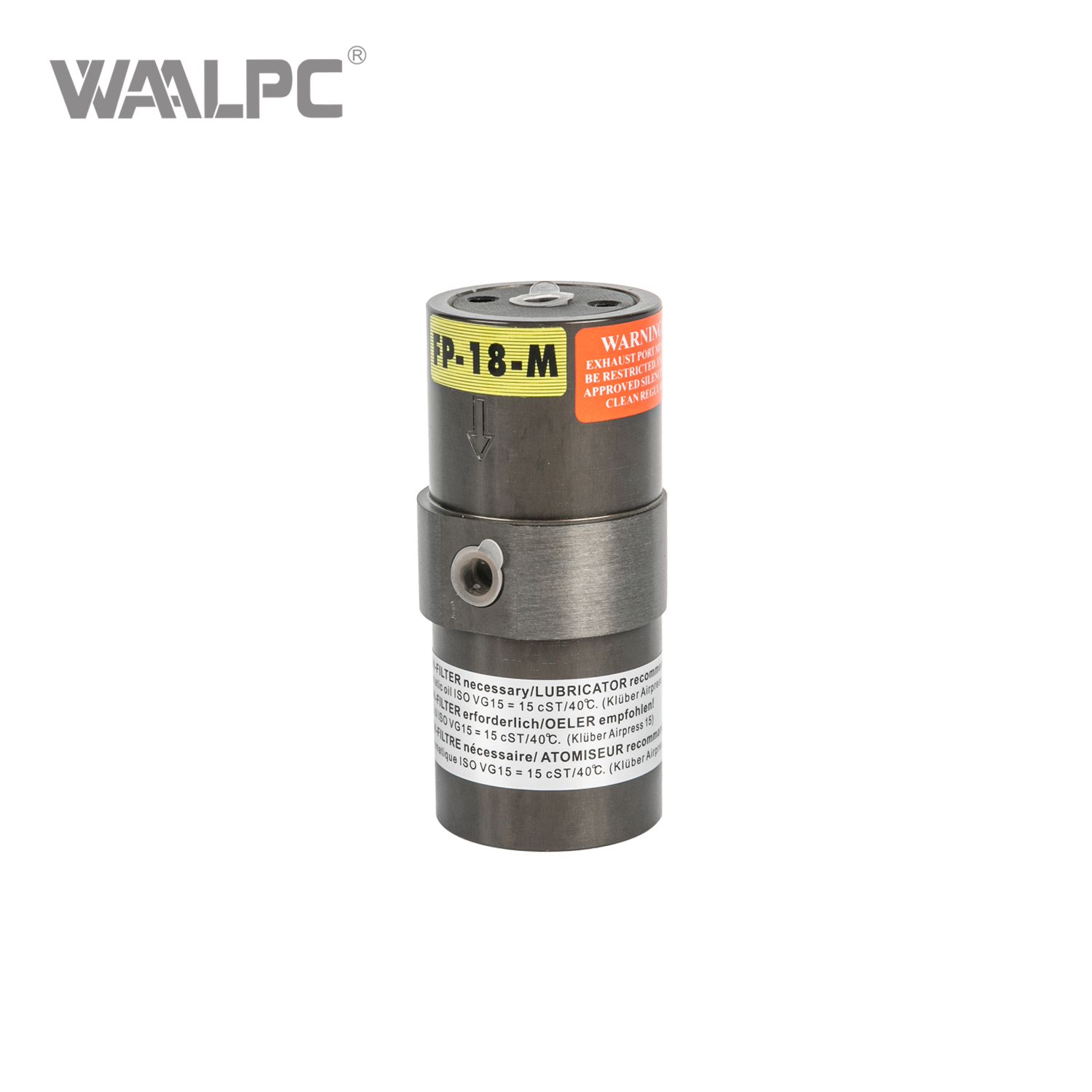

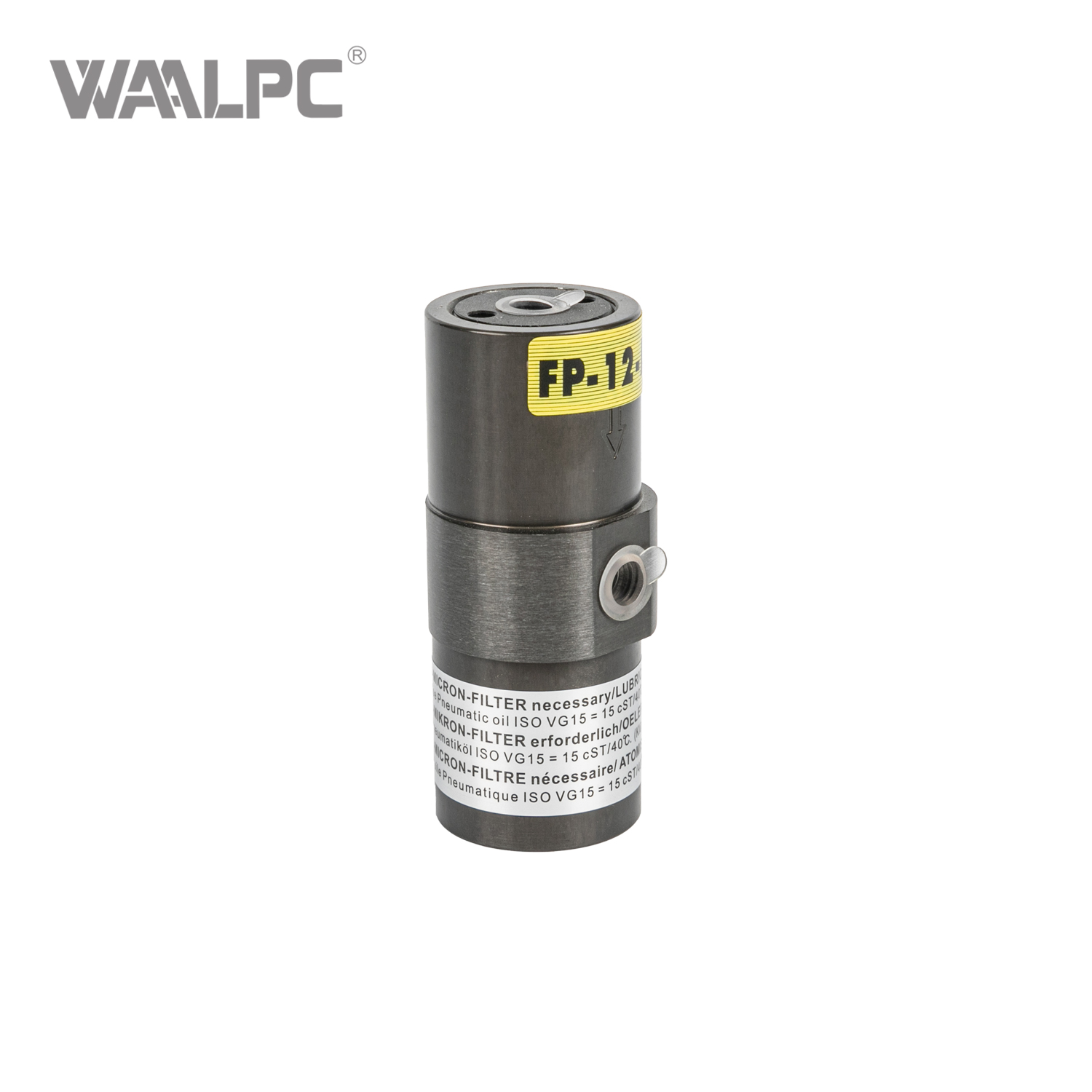

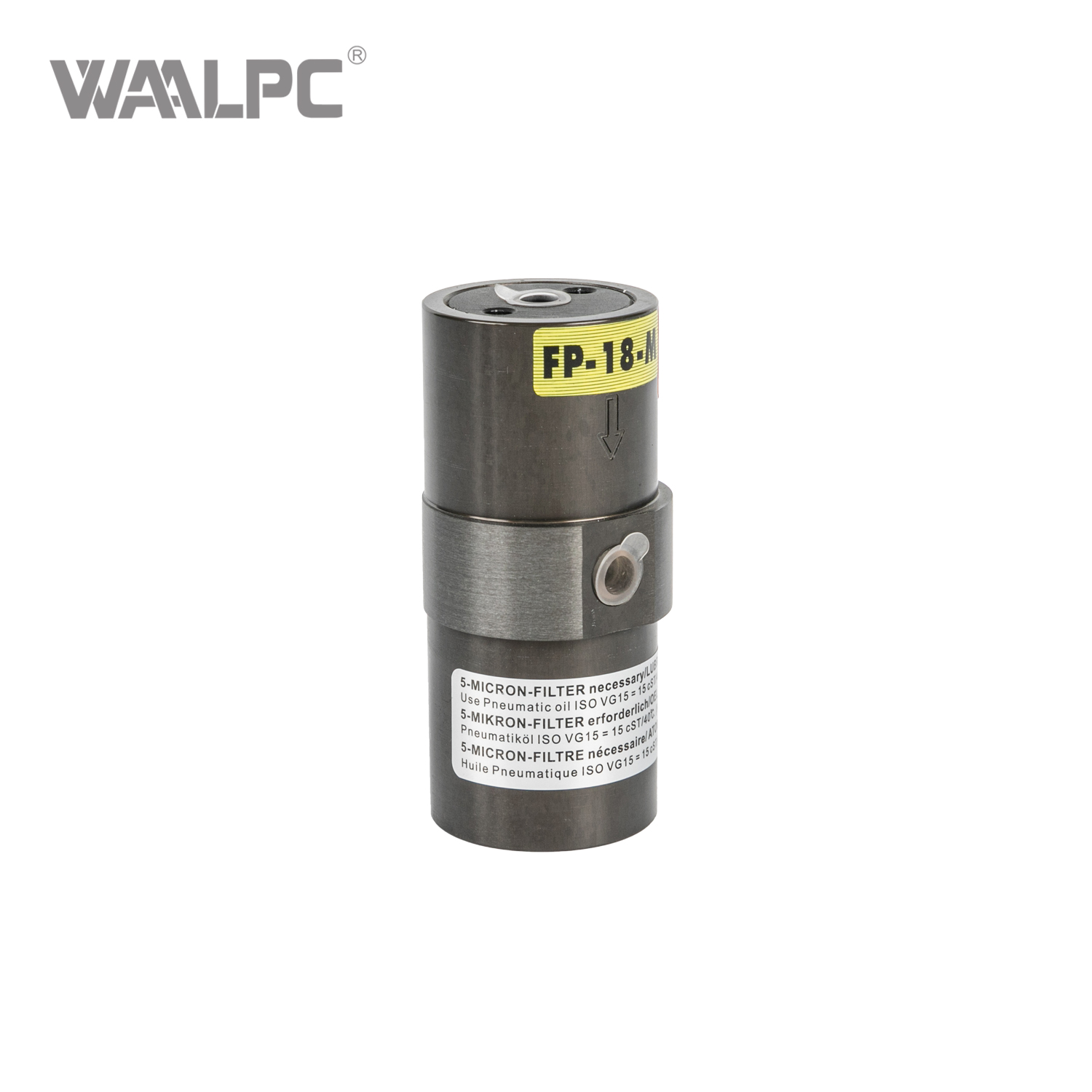

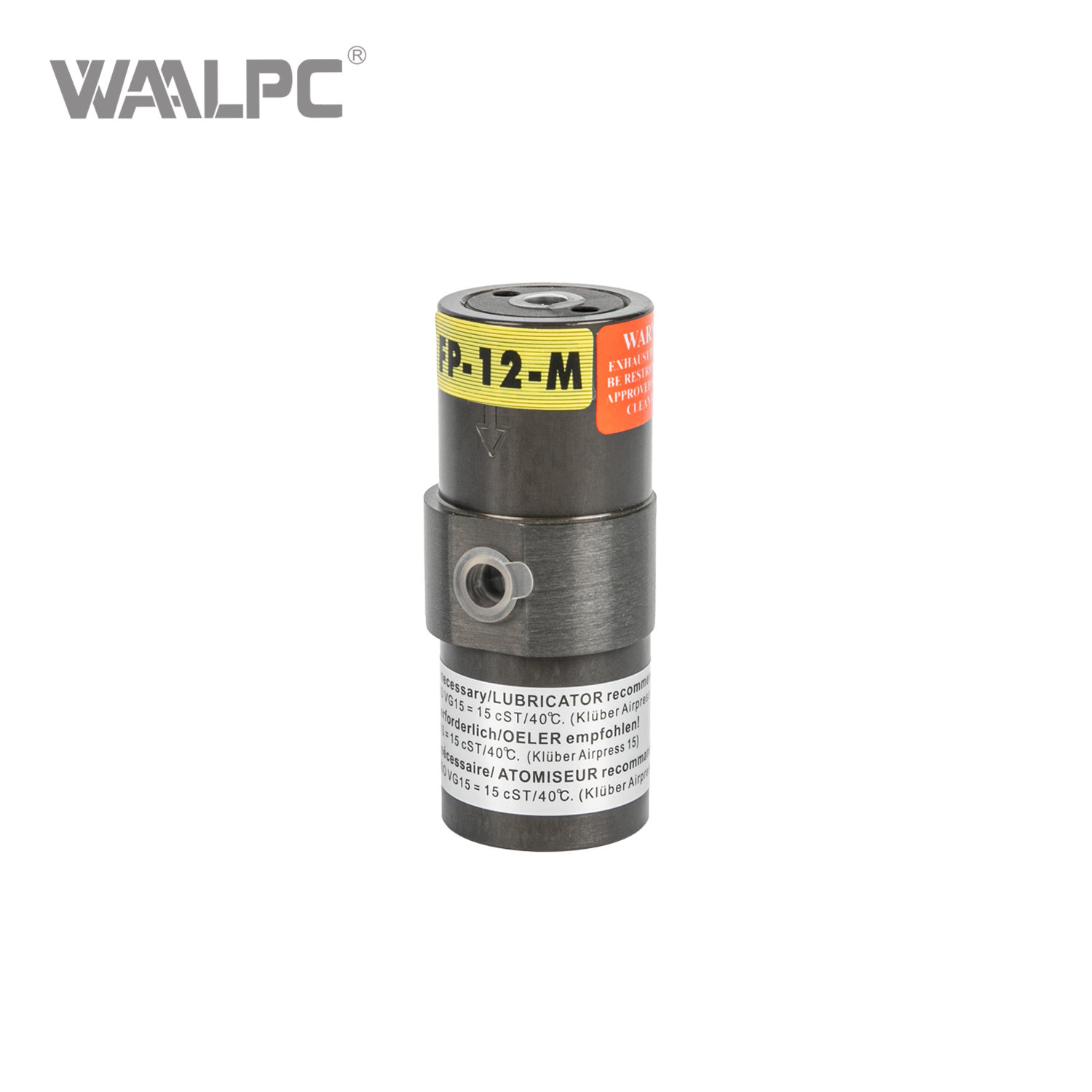

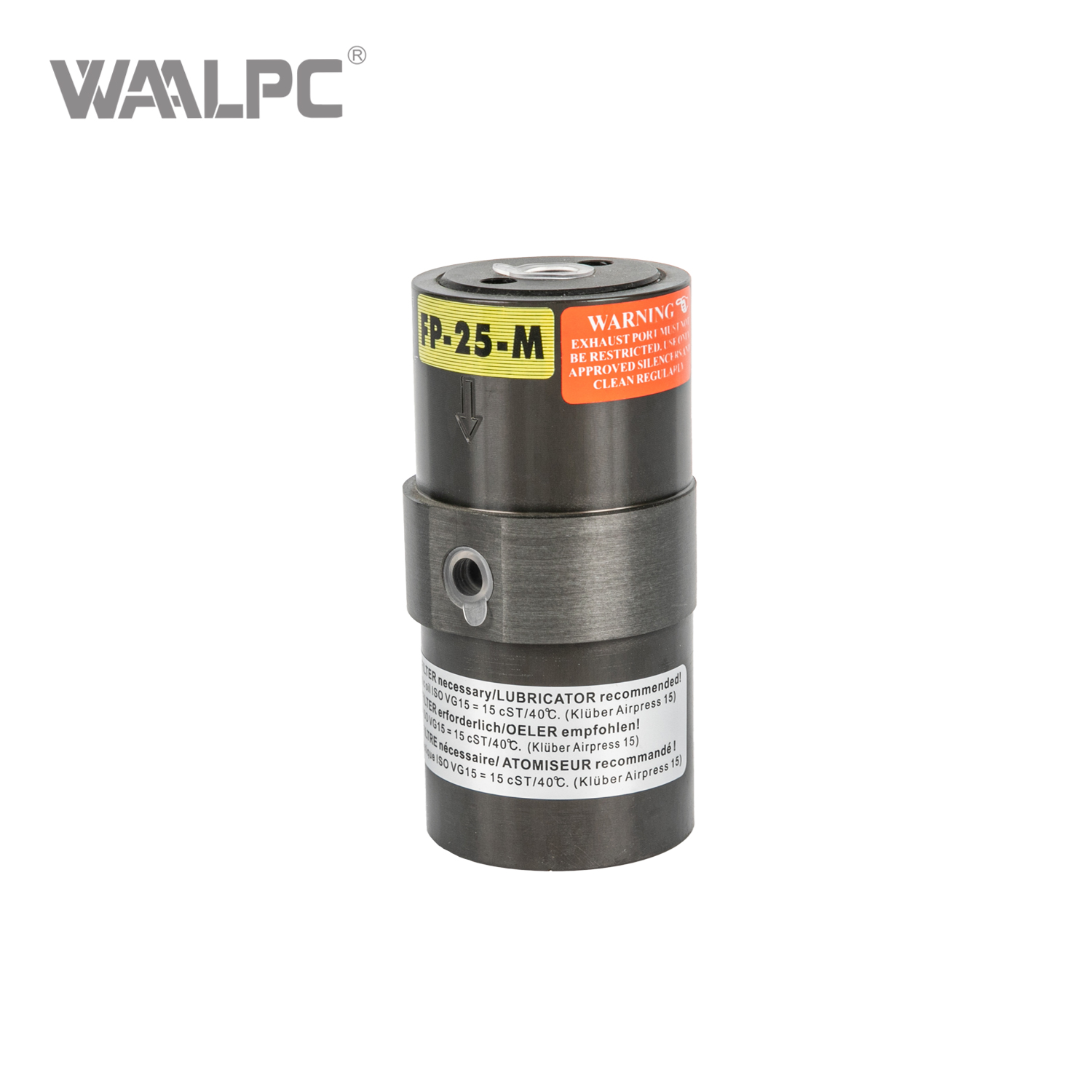

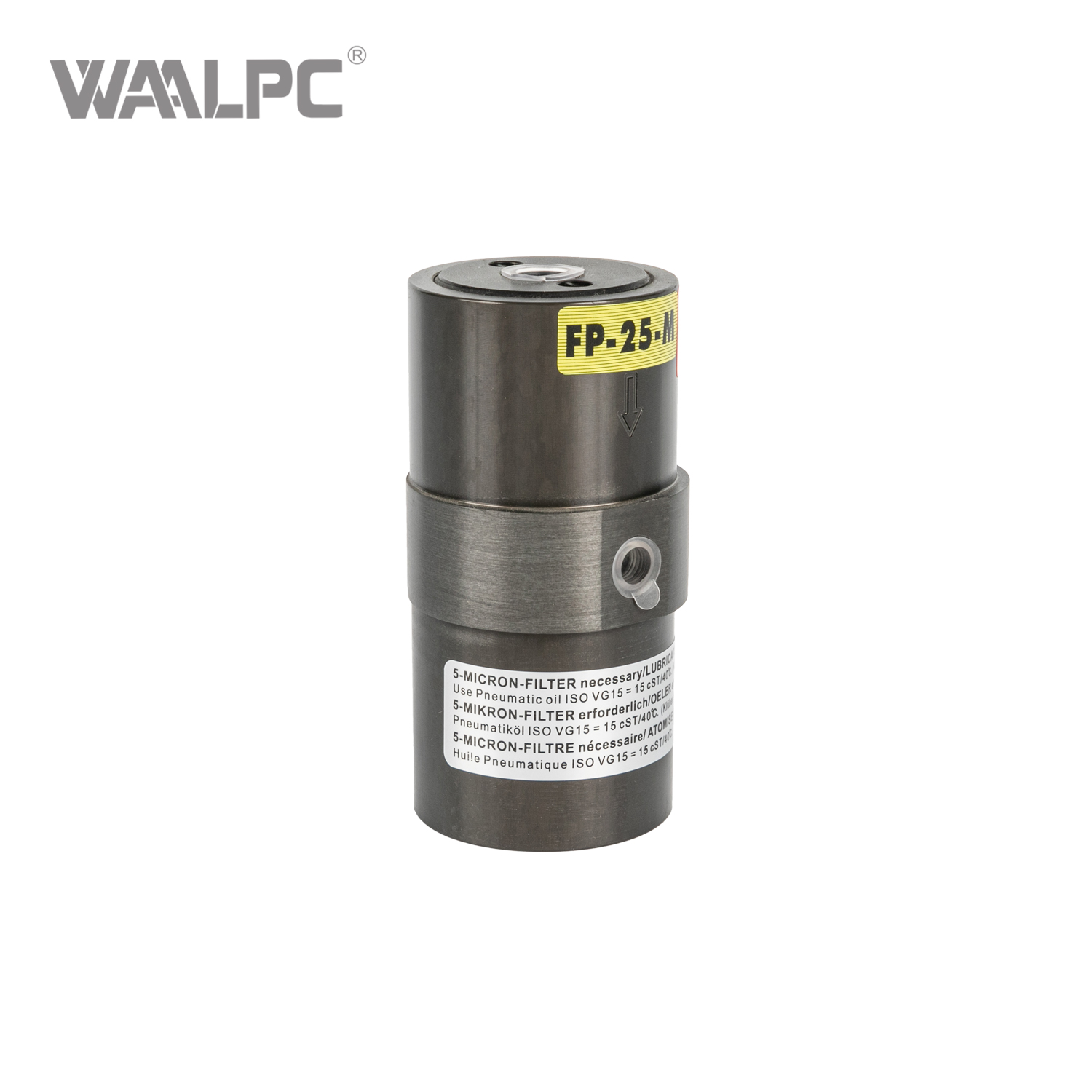

Air Vibrator Piston Telescopic under The Bin Oscillator Air Hammer Aluminum Alloy


Availability:

Quantity:



Inquiry Add to Basket

The FP Series comprises robust pneumatic linear piston vibrators engineered to generate powerful, reciprocating vibrations. They are primarily used to promote the flow of bulk materials in industrial applications, effectively preventing issues like bridging and ratholing in silos, hoppers, and chutes.

Model:
FP-12-M
Brand:
WAALPC
Code:
8501109990

Product Description

Powerful Linear Force: Generates strong, directional impact ideal for stubborn material arching and ratholing.

Infinitely Adjustable: Amplitude and frequency can be precisely controlled by regulating air pressure for optimal performance.

Robust & Reliable: Heavy-duty construction with a simple piston mechanism ensures long service life in demanding environments.

Low Maintenance: Requires minimal upkeep with no complex internal components or lubrication needs.

Versatile Application: Effective on a wide range of silos, hoppers, and chutes handling various bulk materials.

Technical Parameters

DATA SHEET

Model	Frequency/minute		Measured centrifugal force		Air consumption	Weight
	0.2MPa	0.6MPa	0.2MPa	0.6MPa	L/min	g
	0.2MPa	0.6MPa	0.2MPa	0.6MPa	L/min	g
FP-12-M	5000	6700	34	74	0.5-19	178
FP-18-M	4000	5900	68	188	4-52	352
FP-25-M	3000	4200	450	504	23-87	672
FP-35-M	3000	4600	550	1080	24-141	1135

Parameter conversion: 1kilogram=9.8 newtons

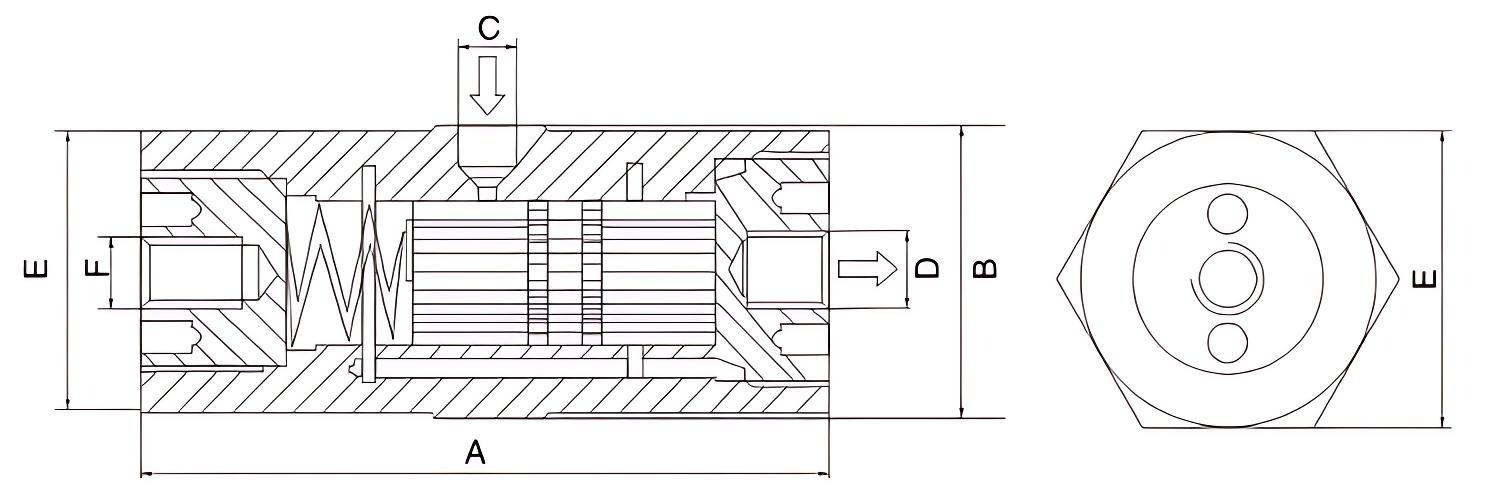

OVERALLDIMENSION&STRUCTURE

FP linear type vibrator

Model	A(mm)	C	D(mm)	E(mm)	F
FP-12-M	81	G1/8	M-8	32	G1/8
FP-18-M	94	G1/8	M-10	41	G1/8
FP-25-M	100	G1/8	M-12	48	G1/4
FP-35-M	109	G1/4	M-12	63	G1/4

Specification Download

Piston reciprocating vibrator.pdf
