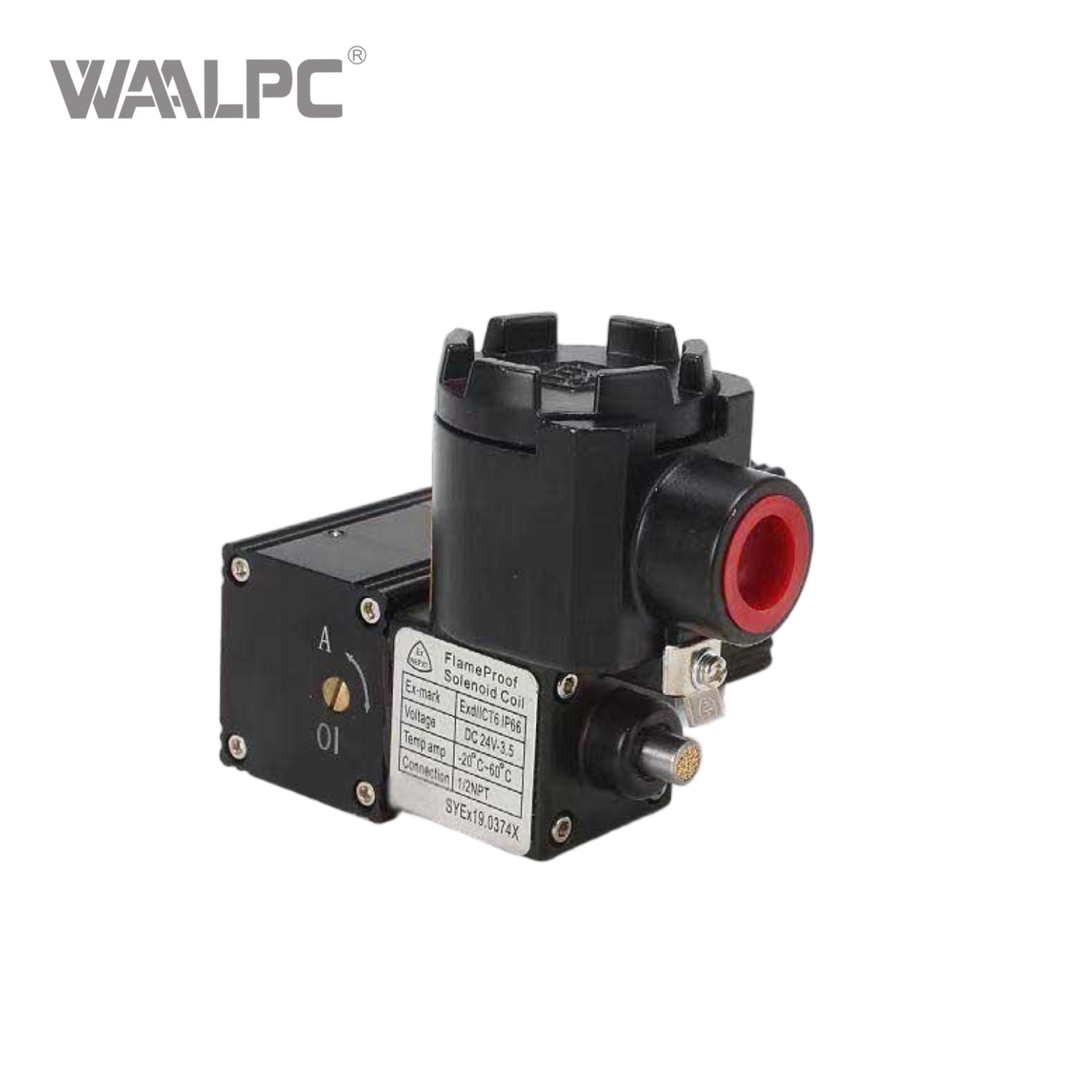

Flameproof Solenoid Valves Industrial-Grade Safety for Explosive Zones Stainless Steel 316 Explosion Proof

Flameproof Solenoid Valves Industrial-Grade Safety for Explosive Zones Stainless Steel 316 Explosion Proof


Size:	1 2
Availability:

Quantity:



Inquiry Add to Basket

Designed to mitigate the risk of explosions in industrial settings, our explosion-proof solenoid valves are the ultimate solution for controlling fluid/gas flow in hazardous zones. Built with robust materials and precision engineering, these valves contain internal electrical/mechanical sparks, ensuring no ignition occurs in atmospheres with flammable gases, vapors, or dust.

Model:
RV351-E
Brand:
WAALPC
Code:
8481100090

Product Description

Explosion-proof solenoid valves Advantages

Explosion-proof solenoid valve

IP66 Waterproof Rating;
Aluminum alloy material valve body;
Convertible from 5/2 way to 3/2 way;
Rotatable valve head for optimal mounting;
Direct NAMUR mounting or screw mounting;
High & low temperature Resistance;
Durable Construction, durable materials that provide resistance to wear, corrosion, and envinronment factors;
Explosion-proof Design, safe.

Explosion-proof solenoid valves Control Valve Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

Data sheet

Type-Name	Explosion-Proof Solenoid Valve
Model	RV351-E
Port Size (G/NPT)	1/4''
Working Medium	Air (<=40um) dry amd lubricator air or neutral gas
Action	Internal pilot operated
Body Material	316 Stainless steel+Aluminium alloy
Seal Material	Nitrile rubber buna "O"ring
Dielectric Contact Material	Aluminium, nitril rubber buna, POM
Fastening Screw Material	304 stainless steel
Working Pressure Range	0.15~0.8MPa
Working Temperature Range	-20~70℃
Valve Type	3 port 2 position, 5 port 2 position
Orifice size (CV)	25mm²(CV=1.4)
Air Entry	G1/4. BSPP.NPT1/4
Installation Standards	24x32 NAMUR board connection or pipe connection
Protection grade	P66/NEMA4,4X
Explosion proof grade	Exd CT6, DIPA20 TA, T6
Control Model	Single electric control or double electric control
Lifetime	More than 3.5 million times(under normal working conditions)
Insulation Grade	F Class
Voltage & Consumed Power	24VDC-3.5W/2.5W(50/60HZ) 110/220VAC-4VA, 240VAC-4.5VA
Coil Shell	Stainless steel 316
Cable Entry	M20x1.5, 1/2BSPP, or 1/2NPT

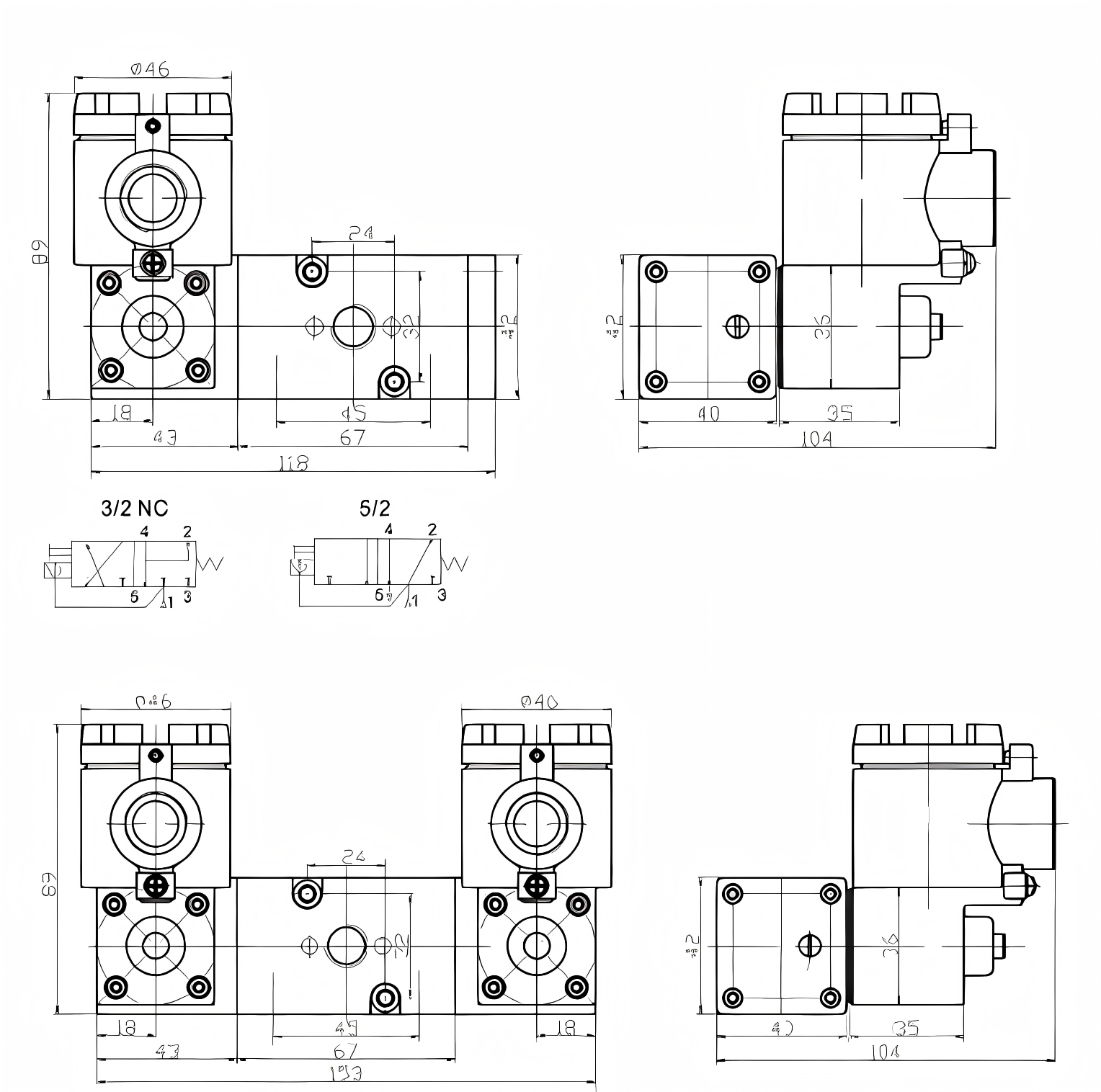

DIMENSION

Explosion-Proof Solenoid Valves

Specification Download

Explosion-Proof Solenoid Valves.png
