Steel Filter Regulator Lubricator Combination Pneumatic Solution for Precision Air Treatment

Steel Filter Regulator Lubricator Combination Pneumatic Solution for Precision Air Treatment


Size:	1 2
Availability:

Quantity:



Inquiry Add to Basket

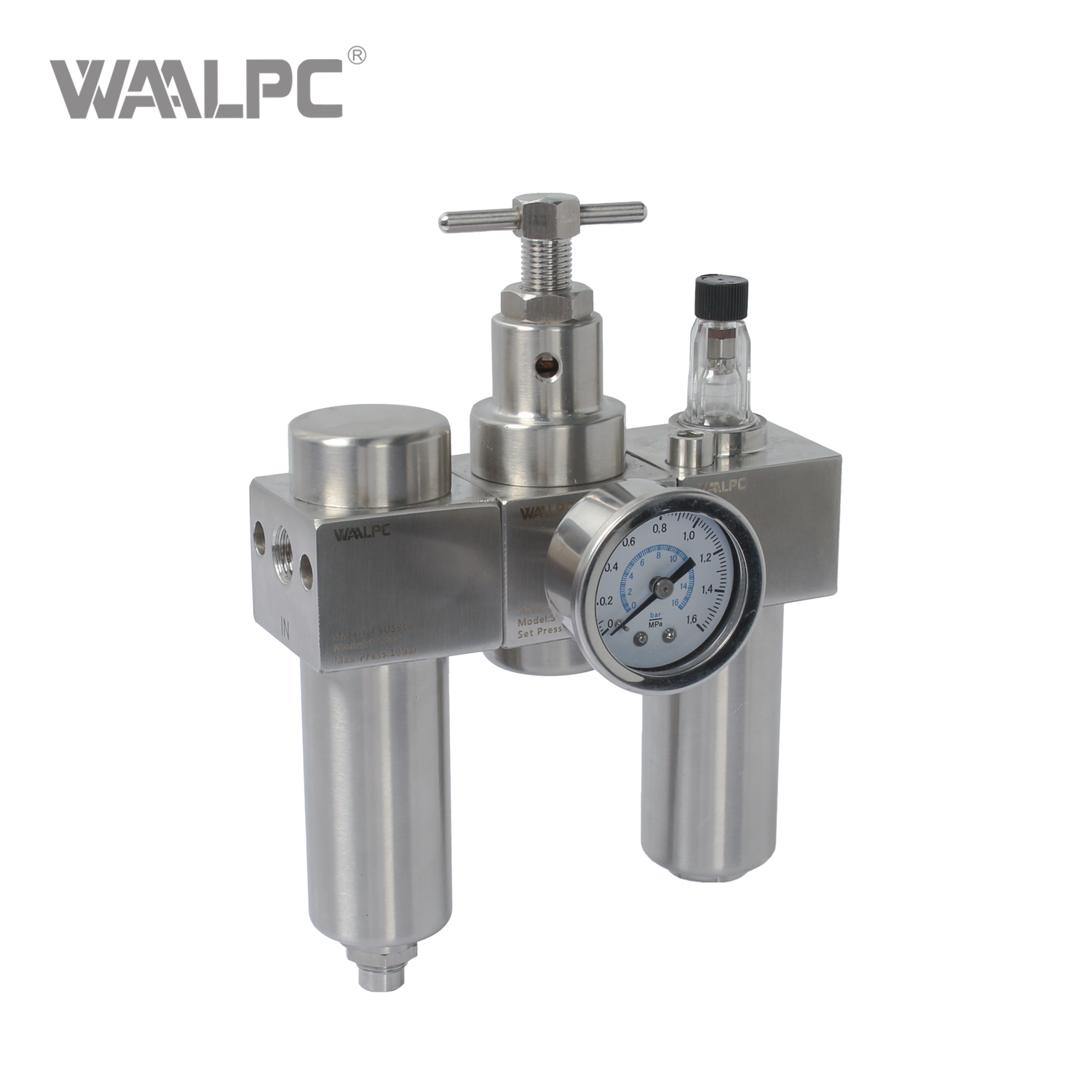

Stainless Steel Filter-Regulator-Lubricator combination revolutionize pneumatic air source management by integrating three critical functions—filtration, pressure regulation, and lubrication—into a single, robust unit. Crafted from high-grade 316L stainless steel, these trios are engineered to deliver uncompromised performance in the most demanding industrial environments, ensuring clean, stable, and well-lubricated air for optimal operation of pneumatic systems.

Model:
FRL Series
Brand:
WAALPC
Code:
8421299090

Product Description

Stainless Steel F.R.L combination Advantages

1. Integrated Three-in-One Design

Streamlined Operation: By combining a filter, regulator, and lubricator, the FRL series simplifies installation and reduces pipeline complexity. This all-in-one solution minimizes connection points, decreasing the risk of leaks and enhancing system reliability.

Space-Saving: Ideal for applications with limited space, the compact design of FRL trios allows for efficient use of equipment real estate, making them perfect for small-scale machinery and automated production lines.

2. Superior Corrosion Resistance

Premium 316L Stainless Steel Build: Constructed from 316L stainless steel, the FRL series offers exceptional resistance to chemical corrosion, saltwater, and oxidation. This makes it the go-to choice for marine applications, chemical plants, and food processing facilities where harsh conditions or hygienic requirements are paramount.

Extended Service Life: With a lifespan 60% longer than standard models, FRL trios reduce downtime and maintenance costs. Their rugged build ensures continuous operation, even in the most challenging environments.

Stainless Steel F.R.L combination Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Type-Name	F.R.L Combination
Model	FRL200	FRL400	FRL400	FRL600	FRL600
Port Size (G)	G1/4	G3/8	G1/2	G3/4	G1
Max Flow Rate (L/Min)	1850	2200	2500	7600	8000
Filter Cup Capacity	105cc	110cc	110cc	220cc	220cc
Lubricator Cup Capacity	125cc	130cc	130cc	200cc	200cc
Regulator construction	Piston
Grade of Filtration	5 um, 40um
Working Medium	Air
Pressure Regulating Range	0.15~2MPa
Pressure Resistance	6MPa (870Psi)
Operating Temperature Range	-40~100℃
Drain type	Differential pressure drain (Drain below 0.05MPa)
Material	SUS316 stainless steel

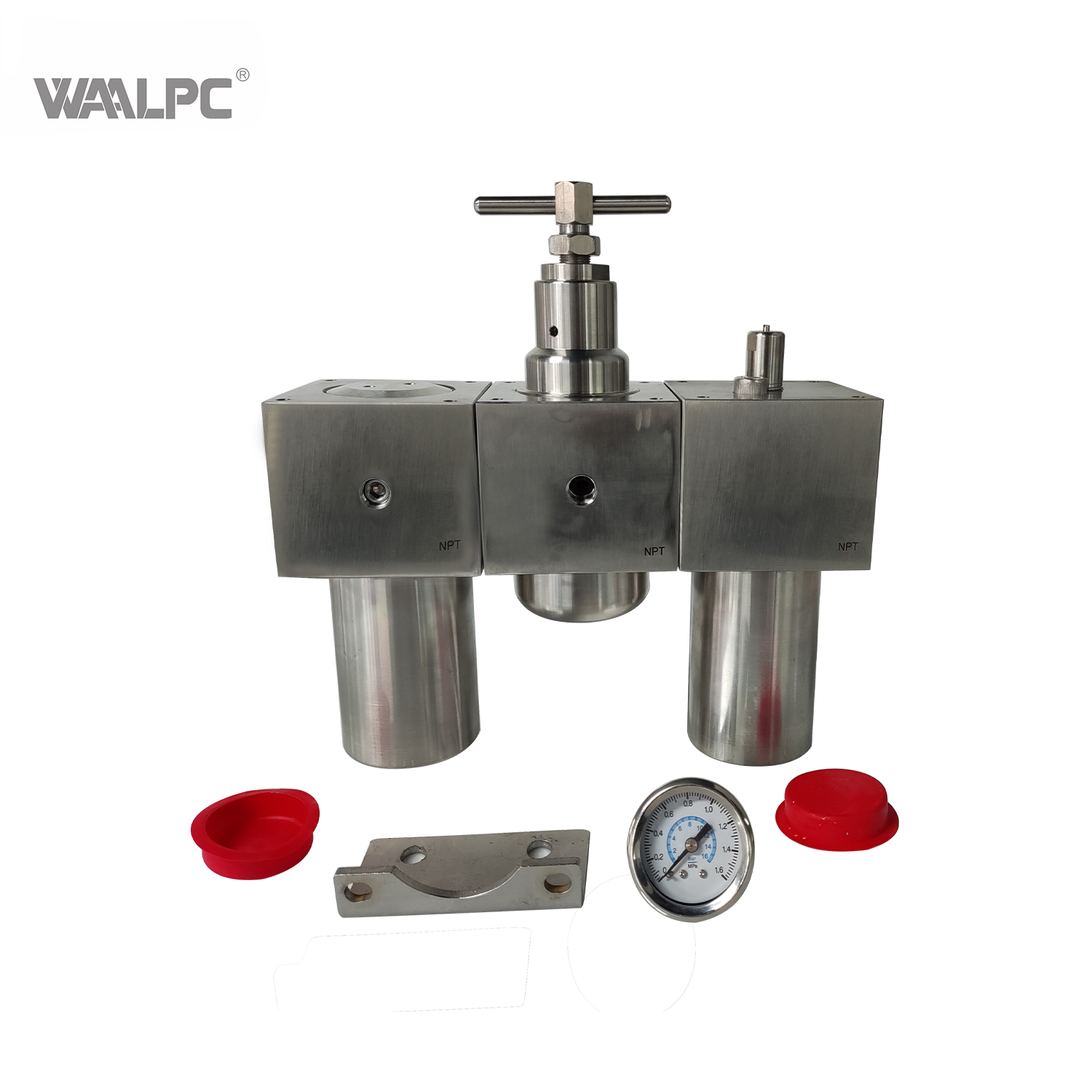

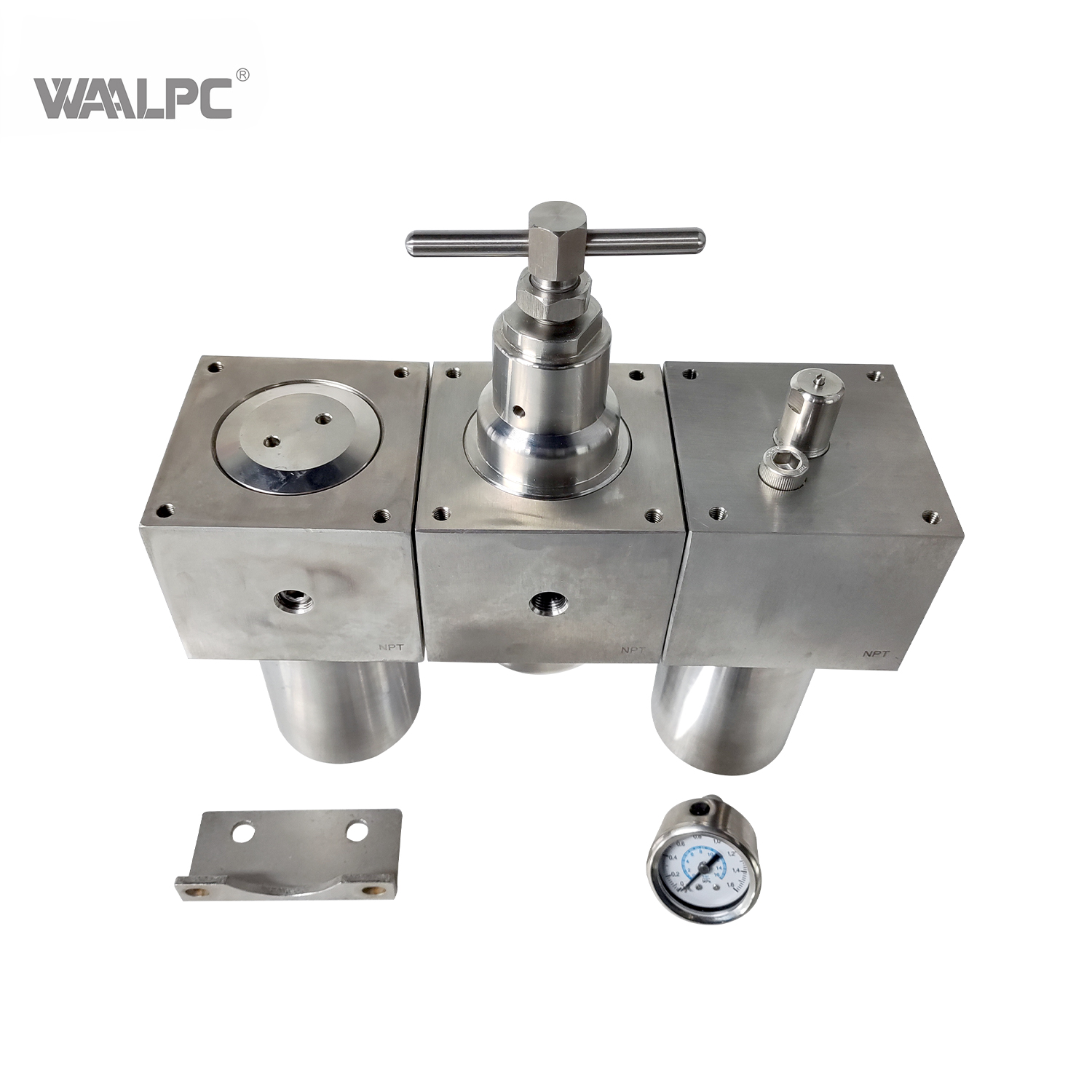

Accessories	Pressure gauge, mounting bracket, screw x2

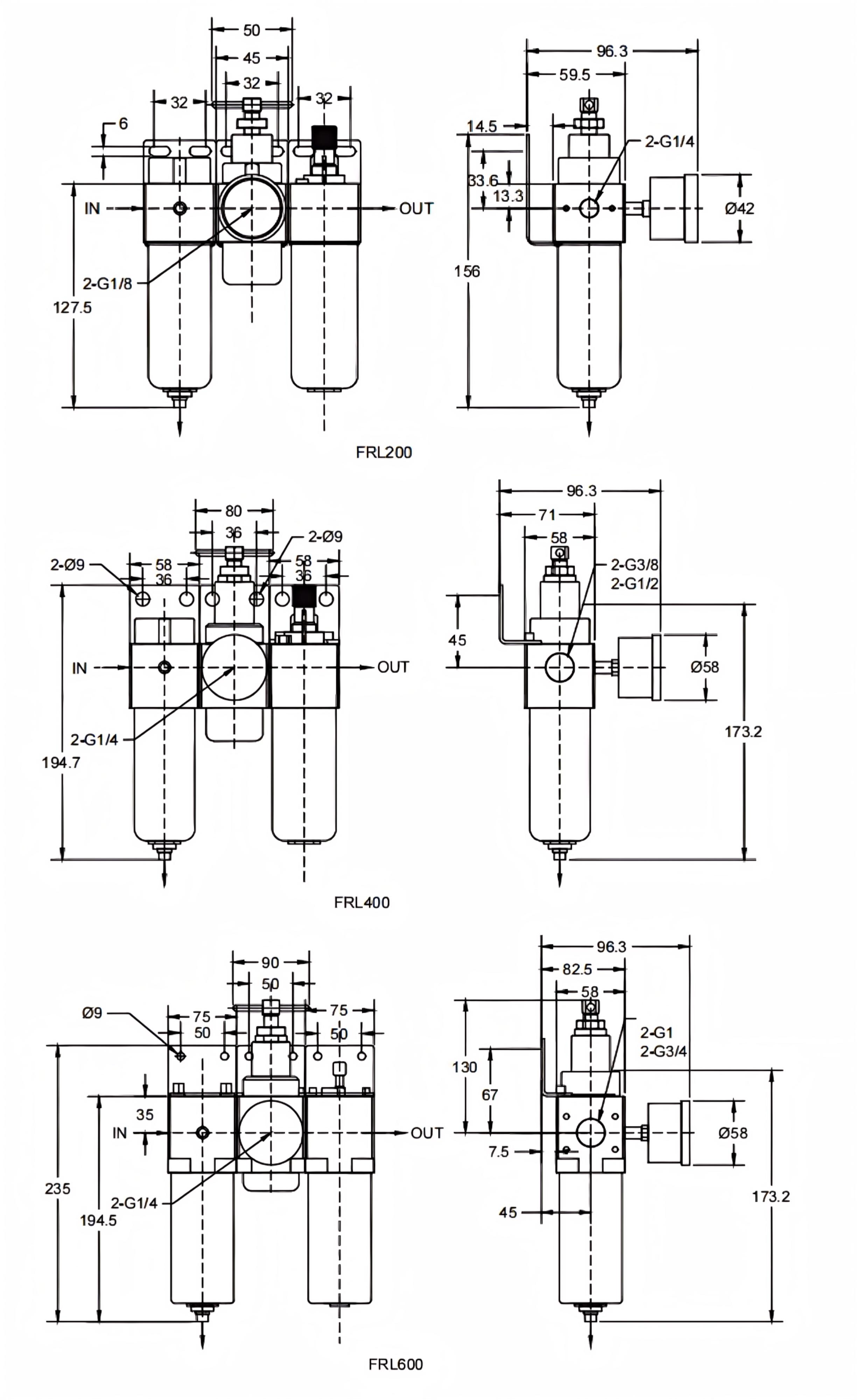

OVERALL DIMENSION & STRUCTURE

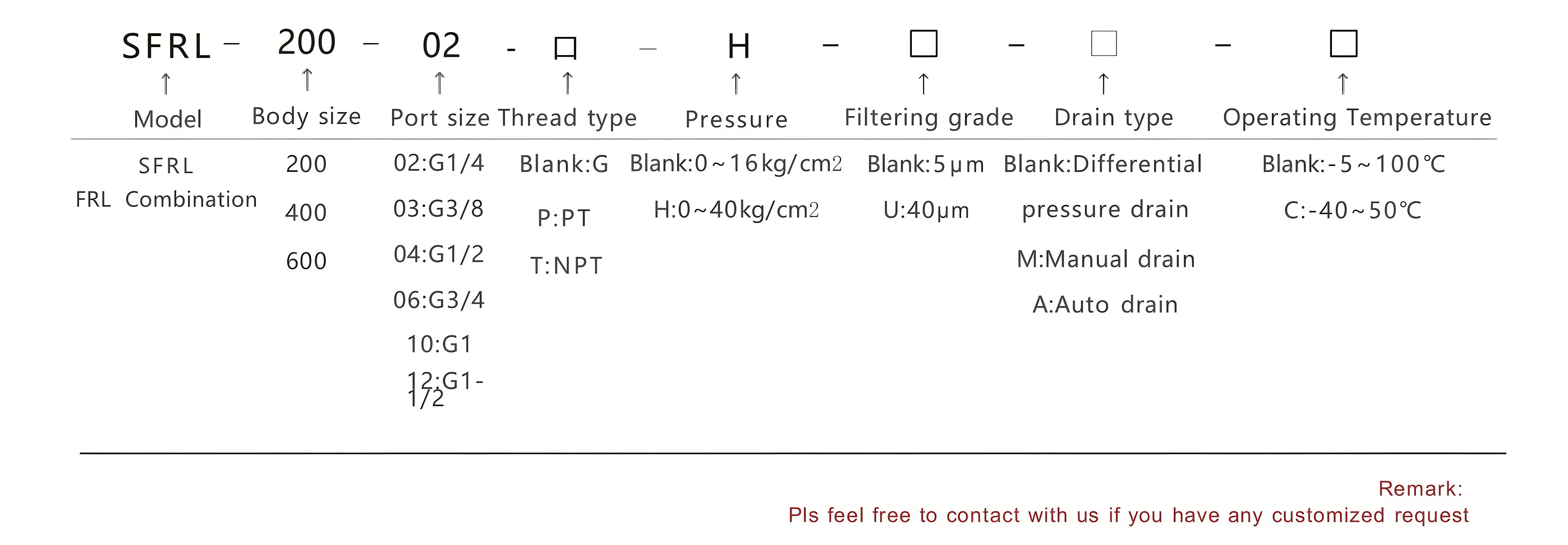

FRL combination

Specification Download

Stainless steel FRL combinatin.png
