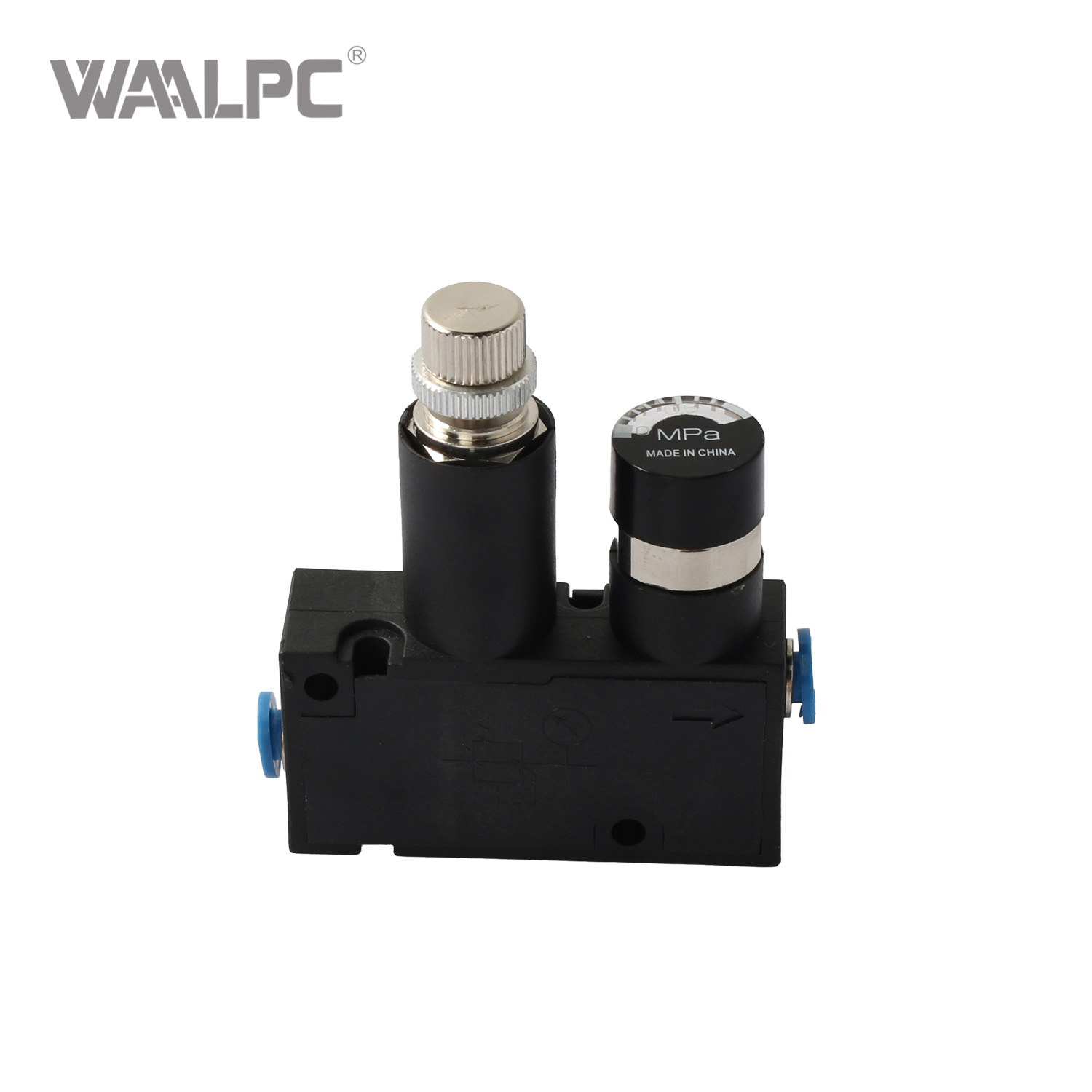

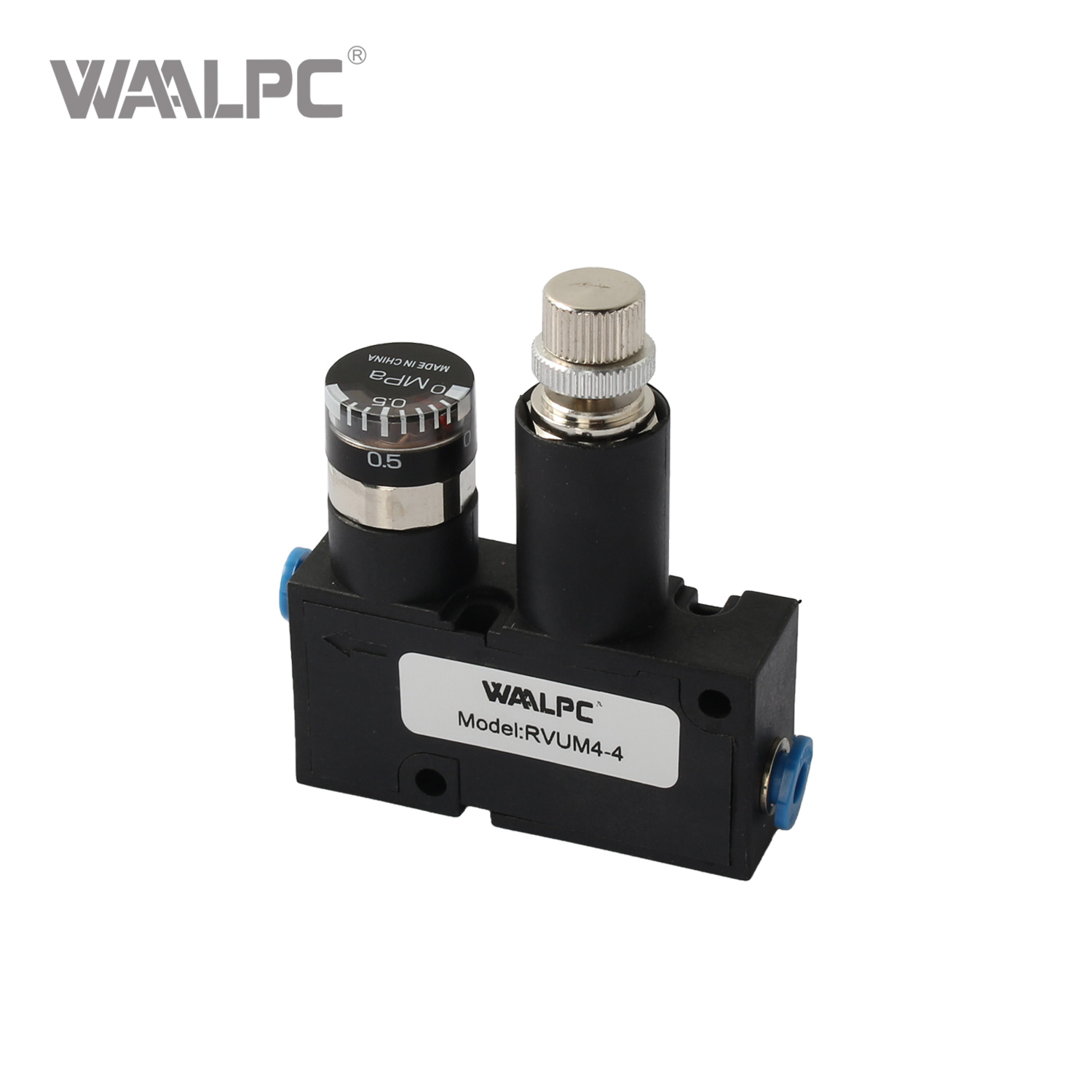

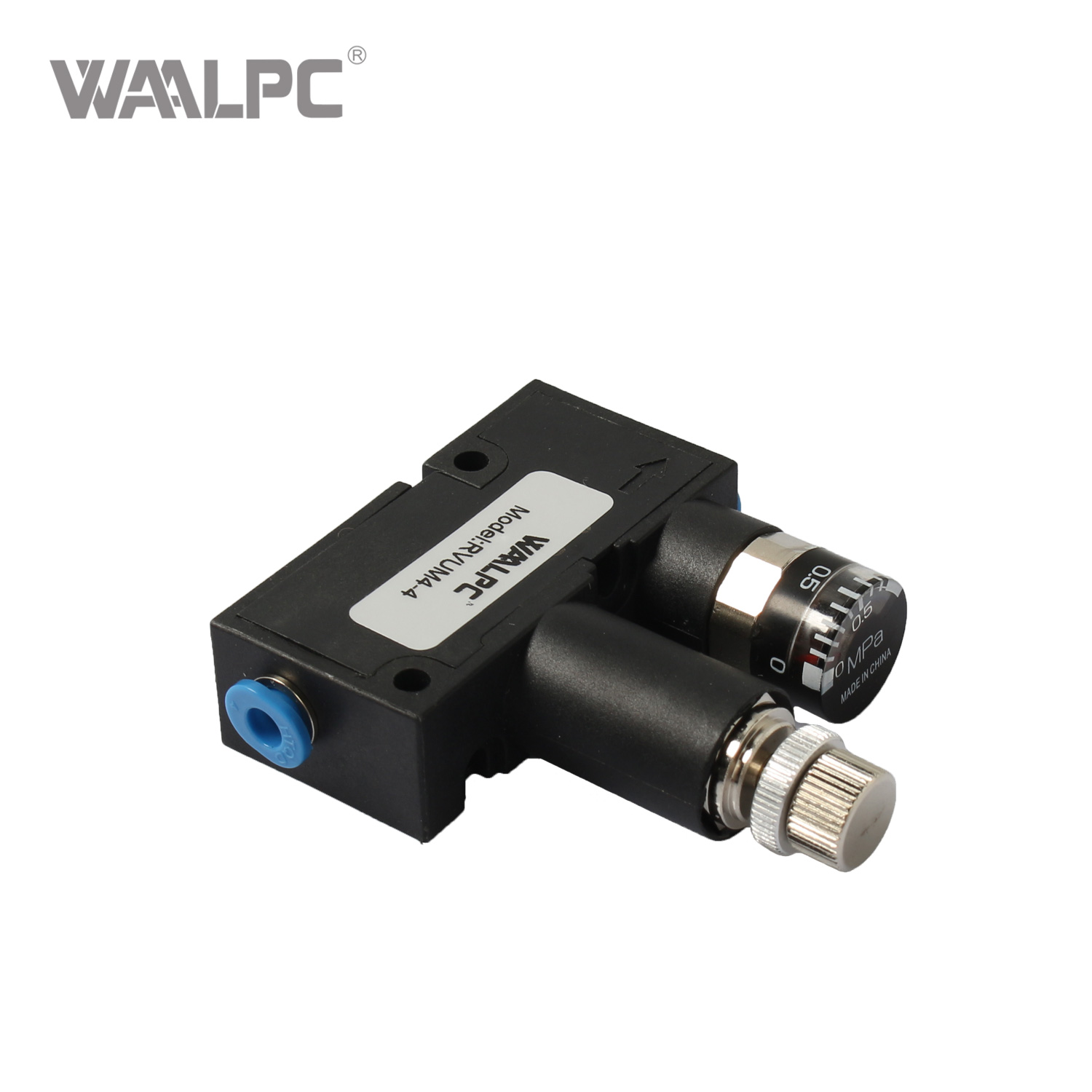

RVUM4-4/RVUM6-6
WAALPC
8481400000
DATA SHEET
Model | RVUM4-4 | RVUM6-4 | RVUM6-6 | RVUM8-6 | RVUM8-8 |
Fluid Admitted | Air | ||||
Service Pressure Range | 0~0.9MPa(0~130.5psi) | ||||
Pressure Setting Range | 0.1 ~ 0.8MPa(14.5~116psi) | ||||
Pressure Indication Range | 0 ~ 0.8MPa(0~116psi) | ||||
Accuracy (gauge) | ±5%(Full span) | ||||
Service Temperature Range | 0~60°℃ |

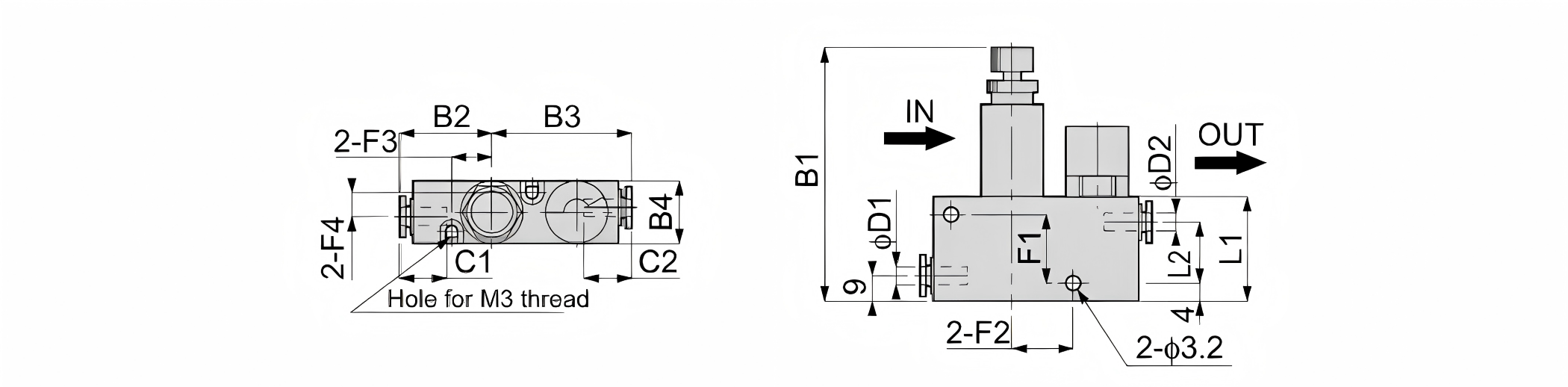

DIMENSION
Model | Tube dia.ΦD1 | Tube dia.ΦD2 | B1 | B2 | B3 | B4 | L1 | L2 | C1 | C2 | F1 | F2 | F3 | F4 | Mass(g) | |
max | min | |||||||||||||||
RVUM4-4 | 4 | 4 | 63 | 59 | 22 | 33 | 15 | 25 | 15 | 11.5 | 11.5 | 17 | 15 | 10 | 4.5 | 47.5 |
RVUM6-4 | 6 | 4 | 63 | 59 | 22.5 | 33 | 15 | 25 | 15 | 12 | 11.5 | 17 | 15 | 10 | 4.5 | 47.5 |
RVUM6-6 | 6 | 33.5 | 12 | |||||||||||||
RVUM8-6 | 8 | 6 | 67.5 | 63.5 | 28.5 | 40.5 | 19 | 29 | 17 | 18.5 | 17.5 | 21 | 19.5 | 11.5 | 6.5 | 73 |
RVUM8-8 | 8 | 18.5 |
