Pressure Reducing Valve Micro Cartridge Pressure Reducing Valve ARM5SA-20-A Pneumatic Control Valve

Pressure Reducing Valve Micro Cartridge Pressure Reducing Valve ARM5SA-20-A Pneumatic Control Valve


Size:	1 2
Availability:

The SMC ARM Series Pressure Regulators are designed to deliver superior performance and stability in a wide range of industrial applications. Built with SMC's renowned engineering expertise, these regulators offer precise pressure control, ensuring consistent output even under fluctuating input conditions.

Model:
ARM5SA-20-A
Brand:
WAALPC
Code:
8481100090

Product Description

The SMC ARM Series Pressure Regulators Advantages

pressure reducing vale

1. Exceptional Precision

Achieves ±1% pressure accuracy, minimizing variations in pneumatic systems critical for automotive assembly, pharmaceutical processing, and precision manufacturing.

2. Durable Construction

Crafted from high-grade materials, the ARM Series withstands harsh industrial environments, extreme temperatures, and high vibration, reducing replacement frequency and maintenance costs.

3. Energy Optimization

Integrated with energy-saving technology, these regulators optimize air consumption, helping businesses cut operational costs and meet sustainability goals.

The SMC ARM Series Pressure Regulators Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Model		ARM5S
Structure of pressure reducing valve		Direct acting type
Compression mode		Piston type
Overflow structure	Standard	Overflow type
	Quasi-standardization	Non overflow type
Reverse flow function		Have(Non-equilibium type)
Outer diameterof IN side tube		⌀4,⌀6,⌀5/32,⌀1/4
Ambient and Fluid Temperature		⌀4,⌀6,⌀5/32,⌀1/4
Proof pressure		1.5MPa
Max.working pressure		1.0MPa
Pressure setting range	Standard	0.05~0.7MPa
	Quasi-standardization	0.05~0.35MPa(Low pressure type)
Working Medium		Air
Environment and fluid temperature		5~60℃
Quality(ARM5SA-08-A)		33g

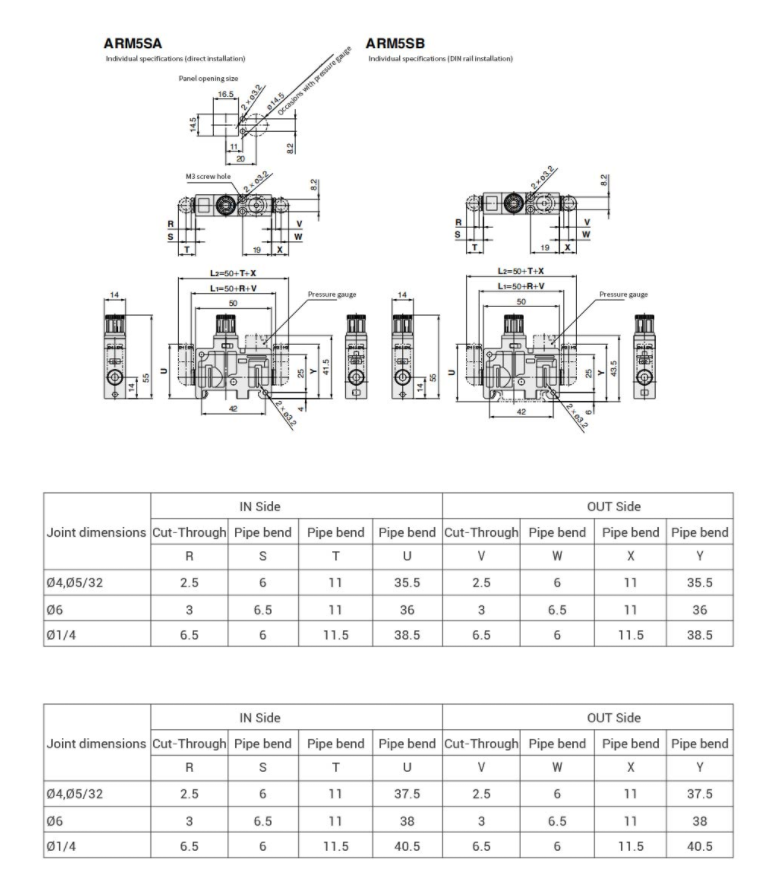

STRUCTURE

Pressure Reducing Valve

Specification Download


Production Process

Air source treatment supplier

Packing∇ivery

FAQs

How do you ensure your product and service quality?

Provide customers with "high precision, high efficiency, high-quality" products is our mission. Every product is carefully tested before packing and shipping. Our team is always here for you to contact and discuss, any questions, just feel free to let us know.
What is your sample policy?

We can offer some models sample for free, it depends on the different product type, and freight cost charge by your side. Let's get chat if have any sample comments.
How can l make payment?

We accept T/T bank transfer, Western Union, L/C, Paypal etc.
What is your minimum order quantity?

All MOQ depends on the product. Please feel free to check with us for specific items.
What about delivery time?

It depends on the product and quantities, Normal model 3-5days, as we have ability to do in stock. It need about 10-15days for big order qty.
Do you accept OEM business?

Sure. we have done rich OEM/ODM service for many domestic and international market.
What about shipping?

We accept shipment by air or express, railway and sea shipping. It depends on your order qty or any requirement. We will help give support to provide applicable shipping way for you.
What's your main products?

We produce pneumatic components, air source processing devices, pneumatic control components, pneumatic actuators, solenoid valves, pneumatic accessories and other products.
How does your factory do quality control?

We always observe high quality control system strictly, base on ISO9001 quality control procedures, we observe international AQL standard inspection, from raw material inspection-semi finished product inspection-finished products inspection-testing inspection-packing inspection.
What to do if there is a problem with the product?

We will give quick response and analyse reason of any customer complaint,we usually make replacement to customers. And we can discuss more detail depend on different requirement.

Why choose us? What can we do for you?

♦ Founded in 2011 and professional experienced in the field of producing pneumatic products for over 13+ years.
♦ We have strong production capacity, over 100000 pcs/month.
♦We have rich experience for offering OEM/ODM service
♦ We have strict quality control process with quick response of after sales service.
♦ Management system certification : ISO9001,CE, ROHS
♦ We have 10+ technical experts for researching and developing.
♦ Sales network expands from domestic sales to all over the world.
