China Manufacturer 4f210-08 Foot Pedal Valve Durable Industrial Safety Switch Throttle Valve for Fluid Control

China Manufacturer 4f210-08 Foot Pedal Valve Durable Industrial Safety Switch Throttle Valve for Fluid Control


Availability:

Quantity:



Inquiry Add to Basket

Foot Pedal Valves provide intuitive, hands-free control for pneumatic activation, enhancing operator productivity and safety. Pressure Control Valves are critical for system stability, safety, and performance, ensuring precise pressure delivery and protection against over-pressurization. Together, they form fundamental parts of reliable and efficient pneumatic power systems.

Model:
4F210
Brand:
WAALPC
Code:
8481804090

Product Description

1. Aluminum pedal, direct acting design, stable and reliable;

2. If the commutation holding time is long, the locking type can be selected;

3. The locking mechanism is stable and reliable, and the unlocking is light and fast. But due to structural size limitations, it cannot withstand frequent strong impacts;

4. Can choose to use high-strength plastic protective cover.

Technical Parameters

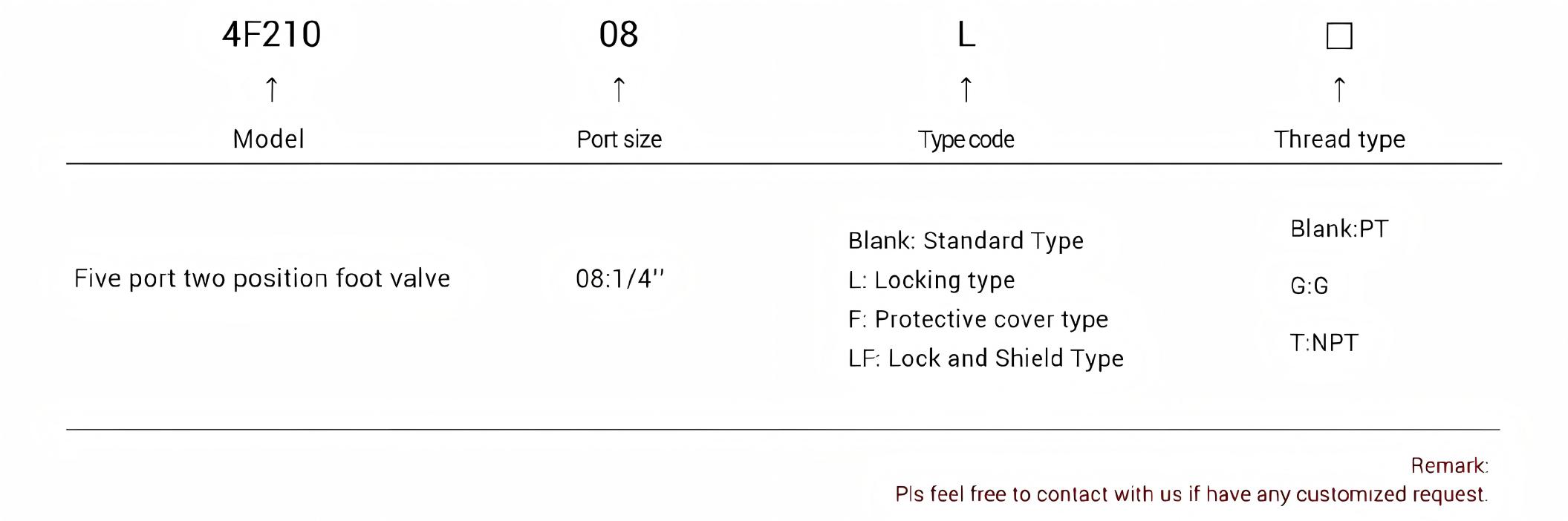

ORDERING CODE

SPECIFICATION

Model	4F210-08	4F210-08L	4F210-08F	4F210-08LF
Working medium	Air (to be filtered by 40μm filter element)
Acting mode	Foot controlled direct acting normally closed type
Port size	PT1/4
Number of positions	5 port 2 position
Operating pressure	0~1.0MPa(0~145psi)
Proof pressure	1.5MPa(215psi)
Operating Temperature	-20~70℃
Material of body	Aluminum alloy
Lubrication	Not required

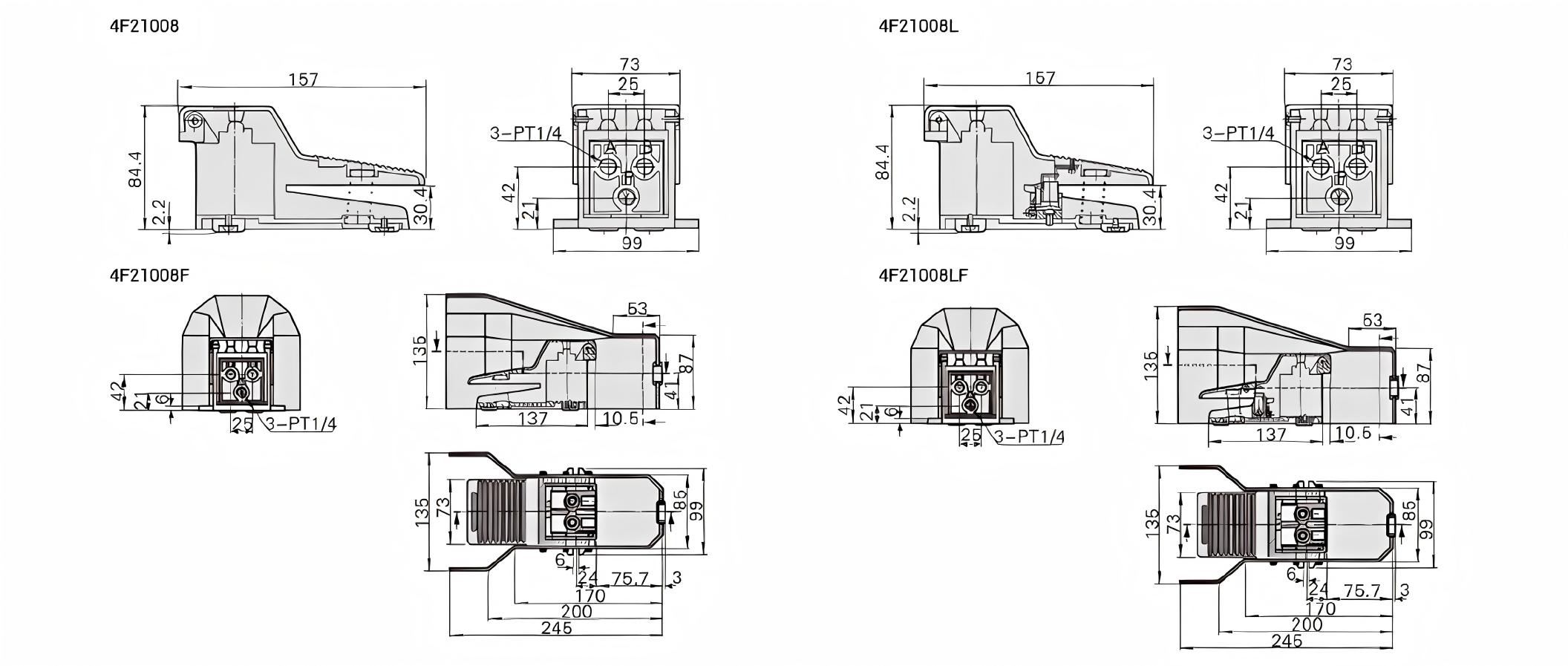

OVERALLDIMENSION&STRUCTURE

4F210 Foot Petal Valve

Specification Download

4F210 Foot Petal Valve.png
