SMC AC1010-M5 Modular FRL Unit - M5 Thread, 5μm Filtration, 0.05–0.85 MPa Pressure Regulator & Lubricator

SMC AC1010-M5 Modular FRL Unit - M5 Thread, 5μm Filtration, 0.05–0.85 MPa Pressure Regulator & Lubricator


Size:	1 2
Availability:

Quantity:



Inquiry Add to Basket

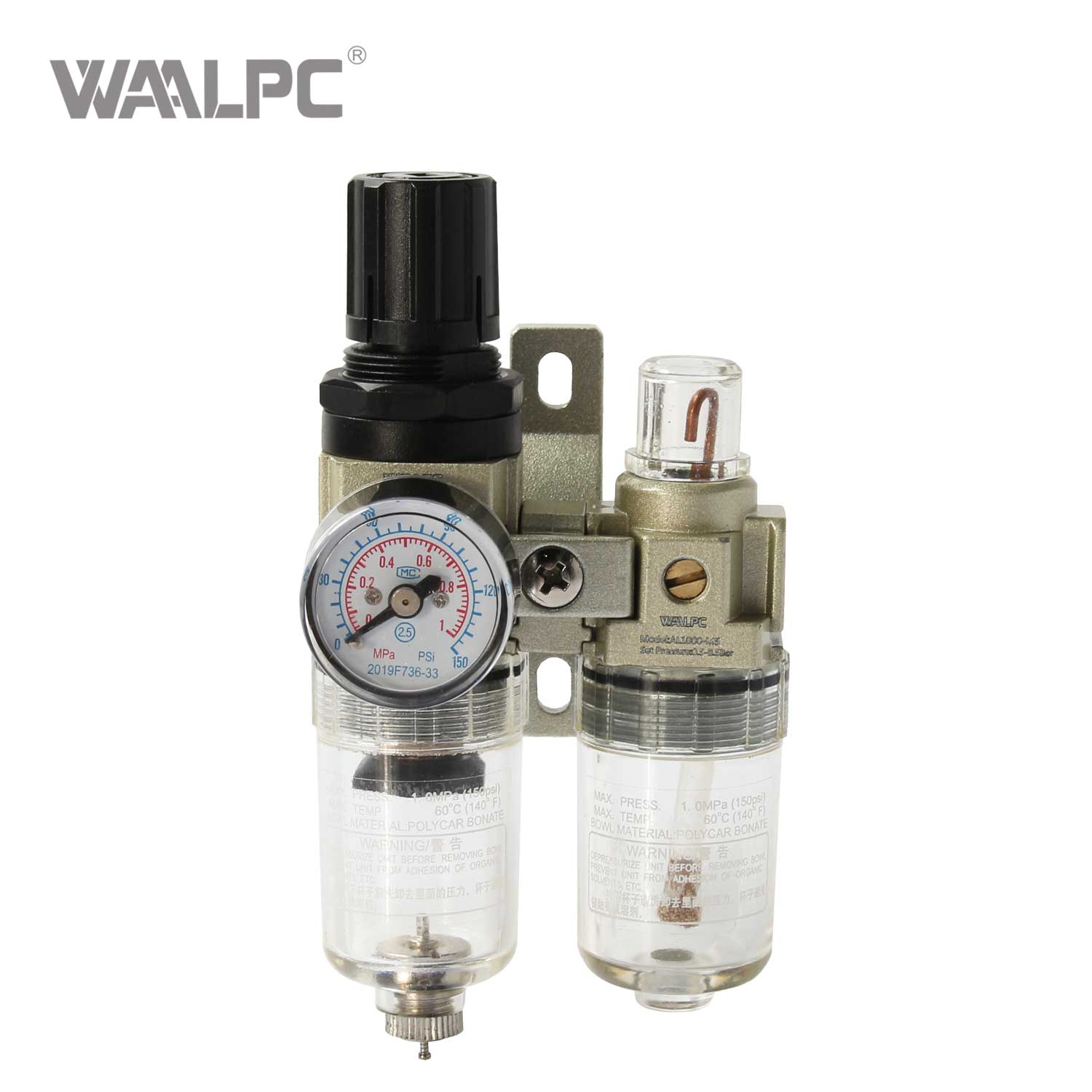

The SMC AC1010-M5 is a high-performance modular Filter-Regulator-Lubricator (FRL) unit designed to optimize compressed air quality in industrial pneumatic systems. As a compact all-in-one solution, it integrates three essential functions—filtration, pressure regulation, and lubrication—into a single, space-saving device.

Model:
AC1000-M5
Brand:
WAALPC
Code:
8421399090

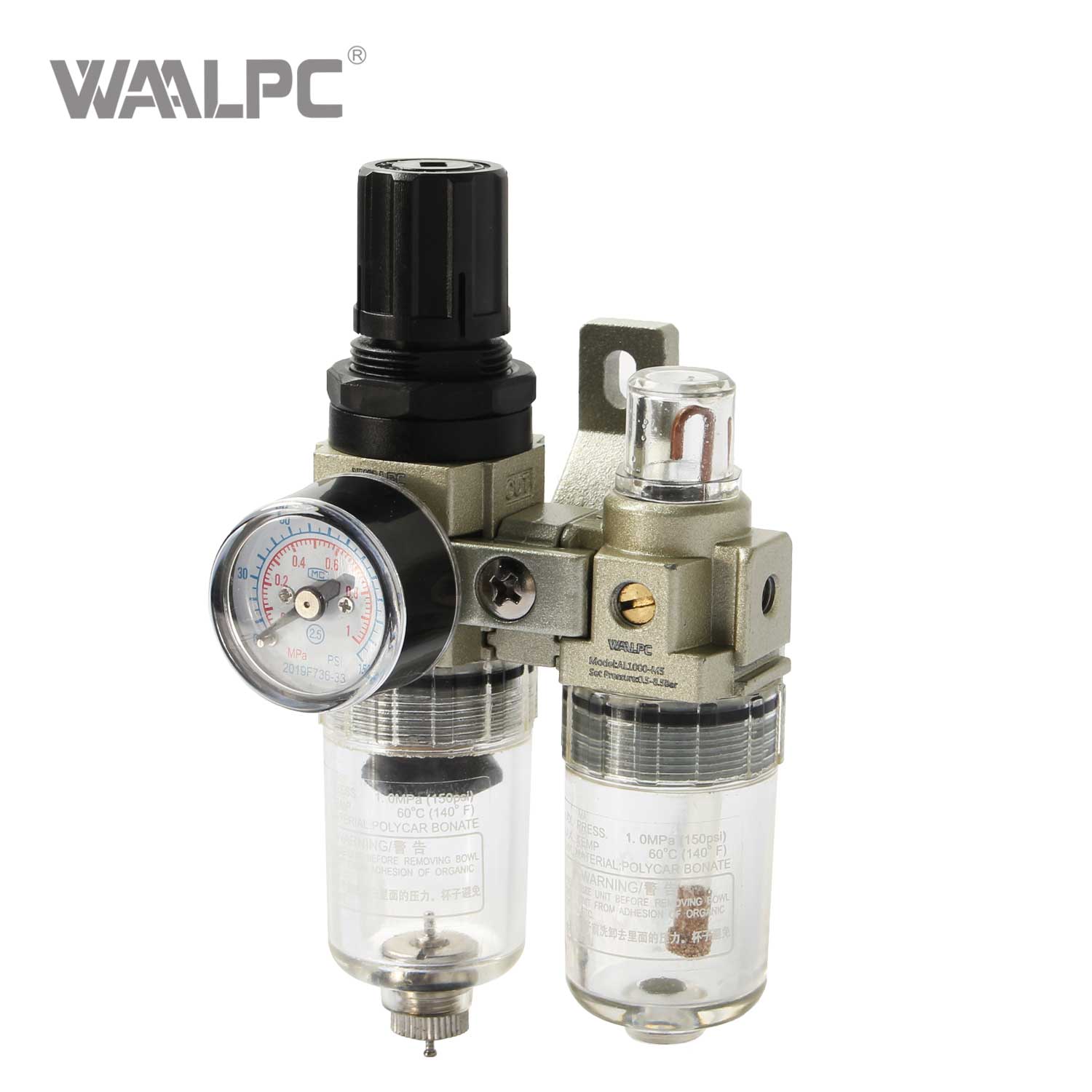

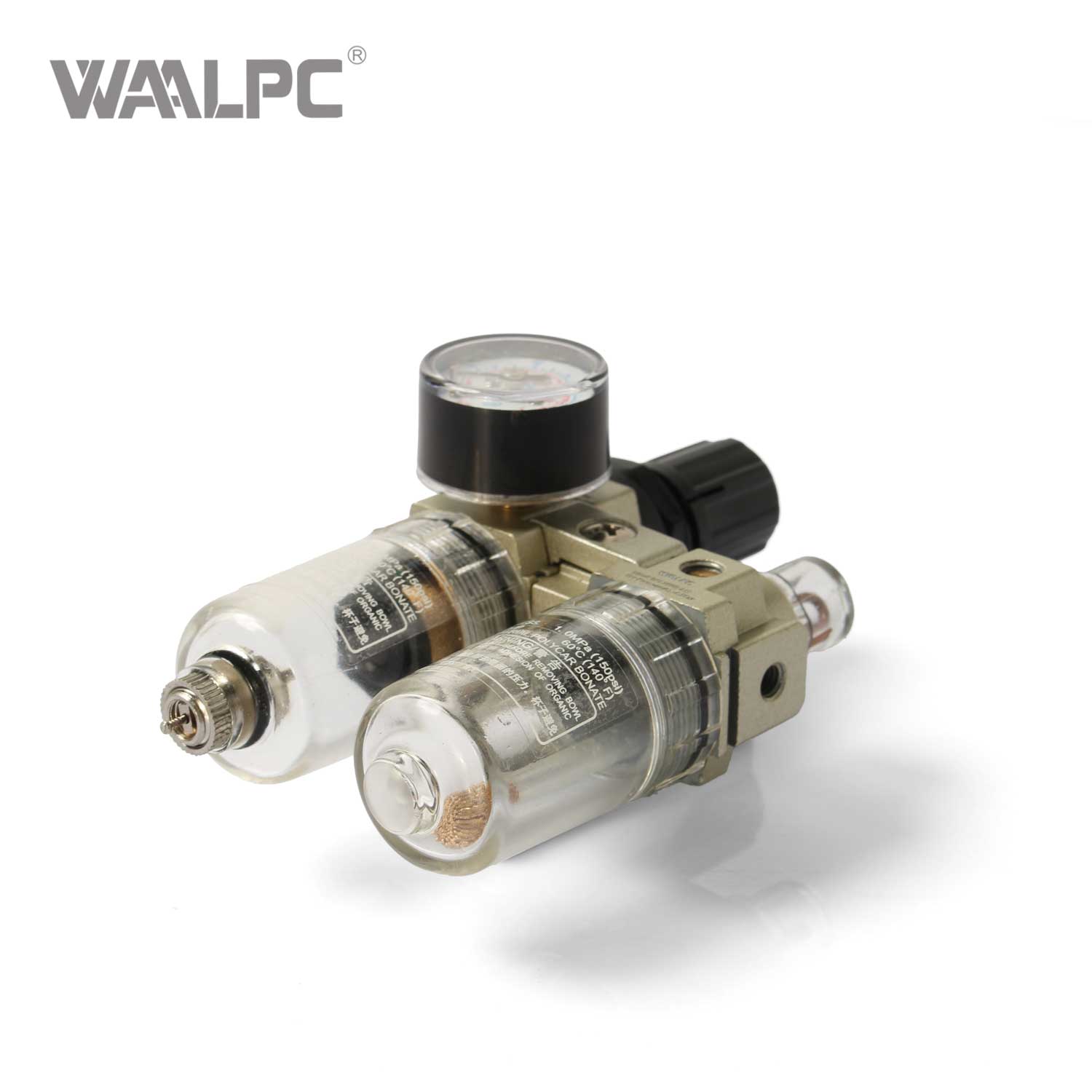

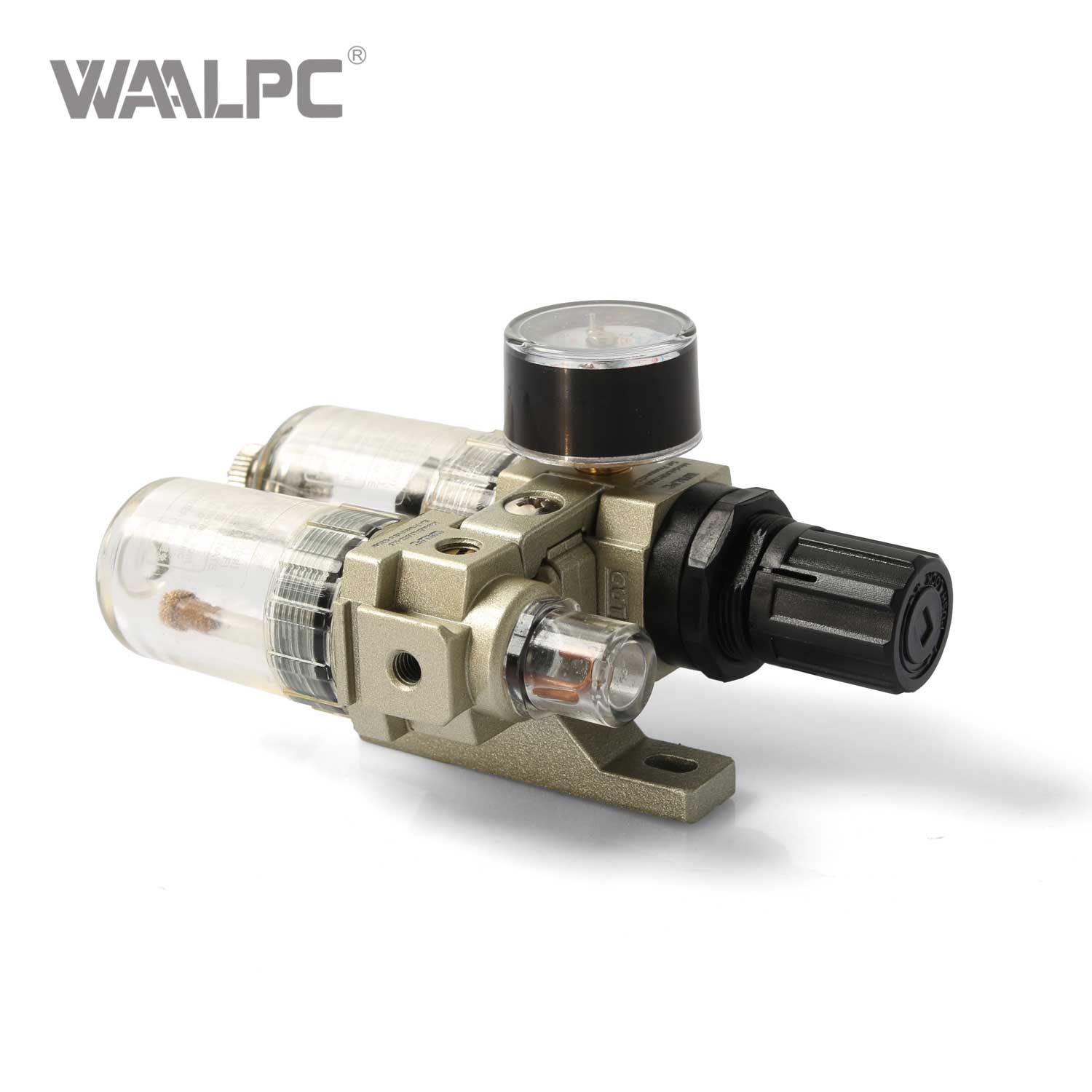

Product Description

The SMC AC1010-M5 Filter-Regulator-Lubricator (FRL) unit Advantages

The SMC Filter-Regulator-Lubricator (FRL) unit

1. Prepare air for all types of compressed air tools and equipment;

2. Compressed air with filters to remove solid particles and condensate;

3. Regulator valves accurately maintain air pressure over a wide flow range;

4. The lubricator supplies lubricating oil to the pneumatic equipment which is in operation in appropriate proportions;

5. Protect your pneumatic tools for longer lifespan.

The SMC AC1010-M5 Filter-Regulator-Lubricator (FRL) unit Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Type-name		FR.L combination
Model		AC1010-M5	AC2010-01	AC3010-02	AC3010-02	AC3010-03	AC4010-03	AC4010-04	AC4010-06	AC5010-06	AC5010-10
Port Size		M5*0.8	1/8	1/4	1/4	3/8	3/8	1/2	3/4	3/4	1
Cup Protective Cover		AW1010-2010 (W/0)	AW3010-5010 (W)
Drain Type		Manual drain, auto drain and diferential pressure drain (optional)
Grade of Filtration		5um,25um,40um
Working Medium		Air
Pressure Regulating Range		0.05-0.07MPa	0.05-0.85MPa
Max. Operating Pressure		1.0MPa (145Psi)
Pressure Resistance		1.5MPa (215Psi)
Operating temperature range		5~60℃
Filter Cup Capacity		10	15	15	20	20	45	45	45	130	130
Lubricator Cup Capacity		10	15	15	20	20	45	45	45	130	130
Recommeded Oil		Oil for turbine 1 ISOVG32
Pressure Gauge		Y40-01					Y50-02
L-type Bracket		L10	L20	L20	L30	L30	L40	L40	L50	L50	L60
Material		Housing: Aluminum die-casting molding; Container cup: PE; Protective cover: iron
Weight		400g	470g	470g	950g	950g	1810g	1810g	1910g	3150g	3150g
components	Filter&Regulator	AW1000-M5	AW2000-01	AW2000-02	AW3000-02	AW3000-03	AW4000-03	AW4000-04	AW4000-06	AW5000-06	AW5000-10
components	Lubricator	AL1000-M5	AL2000-01	AL2000-02	AL3000-02	AL3000-03	AL4000-03	AL4000-04	AL4000-06	AL5000-06	AL5000-10

STRUCTURE

frl unit

Model	Port size	A	B	C	D	E	F	G	H	J	K	L	M	N	P
AC1010	M5	58	109.5	50.5	25	26	25	29	20	4.5	7.5	5	17.5	16	38.5
AC2010	1/8-1/4	90	164.5	78	40	56.8	30	45	24	5.5	8.5	5	22	23	50
AC3010	1/4-3/8	117	211	92.5	53	60.8	41	58.5	35	7	11	7	34.2	26	70.5
AC4010	3/8-1/2	154	262	112	70	70.5	50	77	40	9	13	7	42.2	33	88
AC4010-06	3/4	164	267	114	70	70.5	50	82	40	9	13	7	46.2	36	88
AC5010	3/4-1	195	388	116	90	75.5	69.8	97.5	50	12	16	10.5	55.5	40	115
