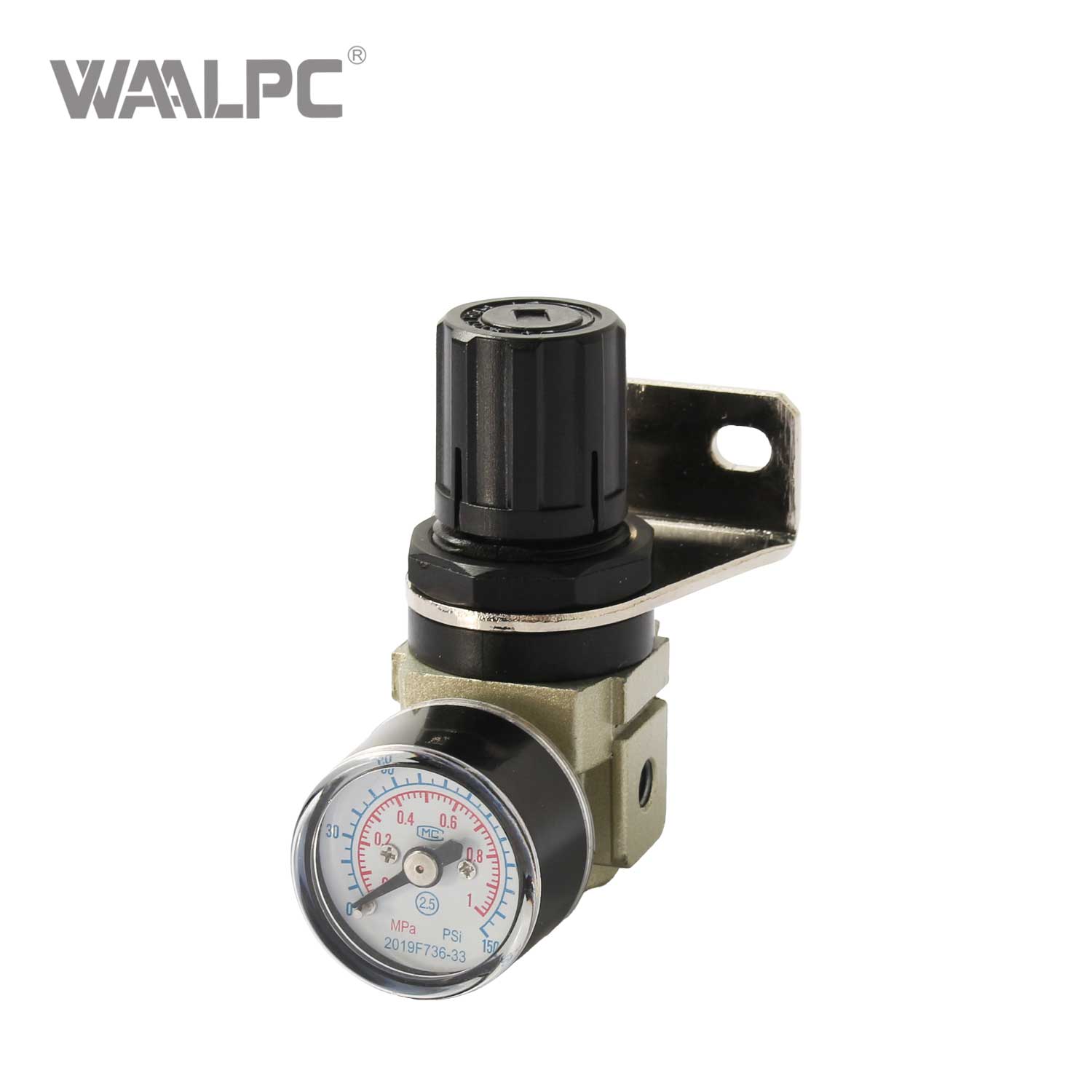

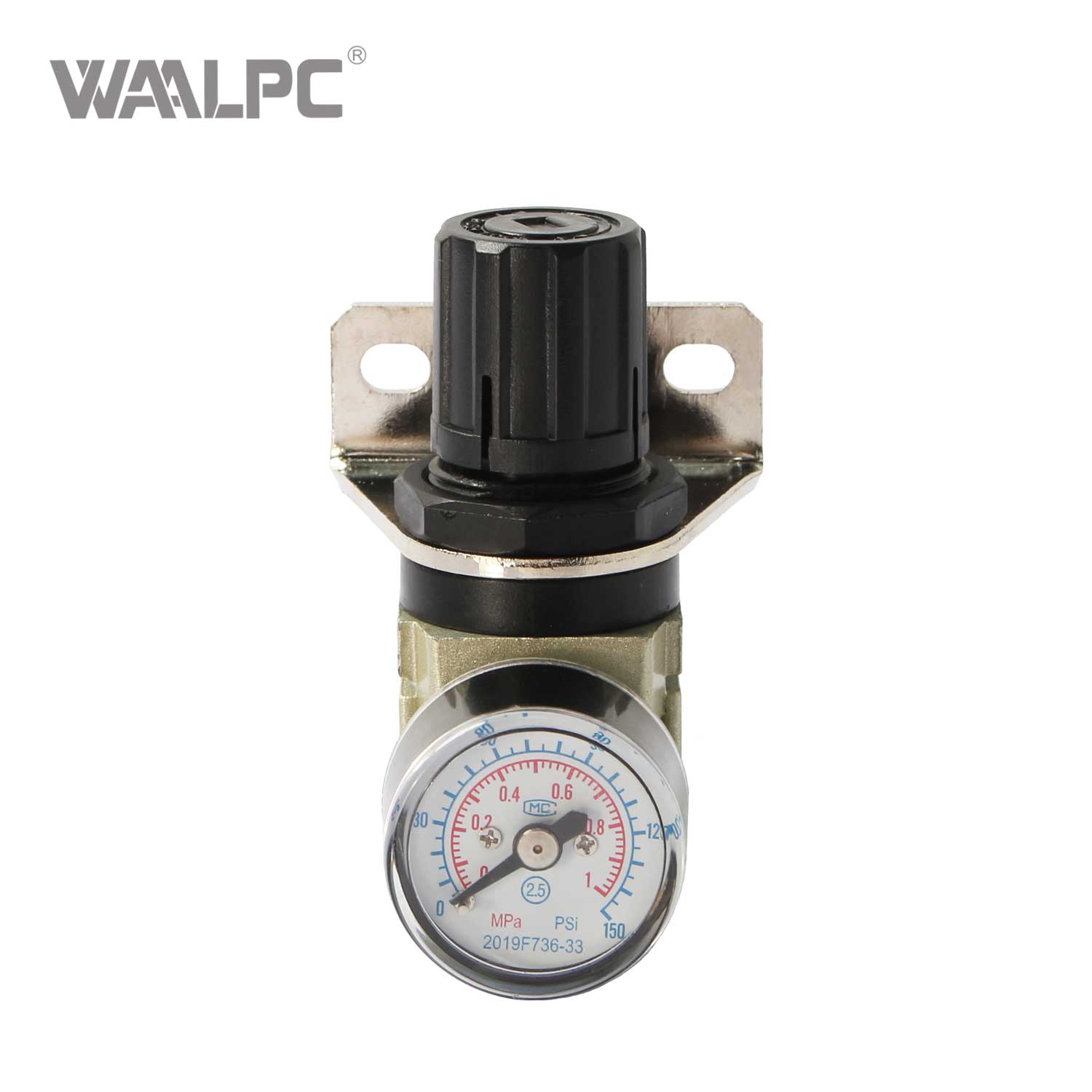

SMC AR1000-M5 Pneumatic Pressure Regulator - M5 Thread, 0.05–0.85 MPa Adjustable, Modular FRL Series, 1.5 MPa Proof Pressure, Auto-Drain for Industrial Pneumatic Systems

SMC AR1000-M5 Pneumatic Pressure Regulator - M5 Thread, 0.05–0.85 MPa Adjustable, Modular FRL Series, 1.5 MPa Proof Pressure, Auto-Drain for Industrial Pneumatic Systems


Size:	1 2
Availability:

Quantity:



Inquiry Add to Basket

The SMC AR1000-M5 Pneumatic Pressure Regulator is a precision-engineered solution designed to maintain stable and adjustable compressed air pressure in industrial pneumatic systems. As part of SMC’s modular FRL (Filter-Regulator-Lubricator) series, this regulator integrates seamlessly with filters and lubricators to ensure optimal air quality and performance for downstream components like valves, cylinders, and tools .

Model:
AR1000-M5
Brand:
WAALPC
Code:
8481100090

Product Description

The SMC AR1000-M5 Pneumatic Pressure Regulator Advantages

SMC Pressure Regulator

1. Prepare air for all types of compressed air tools and equipment；

2. Air regulator accurately maintain air pressure over a wide flowrange；

3.Protect your pneumatic tools for longer lifespan.

The SMC AR1000-M5 Pneumatic Pressure Regulator Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Type-name	Air Regulater
Model	AR1000-M5	AR2000-01	AR2000-02	AR3000-02	AR3000-03	AR4000-03	AR4000-04	AR4000-06	AR5000-06	AR5000-10
Port Size	M5*0.8	1/8	1/4	1/4	3/8	3/8	1/2	3/4	3/4	1
Working Medium	Air
Pressure Regulating Range	0.05-0.07MPa	0.05-0.85MPa
Max. Operating Pressure	1.0MPa (145Psi)
Pressure Resistance	1.5MPa (215Psi)
Operating temperature range	5~60℃
Pressure Gauge	Y40-01					Y50-02
L-type Bracket	L10	L20	L20	L30	L30	L40	L40	L50	L50	L60
Material	Aluminum die-casting molding
Weight	200g	280g	280g	460g	460g	890g	890g	940g	1200g	1200g

STRUCTURE

SMC regulator

Model	Port size	A	B	C	D	F	G	H	J	K	L	M	N
AL1000	M5	25	61.5	11	25	25	28	30	4.5	6.5	40	2	20.5
AL2000	1/8-1/4	40	95	17	40	30	34	44	5.4	15.4	55	2.3	33.5
AL3000	1/4-3/8	53	127.5	35	53	39	40	46	6.5	8	53	2.3	42.5
AL4000	3/8-1/2	70	149.5	37.5	70	49.2	54	54	8.5	10.5	70	2.3	52.5
AL4000-06	3/4	75	154	40.5	70	49.2	54	55.5	8.5	10.5	70	2.3	52.5
AL5000	3/4-1	90	168	48	90	49.2	54	62	8.5	10.5	70	2.3	52.5
