SMC AW1000-05 Pneumatic Filter Regulator - G1/8" Thread, 5μm Filtration, 0.05–0.8MPa Pressure Adjustment, Auto-Drain for Industrial Air Systems


Availability:

Quantity:



Inquiry Add to Basket

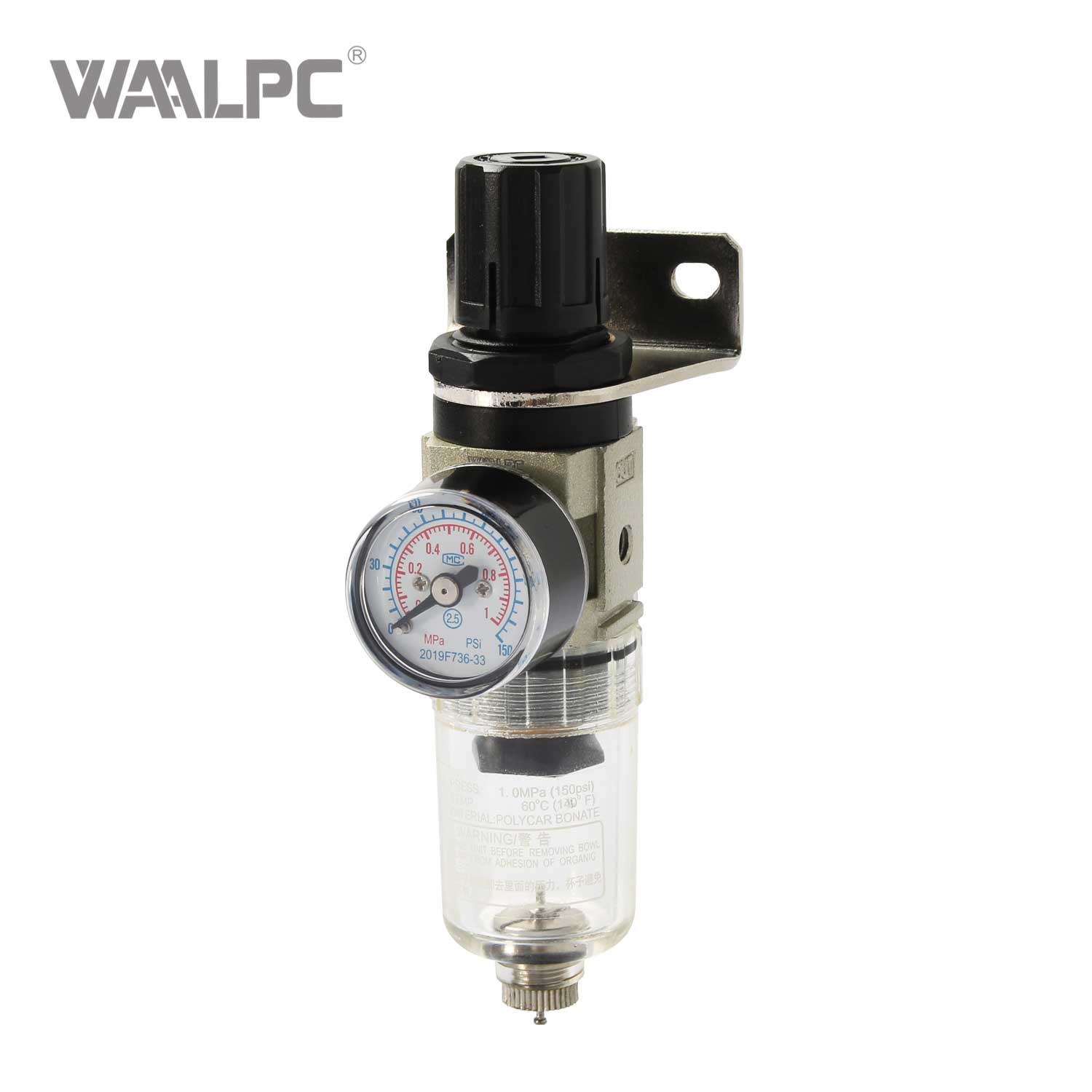

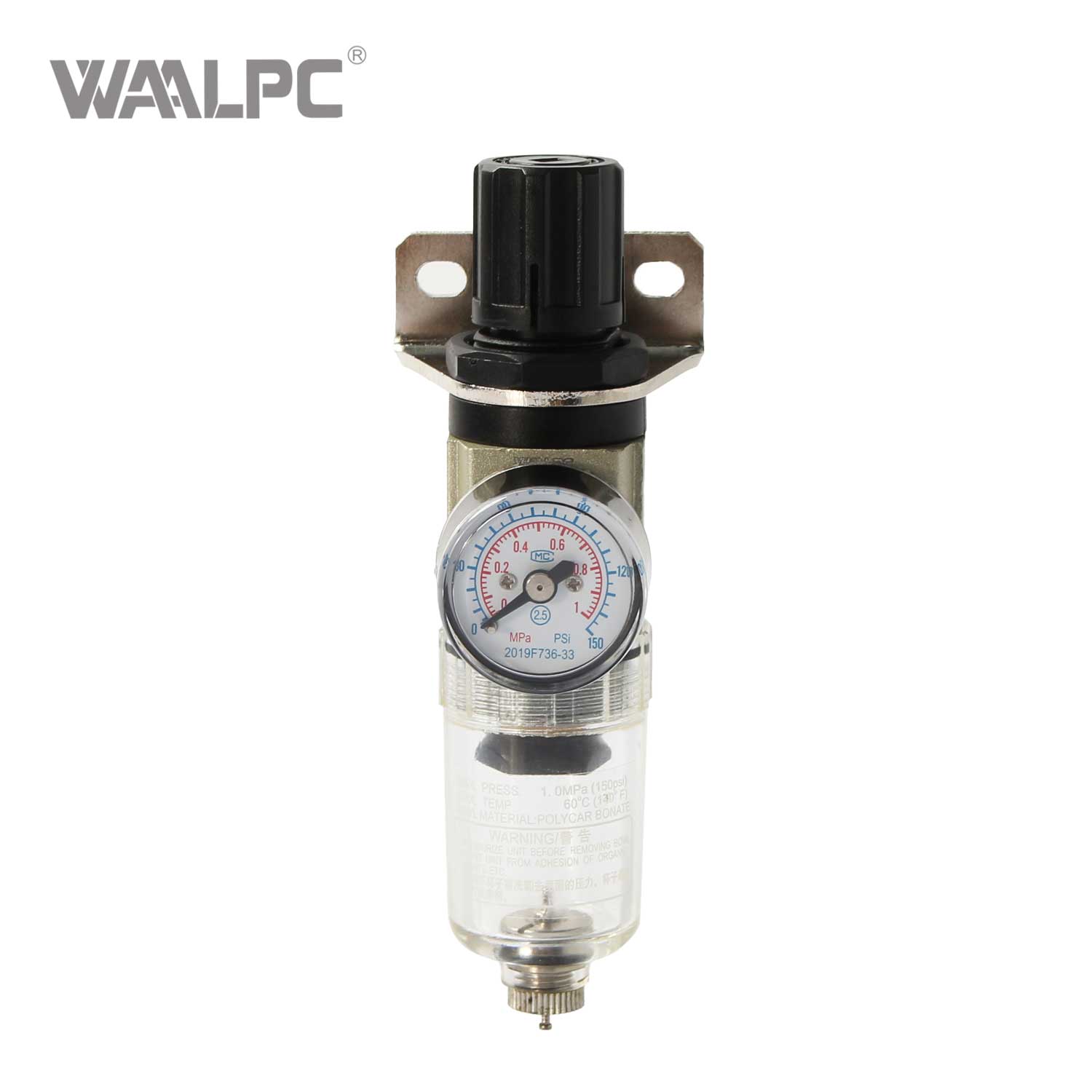

The AF1000-M5 Pneumatic Air Filter is a high-performance filtration solution designed to maintain clean and dry compressed air in pneumatic systems. Engineered with precision, this filter effectively removes solid particles, moisture, and contaminants as small as 5 micrometers, ensuring optimal performance and longevity of downstream pneumatic components such as valves, cylinders, and tools.

Model:
AW1000-M5
Brand:
WAALPC
Code:
8481804090

Product Description

1. Prepare air for all types of compressed air tools and equipment;

2. Compressed air with filters to remove solid particles and condensate;

3. Regulator valves accurately maintain air pressure over a wide flow range;

4. Protect your pneumatic tools for longer lifespan.

Technical Parameters

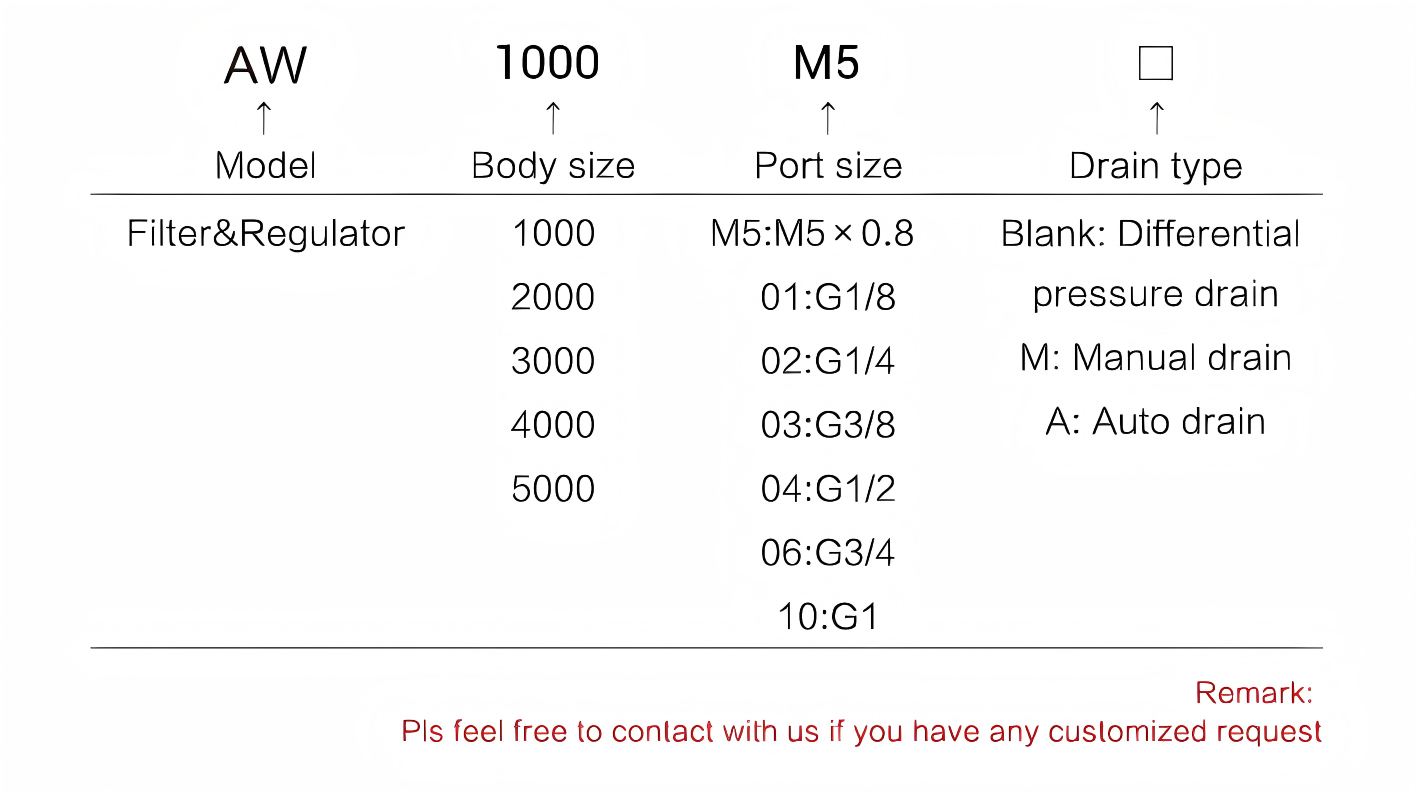

ORDERING CODE

DATA SHEET

Type-name	Filter&Regulator
Model	AW1000-M5	AW2000-01	AW3000-02	AW3000-02	AW3000-03	AW4000-03	AW4000-04	AW4000-06	AW5000-06	AW5000-10
Port Size	M5*0.8	1/8	1/4	1/4	3/8	3/8	1/2	3/4	3/4	1
Cup Protective Cover	AW1000-2000 (W/0)	AW3000-5000 (W)
Drain Type	Manual drain, auto drain and diferential pressure drain (optional)
Grade of Filtration	5um,25um,40um
Working Medium	Air
Pressure Regulating Range	0.05-0.07MPa	0.05-0.85MPa
Max. Operating Pressure	1.0MPa (145Psi)
Pressure Resistance	1.5MPa (215Psi)
Operating temperature range	5~60℃
Filter Cup Capacity	10	15	15	20	20	45	45	45	130	130
Pressure Gauge	Y40-01					Y50-02
L-type Bracket	L10	L20	L20	L30	L30	L40	L40	L50	L50	L60
Material	Housing: Aluminum die-casting molding; Container cup: PE; Protective cover: iron
Weight	300g	370g	370g	640g	640g	1260g	1260g	1310g	1890g	1890g

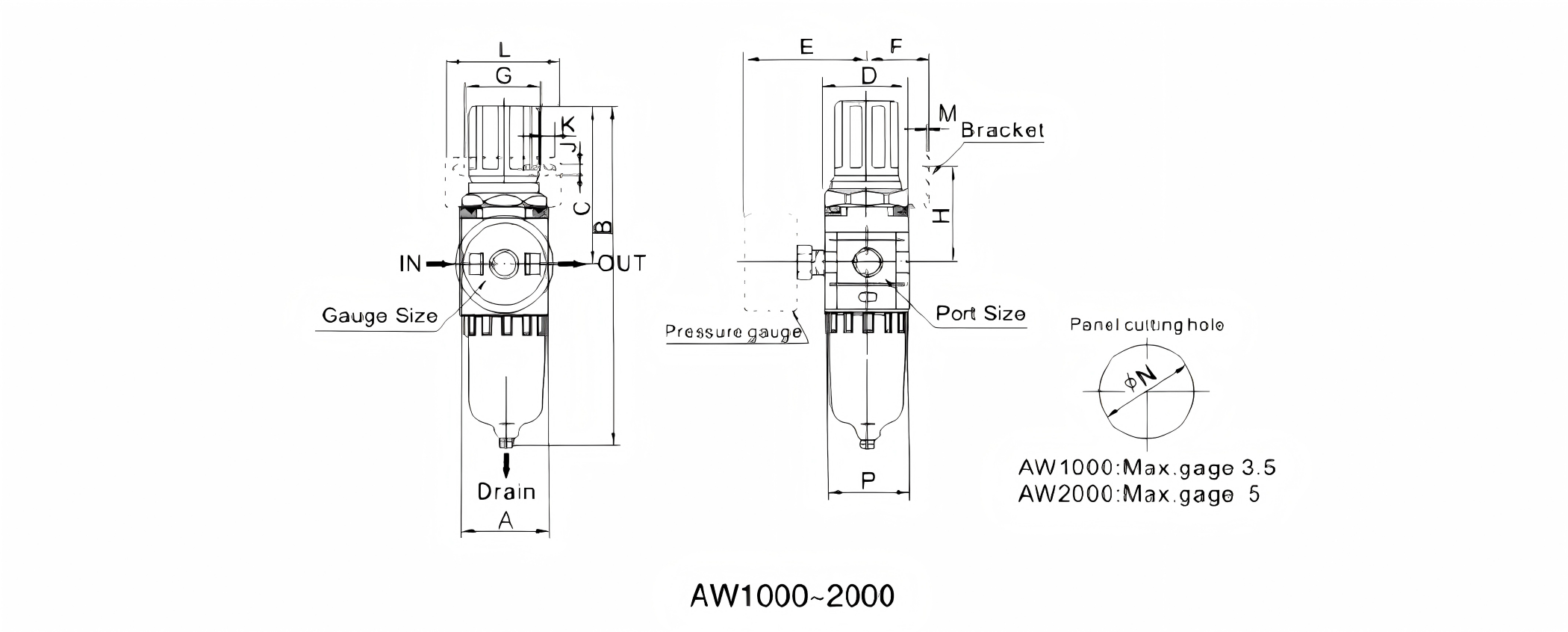

STRUCTURE

Air filter regulator

Model	Port size	A	B	C	D	E	F	G	H	J	K	L	M	N	P
AW1000	M5	25	109.5	50.5	25	26	25	28	30	4.5	6.5	40	2	20.5	28
AW2000	1/8-1/4	40	164.5	78	40	56.8	30	34	43.5	5.4	15.4	55	2.3	33.5	40
AW3000	1/4-3/8	53	211	92.5	53	60.8	39	40	46	6.5	8	53	2.3	52.5	73
AW4000	3/8-1/2	70	262	112	70	70.5	49.2	54	53	8.5	10.5	70	2.3	52.5	73
AW4000-06	3/4	75	267	114	70	70.5	49.2	54	53.2	8.5	10.5	70	2.3	52.5	73
AW5000	3/4-1	90	336	116	90	75.5	49.2	54	62	8.5	10.5	70	2.3	52.5	90
