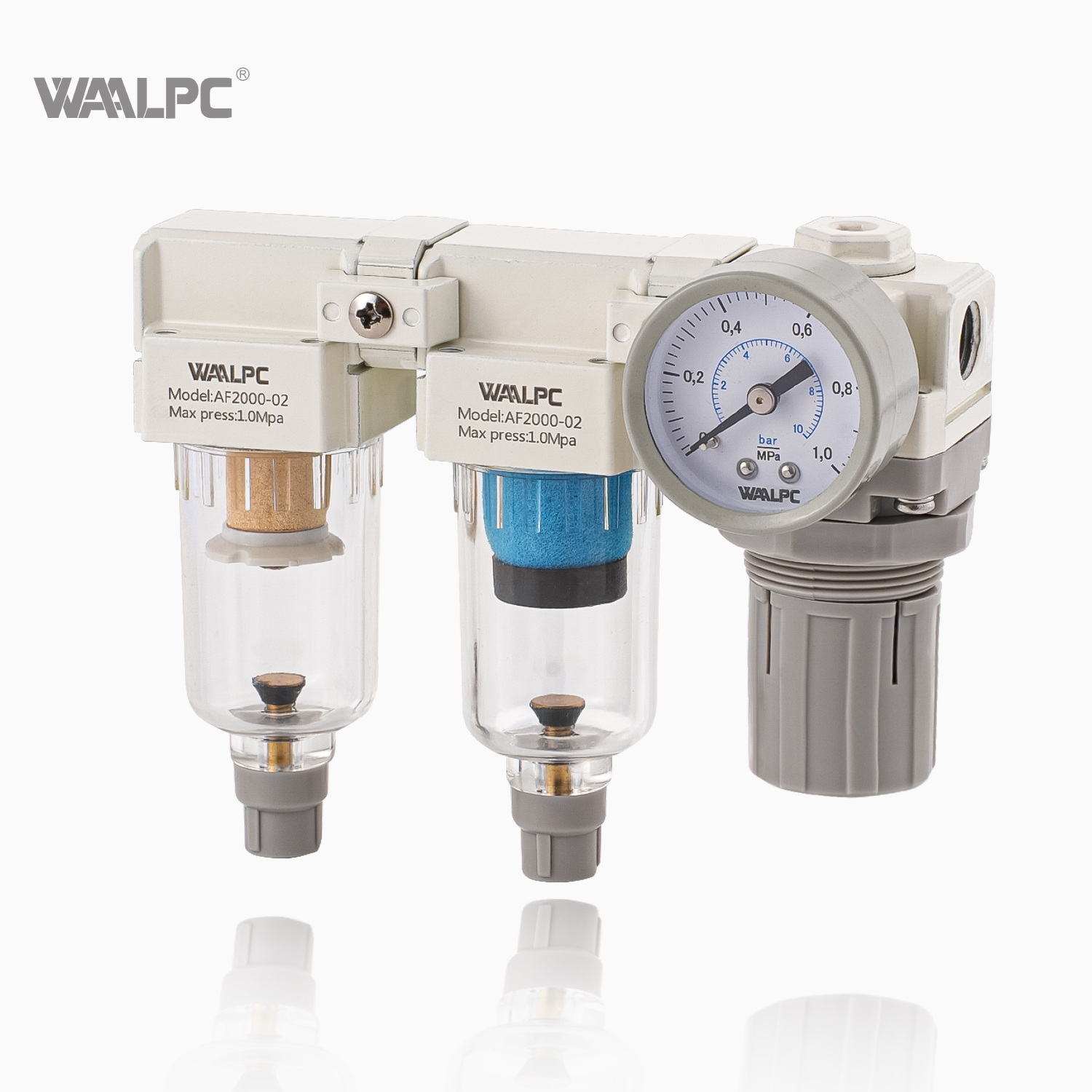

AFFR3000 China Two Filters Regulator 1/4′′ Drying System Pneumatic Air Filters Pressure Reducing Regulator for Air Compressor

Two Filters Regulator 1/4′′ 3/8'' 1/2'' Drying System Pneumatic Air Filters Pressure Reducing Regulator for Air Compressor

Two Filters Regulator 1/4′′ 3/8'' 1/2'' Drying System Pneumatic Air Filters Pressure Reducing Regulator for Air Compressor


Size:	AFFR3000 AFFR2000
Availability:

Quantity:



Inquiry Add to Basket

The air treatment device is used to process the air source from the air compressor. It includes three parts with different functions: an air filter for filtering dirt and particles in the air source, a regulator for adjusting the air source pressure, and a lubricator for oil lubrication.

Model:
AFFR2000/3000
Brand:
WAALPC
Code:
8421399090

Product Description

1. Prepare air for all types of compressed air tools and equipment.

2. Compressed air with filters to remove solid particles and condensate.

3. Regulator valves accurately maintain air pressure over a wide flow range.

Technical Parameters

ORDERING CODE

AFFR Drying system

DATA SHEET

Type-name		F.R.L combination
Model		AFFR2000-01	AFFR2000-02	AFFR3000-02	AFFR3000-03	AFFR4000-03	AFFR4000-04	AFFR4000-06	AFFR5000-06	AFFR5000-10
Port Size (G)		1/8	1/4	1/4	3/8	3/8	1/2	3/4	3/4	1
Cup Protective Cover		AFFR2000（W/O）		AFFR3000-5000（ W）
Drain Type		Manual drain, auto drain and differential pressure drain (optional)
Grade of Filtration		0.01µm, 5µm, 40µm
Working Medium		Air
Pressure Regulating Range		0.05 - 0.85MPa(125Psi)
Max. Operating Pressure		1.0MPa(145Psi)
Pressure Resistance		1.2MPa(215Psi)
Operating Temperature Range		-5-60 ℃
Pressure Gauge		Y40-01				Y50-02
Material		Housing: Aluminum die-casting molding; Container cup: PE; bowl guard: iron
Components	Filter	AF2000-01	AF2000-02	AF3000-02	AF3000-03	AF4000-03	AF4000-04	AF4000-06	AF5000-06	AF5000-10
	Regulator	AR2000-01	AR2000-02	AR3000-02	AR3000-03	AR4000-03	AR4000-04	AR4000-06	AR5000-06	AR5000-10
	Filter	AF2000-01	AF2000-02	AF3000-02	AF3000-03	AF4000-03	AF4000-04	AF4000-06	AF5000-06	AF5000-10

SMC AFFR Drying System

STRUCTURE

Model	Port size	Dimension(mm)
Model	Port size	A	B	C	D	E	F	G	H	I
AFFR2000-02	1/4	14	9	10	1.9	5	8	6.5	3.5	4
AFFR3000-03	3/8	18	12	16	4.3	6.3	9.5	8	4.7	5.3
AFFR4000-04	1/2	24	15	16.5	4.4	8.5	10.5	10.5	6.3	7
AFFR4000-06	3/4	25.3	15.5	17	4.4	8.8	11	11	6.7	7
AFFR5000-10	1	30	17	24.5	4.4	10.5	15	12.5	8	9

Specification Download

AFFR Drying System.pdf
