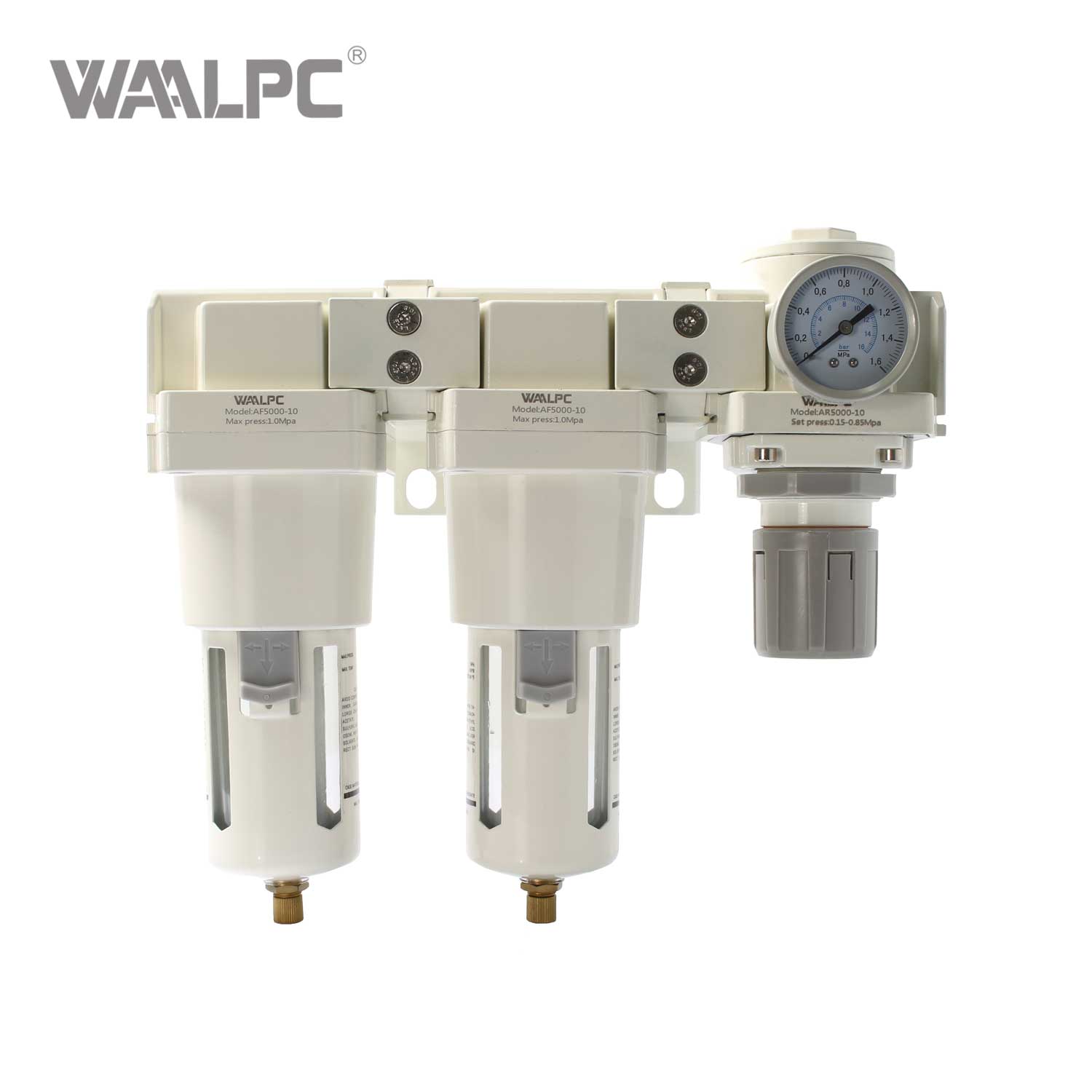

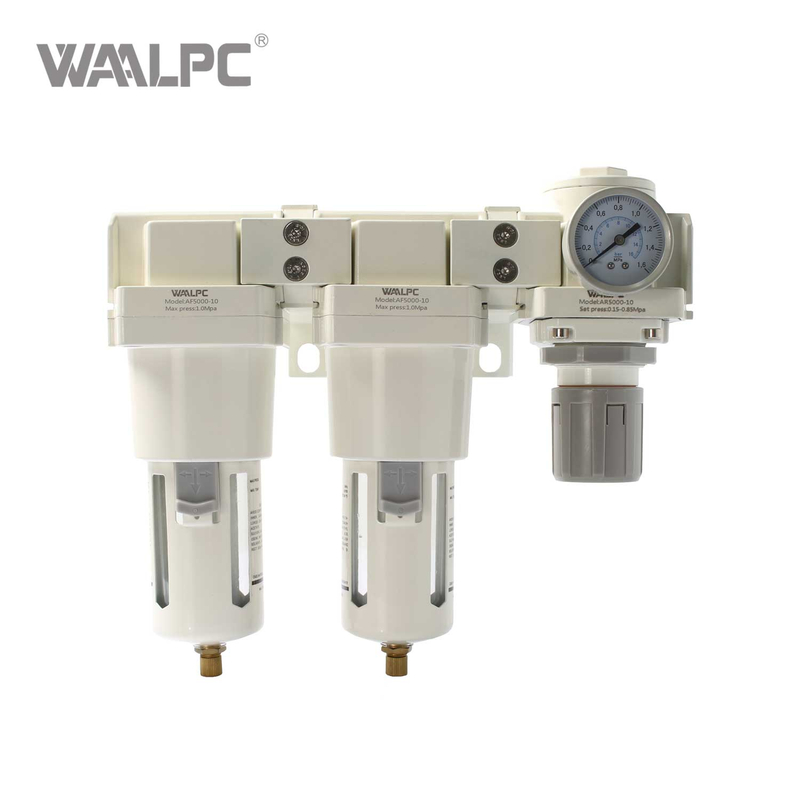

SMC F.R.L Combination Lubricator Pneumatic Air Source Treatment Unit Dual Filter Regulator & Drying System with Auto Drain And Multi-Pressure Adjustment for Air Compressors


Size:	1 2
Availability:

Quantity:



Inquiry Add to Basket

Airtac F.R.L Combination Lubricator is a highly integrated air preparation solution designed to deliver clean, dry, and pressure-stabilized air for industrial compressed air systems. Ideal for protecting pneumatic equipment from contaminants and fluctuations, this unit ensures optimal performance and longevity of downstream machinery.

Model:
AFFR5000-10
Brand:
WAALPC
Code:
8419399090

Product Description

Airtac F.R.L Combination Lubricator Advantages

Drying system

1. Smart Pressure Regulation

Adjustable regulator with multi-pressure range (0.05–0.85 MPa). Maintains stable output pressure for consistent equipment performance, reducing energy waste and preventing pressure-related failures.

2. Integrated Drying System

Built-in moisture separation and drying technology. Lowers dew point to precondensation in pipelines, extending tool lifespan and ensuring reliable operation in humid environments.

3. Automatic Float Drain

Zero-maintenance auto-drain valve for condensate removal. Eliminates manual draining, reducing downtime and labor costs while preventing water buildup and system damage.

4. Plug-and-Play Installation

Modular design with pre-assembled components. Simplifies integration into existing compressed air systems, cutting setup time by 50% and minimizing training costs.

Airtac F.R.L Combination Lubricator Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Type-name	F.R.L combination
Model	AFFR2000-01	AFFR2000-02	AFFR3000-02	AFFR3000-03	AFFR4000-03	AFFR4000-04	AFFR4000-06	AFFR5000-06	AFFR5000-10
Port Size(G)	1/8	1/4	1/4	3/8	3/8	1/2	3/4	3/4	1
Drain Type	Manual drain, auto drain and differential pressure drain (optional)
Grade of Filtration	0.0.1um, 5um, 40um
Working Medium	Air
Pressure Regulating Range	0.05~0.85MPa(125Psi)
Max. Operating Pressure	1.0MPa(145Psi)
Pressure Resistance	1.2MPa(215Psi)
Operating Tempreture Range	-5~60℃
Pressure Gauge	Y40-01				Y50-02
Material	Housing: Aluminum die-casting molding; Container cup: PE; Bowl guard: iron

Components
Filter	AF2000-01	AF2000-02	AF3000-02	AF3000-03	AF4000-03	AF4000-04	AF4000-06	AF5000-06	AF5000-10
Regulator	AR2000-01	AR2000-02	AR3000-02	AR3000-03	AR4000-03	AR4000-04	AR4000-06	AR5000-06	AR5000-10
Filter	AF2000-01	AF2000-02	AF3000-02	AF3000-03	AF4000-03	AF4000-04	AF4000-06	AF5000-06	AF5000-10

STRUCTURE

Airtac F.R.L Combination Lubricator

DIMENSION(MM)

Model	Port size	Dimension(mm)
Model	Port size	A	B	C	D	E	F	G	H	I
AFFR2000-02	1/4	14	9	10	1.9	5	8	6.5	3.5	4
AFFR3000-03	3/8	18	12	16	4.3	6.3	9.5	8	4.7	5.3
AFFR4000-04	1/2	24	15	16.5	4.4	8.5	10.5	10.5	6.3	7
AFFR4000-06	3/4	25.3	15.5	17	4.4	8.5	10.5	10.5	6.3	7
AFFR5000-10	1	30	17	24.5	4.4	10.5	15	12.5	8	9

Specification Download

AFFR.pdf
