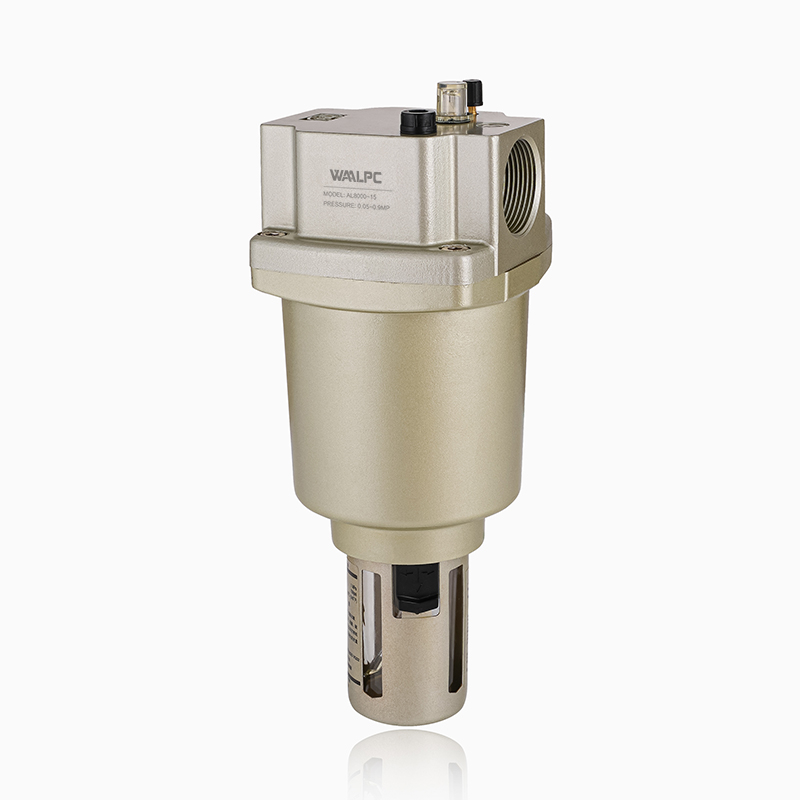

Air Pressure Regulator Valve Trap Lubricator 1-1/2'' NPT High Flow Frl Moisture Oil Separator for Pneumatic Equipment

Air Pressure Regulator Valve Trap Lubricator 1-1/2'' NPT High Flow Frl Moisture Oil Separator for Pneumatic Equipment


Size:	1-1/2 2
Availability:

Quantity:



Inquiry Add to Basket

The High-Flow Lubricator is a pneumatic component designed to inject a precise and controlled mist of oil into high-volume compressed air systems. Its primary function is to ensure the proper lubrication of a large number of pneumatic components—such as valves, cylinders, and air tools—that operate under high air consumption conditions. This reduces friction, prevents wear and corrosion, and significantly extends the service life of downstream equipment.

Model:
AL800-15
Brand:
WAALPC
Code:
8421999000

Product Description

1. Large diameter, large flow, pressure reduction without reducing flow.

2. Internal pilot and overflow ventilation holes4. High pressure, corrosion, high&low temperature ,acid and alkali resistant.

3. Reduce starting resistance: Oil mist can reduce the starting resistance of pneumatic components and improve system efficiency.
4. Improve sealing performance: Oil mist can improve the lubrication of seals and improve sealing performance.
5. Good lubrication effect: oil mist can evenly adhere to the surface of pneumatic components, forming an oil film, which plays the role of lubrication, rust prevention and wear prevention.
6. Save lubricating oil: Compared with the traditional dripping lubrication method, oil mist lubrication can greatly reduce the consumption of lubricating oil and reduce production costs.
7. Extend the service life of equipment: Through effective lubrication, the service life of pneumatic equipment can be extended.
8. Improved equipment efficiency: Clean air improves the efficiency of equipment operation.
9. Port size optional: Thread G/PT/NPT available, 1-1/2'', 2''.

Technical Parameters

DATA SHEET

Type- name	Air Lubricator

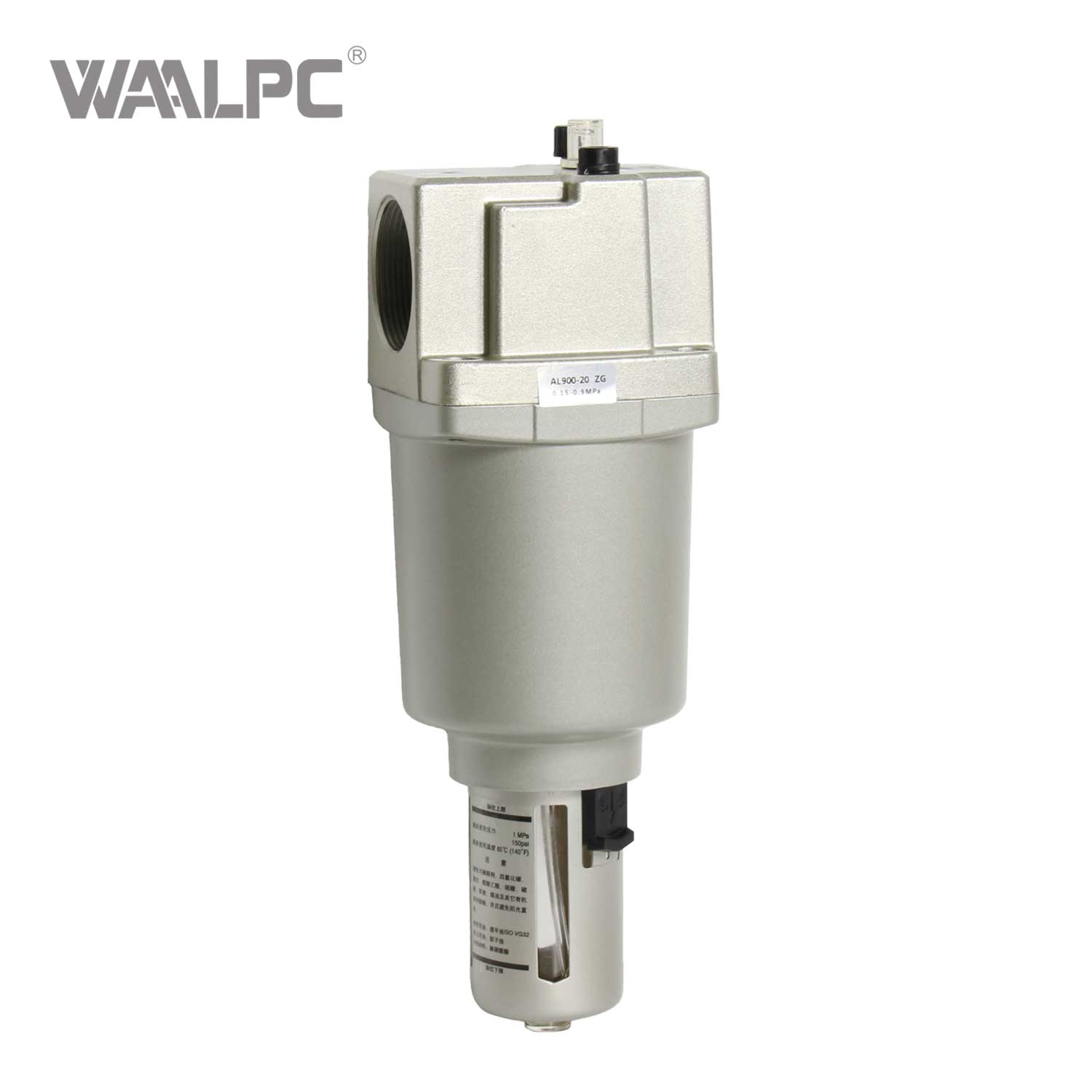

Model	AL800-15	AL900-20
Port Size	G1 1/2	G2
Working medium	Air
Max. operating pressure	1.0MPa
Pressure resistance	1.5MPa
Operating temperature range	-5~60℃ (No freezing)
Recommended lubricant	Turbine oil Class 1, ISO VG32
Bowl material	Polycarbonate
Bowl capacity (cm3)	380 (Capacity between levels 350)
Min. operating flow (L/min (ANR)	650L/min	1800L/min
Weight	1560g	1780g

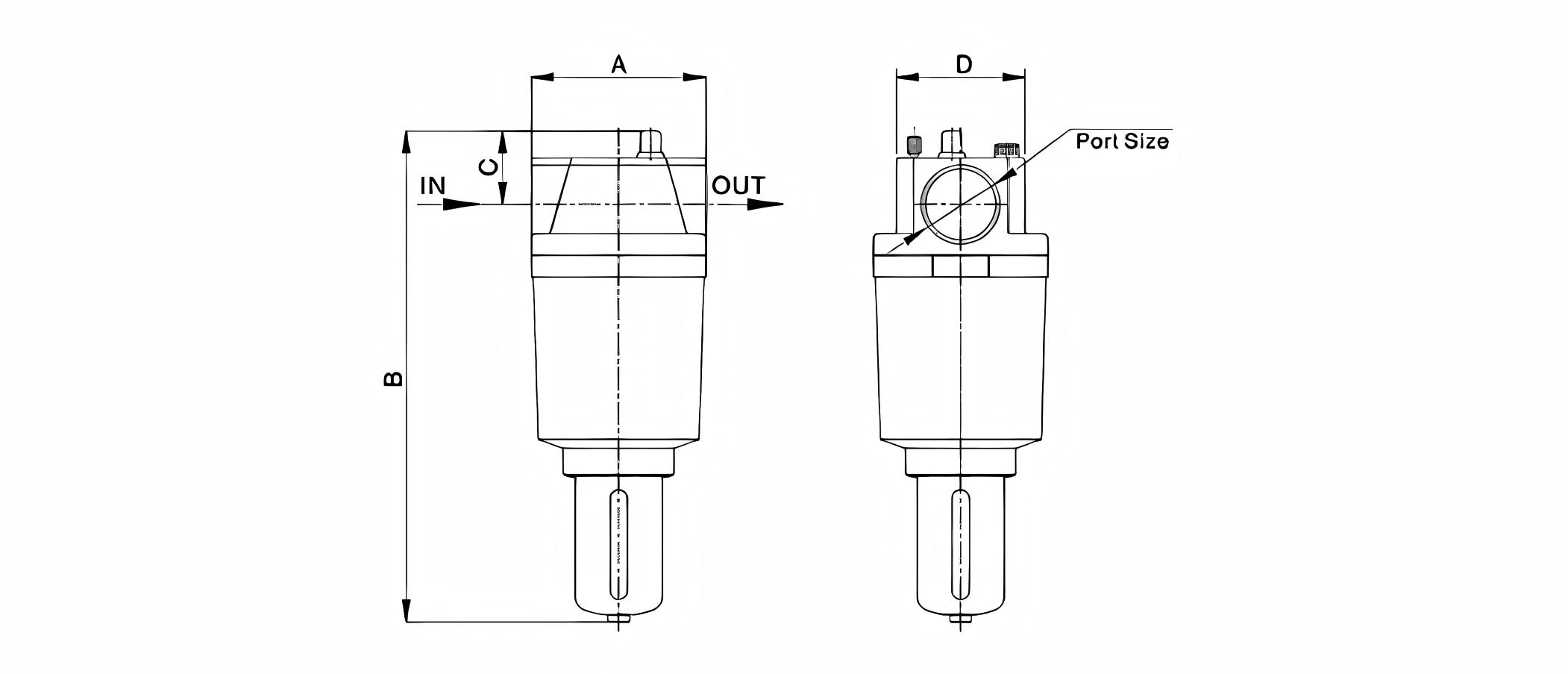

STRUCTURE

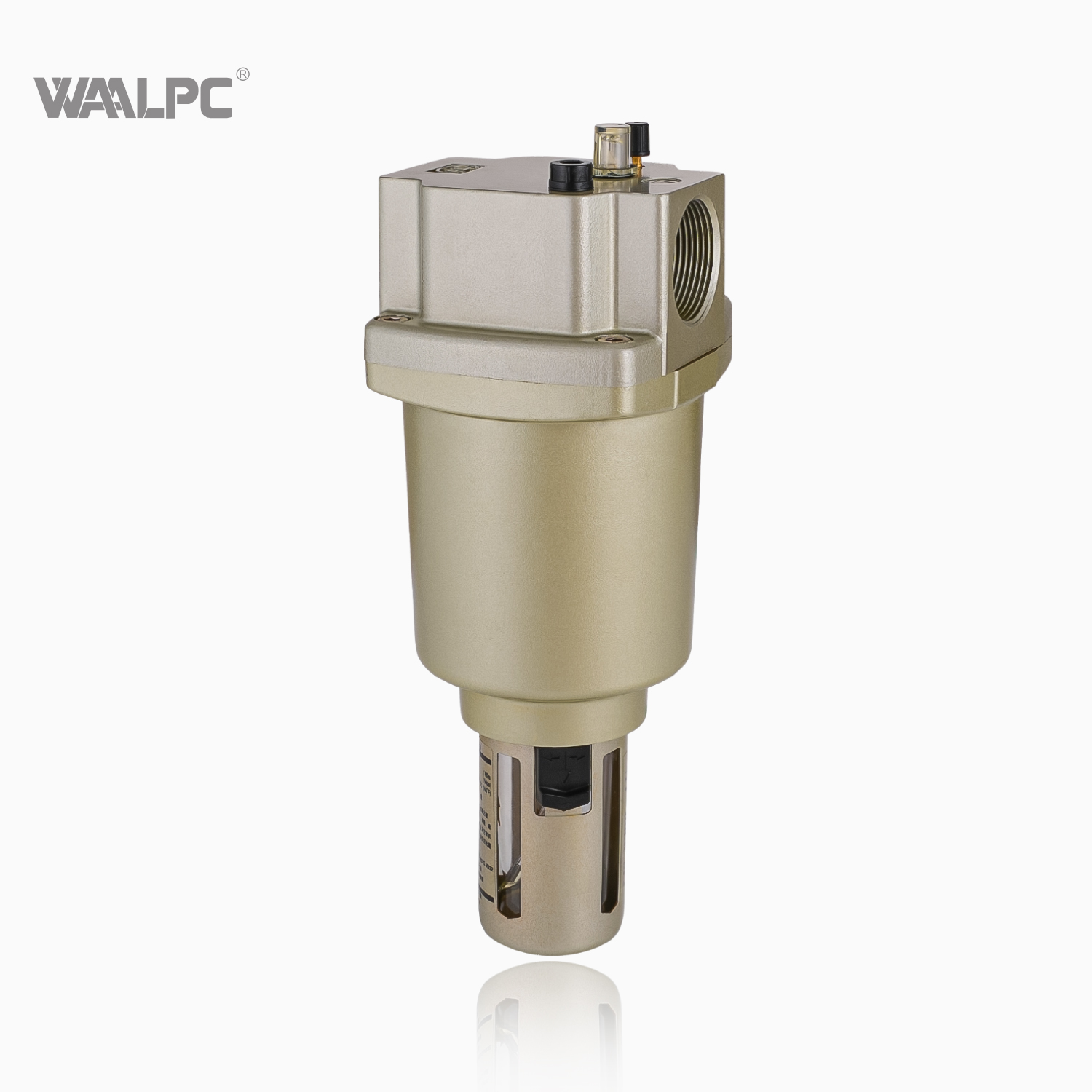

High flow AL800-15 size

DIMENSION(MM)

Model	Port size	Dimension(mm)
Model	Port size	A	B	C	D
AL800-15	1 1/2	120.5	318	47	91
AL900-20	2	120.5	338	58	91

Specification Download

High Flow Air Source Treatments.pdf
