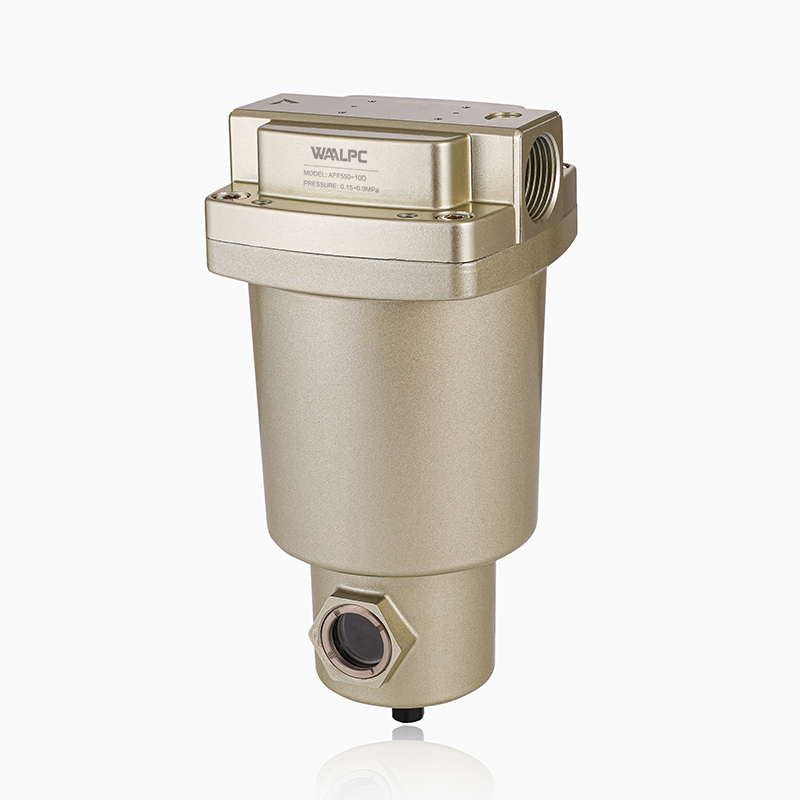

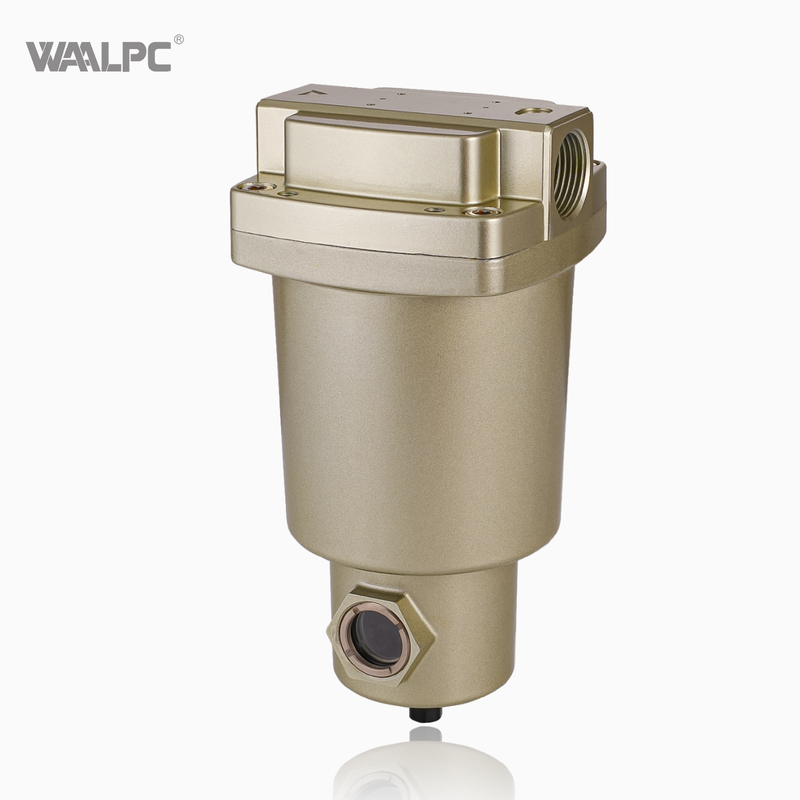

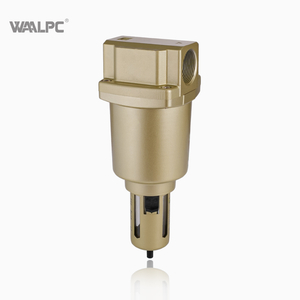

Air Pressure Valve Regulator Filter 1/2'' 1'' 1-1/2'', NPT/PT/G Diecast Aluminium High Flow Compressed Auto Drain for Indurstry

Air Pressure Valve Regulator Filter 1/2'' 1'' 1-1/2'', NPT/PT/G Diecast Aluminium High Flow Compressed Auto Drain for Indurstry


Availability:

Quantity:



Inquiry Add to Basket

The High-Flow Filter is a pneumatic component specifically engineered to remove contaminants—such as solid particles, liquid water, and oil aerosols—from compressed air in systems with very high air consumption. It is characterized by a large filtration surface area and optimized internal design to handle substantial volumetric flow rates while maintaining a minimal pressure drop, ensuring energy efficiency and protecting downstream equipment.

Model:
AFF
Brand:
WAALPC
Code:
8421999000

Product Description

1. Large diameter, large flow, pressure reduction without reducing flow.

2. Internal pilot and overflow ventilation holes.

3. Small pressure loss,high efficiency of water separation

4. Rubber part made up of HHBR material.

5. The filter precision includes 5µm 25µm and 40µm(optional).

6. Extend the life of the equipment: Filter out particles in the air, reduce wear and tear on the equipment, and extend the life of the equipment.
7. Improved equipment efficiency: Clean air improves the efficiency of equipment operation.
8. Stable output pressure: The pressure regulating valve can accurately adjust the output pressure to ensure the normal operation of downstream equipment.
9. Improve system reliability: Through purification and lubrication, the wear of pneumatic components is reduced and the reliability of the system is improved.
10. High pressure regulation accuracy: It can accurately adjust the output pressure to ensure the normal operation of downstream equipment.
11. Reduced Maintenance: Pneumatic components will need less maintenance due to reduced wear and corrosion.
12. Port size available: 1-1/2'', 2'', 3''.

13. High pressure, corrosion, high&low temperature ,acid and alkali resistant.

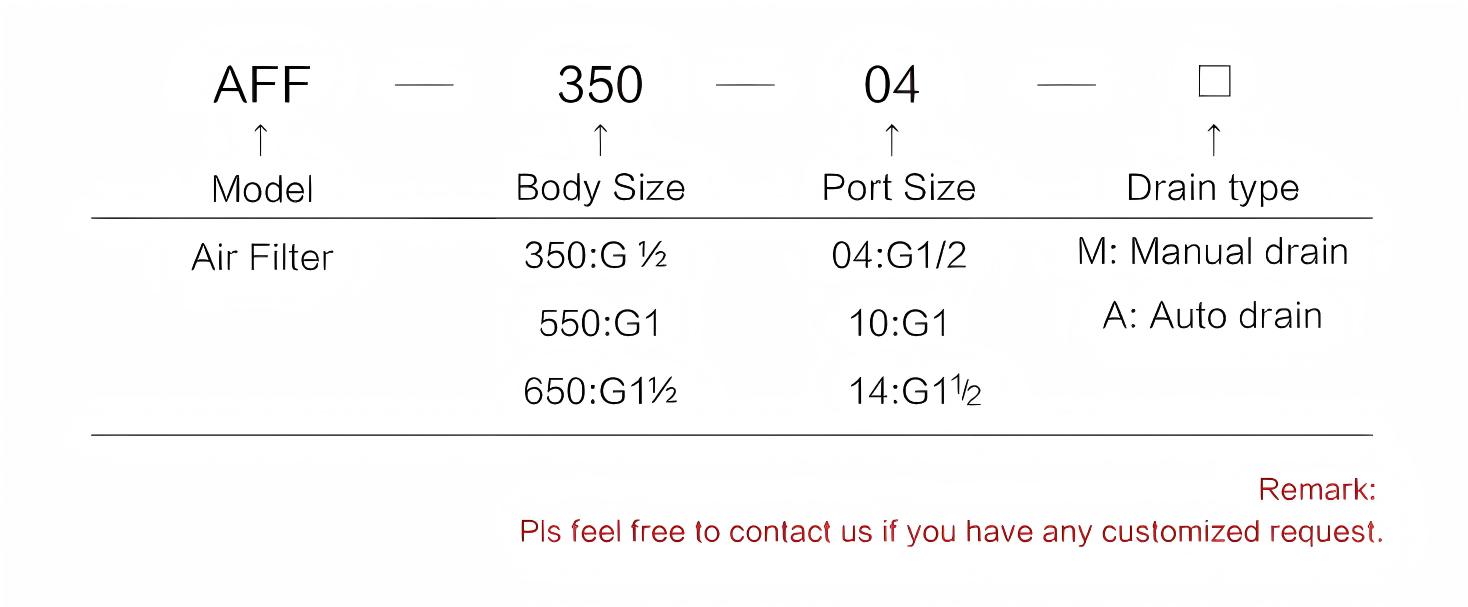

Technical Parameters

DATA SHEET

Type name	Air Filter
Model	AFF350-04	AFF550-10	AFF650-14
Port Size	G 1/2	G1	G1 1/2
Working medium	Air
Max. operating pressure	1.0MPa
Pressure resistance	1.5MPa
Operating temperature range	-5~60℃ (No freezing)
Grade of Filtration	3 µm (Filtration efficiency: 99%)
Pressure gauge port size	2 years (1year when pressure drop reached 0.1 MPa)
Related flow	1500L/min	3700L/min	6000L/min
Weight	900g	2100g	4200g

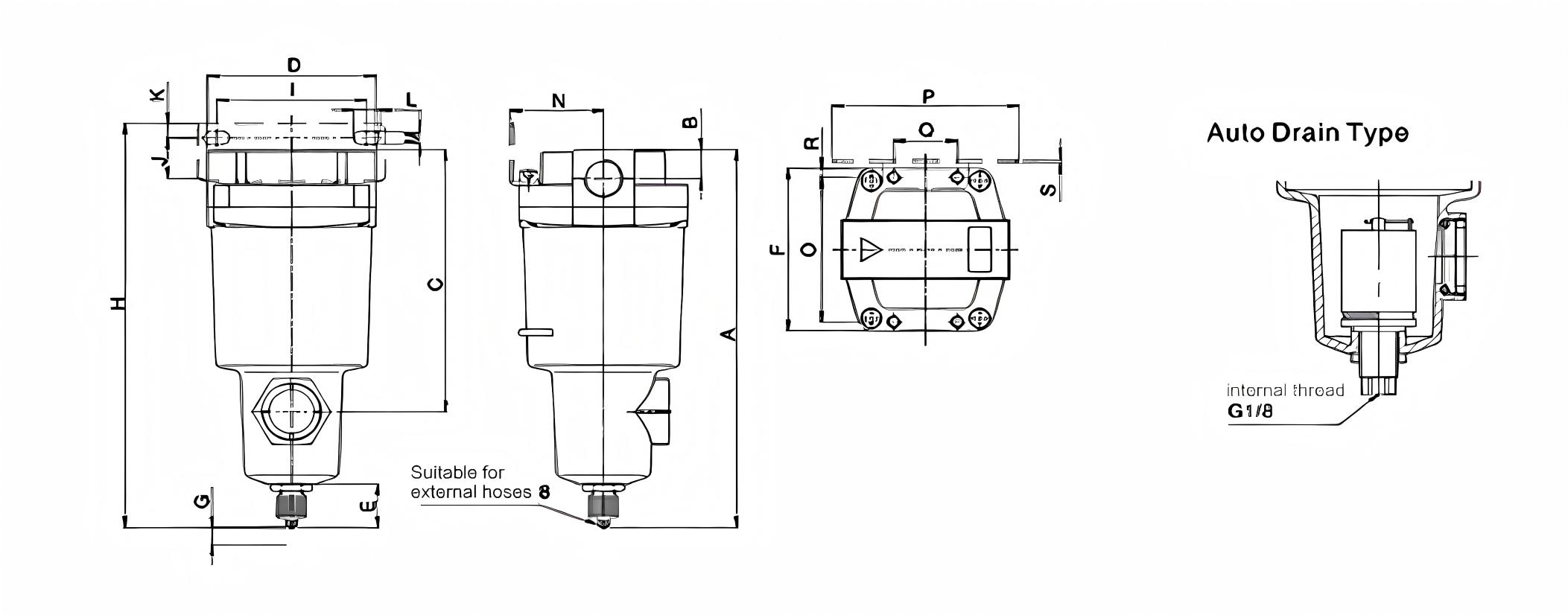

STRUCTURE

DIMENSION(MM)

Model	Port size	Dimension(mm)
Model	Port size	A	B	C	D	E	F	G
AFF350-04	1/2	209	16	145	90	24	90	10
AFF550-10	1	265	22	200	122	24	122	10
AFF650-14	1 1/2	315	32	253	160	24	160	10

Model	Port size	Installation Size(mm)
Model	Port size	H	I	J	K	L	M	N	O	P	Q	R	S
AFF350-04	1/2	224	80	23	8	14	7	50	80	97	34	5	2.3
AFF550-10	1	283	100	30	10	16	9	65	102	126	60	10	3.2
AFF650-14	1 1/2	336	150	38	15	20	11	85	136	180	76	12	4.5
