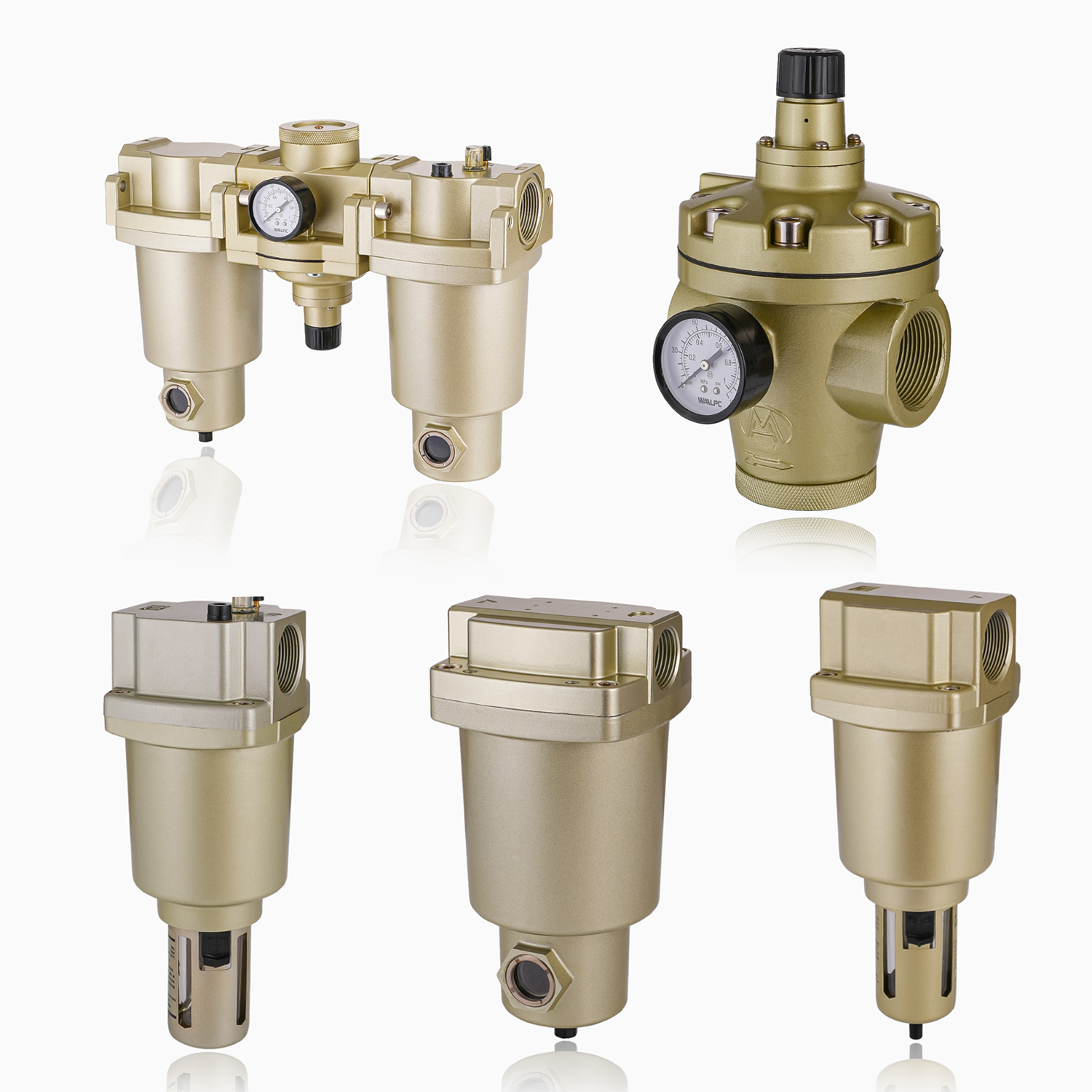

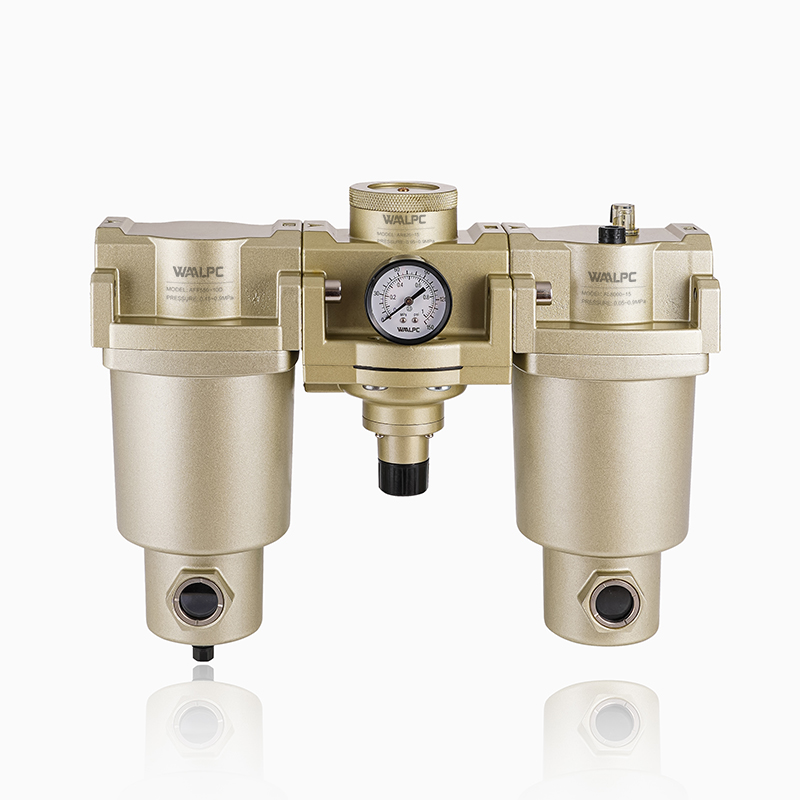

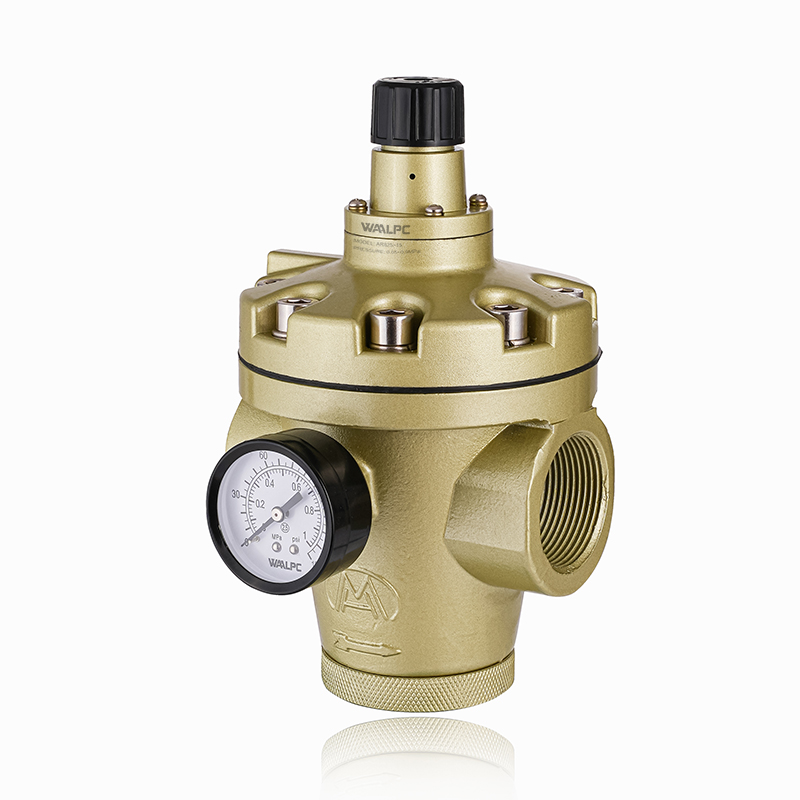

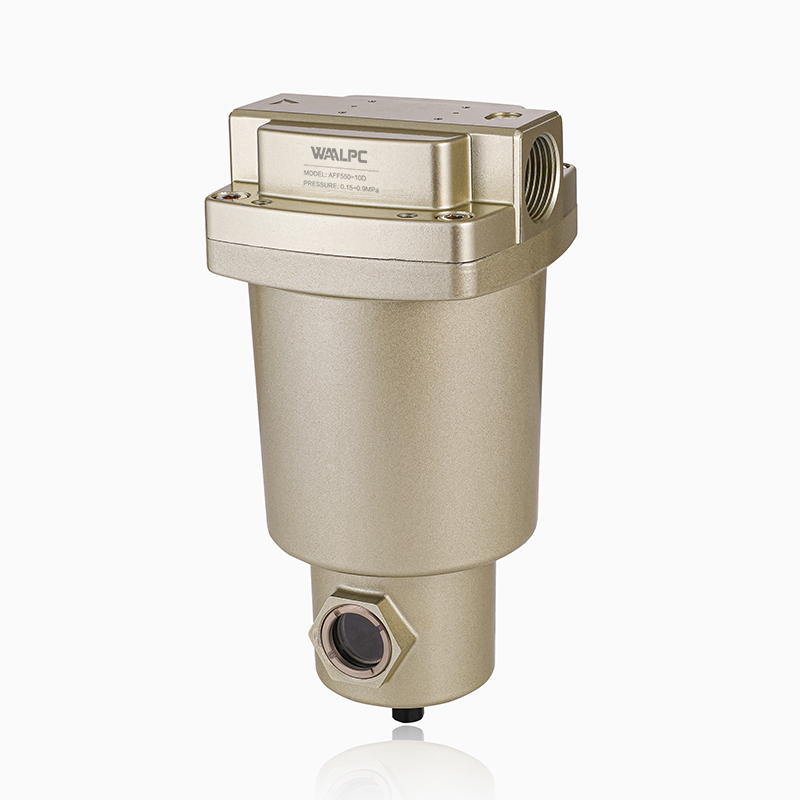

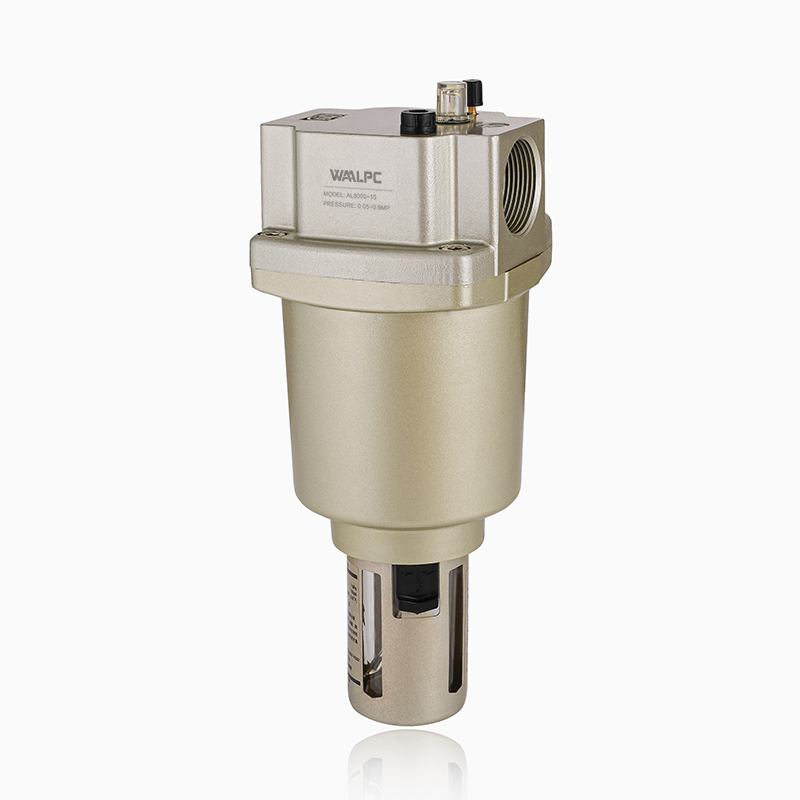

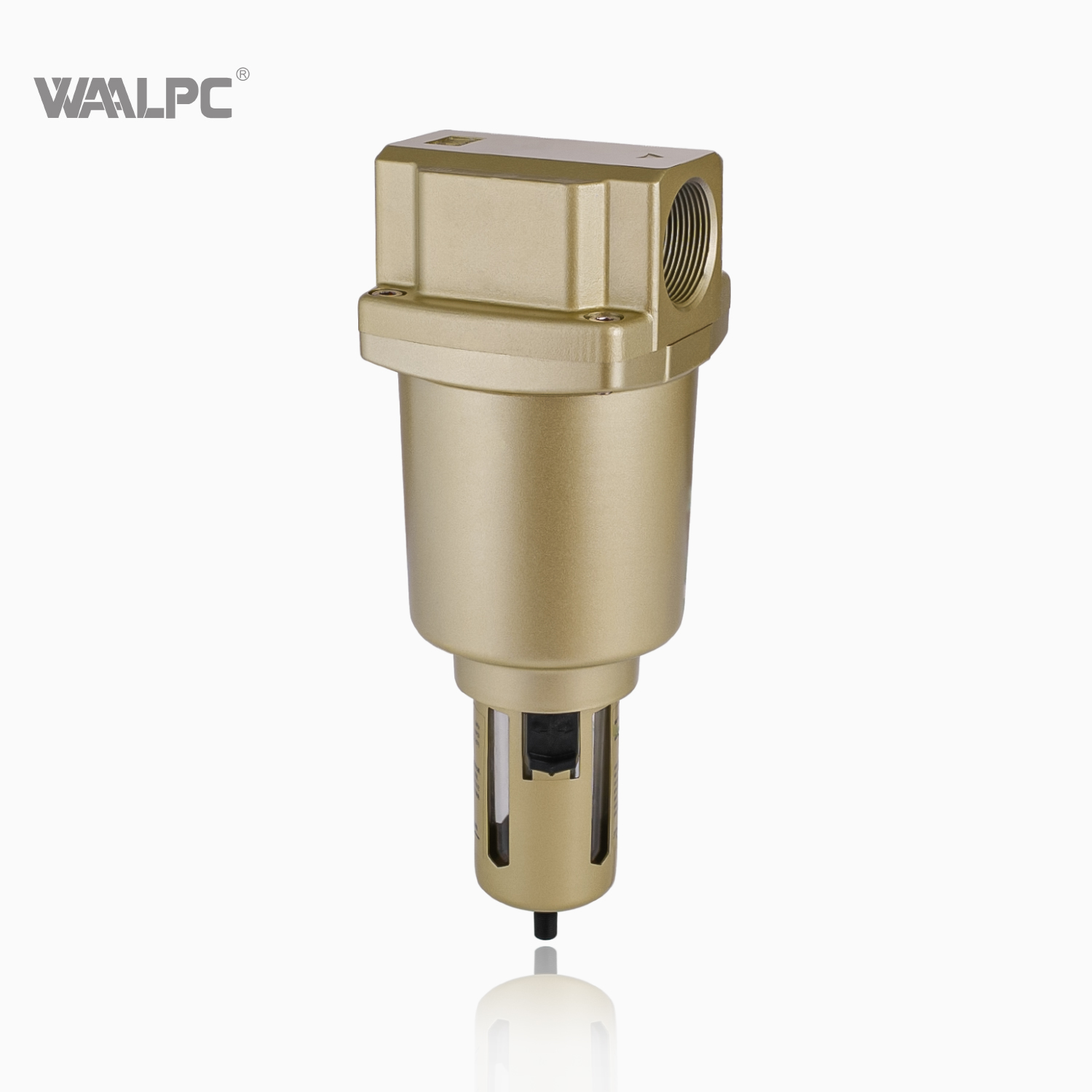

High Flow Compressed Air Pressure Valve Regulator Filter 1-1/2'', 2'', 3''NPT/PT/G Diecast Aluminium Auto Drain for Pneumatic Machinery


Availability:

The High-Flow Filter is a pneumatic component specifically engineered to remove contaminants—such as solid particles, liquid water, and oil aerosols—from compressed air in systems with very high air consumption. It is characterized by a large filtration surface area and optimized internal design to handle substantial volumetric flow rates while maintaining a minimal pressure drop, ensuring energy efficiency and protecting downstream equipment.

Model:

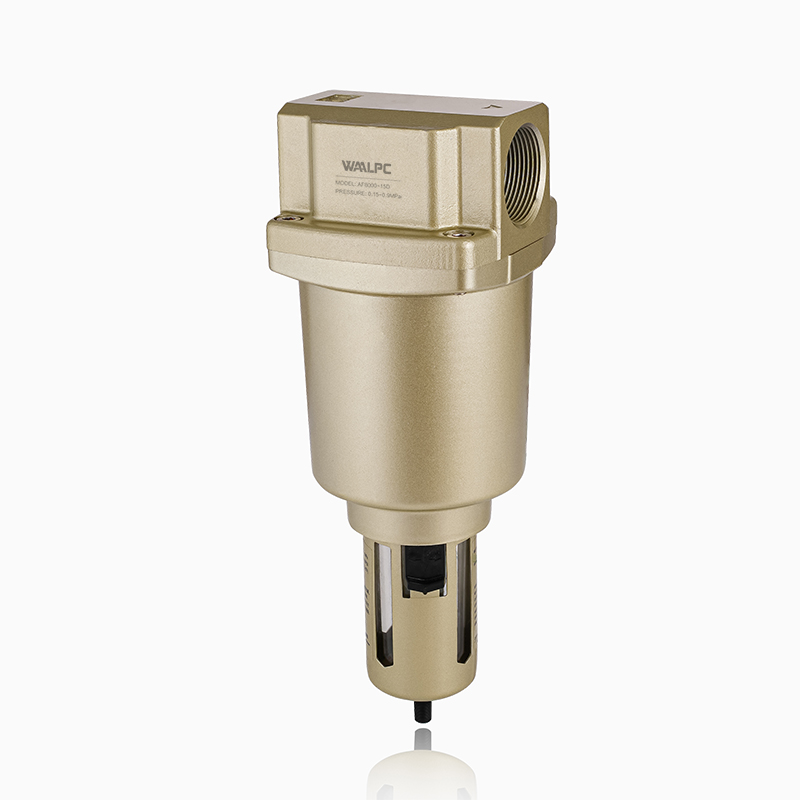

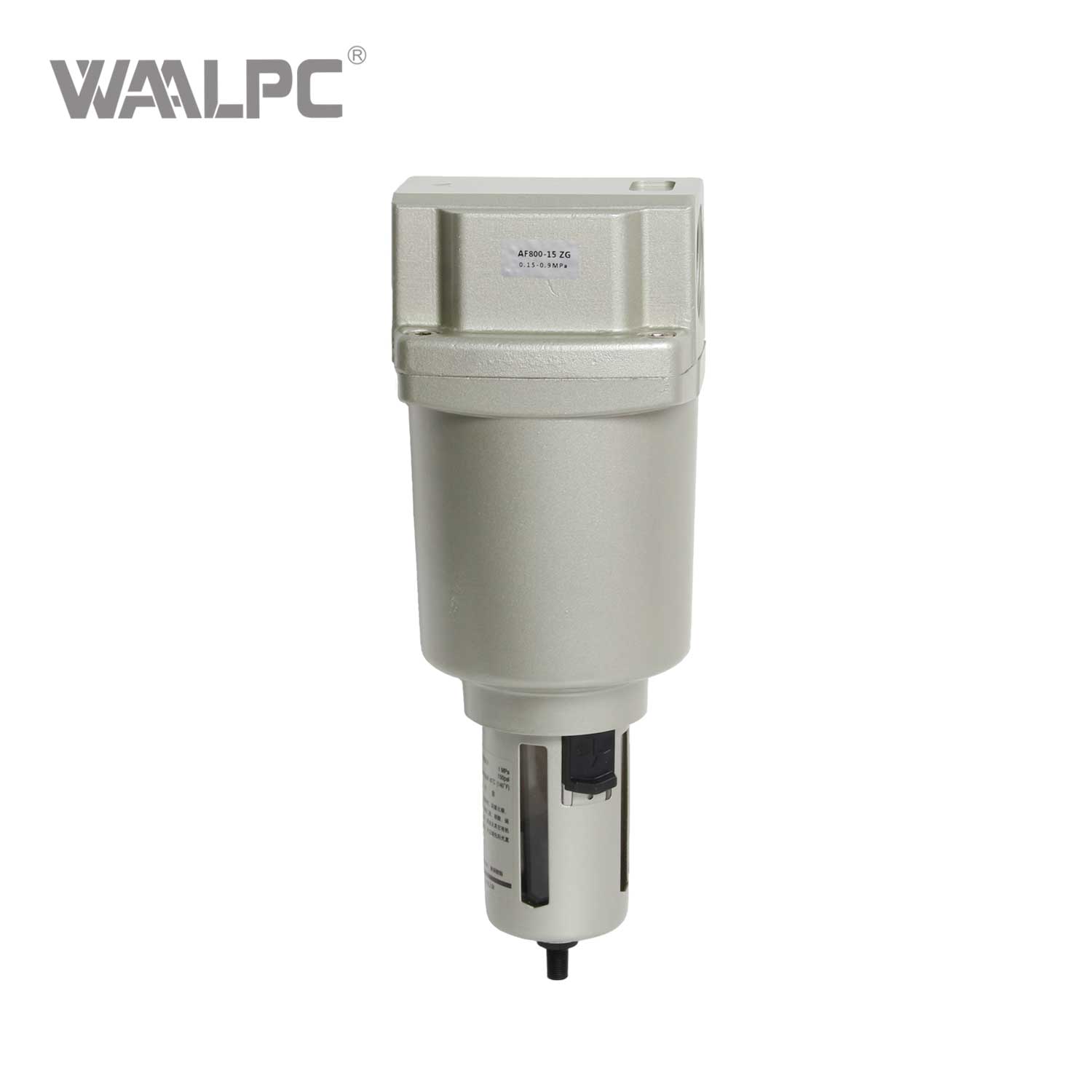

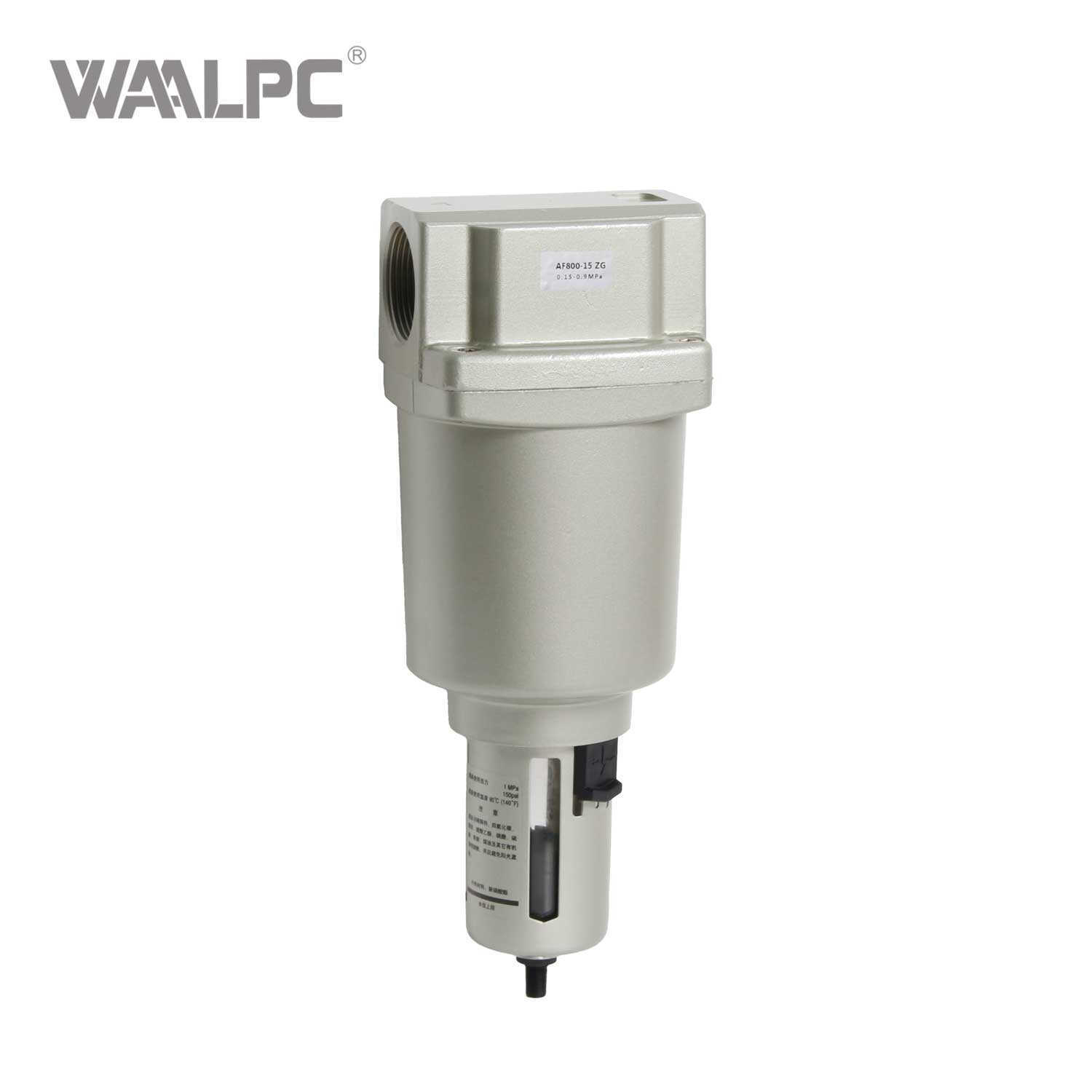

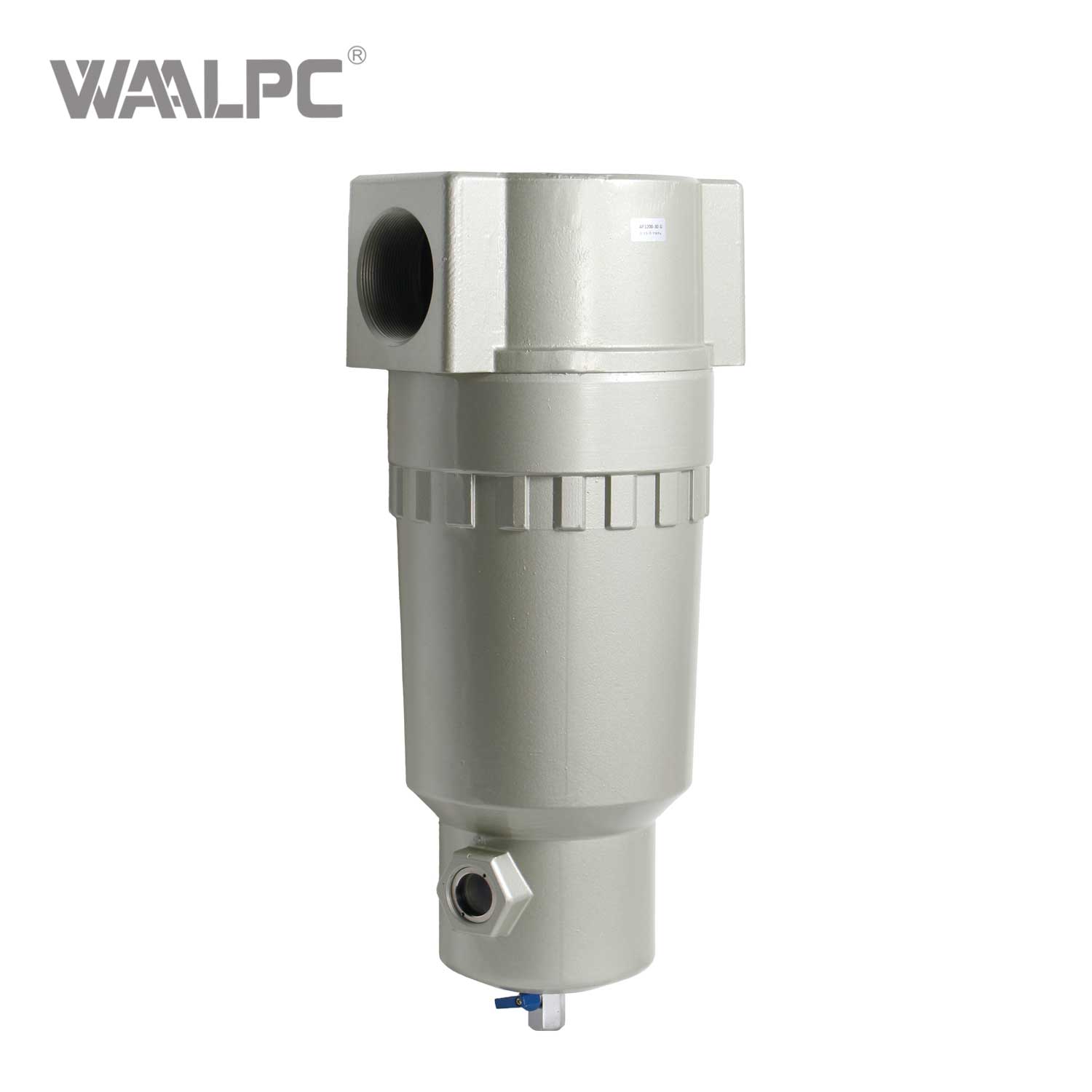

AF800-15
Brand:
WAALPC
Code:
8421999000

Product Description

1. Large diameter, large flow, pressure reduction without reducing flow.

2. Internal pilot and overflow ventilation holes.

3. Small pressure loss,high efficiency of water separation.

4. Rubber part made up of HHBR material.

5. The filter precision includes 5µm 25µm and 40µm(optional).

6. Extend the life of the equipment: Filter out particles in the air, reduce wear and tear on the equipment, and extend the life of the equipment.
7. Improved equipment efficiency: Clean air improves the efficiency of equipment operation.
8. Stable output pressure: The pressure regulating valve can accurately adjust the output pressure to ensure the normal operation of downstream equipment.
9. Improve system reliability: Through purification and lubrication, the wear of pneumatic components is reduced and the reliability of the system is improved.
10. High pressure regulation accuracy: It can accurately adjust the output pressure to ensure the normal operation of downstream equipment.
11. Reduced Maintenance: Pneumatic components will need less maintenance due to reduced wear and corrosion.
12. Port size available: 1-1/2'', 2'', 3''.

13. High pressure, corrosion, high&low temperature ,acid and alkali resistant.

Technical Parameters

DATA SHEET

Type- name	Air Filter
Model	AF800-15	AF900-20	AF1200-30
Port Size	G1 1/2	G2	G3
Working medium	Air
Max. operating pressure	1.0MPa
Pressure resistance	1.5MPa
Operating temperature range	-5~60℃ (No freezing)
Grade of Filtration	Standard 5 μm (Option: 2, 10, 20, 40, 70, 100 μm)
Bowl material	Polycarbonate
Bowl capacity (cm3)	45 cm3
Related flow	12000L/min	20000L/min	28000L/min
Weight	3150g	7300g	19000g

STRUCTURE

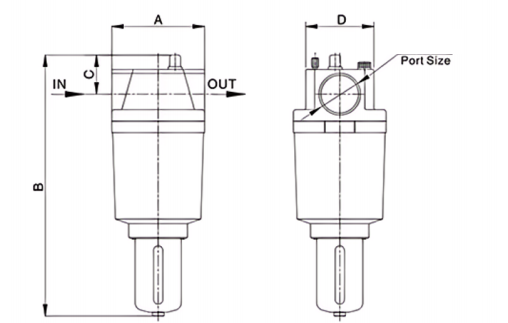

DIMENSION(MM)

Model	Port size	Dimension(mm)
Model	Port size	A	B	C	D
AF800-15	1 1/2	120	331	31.5	88
AF900-20	2	200.5	517.5	47	91
AF1200-30	3	257	600	68	225

Specification Download

High Flow Air Source Treatments.pdf
