SMC Type ARM10F1-06BG Modular Air Pressure Regulator, Compact Size, Direct-Operated Relief Type, Inlet/Outlet Bottom Porting

SMC Type ARM10F1-06BG Modular Air Pressure Regulator, Compact Size, Direct-Operated Relief Type, Inlet/Outlet Bottom Porting


Availability:

Quantity:



Inquiry Add to Basket

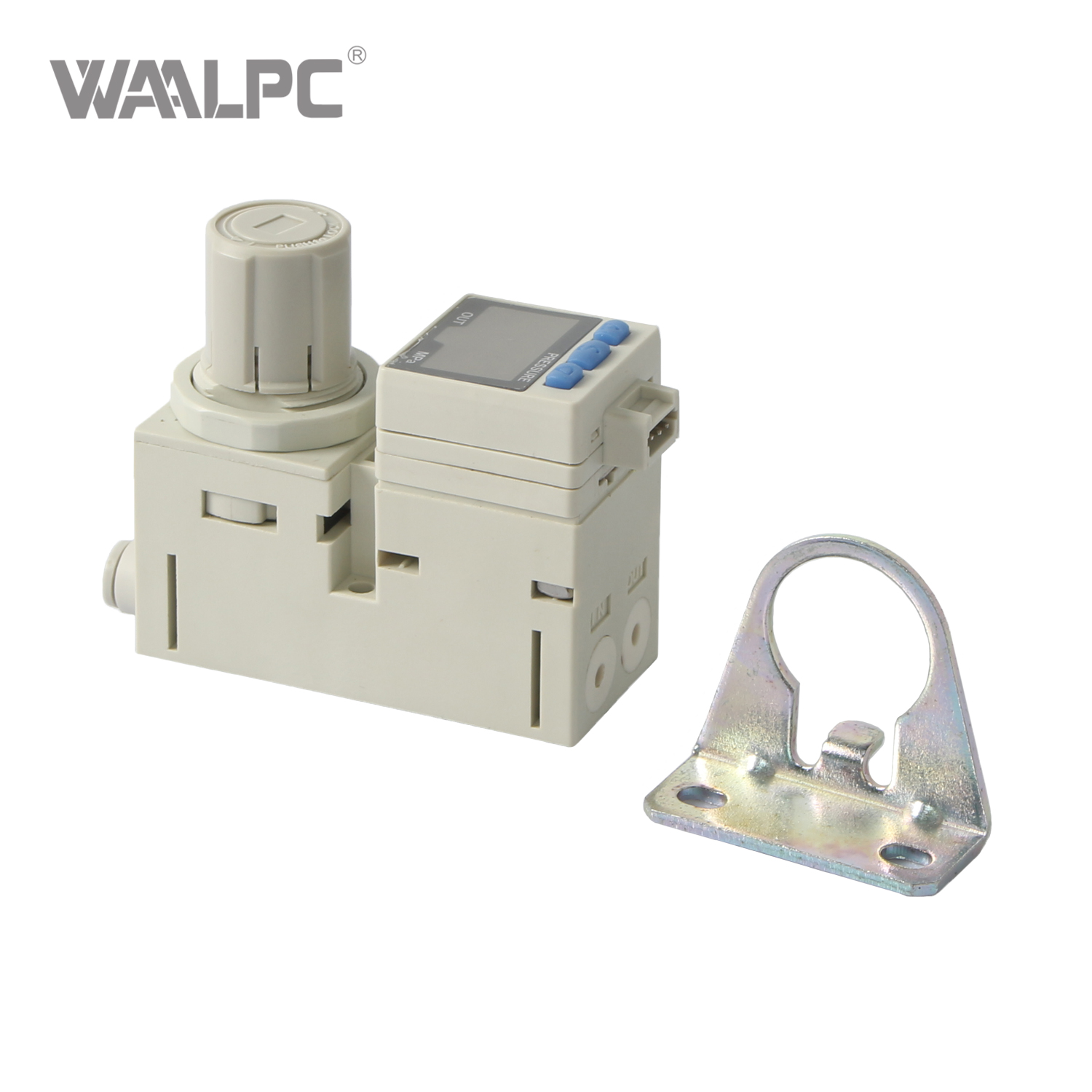

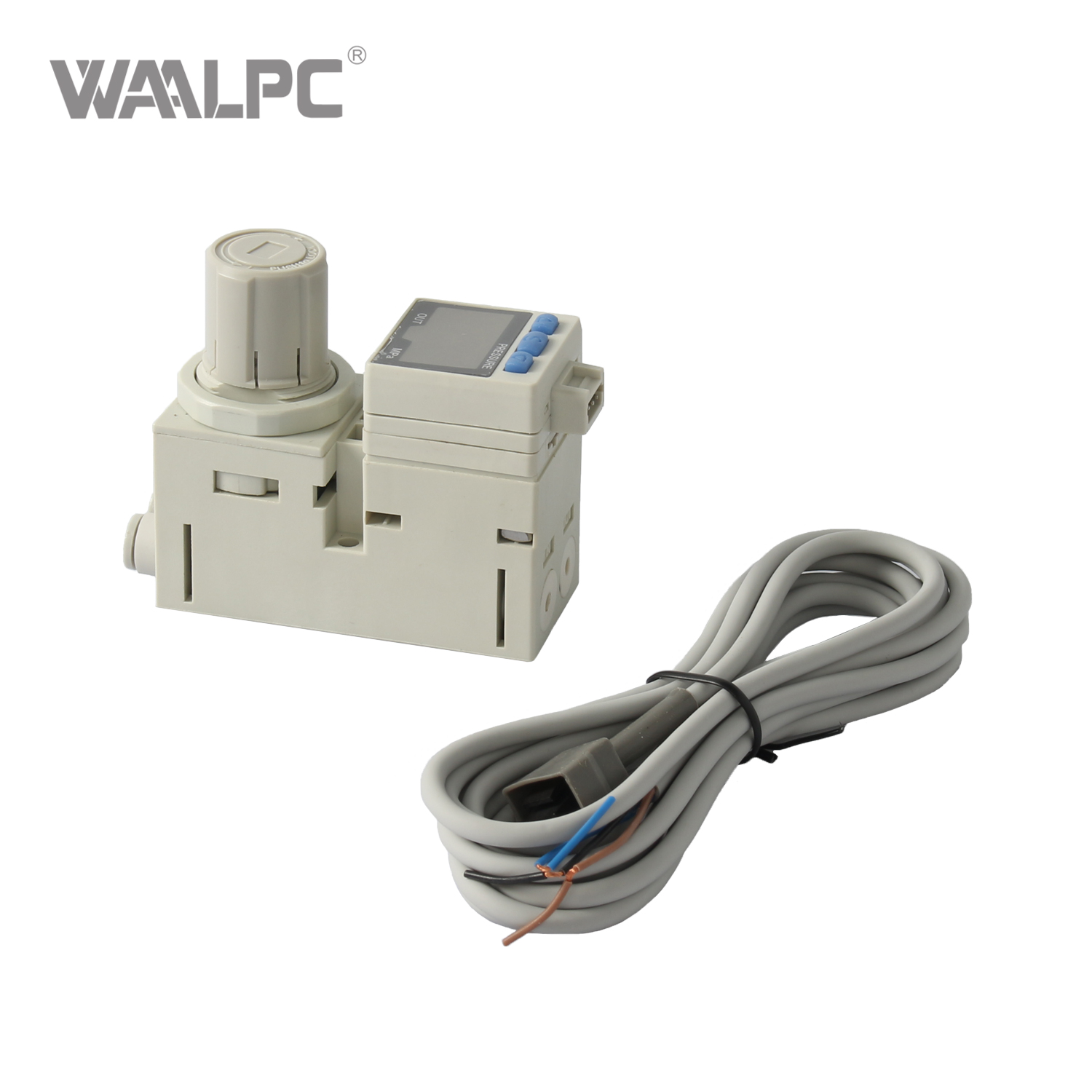

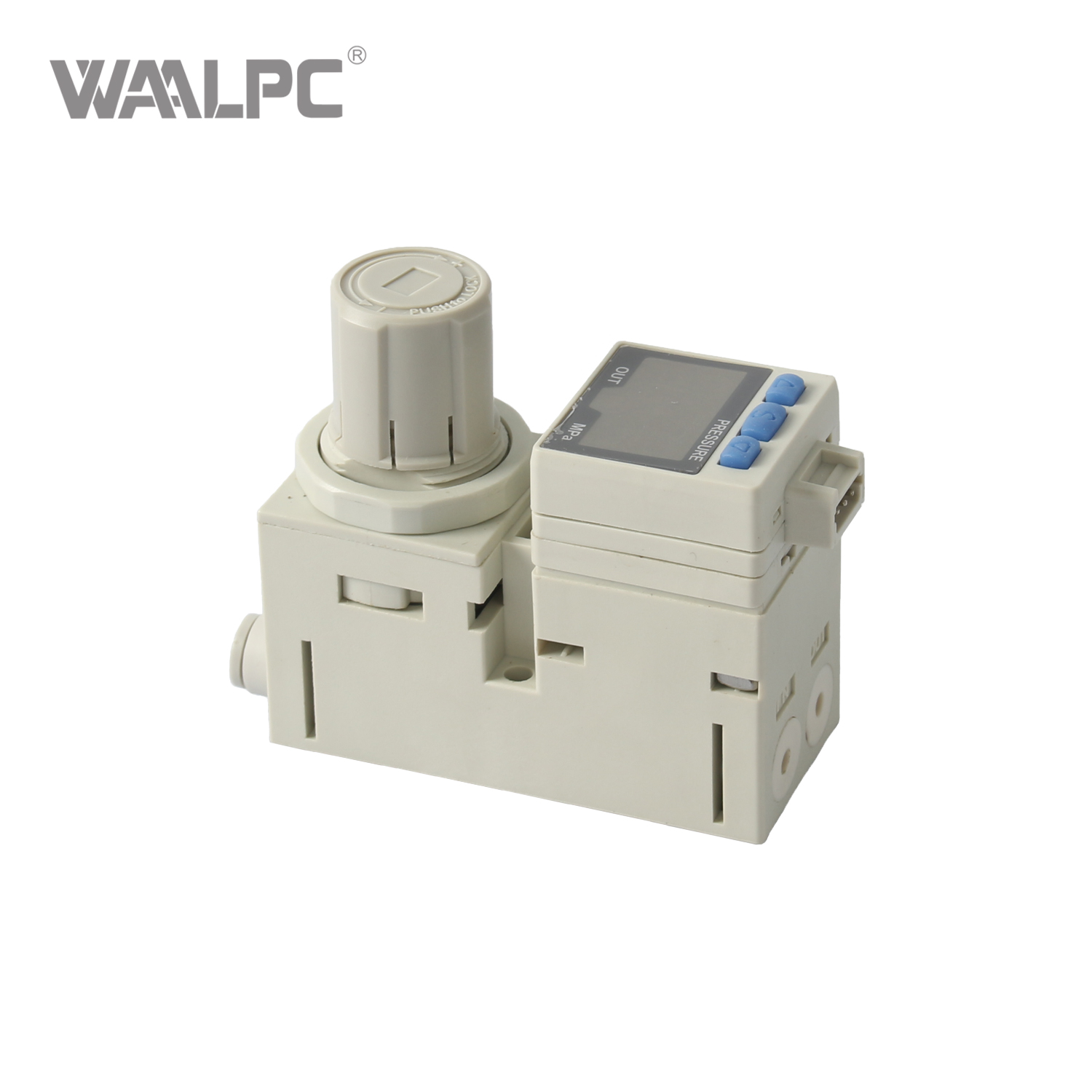

The SMC Type ARM10F1-06BG is a compact modular pressure regulator from the ARM10F series, designed for precise control of pneumatic systems in space-constrained applications . This front-knob type regulator features a direct-operated relieving design, providing stable and accurate pressure regulation for filtered compressed air.

Model:
ARM10F1-06BG
Brand:
WAALPC
Code:
8481100090

Product Description

Ultra-Compact and Lightweight – Weighing only 60g, this regulator is ideal for applications where space is at a premium.
Front Knob Design – The front-facing handle allows for easy pressure adjustments even in tight installation spaces.
Standard Backflow Function – Equipped with a built-in backflow (reverse flow) function as standard. When inlet pressure is released, the main valve opens, allowing outlet pressure to backflow to the inlet side.

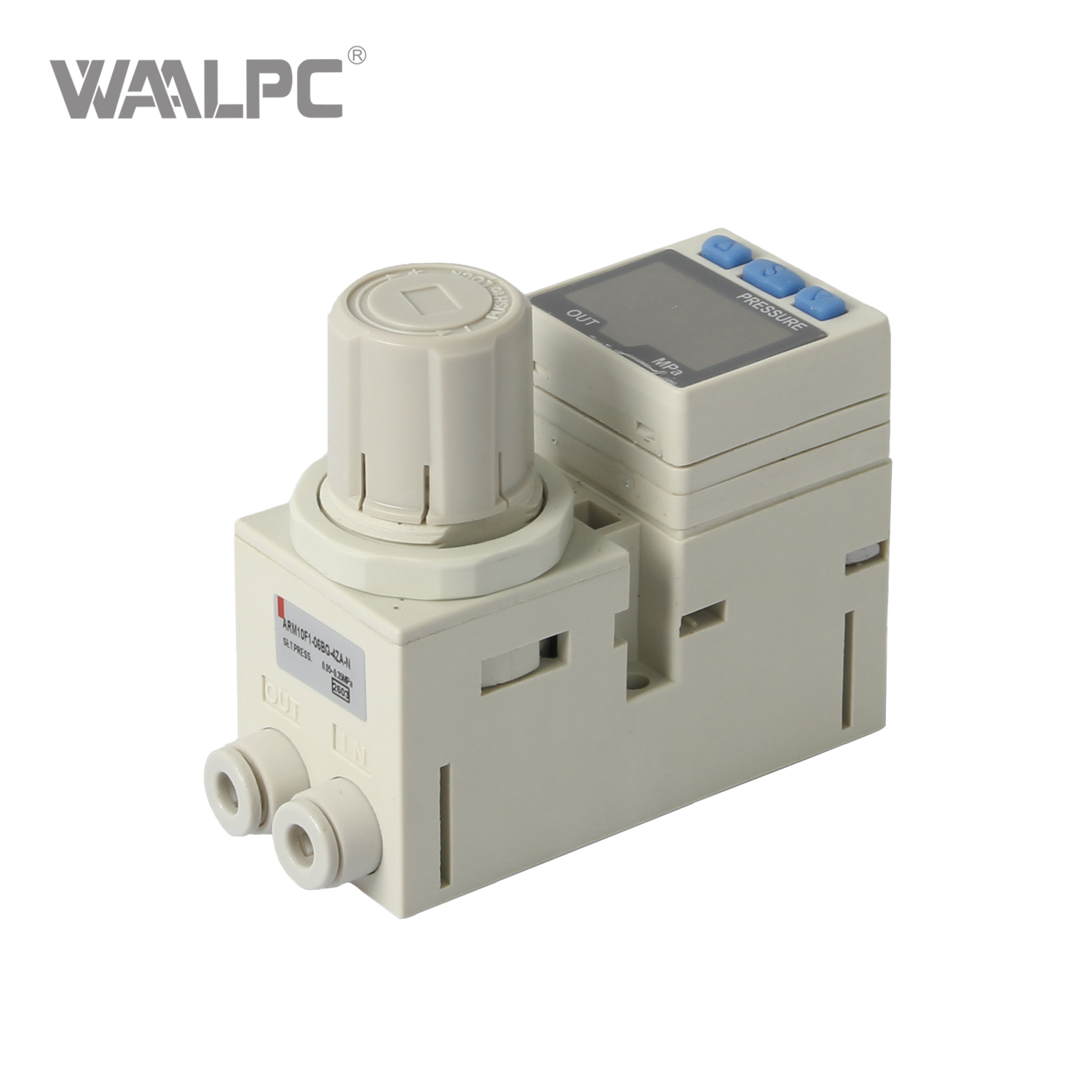

Quick-Connect Fittings – Features ø4mm one-touch fittings (straight type) on both IN and OUT ports, enabling rapid tubing installation without tools.

Technical Parameters

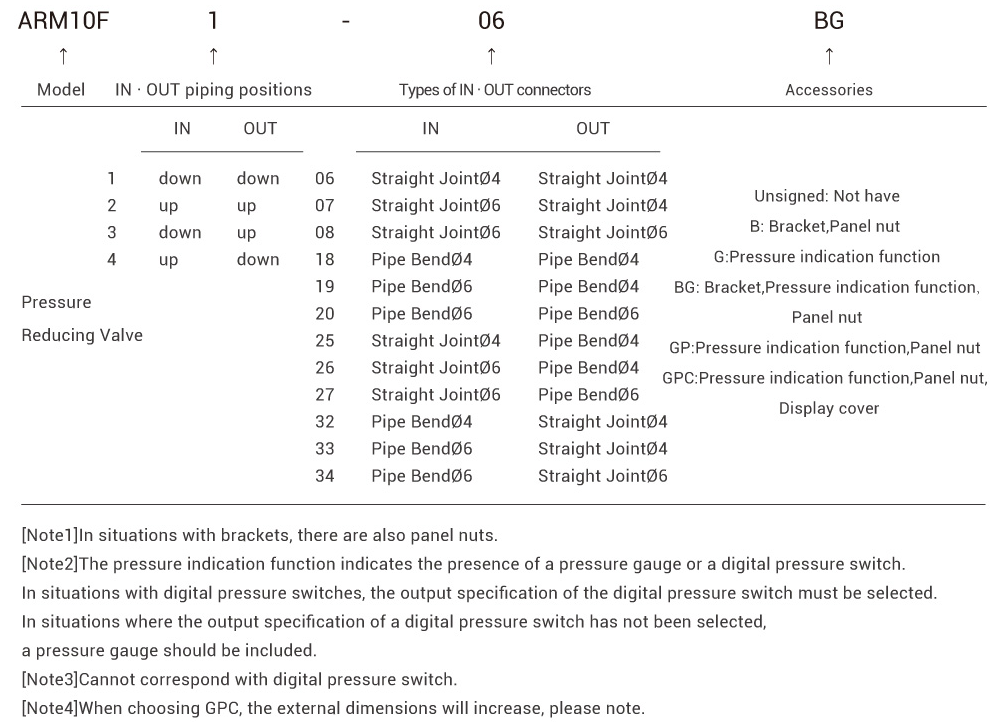

ORDERING CODE

ordering

DATA SHEET

Model		ARM10F
Structure of pressure reducing valve		Direct acting type
Compression mode		Diaphragm type
Overflow structure	Standard	Overflow type
	Quasi-standardization	Non overflow type
Reverse flow function		Have(Non-equilibrium type)
Outer diameter of IN side tube		ø4, ø6, ø5/32, ø1/4
Outer diameter of OUT side tube		ø4, ø6, ø5/32, ø1/4
Proof pressure		1.5MPa
Max. working pressure		1.0MPa
Pressure setting range	Standard	0.05~0.7MPa
	Quasi-standardization	0.05~0.35MPa(Low pressure type)
Working Medium		Air
Environment and fluid temperature		5~60℃
Quality		72g

STRUCTURE&DIMENSION(MM)

Electronic pressure gauges

Specification Download
