0927 Solenoid Valve 2/2NC Pilot Diaphragm Brass Valve for Air Compressor


Availability:

Quantity:



Inquiry Add to Basket

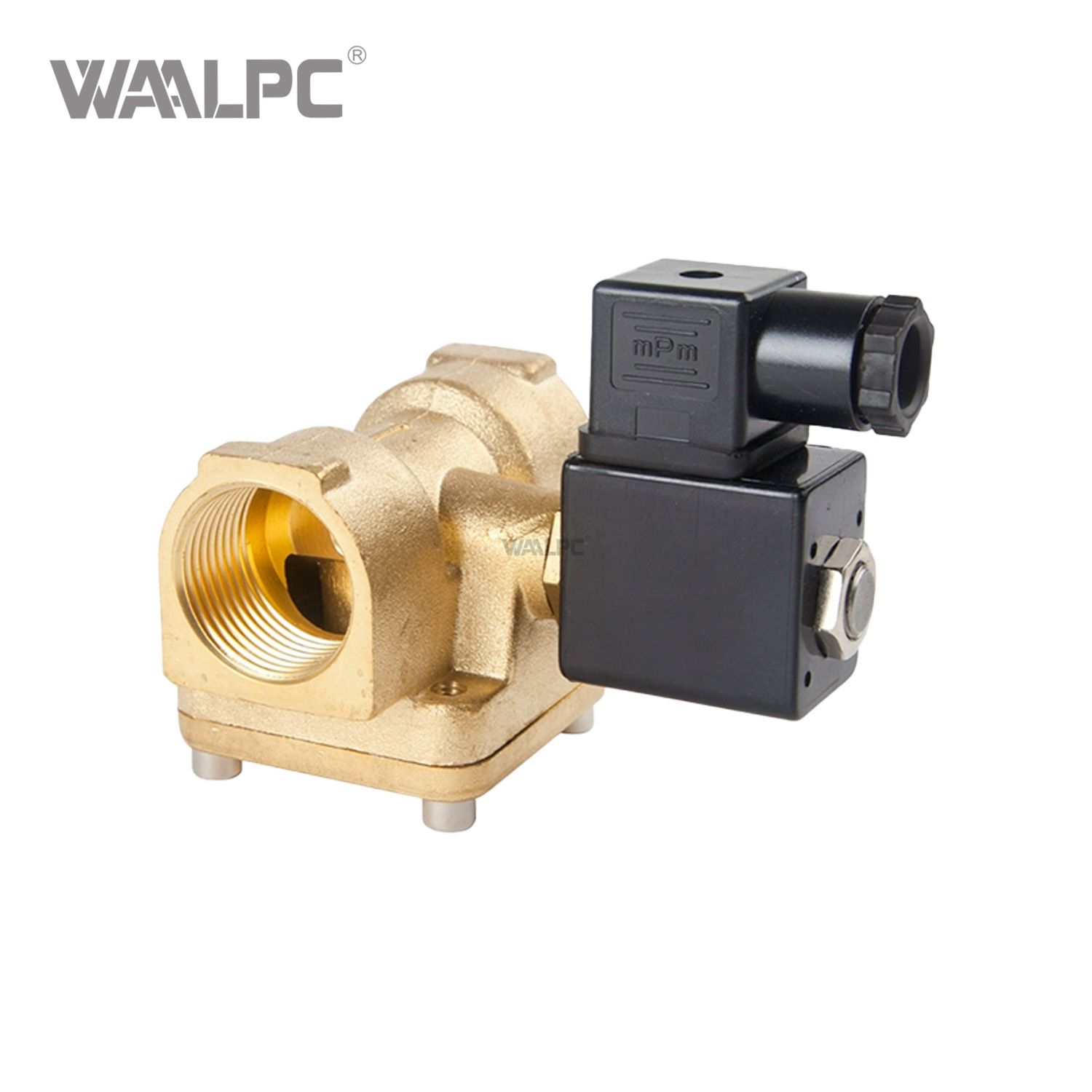

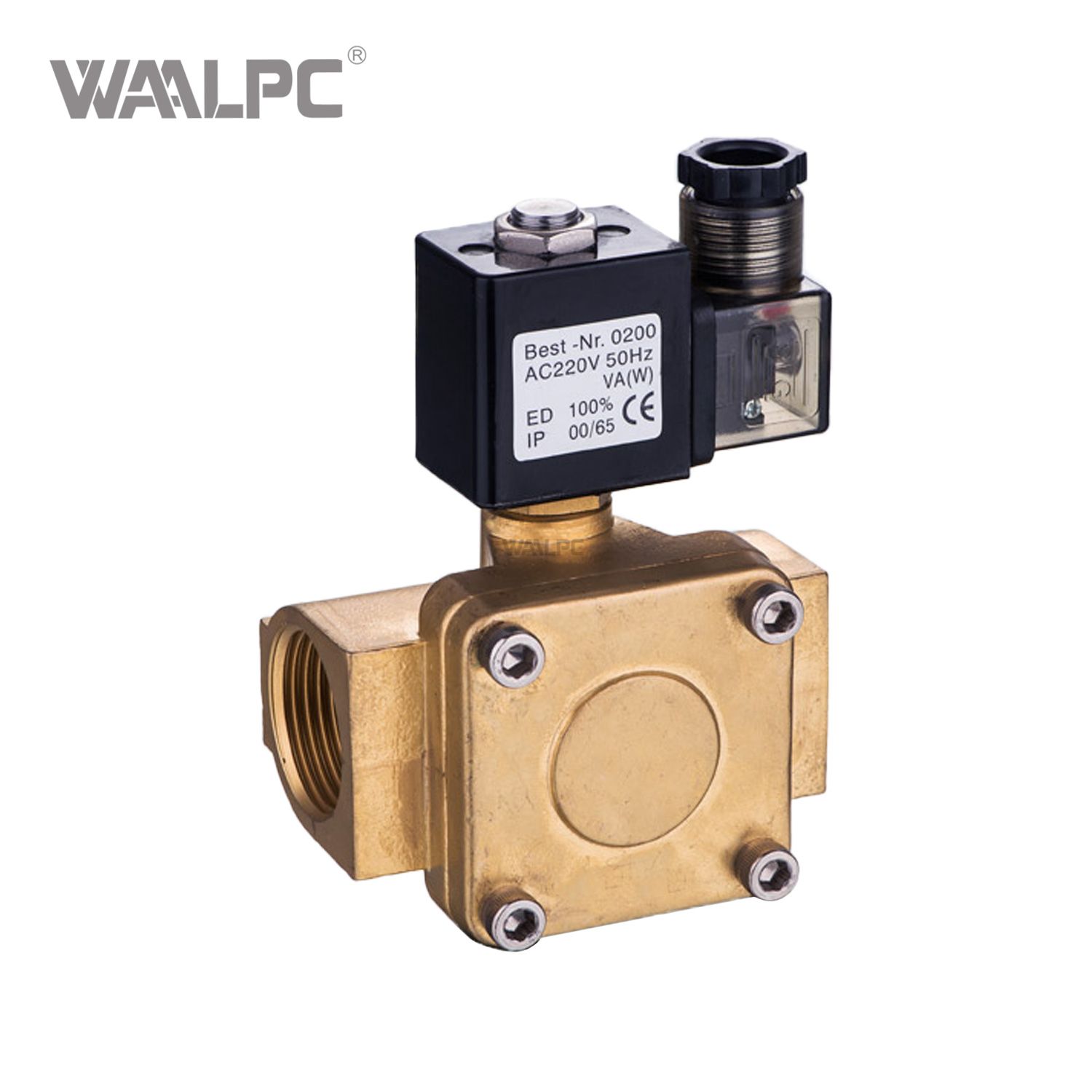

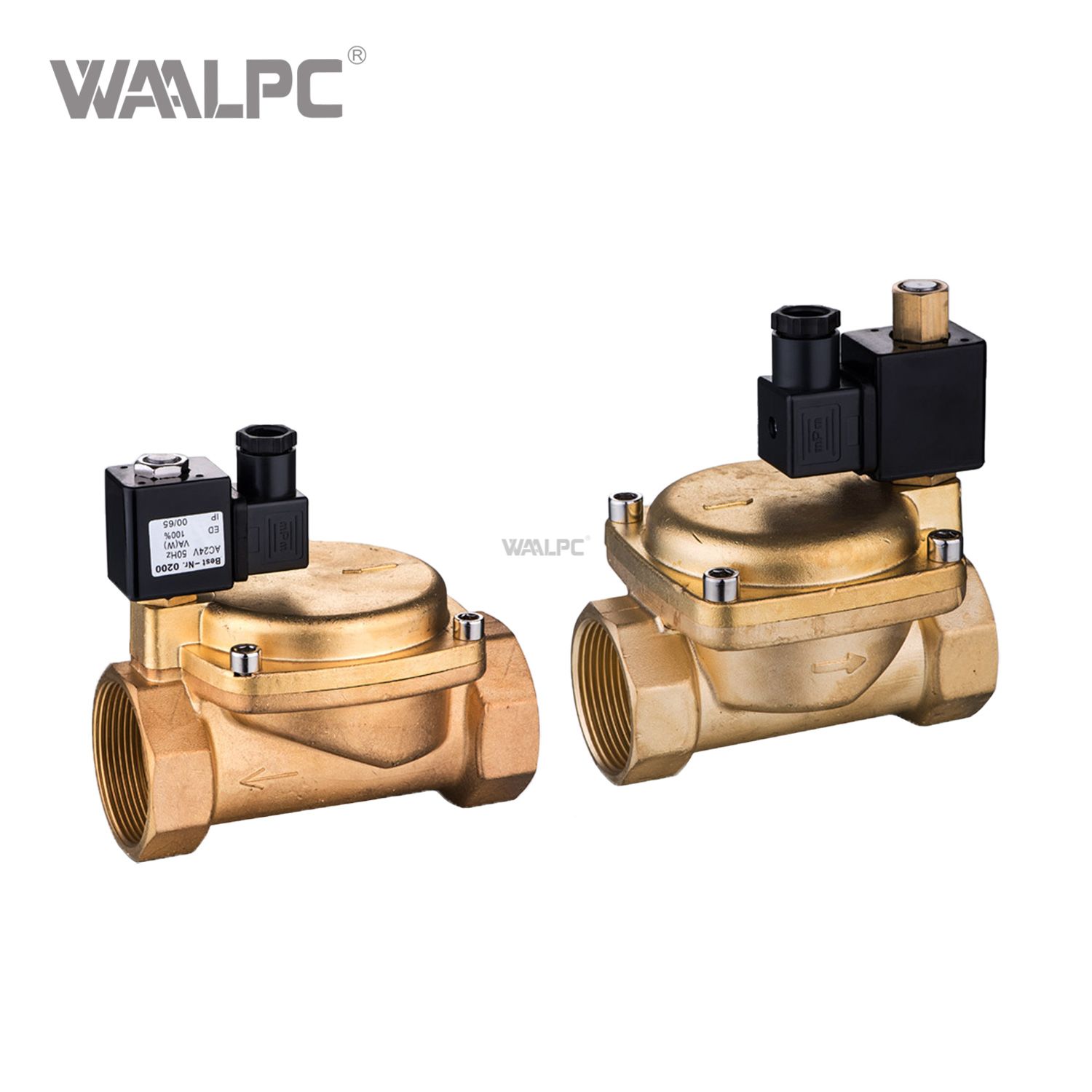

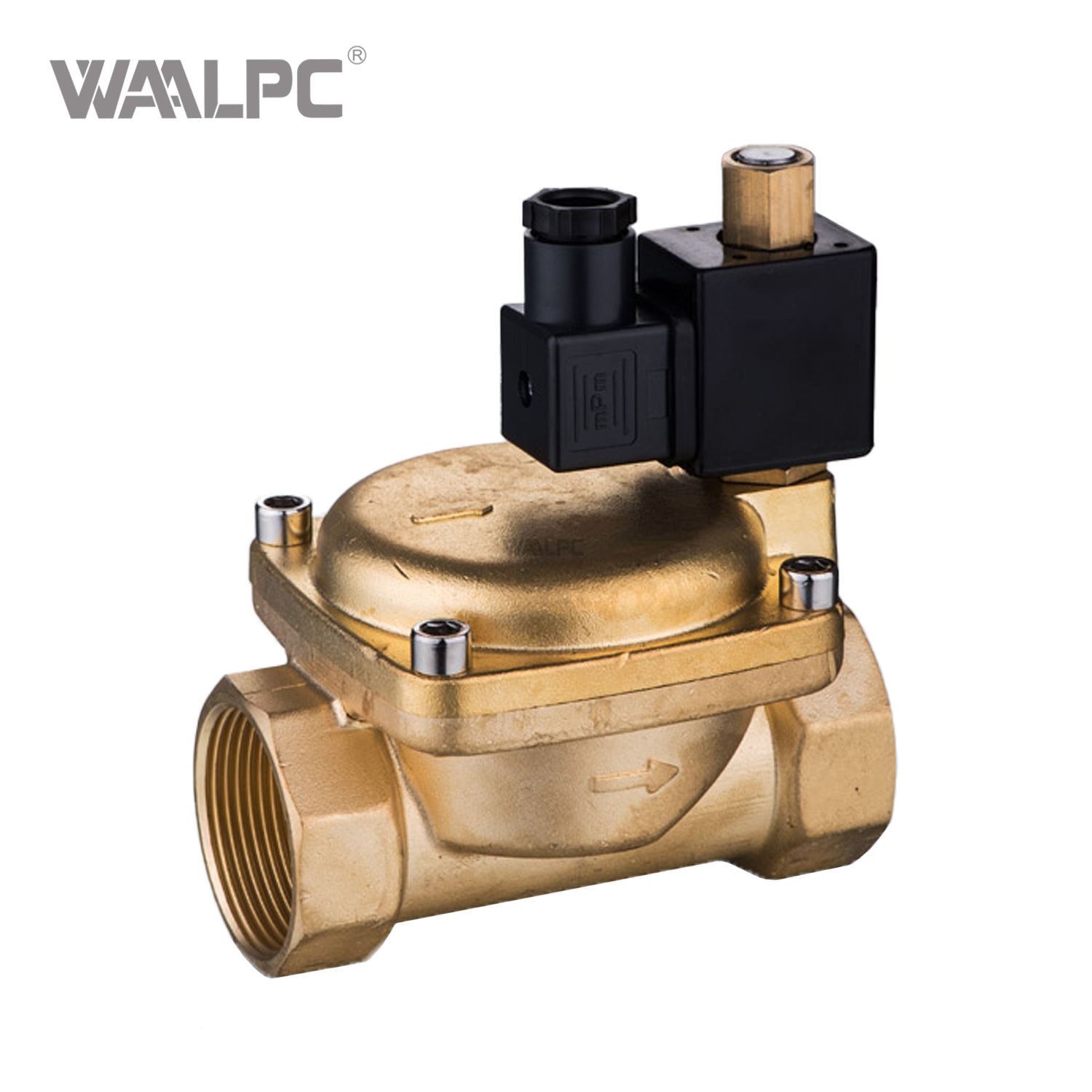

The 0927 series is a 2/2-way normally closed pilot-operated diaphragm brass solenoid valve. Adopting mature pilot diaphragm structure, it is compatible with neutral media such as water, compressed air and light oil. Working pressure ranges from 0.07 to 1.6 MPa, with optional 24VDC, 220VAC and other coils. Widely used in air compressors, water treatment and general automatic fluid control systems.

Model:
0927 Series
Brand:
WAALPC
Code:
8481804090

Product Description

Pilot Diaphragm Design, Low Minimum Working Pressure
Operable at as low as 0.07 MPa pressure difference, fast response and large flow capacity.
Brass Valve Body with Excellent Corrosion Resistance
Precision cast brass body. Seals available in NBR or FKM, temperature range -5~80℃ (up to 150℃ with FKM).
Low Power Consumption & Quiet Operation
Low coil power for energy saving. Smooth switching eliminates water hammer and pipeline noise.
Modular Structure for Easy Maintenance

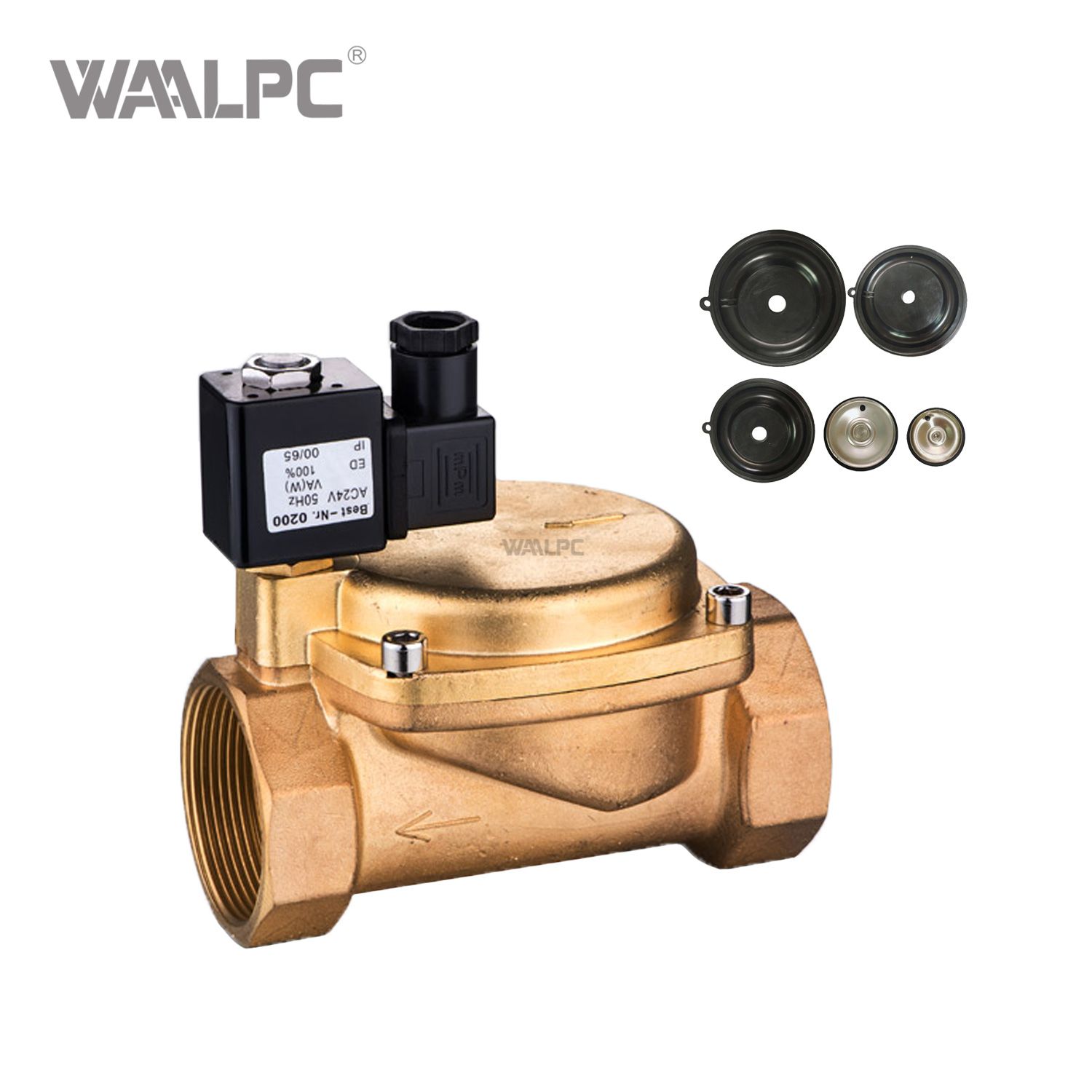

Diaphragm and pilot parts can be replaced separately, reducing maintenance cost and extending service life.
Flexible Installation & Complete Specifications
Omni-direction mounting (horizontal, vertical, inverted). BSP/NPT thread, sizes from 1/8″ to 2″. Explosion-proof coil and manual override optional.
Wide Compatibility for Multiple Industries
Ideal for air compressor auto drain, water supply, pneumatic circuit and light oil control.

Technical Parameters

ORDERING CODE

0927 Series Two-Position Two-Way Solenoid Valve

SPECIFICATION

Model	0927000	0927100	0927200	0927300	0927400	0927500	0927600	0927700
Orifice Size(mm)	8	10	12	20	25	32	40	50
Operating Pressure(MPa)	0.07~1.6					0.1~1.6
Operating Temperature Range	-5~80℃
Effective Area of Section(mm2)	20	40	60	110	190	300	400	500

OVERALLDIMENSION&STRUCTURE

Two-Position Two-Way Solenoid Valve

Model	a	b	c	e	h	R(G)
0927000/100/200	45	31.5	22	53	98	1/4, 3/8, 1/2
0927300	58	41	30	82	115	3/4
0927400	65	43	30	87	115	1
0927500	-	-	25	113	127	1 1/4
0927600	-	-	28	122	132	1 1/2
0927700	-	-	34	152	150	2

Specification Download

2Q series pneumatic two-way valve.pdf
