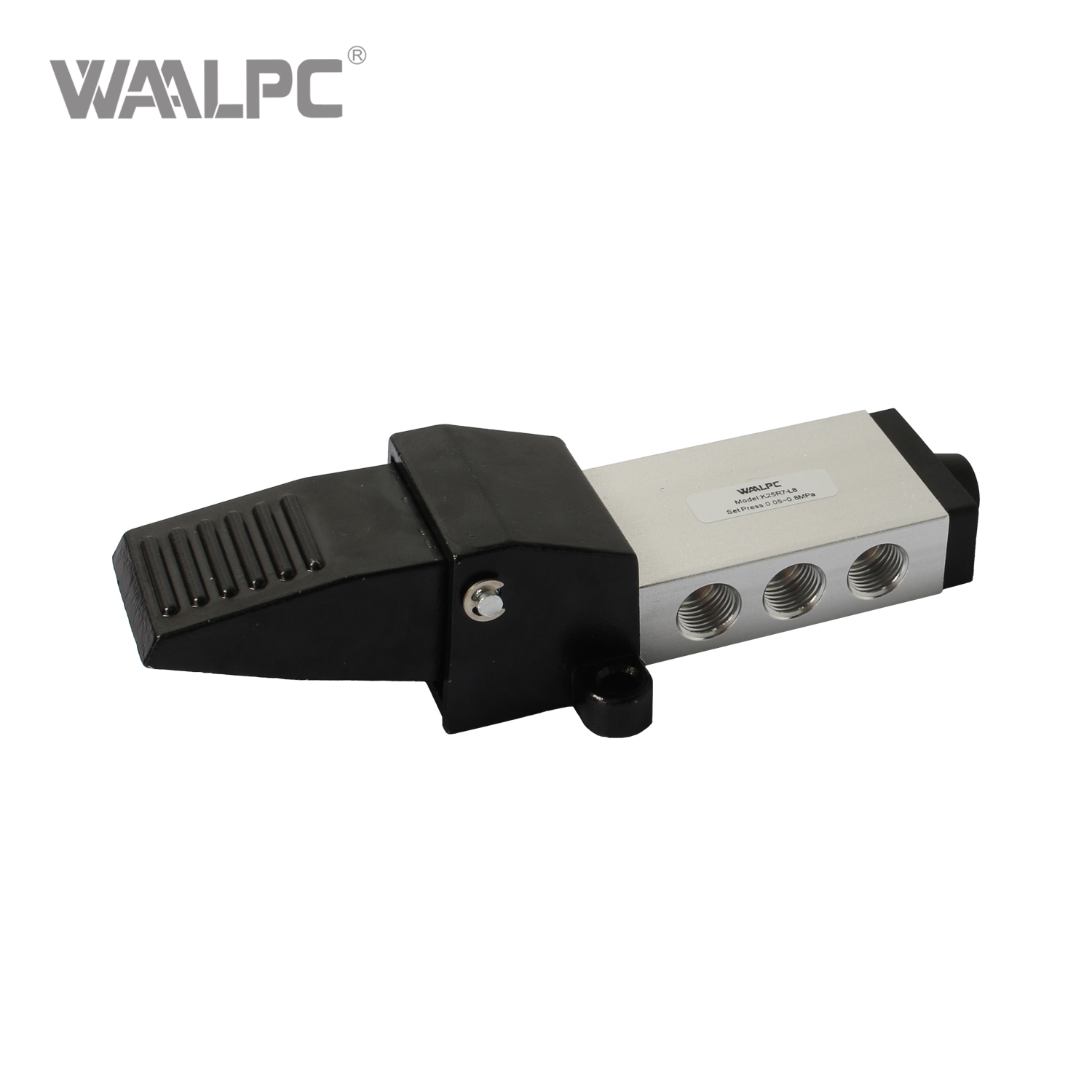

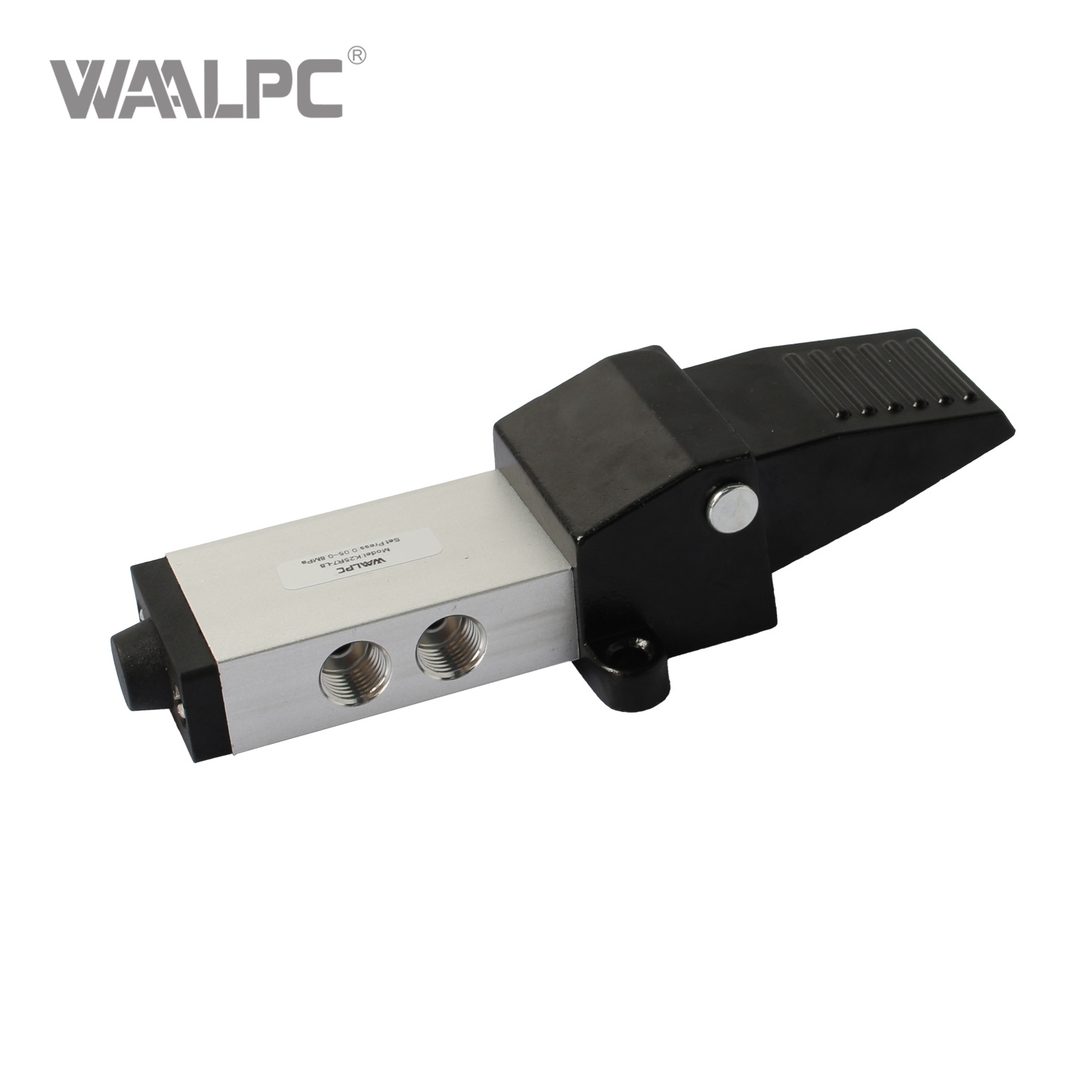

K23r7-08 K Series Industrial Pneumatic Brake Air Control Foot Operated Pedal Valve

K23r7-08 K Series Industrial Pneumatic Brake Air Control Foot Operated Pedal Valve


Availability:

Quantity:



Inquiry Add to Basket

Foot Pedal Valves provide intuitive, hands-free control for pneumatic activation, enhancing operator productivity and safety. Pressure Control Valves are critical for system stability, safety, and performance, ensuring precise pressure delivery and protection against over-pressurization. Together, they form fundamental parts of reliable and efficient pneumatic power systems.

Model:
K23R7L8
Brand:
WAALPC
Code:
8481804090

Product Description

1. Aluminum pedal, direct acting design, stable and reliable;

2. If the commutation holding time is long, the locking type can be selected;

3. The locking mechanism is stable and reliable, and the unlocking is light and fast. But due to structural size limitations, it cannot withstand frequent strong impacts;

4. Can choose to use high-strength plastic protective cover.

Technical Parameters

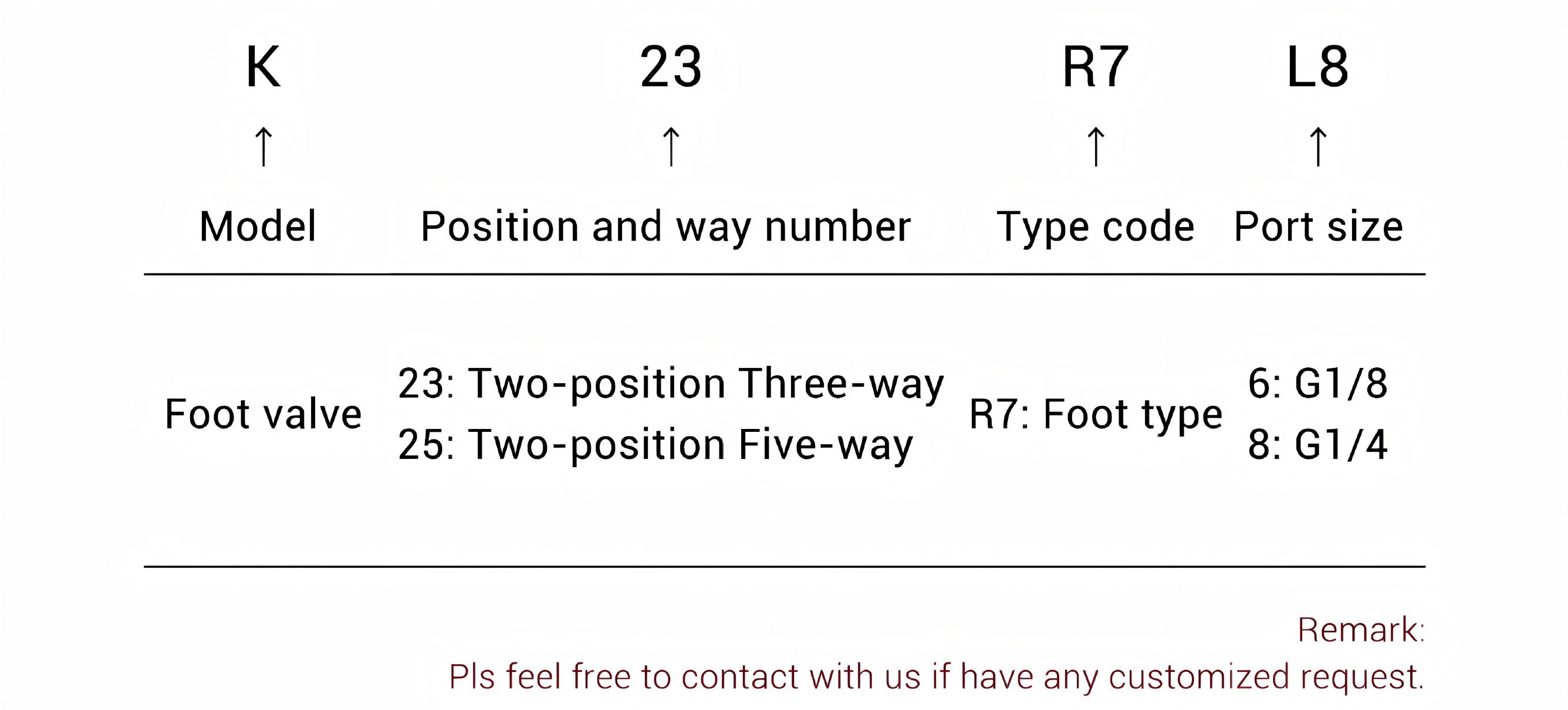

ORDERING CODE

K23 Foot Pedal Valve

SPECIFICATION

Model	K23R7-L8	K25R7-L8
Diameter	6mm	8mm
Working Medium	Compress Air
Working Pressure	0.05~0.8MPa
Medium Temperature	-5~50℃
Effective Sectional Area	10mm²	20mm²
Letting Out Amount	≤50cm³/min
Operating Power	≤80N	≤100N
Life(Ten Thousand)	≥200

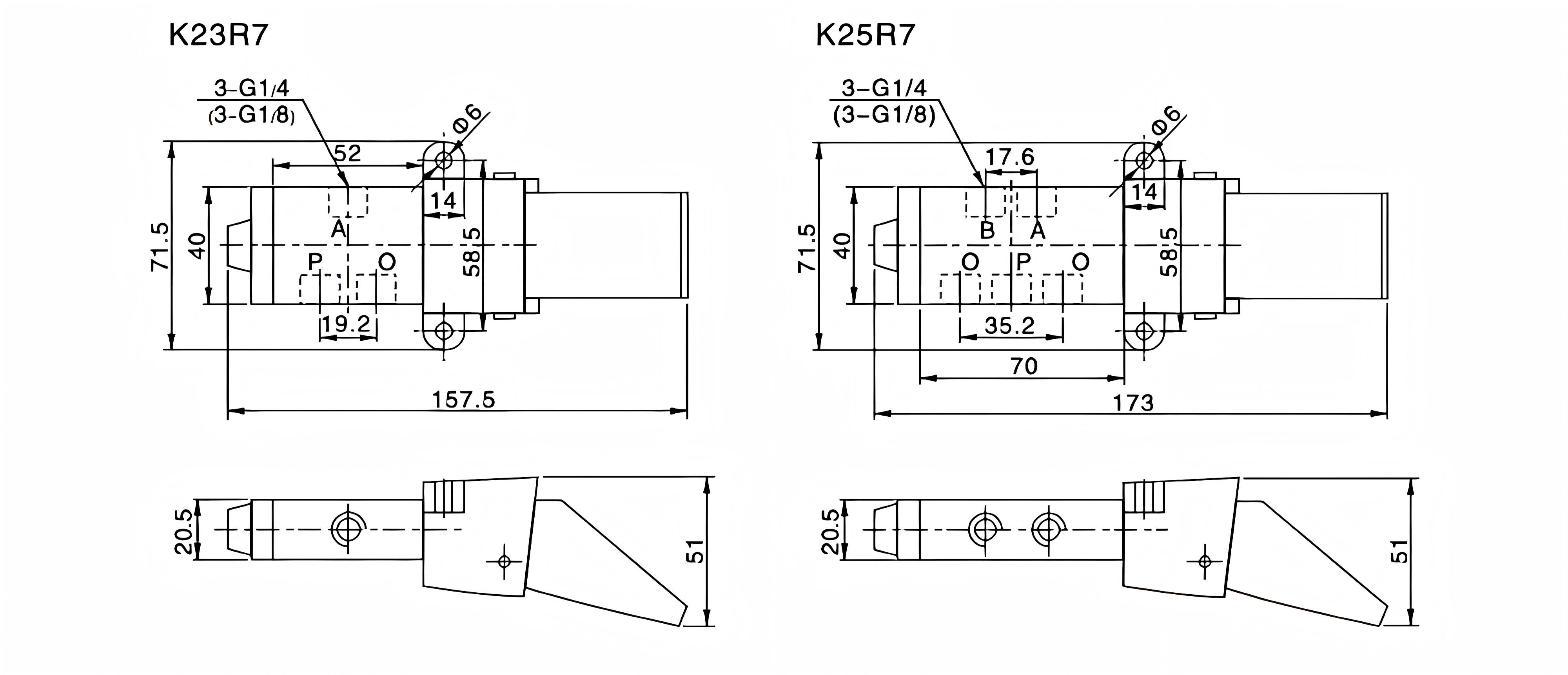

OVERALLDIMENSION&STRUCTURE

Specification Download

K23 Foot Petal Valve.pdf
