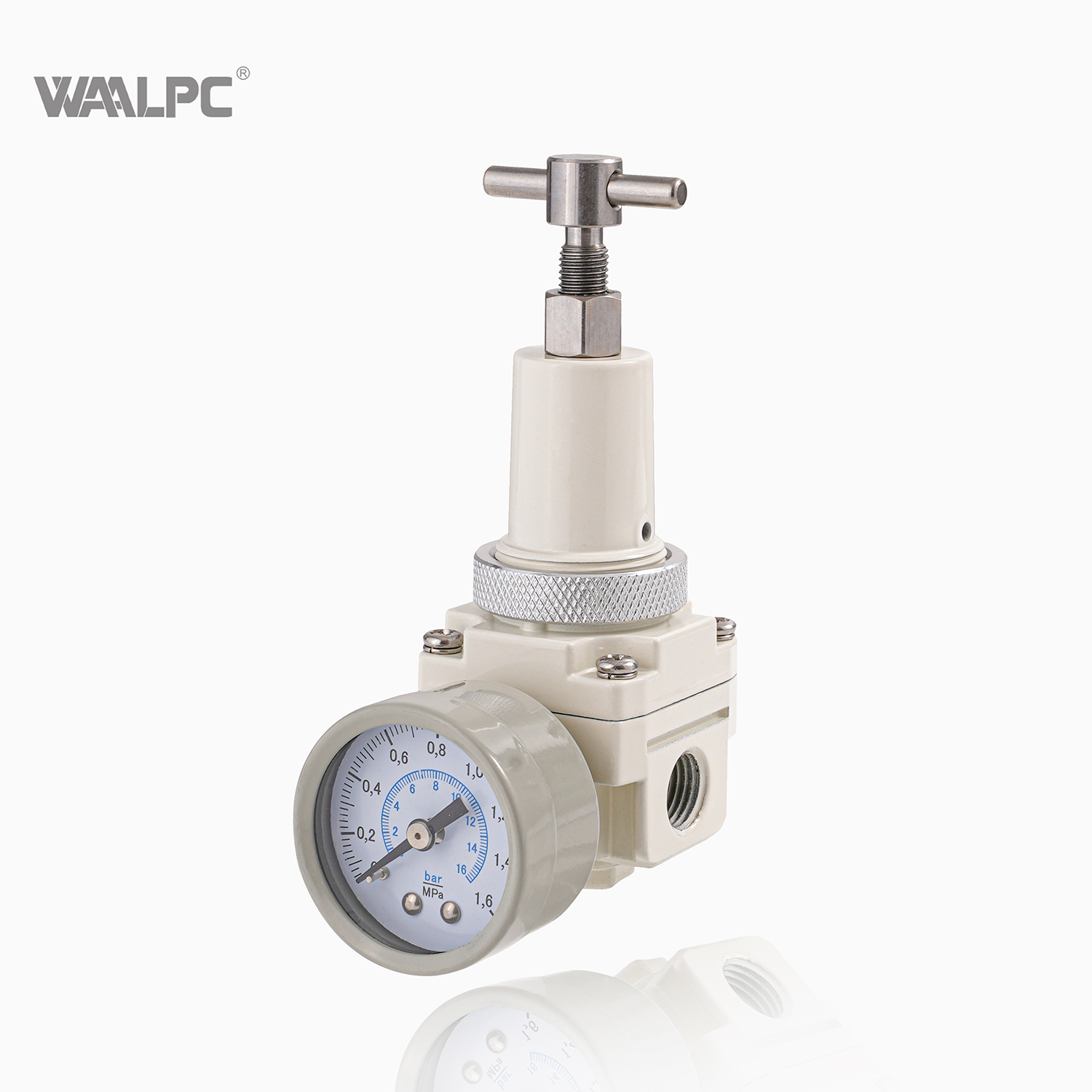

16Bar Air Source Treatment 3/4 Wholesaler Pneumatic Aluminum Alloy Air Pressure Regulator 1/2''

16Bar Air Source Treatment 3/4 Wholesaler Pneumatic Aluminum Alloy Air Pressure Regulator 1/2''

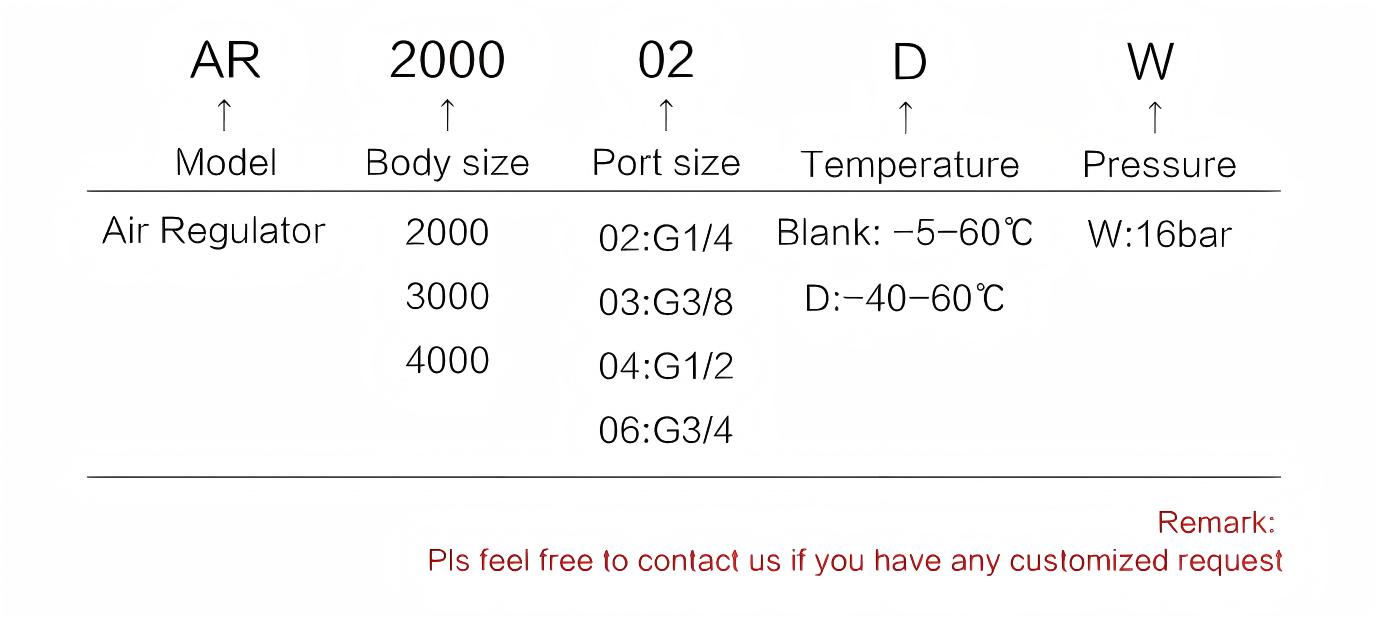

Size:	AR2000-02DW AR3000-03DW AR4000-042DW
Availability:

Quantity:



Inquiry Add to Basket MIC

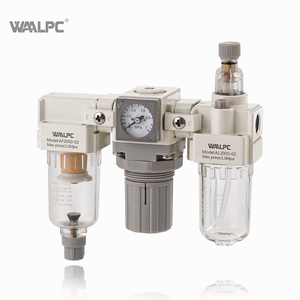

Pneumatic filter regulator lubricator (FRL) is used to deliver clean air, at a fixed pressure, and lubricated (if needed) to ensure proper pneumatic component operation and increase their operation lifetime. Filters, regulators, and lubricators can be bought individually or as a package.

1. Filter: remove water, dirt and other harmful debris from an air system. This is often the first step in improving the air quality.

2. Regulator: adjust and control the air pressure of a system to ensure that down-line components do not exceed their maximum operating pressures. This is the second step in the FRL system.

3. Lubricator: reduce the internal friction in tools or equipment by releasing a controlled mist of oil into the compressed air. This is often done last and/or right before the component needing lubrication.

Model:

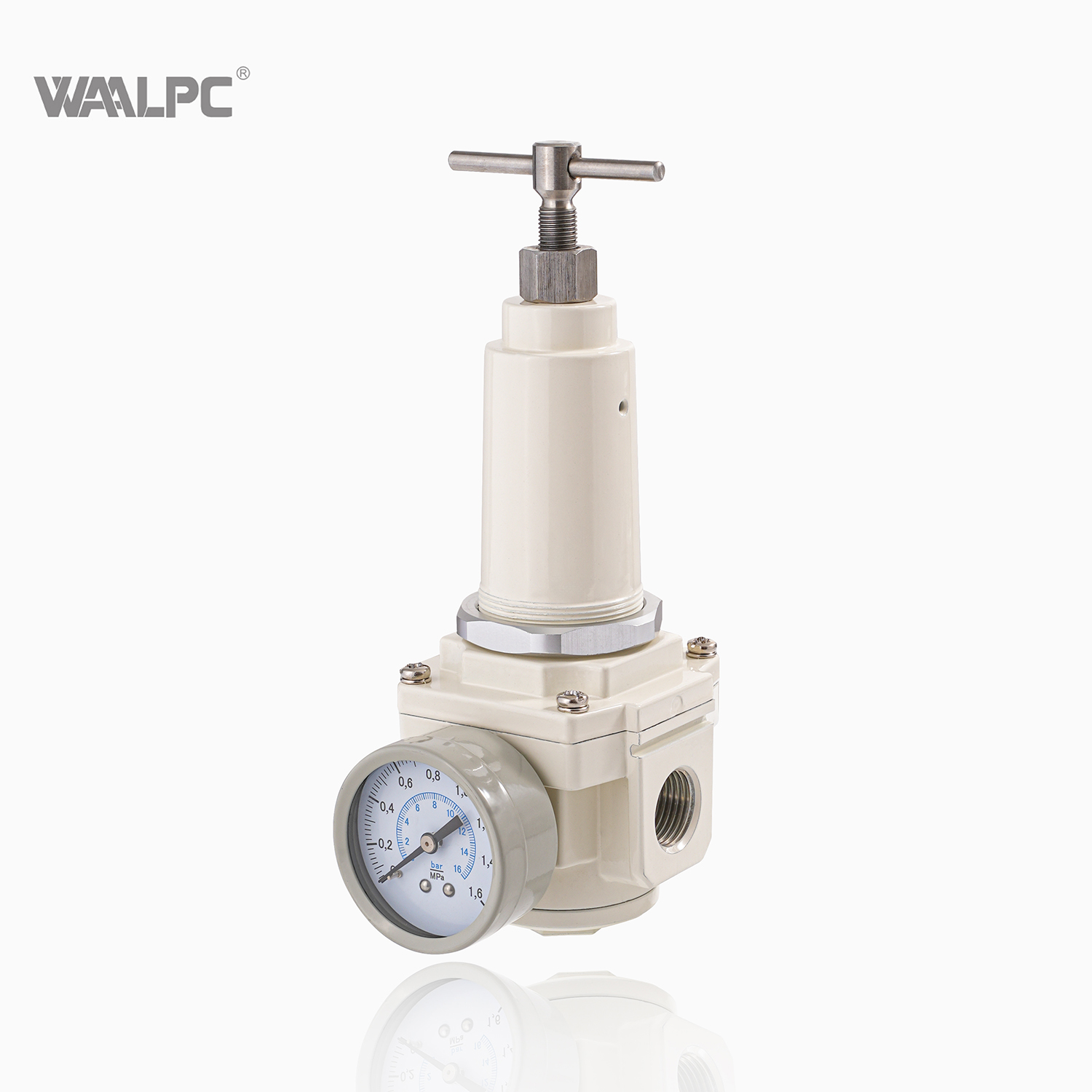

AR4000-04DW
Brand:
WAALPC

Product Description

Product Advantages

pressure regulator

1. Prepare air for all types of compressed air tools and equipment

2. Compressed air with filters to remove solid particles and condensate

3. Protect your pneumatic tools for longer lifespan

4. High pressure, corrosion, high&low temperature, acid and alkali resistant.

Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

Type-name	Air Regulator

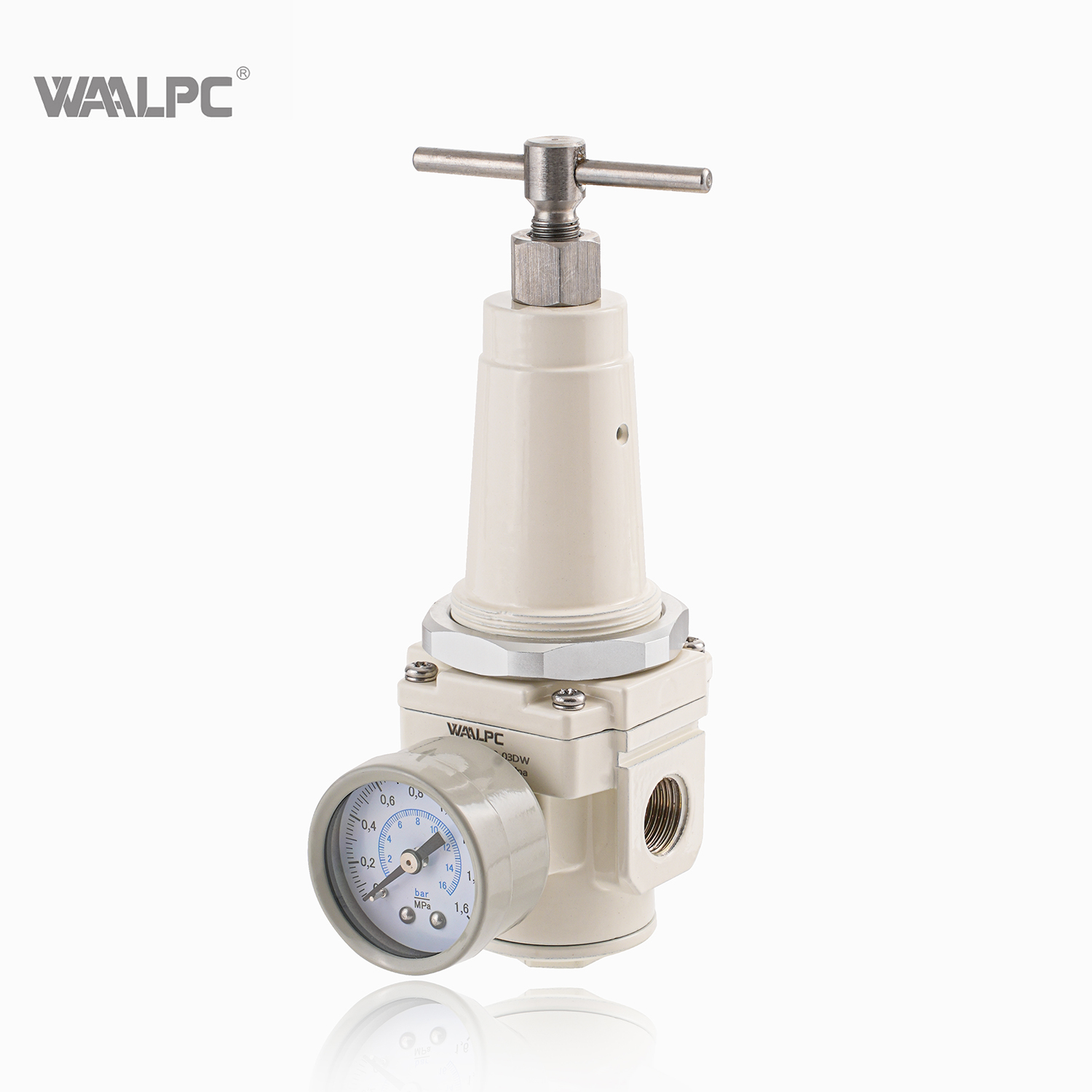

Model	AR2000-02DW	AR3000-02DW	AR3000-03DW	AR4000-04DW	AR4000-06DW
Port Size (G)	1/4	1/4	3/8	1/2	3/4
Rated Flow	500	2000	2000	4000	4500
Drain Type	Manual drain, differential pressure drain (optional)
Working Medium	Air
Pressure Regulating Range	0.05-1.6MPa(72.5psi 232psi)
Max. Operating Pressure	1.6MPa(232Psi)
Pressure Resistance	2.0MPa(290Psi)
Operating Temperature Range	-40-60 ℃
Pressure Gauge	Y40-01			Y50-02
L-Type Bracket	L20	L30	L30	L40	L40
Material	Die-cast aluminum alloy

Air Pressure Regulator 1/2''

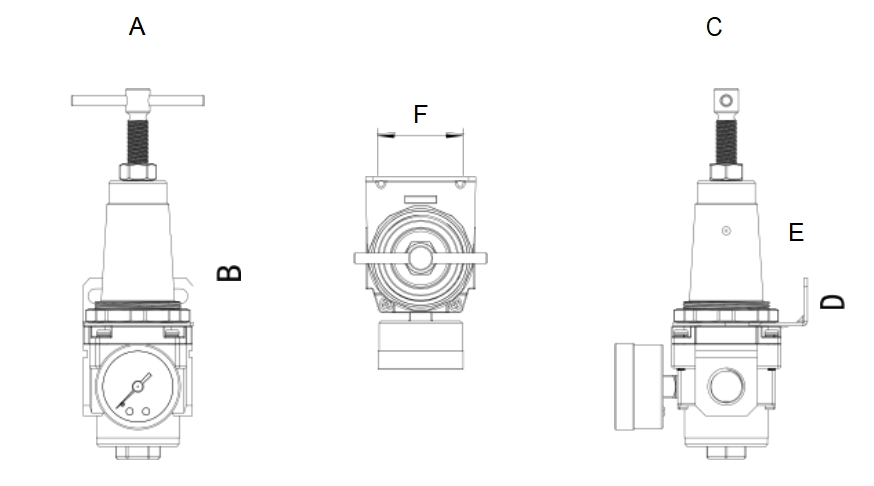

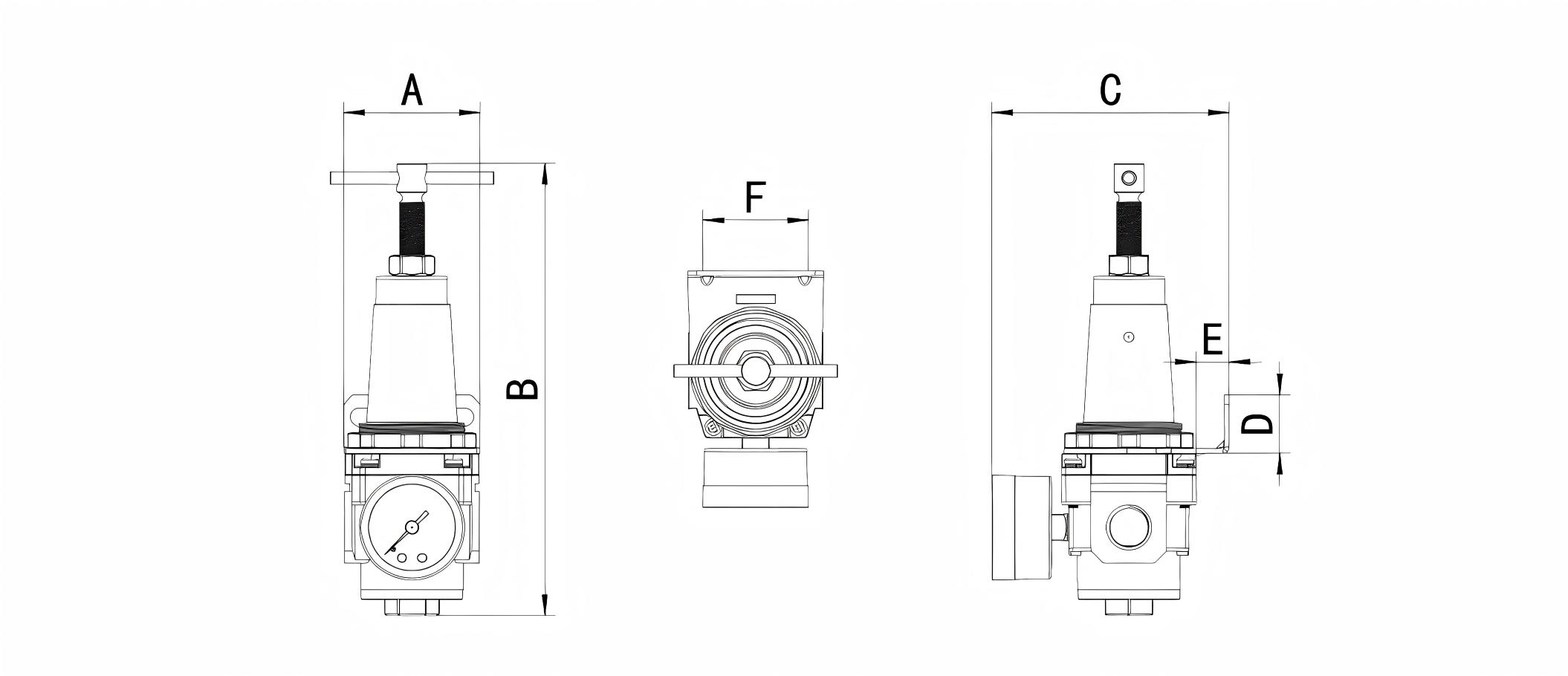

Model	Port size	Dimension(mm)
Model	Port size	A	B	C	D	E	F
AW2000-02DW	1/4	40	116	75	20	18	32
AW3000-02DW	1/4	63	170	88	21	23	37
AW3000-03DW	3/8	63	170	88	21	23	37
AW4000-04DW	1/2	70	205	110	21	21	37
AW4000-06DW	3/4	75	210	115	21	21

Specification Download

WAALPC Metal Series Air Source Treatments.pdf
