AR2000-02DW 16 Bar 1/4 3/8 1/2 3/4Air Source Treatment Pneumatic Metal Aluminum Alloy Air Pressure Regulator

1/4 3/8 1/2 3/4 Pneumatic Manual Drain Differential Pressure Drain 5μm 25μm 40μm Aluminum Alloy Air Filter Regulator

1/4 3/8 1/2 3/4 Pneumatic Manual Drain Differential Pressure Drain 5μm 25μm 40μm Aluminum Alloy Air Filter Regulator


Availability:

Quantity:



Inquiry Add to Basket MIC

Our heavy-duty All-Metal Filter Regulator, the ultimate two-in-one solution for critical air preparation. This integrated unit combines robust particulate filtration and precise pressure regulation in a single, compact, and incredibly durable housing. Engineered for the most demanding industrial environments, it ensures clean, stable, and controlled air supply to protect your valuable pneumatic equipment.

Model:

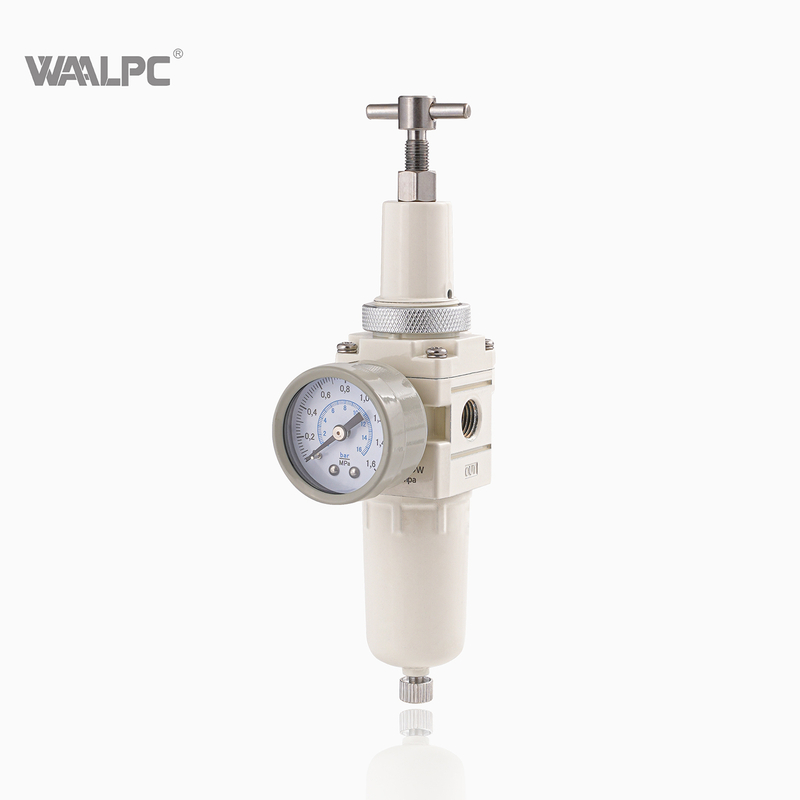

AW2000-02DW
Brand:
WAALPC
Code:
8421399090

Product Description

1. Prepare air for all types of compressed air tools and equipment

2. Compressed air with filters to remove solid particles and condensate

3. Regulator valves accurately maintain air pressure over a wide flow range

4. The lubricator supplies lubricating oil to the pneumatic equipment which is in operation in appropriate proportions

5. Protect your pneumatic tools for longer lifespan

6. High pressure, corrosion, high&low temperature ,acid and alkali resistant.

Technical Parameters

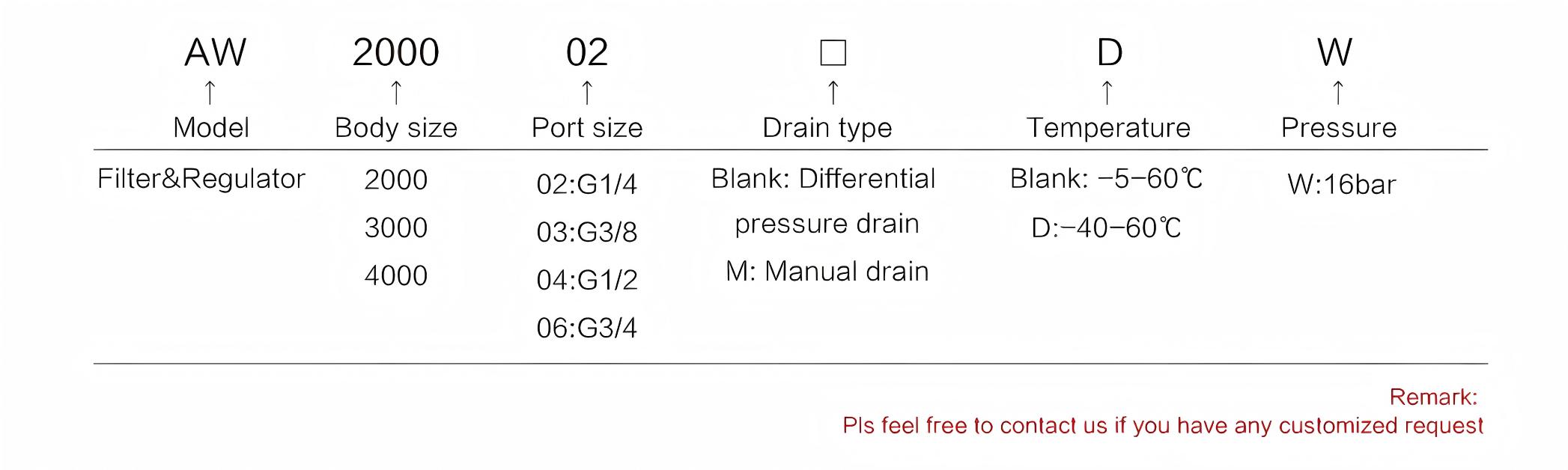

ORDERING CODE

Air filter regulator

Type-name	Air Filter & Regulator

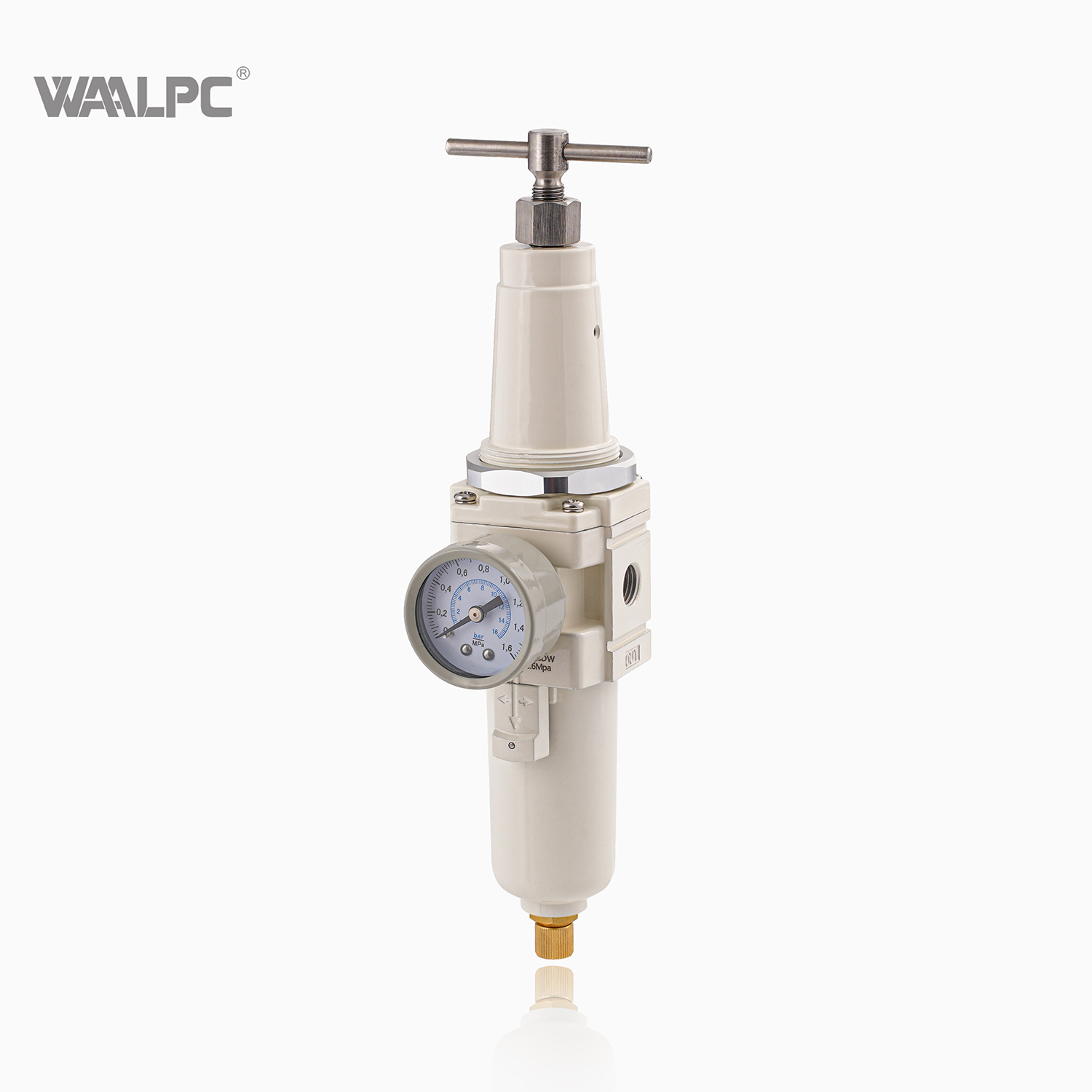

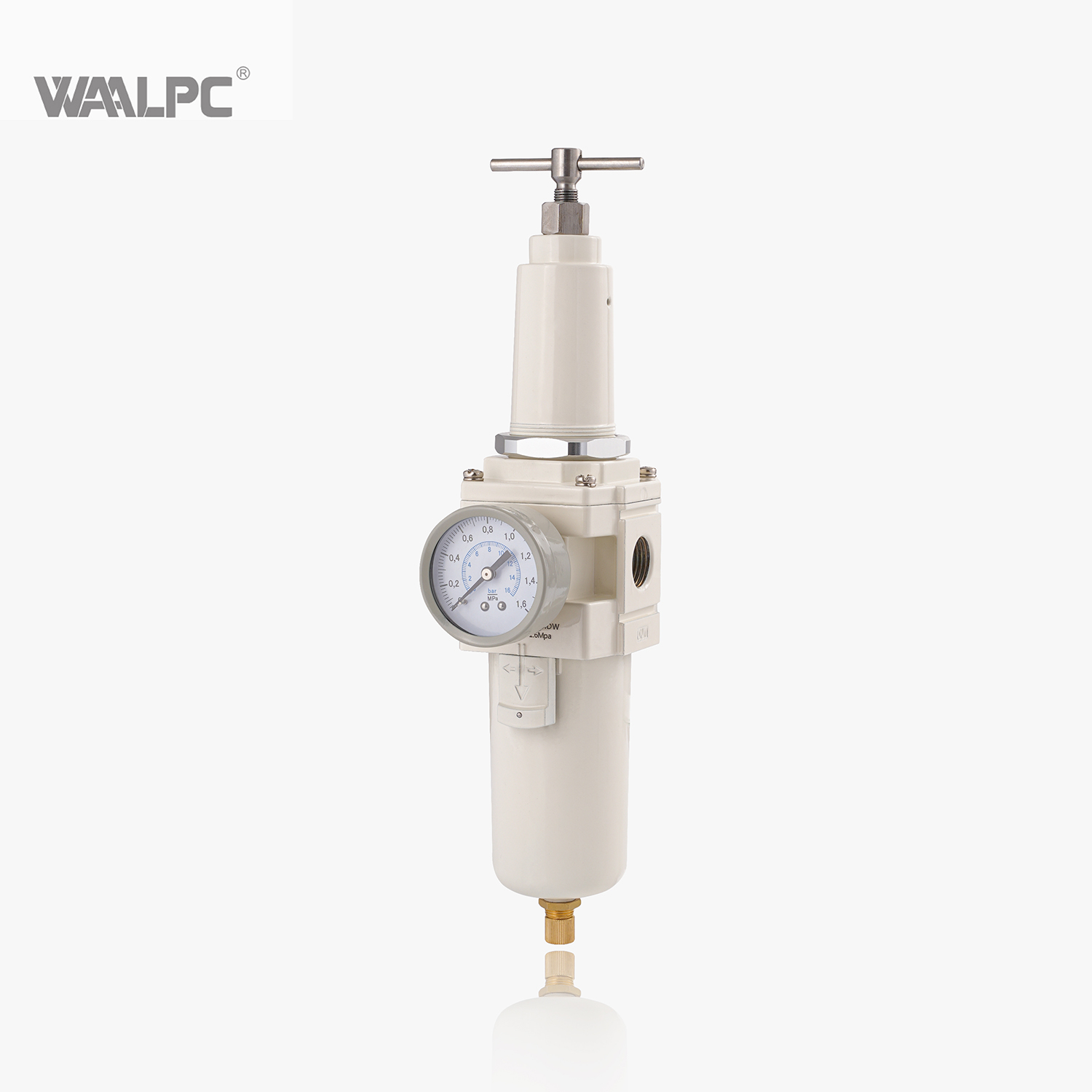

Model	AW2000-02DW	AW3000-02DW	AW3000-03DW	AW4000-04DW	AW4000-06DW
Port Size (G)	1/4	1/4	3/8	1/2	3/4
Rated Flow	500	2000	2000	4000	4500
Drain Type	Manual drain, differential pressure drain (optional)
Grade of Filtration	5μm, 25μm, 40μm
Working Medium	Air
Pressure Regulating Range	0.05-1.6MPa(72.5psi 232psi)
Max. Operating Pressure	1.6MPa(232Psi)
Pressure Resistance	2.0MPa(290Psi)
Operating Temperature Range	-40-60 ℃
Filter Cup Capacity	15	20	20	45	45
Pressure Gauge	Y40-01			Y50-02
L-Type Bracket	L20	L30	L30	L40	L40
Material	Die-cast aluminum alloy

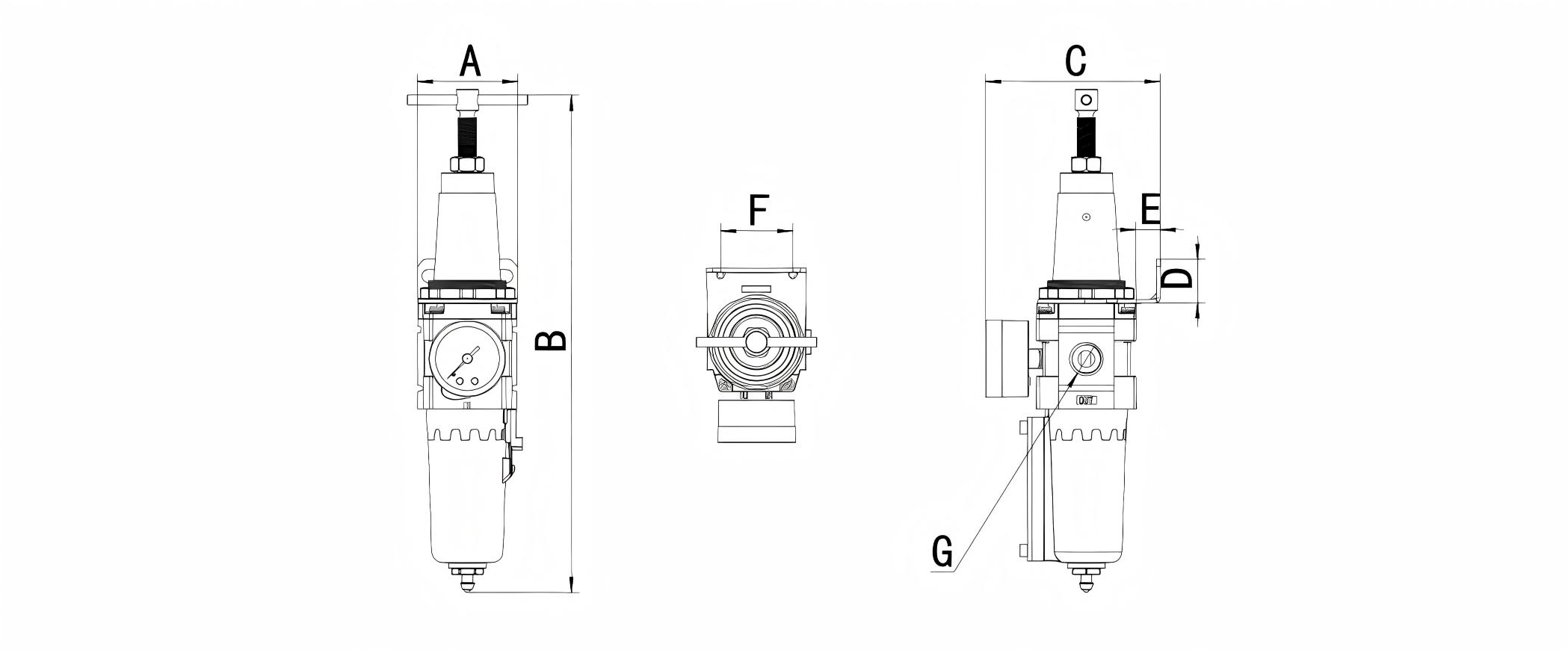

STRUCTURE

Filter Regulator

Model	Port size	Dimension(mm)
Model	Port size	A	B	C	D	E	F
AW2000-02DW	1/4	40	190	75	20	18	32
AW3000-02DW	1/4	63	250	88	21	23	37
AW3000-03DW	3/8	63	250	88	21	23	37
AW4000-04DW	1/2	70	310	110	21	21	37
AW4000-06DW	3/4	75	315	115	21	21	37

Specification Download
