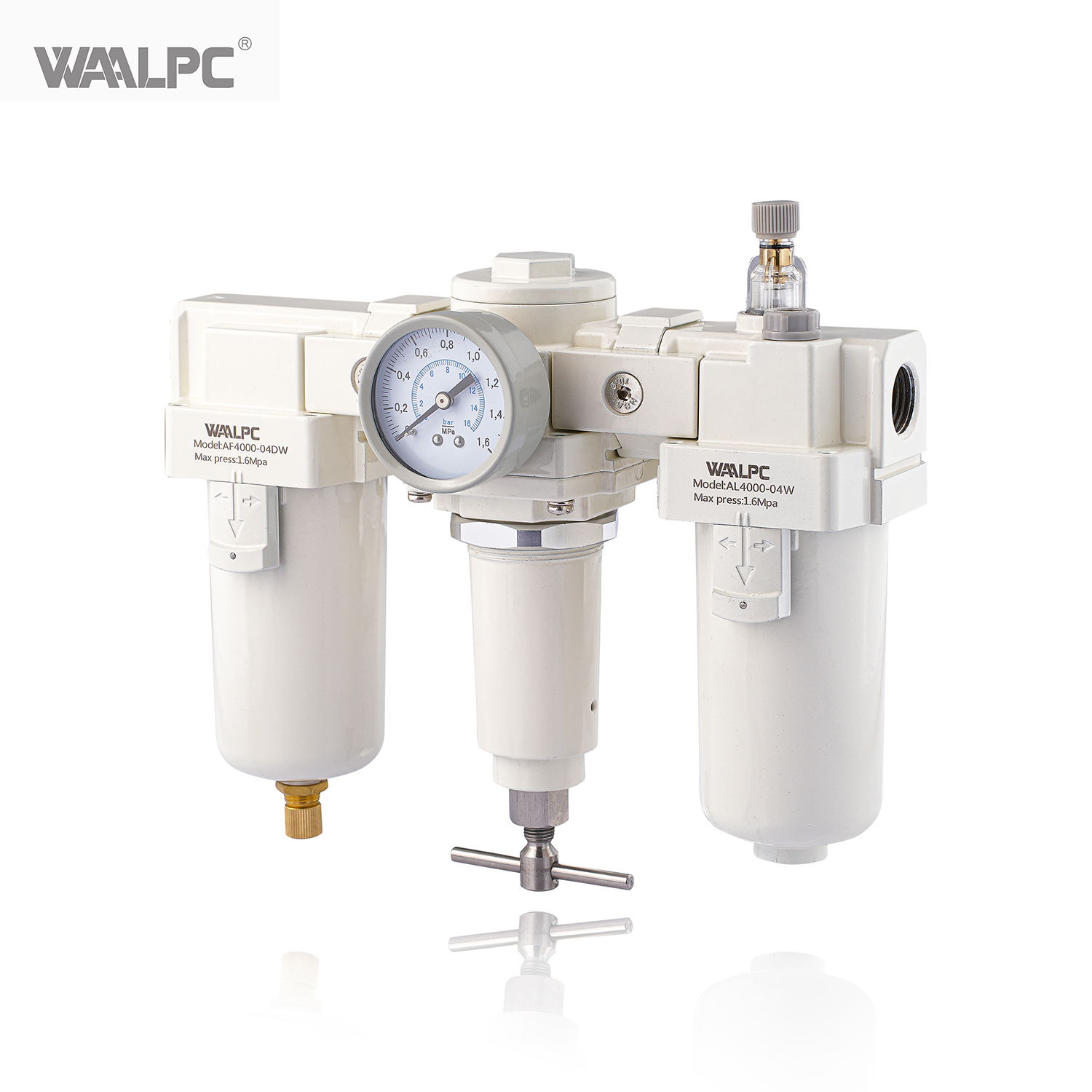

AC4000-04W 16Bar Pneumatic Metal Aluminum Alloy 1/2 3/4 Pneumatic Valves FRL Unit

16Bar Pneumatic Metal Aluminum Alloy 1/2'' 3/4'' Pneumatic Valves FRL Air Filter Regulator Lubricator Unit 3 Combination

16Bar Pneumatic Metal Aluminum Alloy 1/2'' 3/4'' Pneumatic Valves FRL Air Filter Regulator Lubricator Unit 3 Combination


Availability:

Quantity:



Inquiry Add to Basket MIC

Pneumatic filter regulator lubricator (FRL) is used to deliver clean air, at a fixed pressure, and lubricated (if needed) to ensure proper pneumatic component operation and increase their operation lifetime. Filters, regulators, and lubricators can be bought individually or as a package.

Model:
AC4000-04W
Brand:
WAALPC
Code:
8421399090

Product Description

1. Prepare air for all types of compressed air tools and equipment

2. Compressed air with filters to remove solid particles and condensate

3. Regulator valves accurately maintain air pressure over a wide flow range

4. The lubricator supplies lubricating oil to the pneumatic equipment which is in operation in appropriate proportions

5. Protect your pneumatic tools for longer lifespan

6. High pressure, corrosion, high&low temperature ,acid and alkali resistant.

Technical Parameters

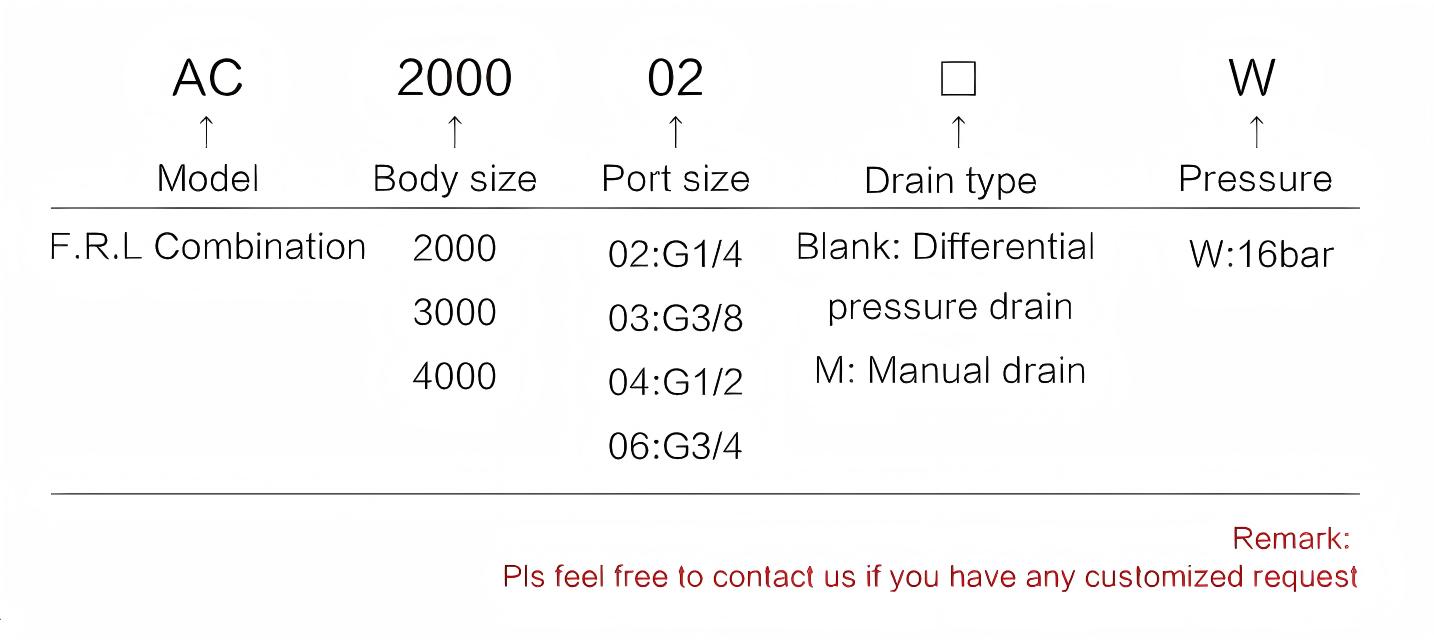

ORDERING CODE

Air filter regulator lubricator

DATA SHEET

Type-name	F.R.L combination
Model	AC2000-02W	AC3000-02W	AC3000-03W	AC4000-04W	AC4000-06W
Port Size (G)	1/4	1/4	3/8	1/2	3/4
Rated Flow	500	2000	2000	4000	4500
Drain Type	Manual drain, differential pressure drain (optional)
Grade of Filtration	5μm, 25μm, 40μm
Working Medium	Air
Pressure Regulating Range	0.05-1.6MPa(72.5psi 232psi)
Max. Operating Pressure	1.6MPa(232Psi)
Pressure Resistance	2.0MPa(290Psi)
Operating Temperature Range	-5-60 ℃
Filter Cup Capacity	15	20	20	45	45
Lubricator Cup Capacity	15	20	20	45	45
Recommended Oil	Oil for turbine 1 ISOVG32
Pressure Gauge	Y40-01			Y50-02
L-Type Bracket	L20	L30	L30	L40	L40
Material	Die-cast aluminum alloy

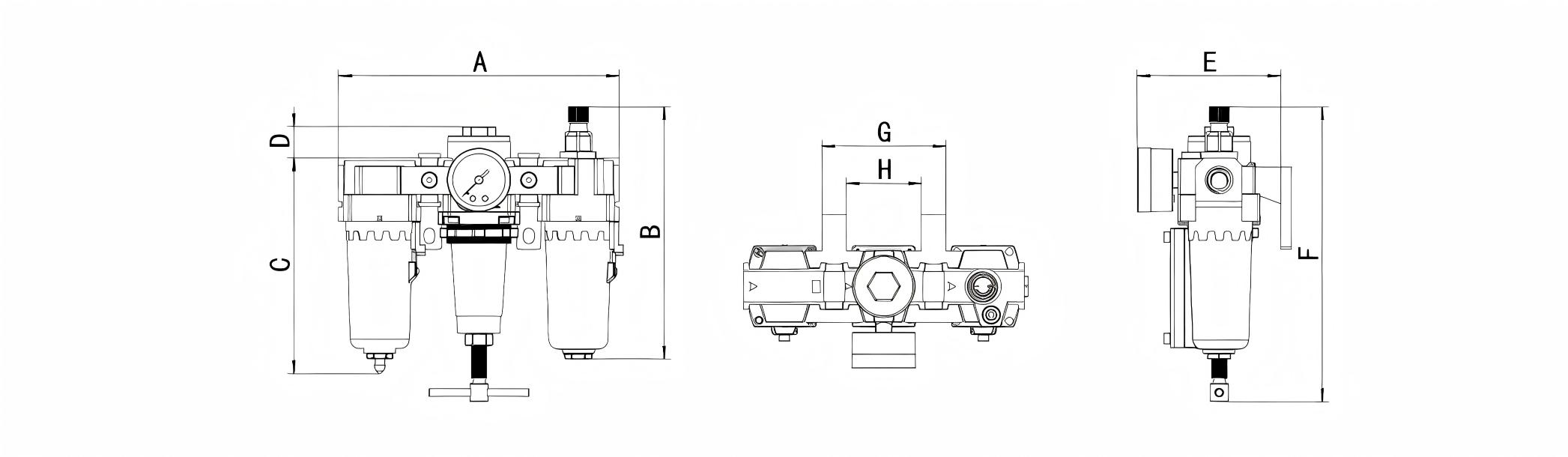

STRUCTURE

Air filter regulator lubricator

Model	Port size	Dimension(mm)
Model	Port size	A	B	C	D	E	F	G	H
AC2000-02W	1/4	141	136	105	7	75	146	65	37
AC3000-02W	1/4	170	158	110	7	85	168	85	57
AC3000-03W	3/8	170	158	110	7	85	168	85	57
AC4000-04W	1/2	200	166	145	7	95	178	105	77
AC4000-06W	3/4	210	170	150	7	100	183	110	82
