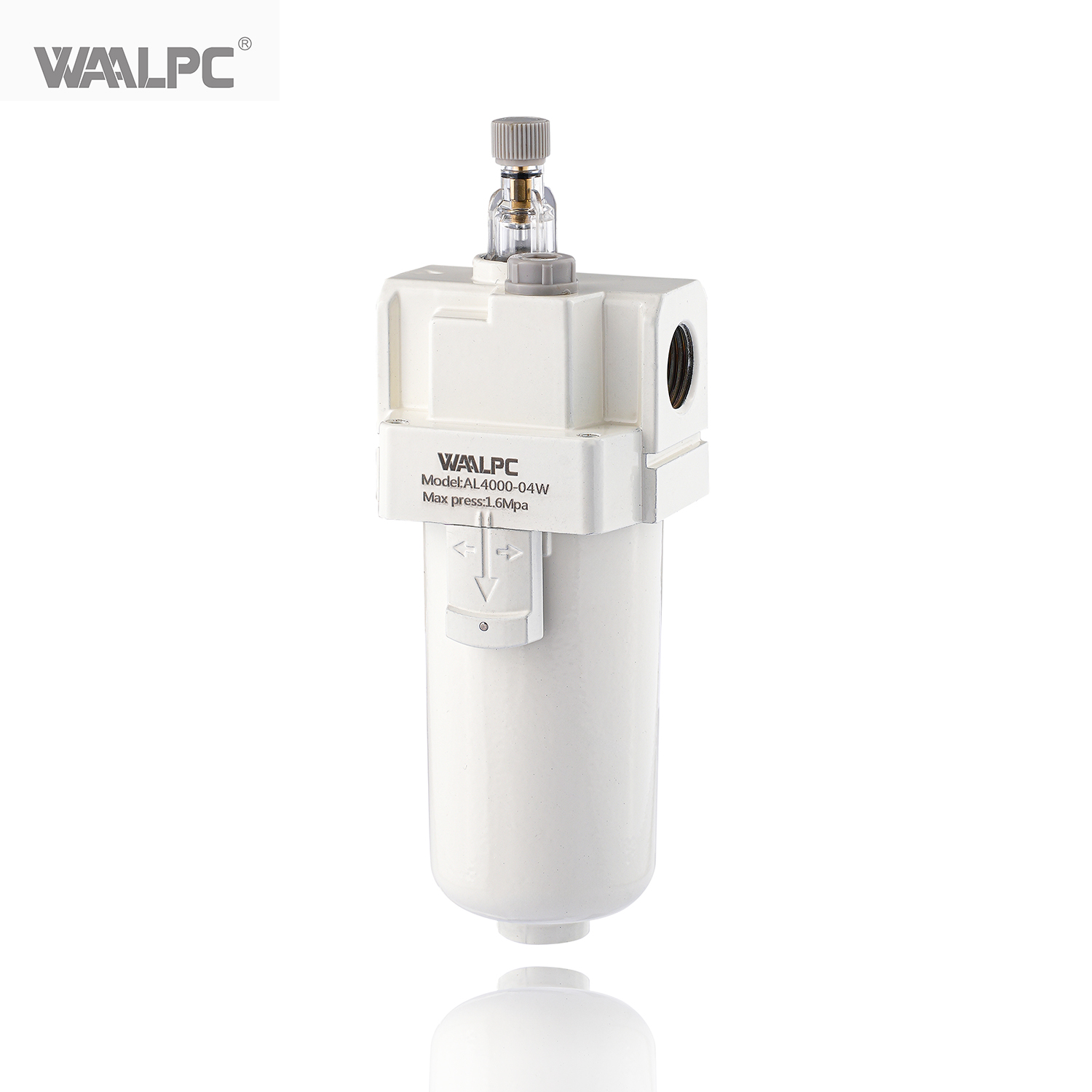

AL4000-04W G3/4 1/2 Metal Aluminum Alloy Automation Pressure Lubricator for Industry Equipment

G3/4 1/2 Metal Aluminum Alloy Automation Pressure Lubricator for Industry Equipment

G3/4 1/2 Metal Aluminum Alloy Automation Pressure Lubricator for Industry Equipment


Availability:

Quantity:



Inquiry Add to Basket MIC

Ensure the longevity and peak performance of your pneumatic equipment with our All-Metal Series Lubricators. Designed for durability and reliability in demanding industrial environments, these lubricators automatically inject a precise mist of oil into the air stream, providing essential lubrication to valves, cylinders, motors, and tools. The all-metal construction guarantees integrity where plastic components would fail.

Model:
AL4000-04W
Brand:
WAALPC
Code:
8421399090

Product Description

1. Prepare air for all types of compressed air tools and equipment

2. Compressed air with filters to remove solid particles and condensate

3. Regulator valves accurately maintain air pressure over a wide flow range

4. The lubricator supplies lubricating oil to the pneumatic equipment which is in operation in appropriate proportions

5. Protect your pneumatic tools for longer lifespan

6. High pressure, corrosion, high&low temperature ,acid and alkali resistant.

Technical Parameters

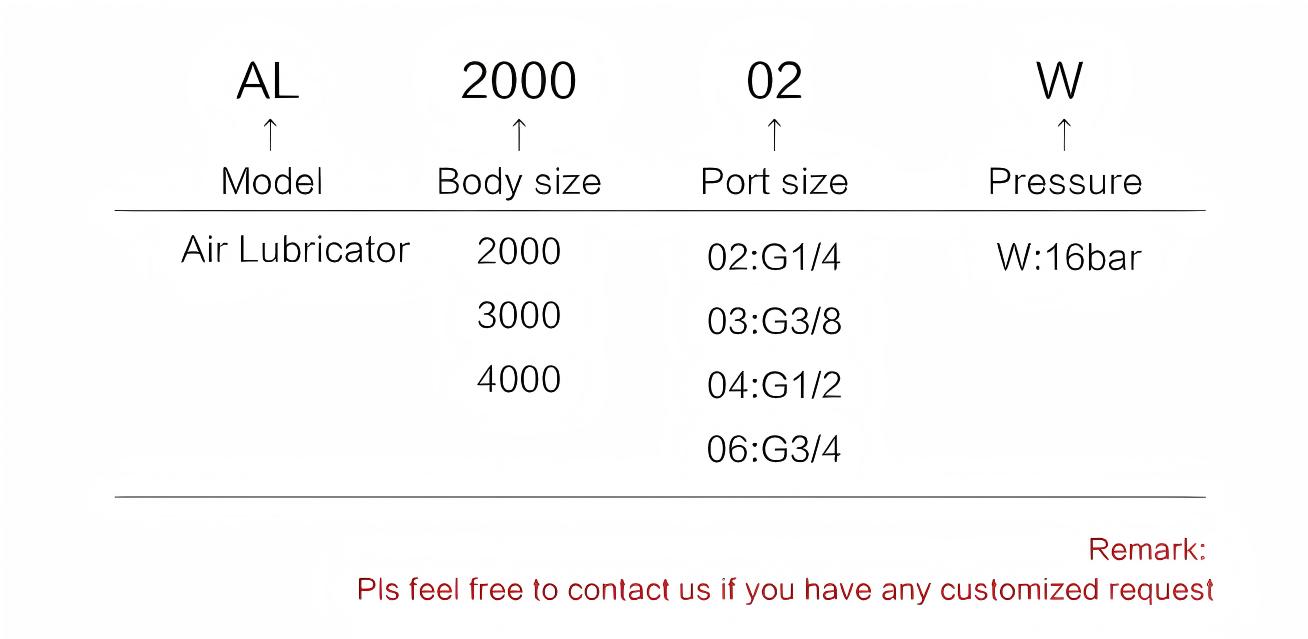

ORDERING CODE

Air lubricator

DATA SHEET

Type-name	Air Lubricator
Model	AL2000-02W	AL3000-02W	AL3000-03W	AL4000-04W	AL4000-06W
Port Size (G)	1/4	1/4	3/8	1/2	3/4
Rated Flow	500	2000	2000	4000	4500
Working Medium	Air
Pressure Regulating Range	0.05-1.6MPa(72.5psi 232psi)
Max. Operating Pressure	1.6MPa(232Psi)
Pressure Resistance	2.0MPa(290Psi)
Operating Temperature Range	-5-60 ℃
Lubricator Cup Capacity	15	20	20	45	45
Recommended Oil	Oil for turbine 1 ISOVG32
Pressure Gauge	Y40-01			Y50-02
L-Type Bracket	L20	L30	L30	L40	L40
Material	Die-cast aluminum alloy

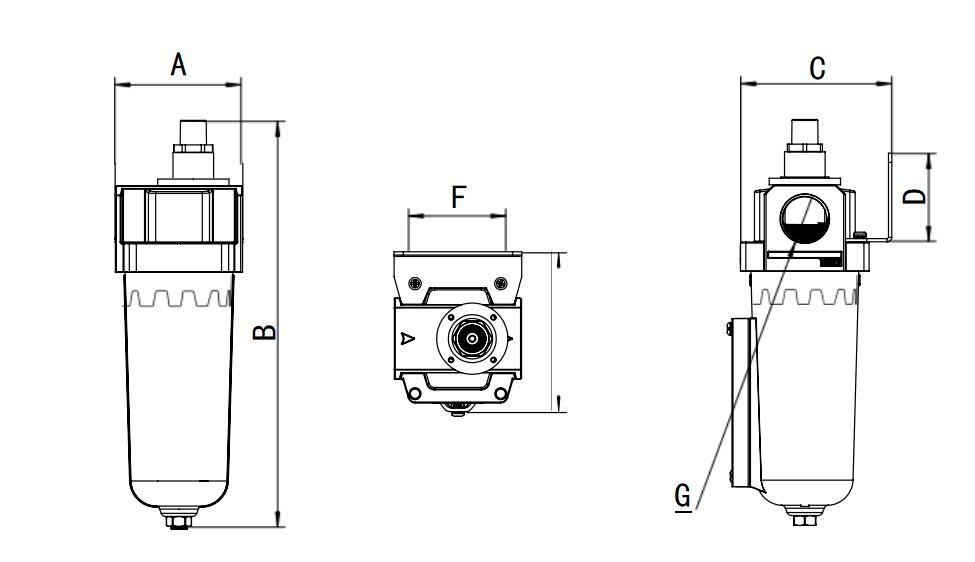

STRUCTURE

Automation Pressure Lubricator

Model	Port size	Dimension(mm)
Model	Port size	A	B	C	D	E	F
AL2000-02W	1/4	40	136	40	20	50	50
AL3000-02W	1/4	53	158	53	21	63	63
AL3000-03W	3/8	53	158	53	21	63	63
AL4000-04W	1/2	70	166	70	21	80	80
AL4000-06W	3/4	70	170	70	21	80	80
