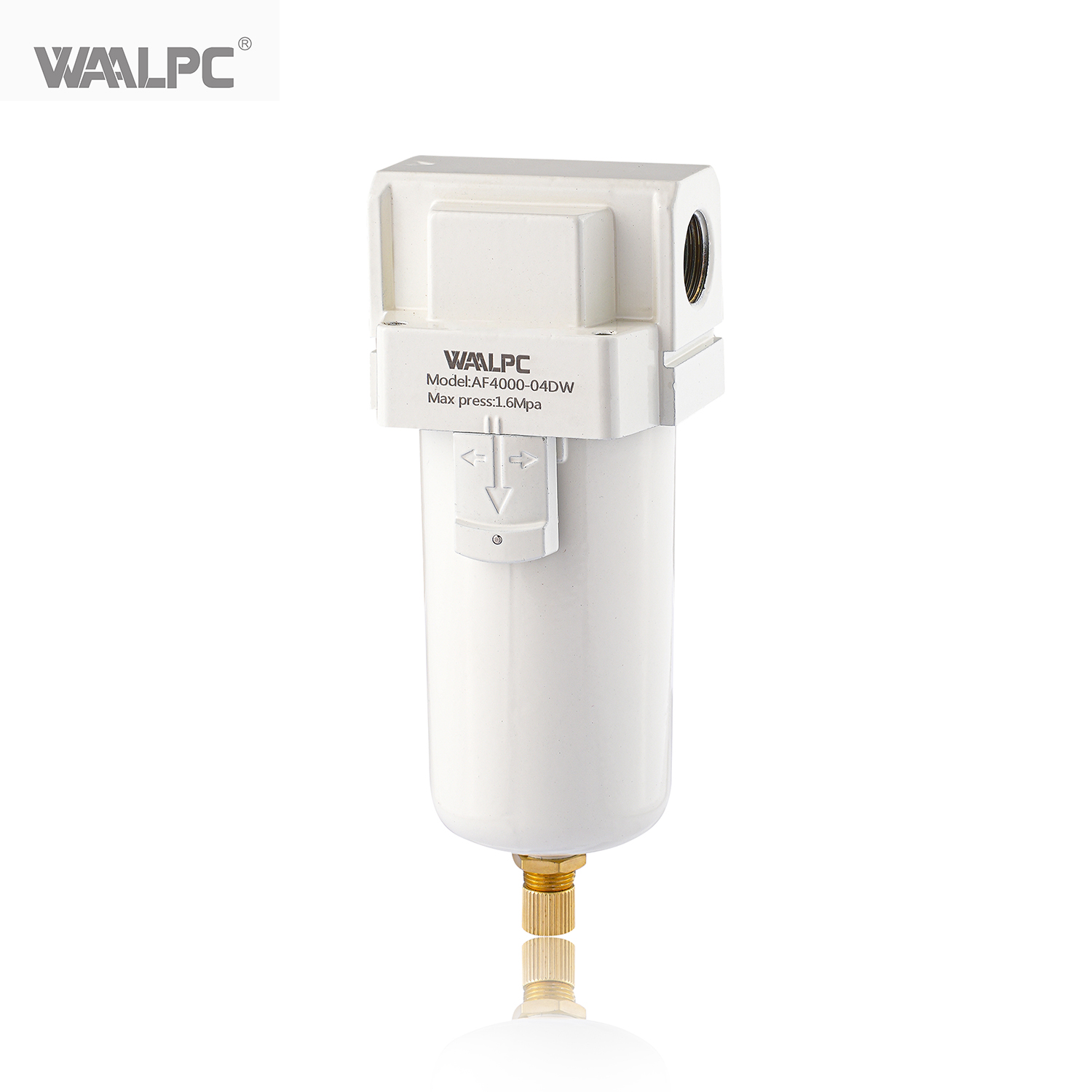

AF4000-04DW Aluminum Alloy 1/2 3/4 Metal Air Source Treatment Penumatic Air Filter

Aluminum Alloy 1/2 3/4 Metal Air Source Treatment Penumatic Air Filter for Automatic Devices

Aluminum Alloy 1/2 3/4 Metal Air Source Treatment Penumatic Air Filter for Automatic Devices


Availability:

Quantity:



Inquiry Add to Basket MIC

Engineered for reliability in the harshest conditions, our All-Metal Series Filters provide superior contaminant removal and particulate filtration for critical air, gas, and liquid lines.

Model:
AF4000-04DW
Brand:
WAALPC
Code:
8421399090

Product Description

1. Prepare air for all types of compressed air tools and equipment

2. Compressed air with filters to remove solid particles and condensate

3. Regulator valves accurately maintain air pressure over a wide flow range

4. The lubricator supplies lubricating oil to the pneumatic equipment which is in operation in appropriate proportions

5. Protect your pneumatic tools for longer lifespan

6. High pressure, corrosion, high&low temperature ,acid and alkali resistant.

Technical Parameters

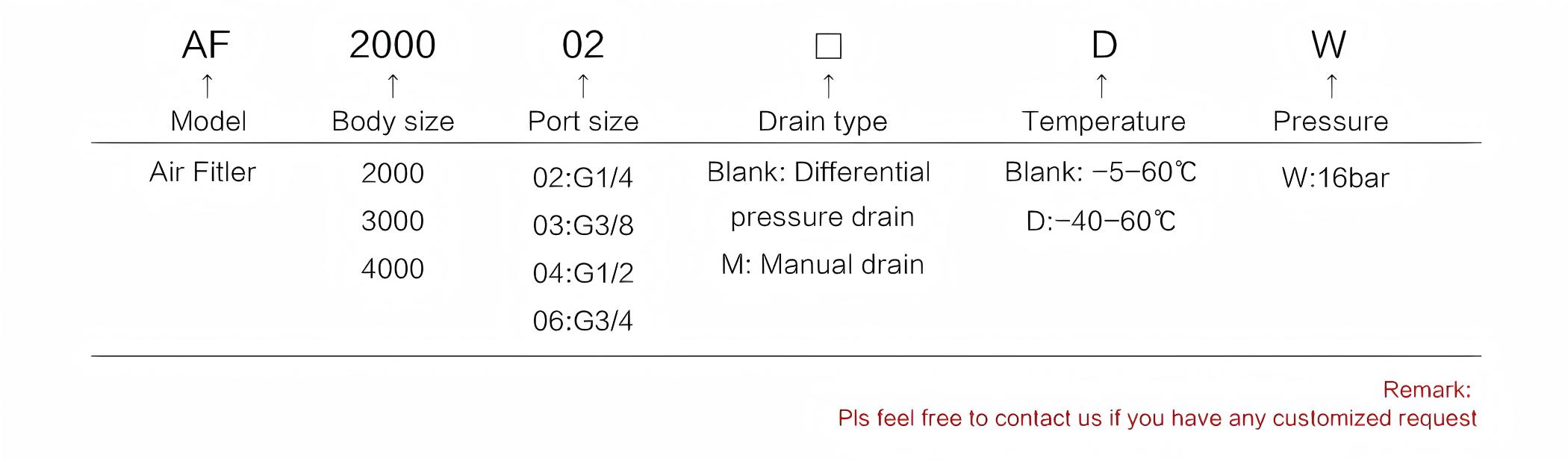

ORDERING CODE

Air filter

DATA SHEET

Type-name	Air Filter
Model	AF2000-02DW	AF3000-02DW	AF3000-03DW	AF4000-04DW	AF4000-06DW
Port Size (G)	1/4	1/4	3/8	1/2	3/4
Rated Flow	500	2000	2000	4000	4500
Drain Type	Manual drain, differential pressure drain (optional)
Grade of Filtration	5µm, 25µm, 40µm
Working Medium	Air
Pressure Regulating Range	0.05-1.6MPa(72.5psi 232psi)
Max. Operating Pressure	1.6MPa(232Psi)
Pressure Resistance	2.0MPa(290Psi)
Operating Temperature Range	-40-60 ℃
Filter Cup Capacity	15	20	20	45	45
L-Type Bracket	L20	L30	L30	L40	L40
Material	Die-cast aluminum alloy

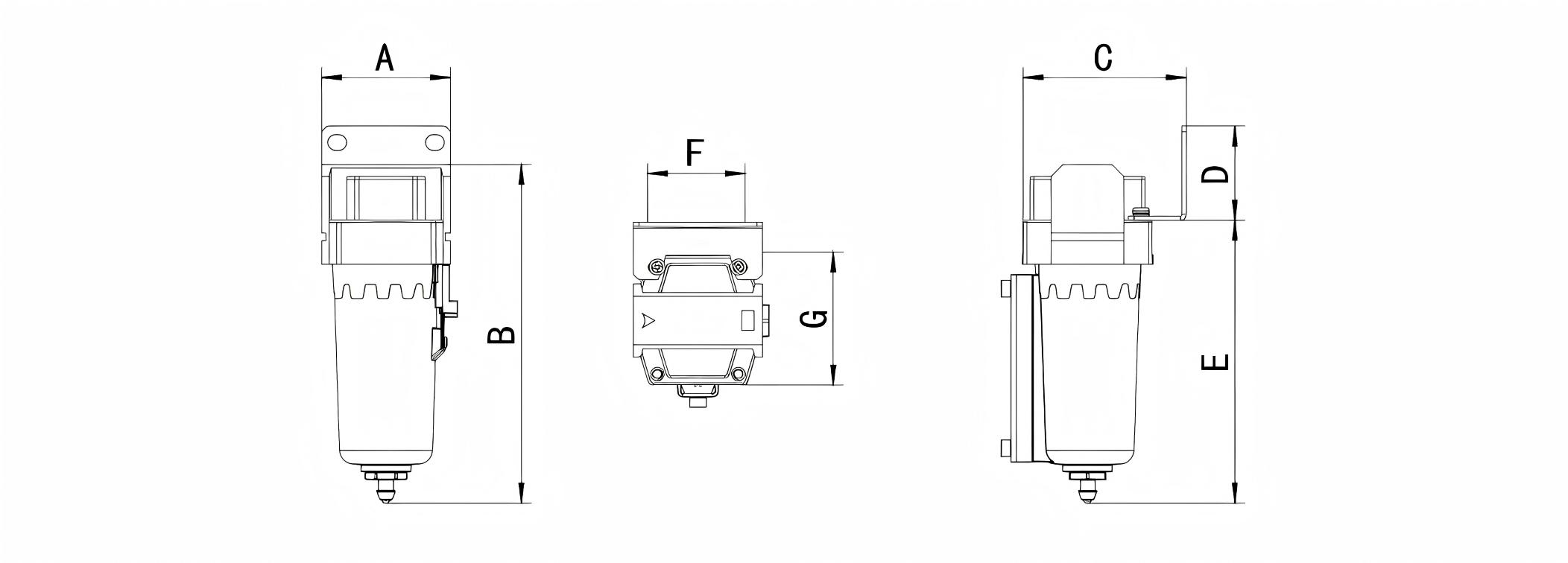

STRUCTURE

Air filter

Model	Port size	Dimension(mm)
Model	Port size	A	B	C	D	E	F	G
AF2000-02DW	1/4	40	104	50	20	90	32	40
AF3000-02DW	1/4	53	134	67	21	115	37	53
AF3000-03DW	3/8	53	134	67	21	115	37	53
AF4000-04DW	1/2	70	167	82	21	140	37	70
AF4000-06DW	3/4	70	174	82	21	147	37	70
