20Bar 2MPa Air Source Treatment 1'' 1/2'' NPT PT Pneumatic 316 SS Stainless Steel Air Pressure Regulator

20Bar 2MPa Air Source Treatment 1'' 1/2'' NPT PT Pneumatic 316 SS Stainless Steel Air Pressure Regulator


Material:	Stainless Steel
Availability:

Quantity:



Inquiry Add to Basket MIC

Air source treatments are key components in pneumatic systems. They are mainly used to process compressed air to ensure that it is clean, dry and stable to improve system efficiency and equipment life. The following are its main components and functions:
1. Air filter
Function: Remove moisture, oil and solid particles from compressed air.
Importance: Prevent pollutants from damaging pneumatic components and ensure the normal operation of the system.

2. Air pressure regualtor
Function: Regulate the pressure of compressed air to keep it stable.
Importance: Avoid pressure fluctuations from damaging the equipment and ensure stable operation of the system.

3. Air lubricator
Function: Add an appropriate amount of lubricating oil to the compressed air to reduce friction and wear of pneumatic components.
Importance: Extend equipment life and improve operating efficiency.

Model:
SR200
Brand:
WAALPC

Product Description

Product Advantages

stainless steel air pressure regulator

1.SUS316 stainless steel

2.High pressure, corrosion, high&low temperature ,acid and alkali resistant.

3.Effective and fast removal of water and particles.

4. High flow rate.

5.Oil spray in mist ensure good lubrication for machines, extend long lifetime

Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters


Type-Name	Air Regulator
Model	SR200	SR400	SR400	SR600	SR600
Port Size（G）	G1/4	G3/8	G1/2	G3/4	G1
Max Flow Rate(L/Min)	1850	2250	2520	9000	9400
Filter Cup Capacity	125cc	130cc	130cc	200cc	200cc
Regulator Construction	Piston
Working Medium	Air
Pressure Regulating Range	0.15~2MPa
Pressure Resistance	6MPa（870Psi）
Operating Temperature Range	-40~100℃
Material	SUS316 stainless steel
Accessories	Pressure gauge, mounting bracket, screw x2
Weight	1150g	1350g	1300g	3300g	3200g

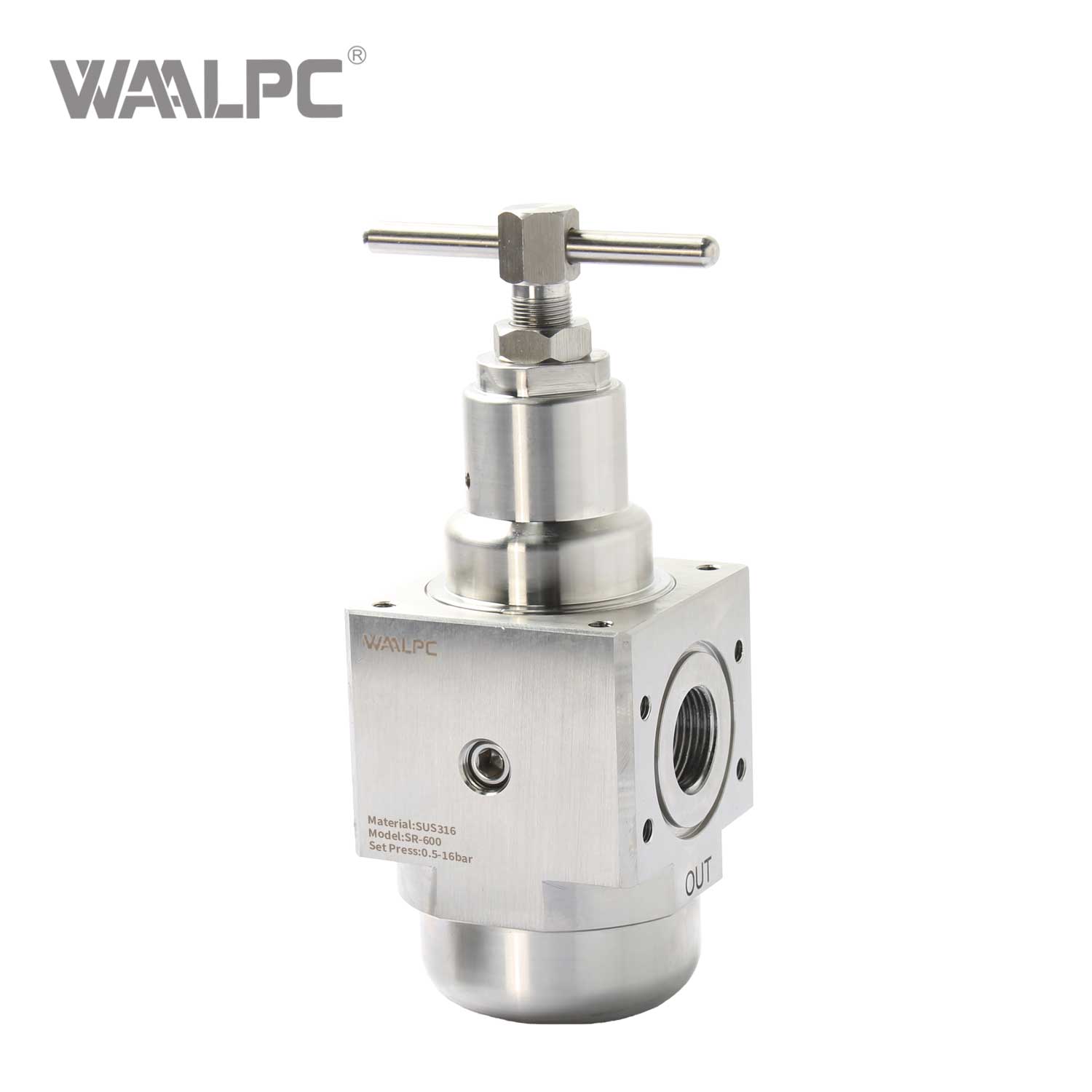

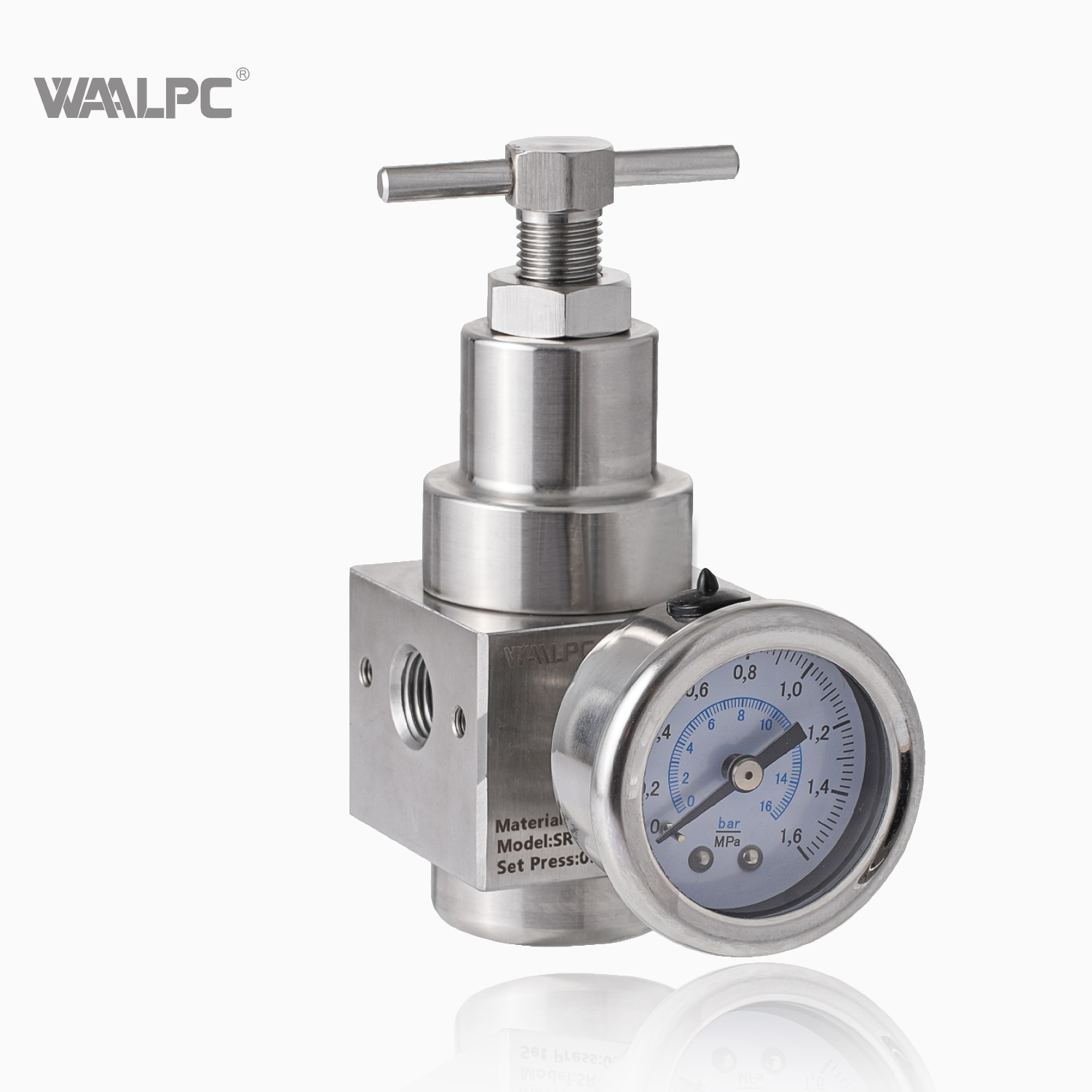

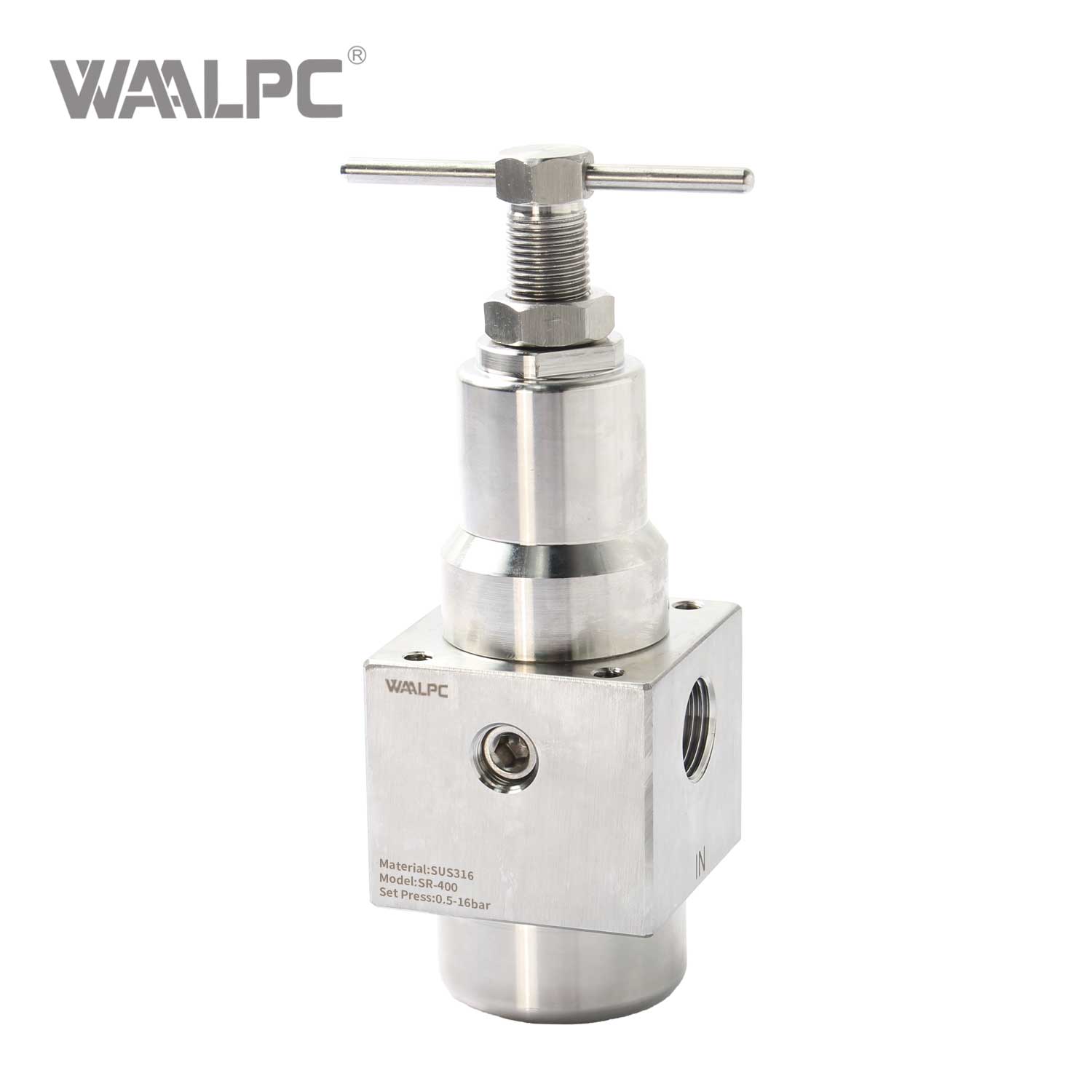

SR200 stainless steel air pressure regulator SR400 stainless steel air pressure regulator SR600 stainless steel air pressure regulator

Specification Download

WAALPC Stainless Steel Series Air Source Treatments .pdf

Production Process

Air source treatment supplier

Packing∇ivery

FAQs

How do you ensure your product and service quality?

Provide customers with "high precision, high efficiency, high-quality" products is our mission. Every product is carefully tested before packing and shipping. Our team is always here for you to contact and discuss, any questions, just feel free to let us know.
What is your sample policy?

We can offer some models sample for free, it depends on the different product type, and freight cost charge by your side. Let's get chat if have any sample comments.
How can l make payment?

We accept T/T bank transfer, Western Union, L/C, Paypal etc.
What is your minimum order quantity?

All MOQ depends on the product. Please feel free to check with us for specific items.
What about delivery time?

It depends on the product and quantities, Normal model 3-5days, as we have ability to do in stock. It need about 10-15days for big order qty.
Do you accept OEM business?

Sure. we have done rich OEM/ODM service for many domestic and international market.
What about shipping?

We accept shipment by air or express, railway and sea shipping. It depends on your order qty or any requirement. We will help give support to provide applicable shipping way for you.
What's your main products?

We produce pneumatic components, air source processing devices, pneumatic control components, pneumatic actuators, solenoid valves, pneumatic accessories and other products.
How does your factory do quality control?

We always observe high quality control system strictly, base on ISO9001 quality control procedures, we observe international AQL standard inspection, from raw material inspection-semi finished product inspection-finished products inspection-testing inspection-packing inspection.
What to do if there is a problem with the product?

We will give quick response and analyse reason of any customer complaint,we usually make replacement to customers. And we can discuss more detail depend on different requirement.

Why choose us? What can we do for you?

♦ Founded in 2011 and professional experienced in the field of producing pneumatic products for over 13+ years.
♦ We have strong production capacity, over 100000 pcs/month.
♦We have rich experience for offering OEM/ODM service
♦ We have strict quality control process with quick response of after sales service.
♦ Management system certification : ISO9001,CE, ROHS
♦ We have 10+ technical experts for researching and developing.
♦ Sales network expands from domestic sales to all over the world.
