5um 4um 20bar 1'' NPT PT 3/4'' 1/2'' 1/4''Air Source Treatment 316 Stainless Steel Air Filter Regulator with Differential Pressure Drain

5um 4um 20bar 1'' NPT PT 3/4'' 1/2'' 1/4''Air Source Treatment 316 Stainless Steel Air Filter Regulator with Differential Pressure Drain


Material:	Stainless Steel
Availability:

Quantity:



Inquiry Add to Basket

Pneumatic filter regulator lubricator (FRL) is used to deliver clean air, at a fixed pressure, and lubricated (if needed) to ensure proper pneumatic component operation and increase their operation lifetime. Filters, regulators, and lubricators can be bought individually or as a package.

1. Filter: remove water, dirt and other harmful debris from an air system. This is often the first step in improving the air quality.

2. Regulator: adjust and control the air pressure of a system to ensure that down-line components do not exceed their maximum operating pressures. This is the second step in the FRL system.

3. Lubricator: reduce the internal friction in tools or equipment by releasing a controlled mist of oil into the compressed air. This is often done last and/or right before the component needing lubrication.

Model:
SFR200
Brand:
WAALPC

Product Description

Product Advantages

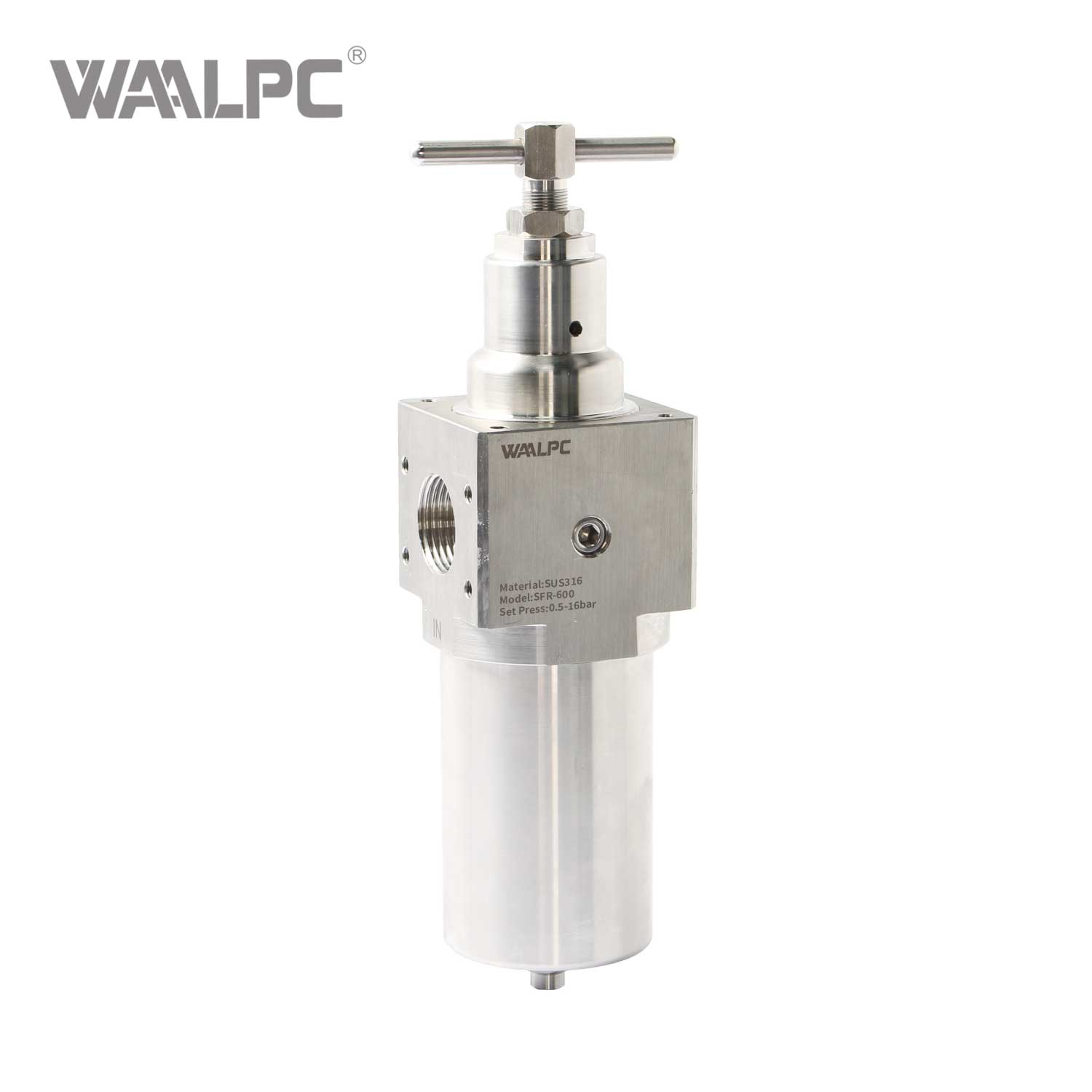

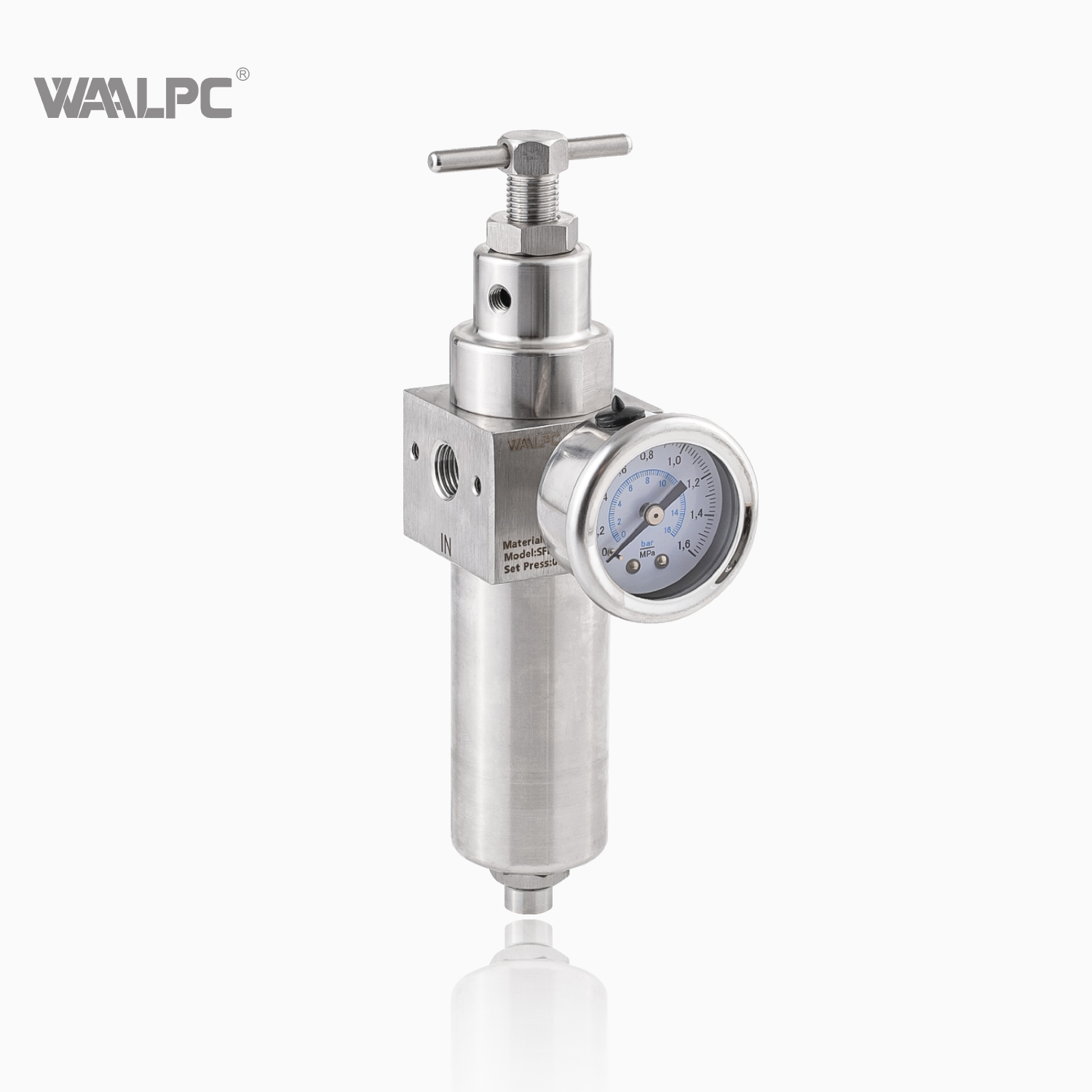

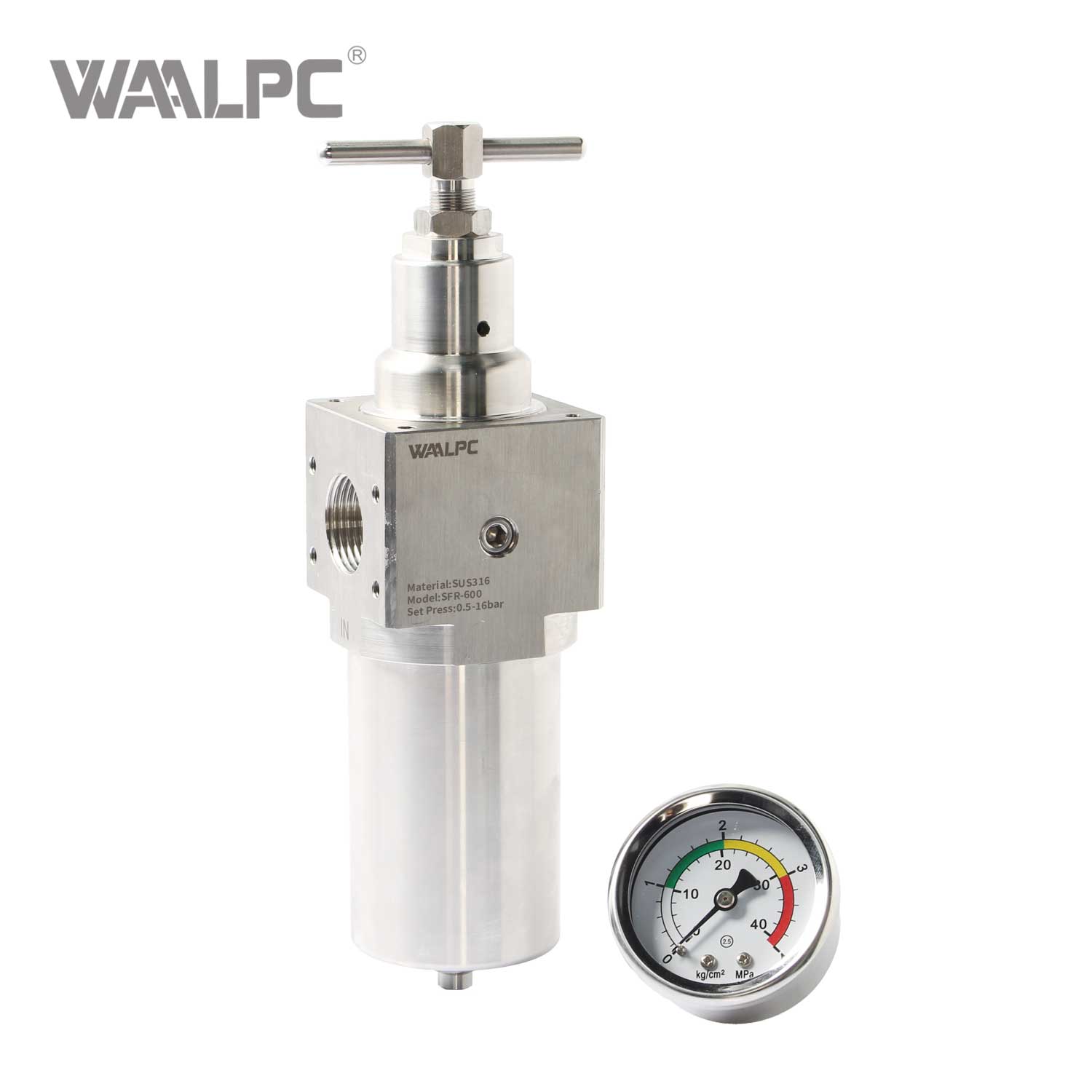

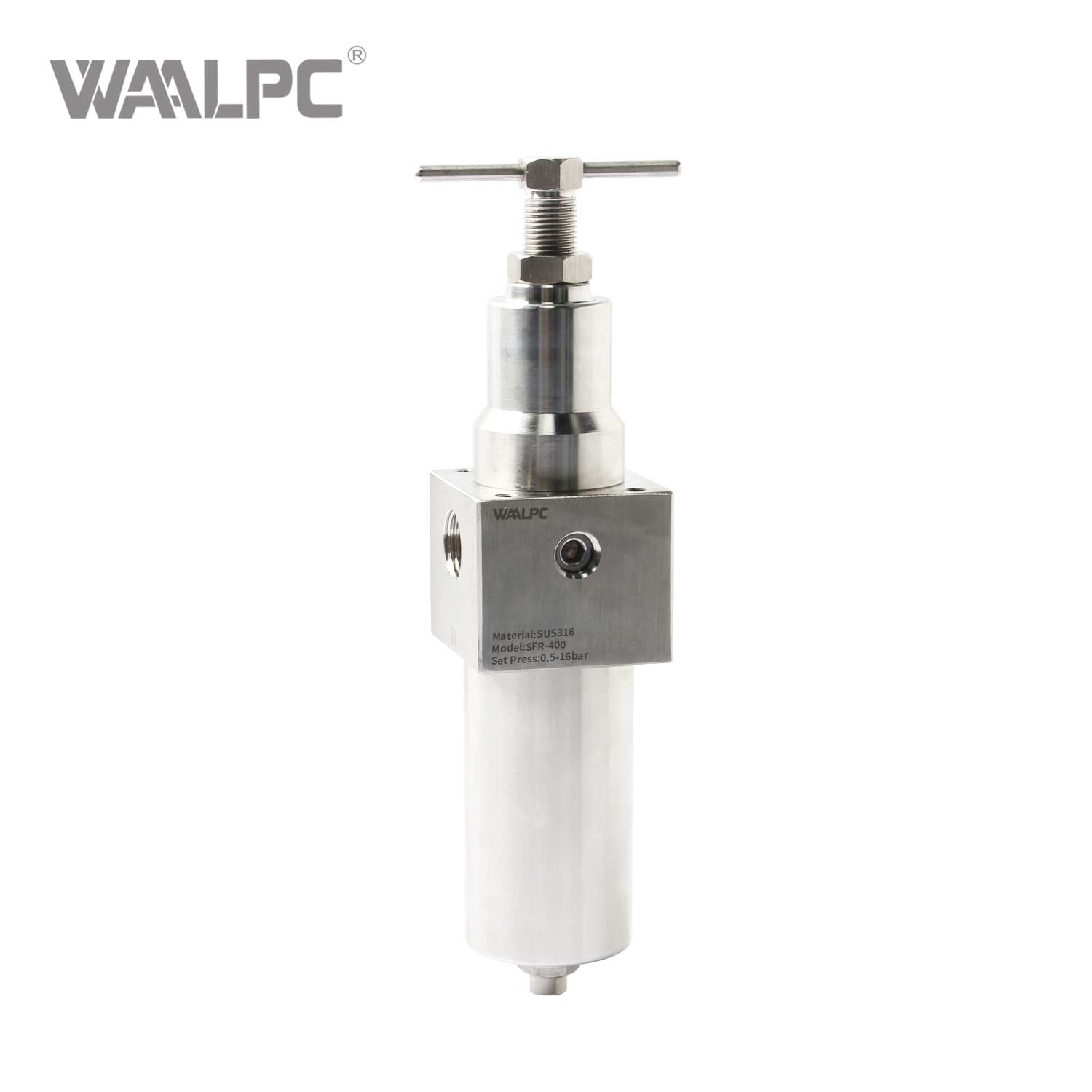

Stainless Steel Air Filter Regulator

1.SUS316 stainless steel

2.High pressure, corrosion, high&low temperature ,acid and alkali resistant. 3.Effective and fast removal of water and particles.

4. High flow rate.

5.Oil spray in mist ensure good lubrication for machines, extend long lifetime

Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

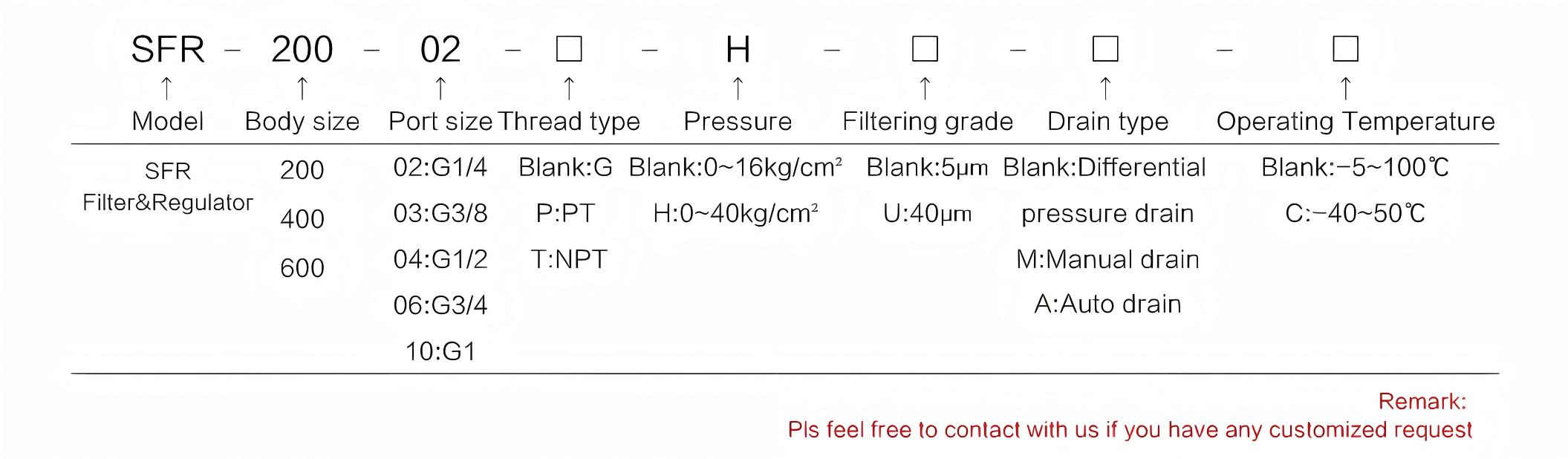

Technical Parameters

Type-Name	Air Filter & Regulator
Model	SFR200	SFR400	SFR400	SFR600	SFR600
Port Size（G）	G1/4	G3/8	G1/2	G3/4	G1
Max Flow Rate(L/Min)	1850	2200	2500	7600	8000
Filter Cup Capacity	105cc	110cc	110cc	200cc	200cc
Grade of Filtration	5μm, 40μm
Working Medium	Air
Pressure Regulating Range	0.15~2MPa
Pressure Resistance	6MPa（870Psi）
Operating Temperature Range	-40~100℃
Drain Type	Differential pressure drain(Drain below 0.05MPa)
Material	SUS316 stainless steel
Accessories	Pressure gauge, Mounting bracket, screw x2
Weight	1340g	1960g	1940g	4520g	4500g

Stainless Steel Air Filter Regulator

Specification Download

WAALPC Stainless Steel Series Air Source Treatments .pdf
