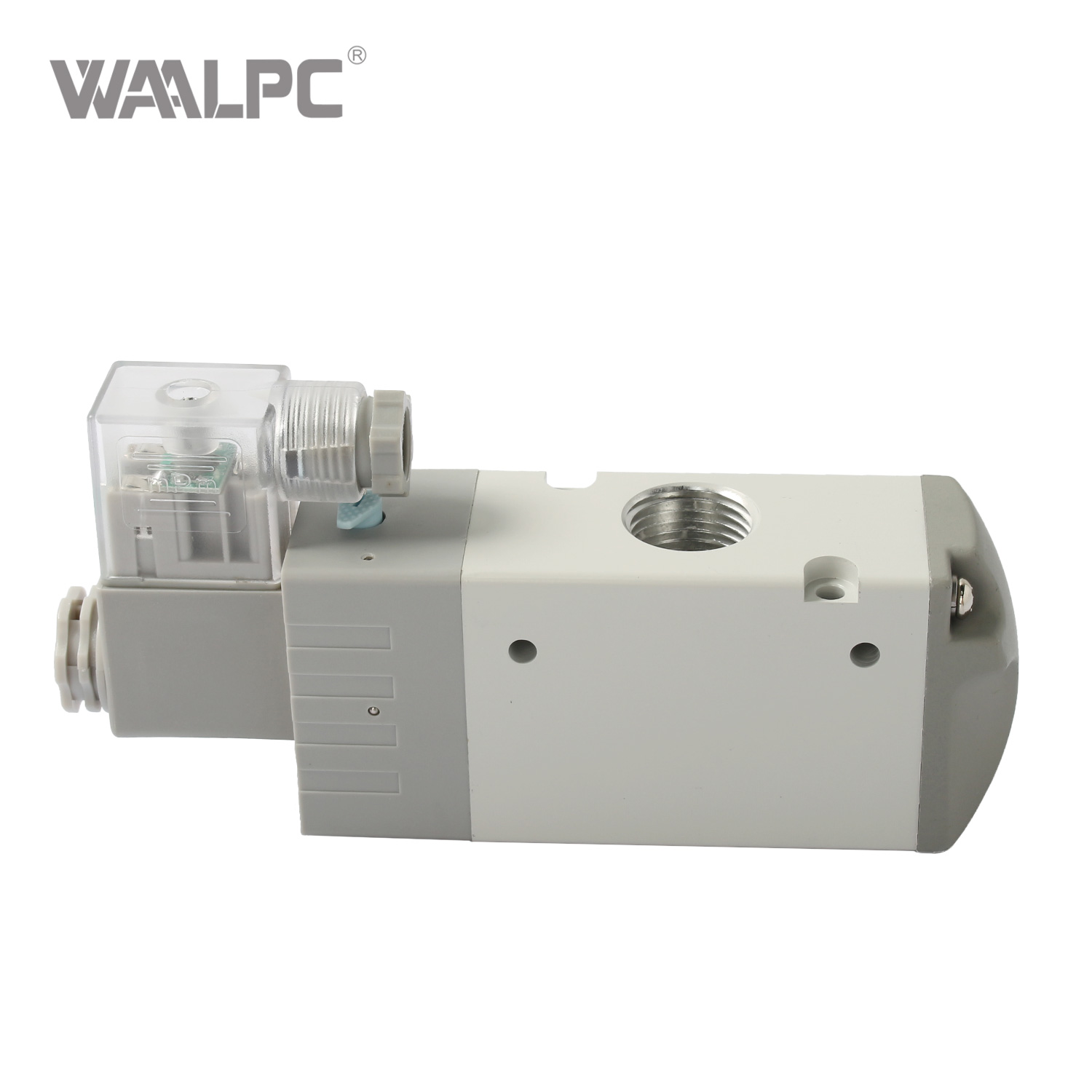

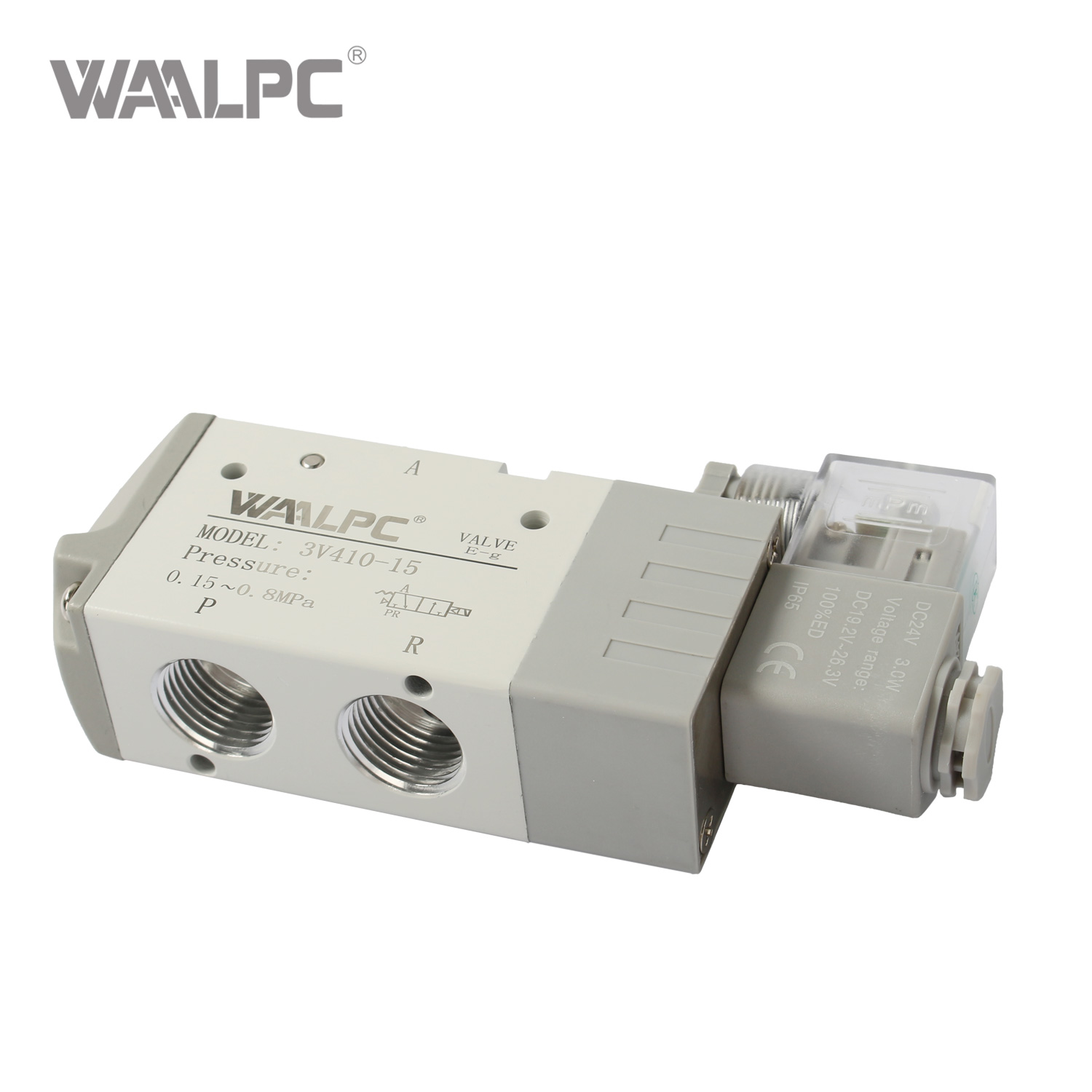

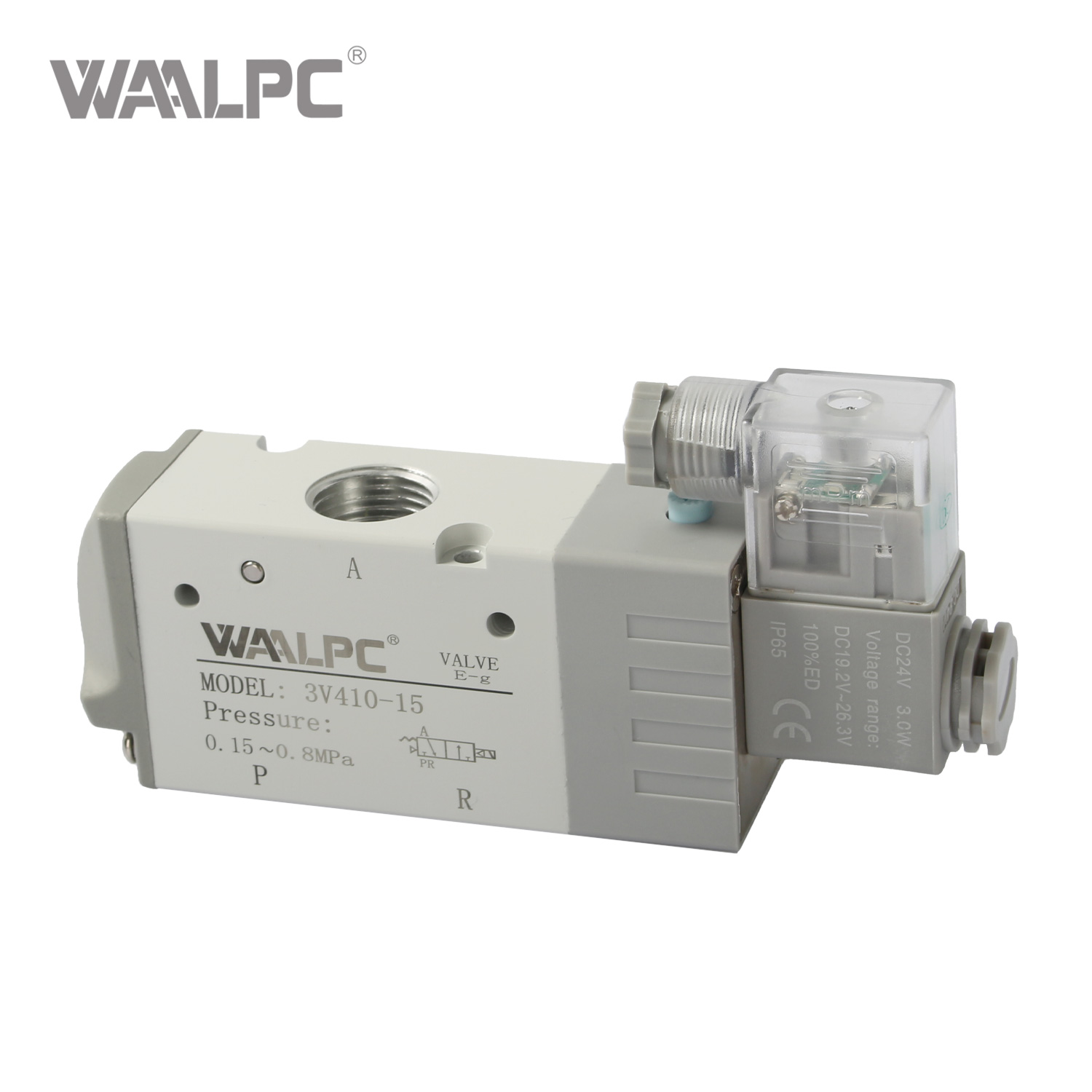

3V410 Solenoid Valve Air Pressure Controller 3way 2position Pneumatic Electric Control Valve DC24V G1/2"

3V410 Solenoid Valve Air Pressure Controller 3way 2position Pneumatic Electric Control Valve DC24V G1/2"


Size:	Black White
Availability:

Quantity:



Inquiry Add to Basket

The 3V400 Series Slenoid Valve comprises 2-position 3-way solenoid valves designed for precise pneumatic control in industrial automation. Utilizing an internal pilot-operated mechanism and sliding spool structure, these valves ensure zero leakage, rapid response (≤0.05 sec), and high-frequency operation (3 cycles/sec).

Model:
3V410-15
Brand:
WAALPC
Code:
8481202090

Product Description

The 3V400 Series Slenoid Valve Advantages

3V Solenoid valve

1. High Precision Flow Control

Optimized Cv Values ensures accurate airflow regulation for single-acting actuators.

Sliding spool design minimizes leakage (<0.1 NL/min) and maintains stable pressure.

2. Robust & Maintenance-Free Operation

Lubrication-free construction reduces downtime and servicing costs.

Corrosion-resistant aluminum body withstands harsh industrial environments

3. Rapid Response & High Efficiency

≤0.05-second response time and 3 Hz switching frequency enable dynamic process control.
Low power consumption (e.g., 4.8W for DC24V coils).

The 3V400 Series Slenoid Valve Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Model	3V410-15	3V420-15
Fluid	Air (to be filtered by 40μm filter element)
Acting	Internal pilot
Port size [Note1]	In=Out=PT1/2''
Orifice size (Cv) [Note4]	50mm2(Cv=2.79)
Valve type	3 port 2 position
Operating pressure	0.15~0.8MPa(21~114psi)
Proof pressure	1.2MPa(175psi)
Temperature	-5~60℃
Material of body	Aluminum alloy
Lubrication [Note2]	Not required
Max.frequency [Note3]	3cycle/sec
Activating time	0.05 sec and below
Electrical entry	Terminal,Grommet
Power consumption	AC:6VA DC:3W

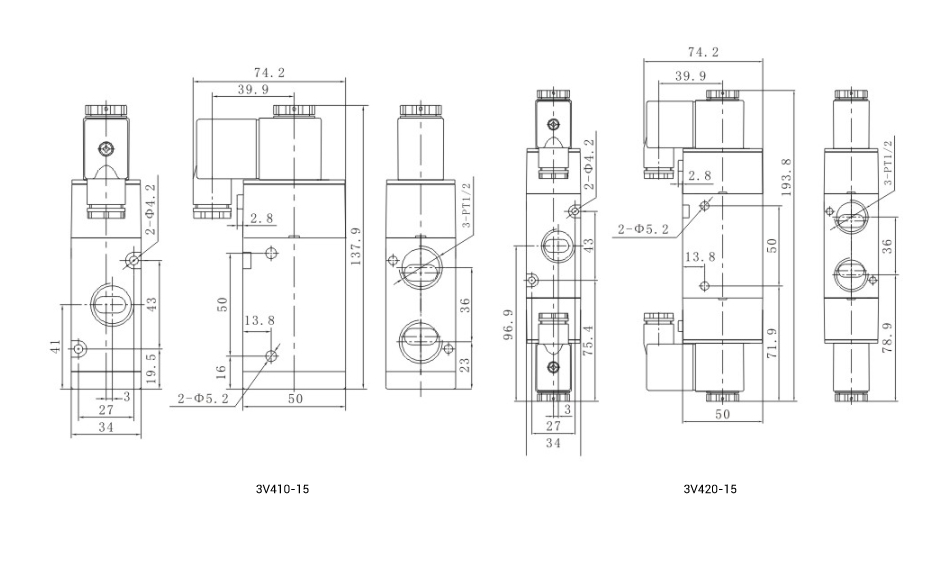

OVERALLDIMENSION&STRUCTURE

3V 400structure

Specification Download

3V 400 Solenoid Valve.png
