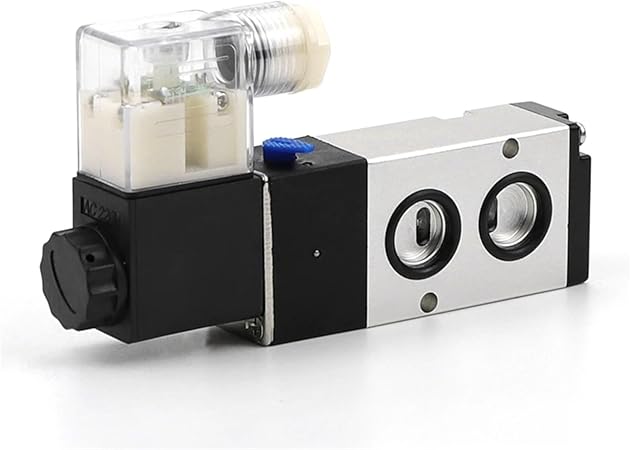

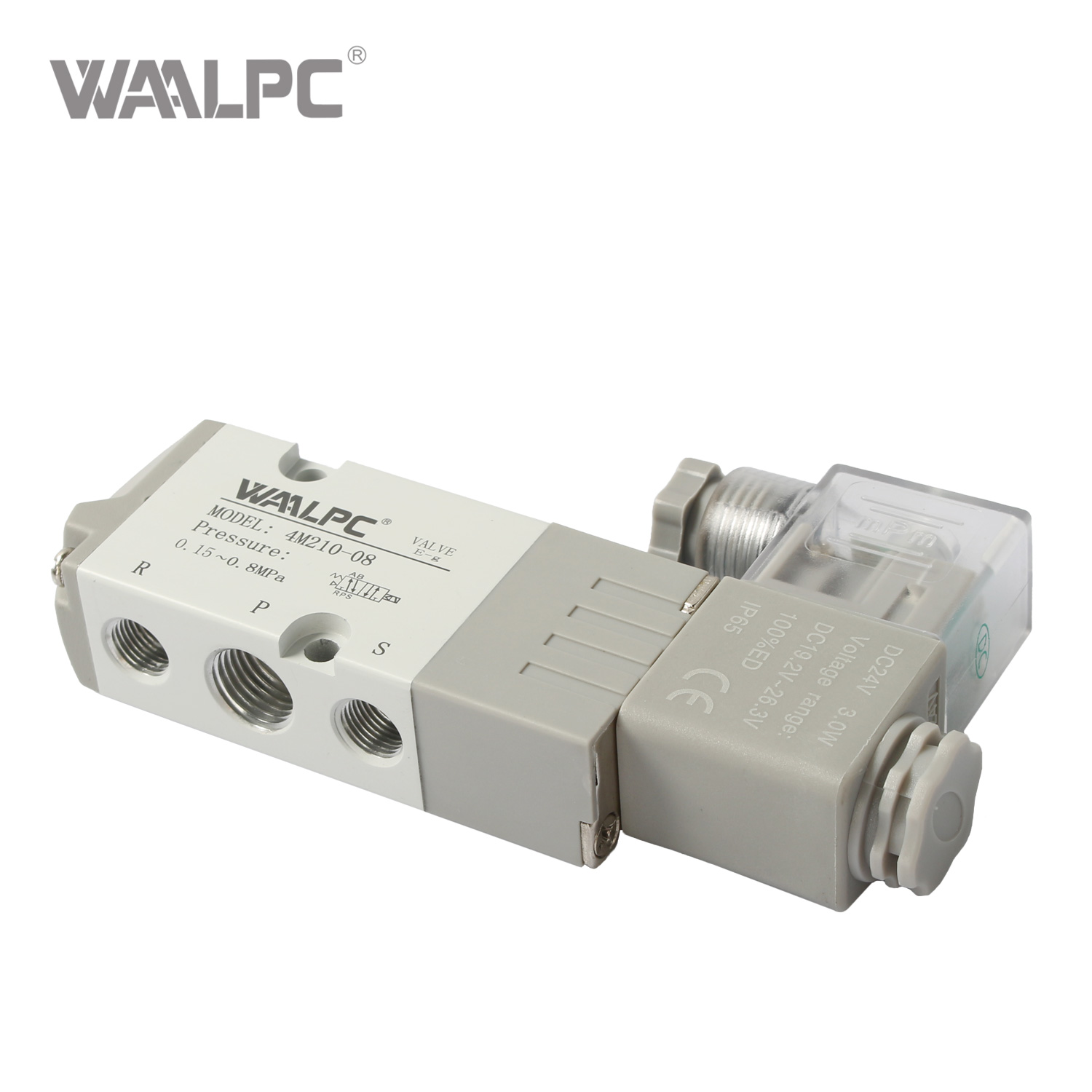

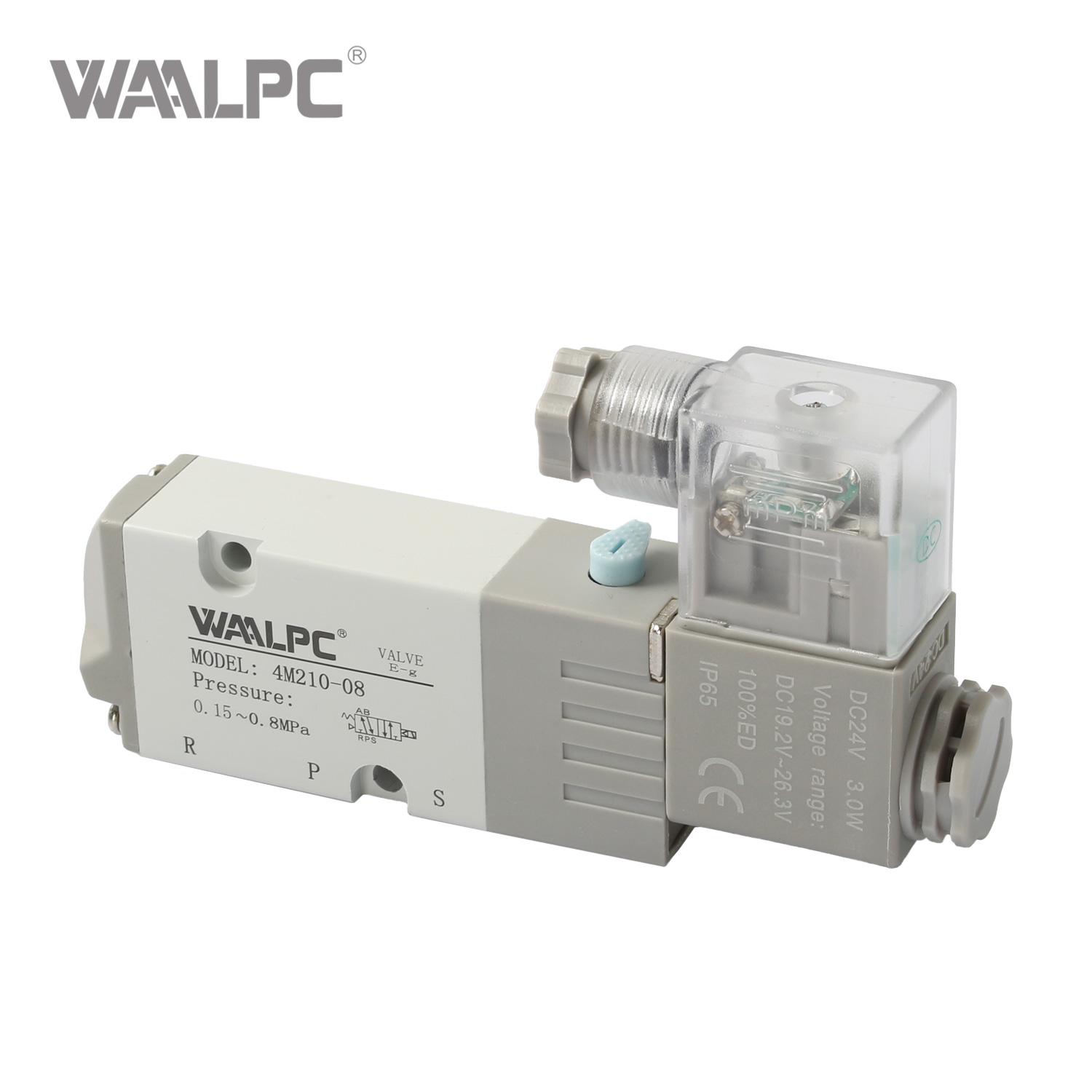

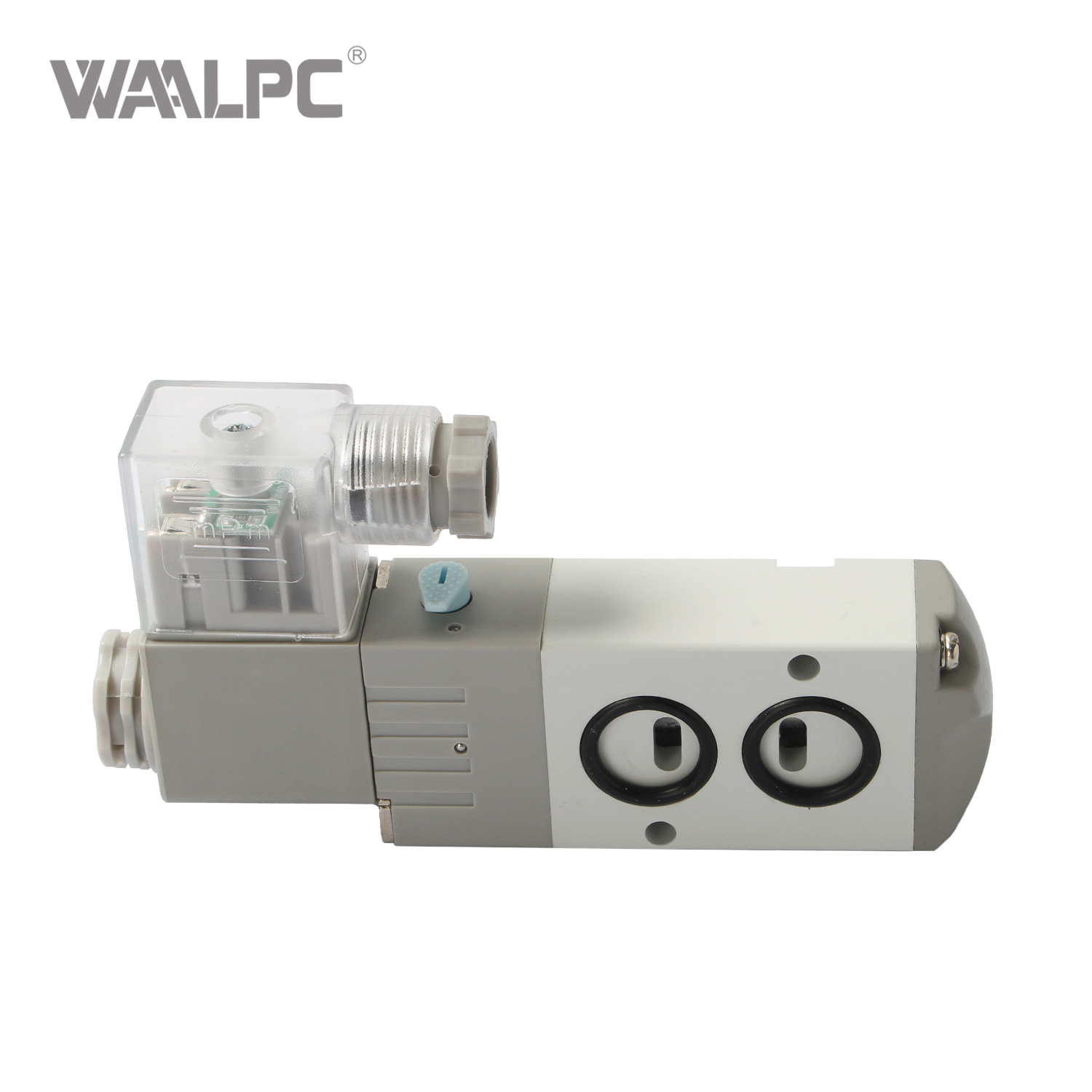

4M210-08
WAALPC
8481202090

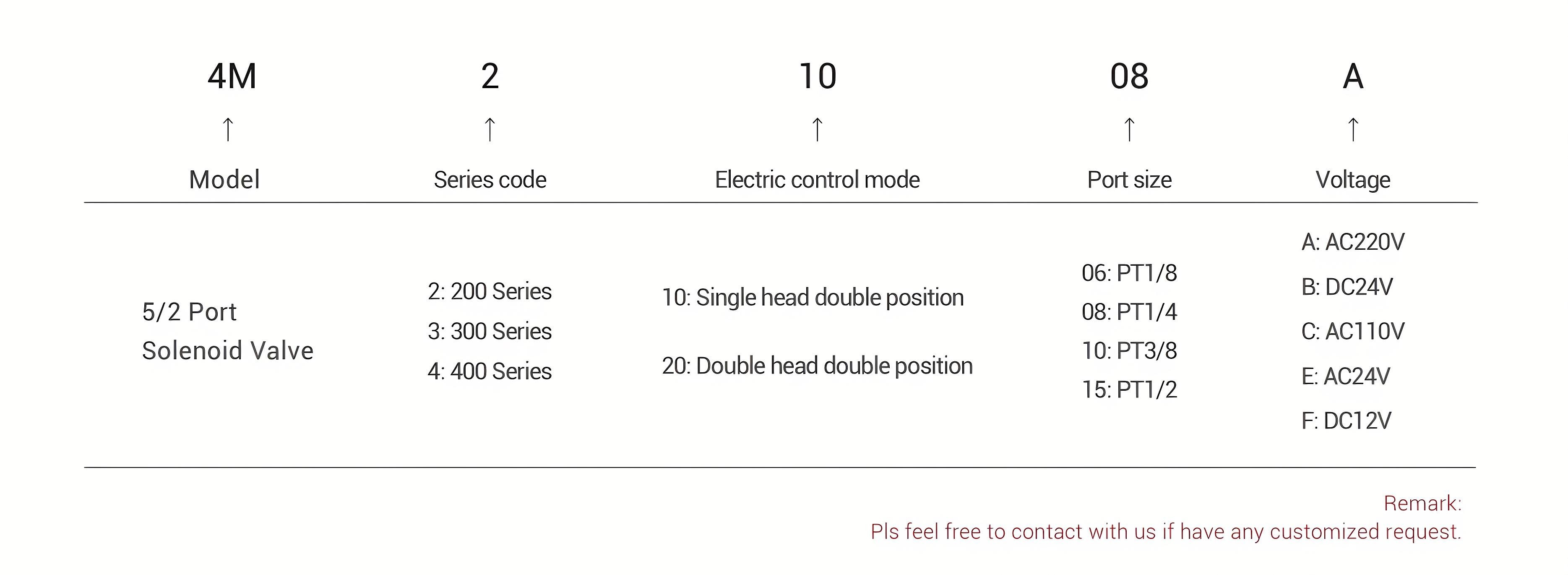

Ordering Code
Product Specifications
| Model | 4M210-06 | 4M220-06 | 4M210-08 |
4M220-08 | 4M310-08 |
4M320-08 | 4M310-10 | 4M320-10 | 4M410-15 | 4M420-15 |
| Fluid | Air(to be filtered by 40μm filter element) | |||||||||
| Acting | Internal pilot | |||||||||
| Valve type | 5 port 2 position | |||||||||
| Orifice size(Cv) | 14mm2(Cv=0.78) |
16mm2(Cv=0.89) |
25mm2(Cv=1.4) |
30mm2(Cv=1.68) |
50mm2(Cv=2.79) | |||||
| Port size | In=Out=PT1/8 | In=PT1/4 Out=PT1/8 |
In=Out=PT1/4 | In=PT3/8 Out=PT1/4 | In=Out=PT1/2 | |||||
| Lubrication | Not required | |||||||||
| Operating pressure | 0.15~0.8MPa(21~114Psi) |
|||||||||
| Proof pressure | 1.2MPa(175Psi) |
|||||||||
| Temperature | -5~60°C | |||||||||
| Scope of voltage | -15% ~+10% | |||||||||
| Power consumption | AC: 6VA DC: 3W | |||||||||
| Temperature classification | B class | |||||||||
| Protection | IP65(DIN40050) | |||||||||
| Electrical entry | Terminal, Grommet | |||||||||
| Max.frequency | 4 cycle/sec | 3 cycle/sec | ||||||||
| Activating time | 0.05 sec and below | |||||||||

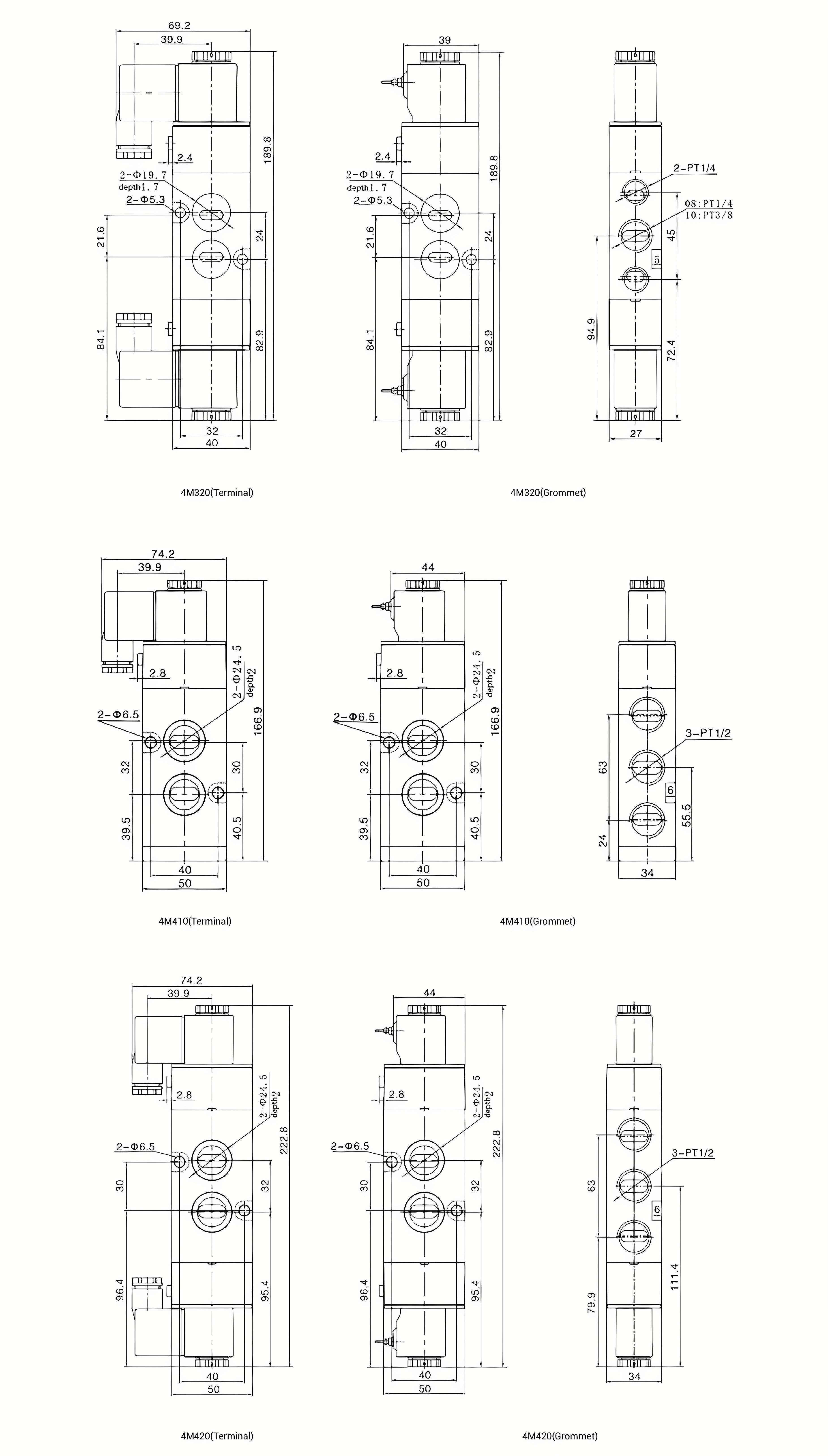

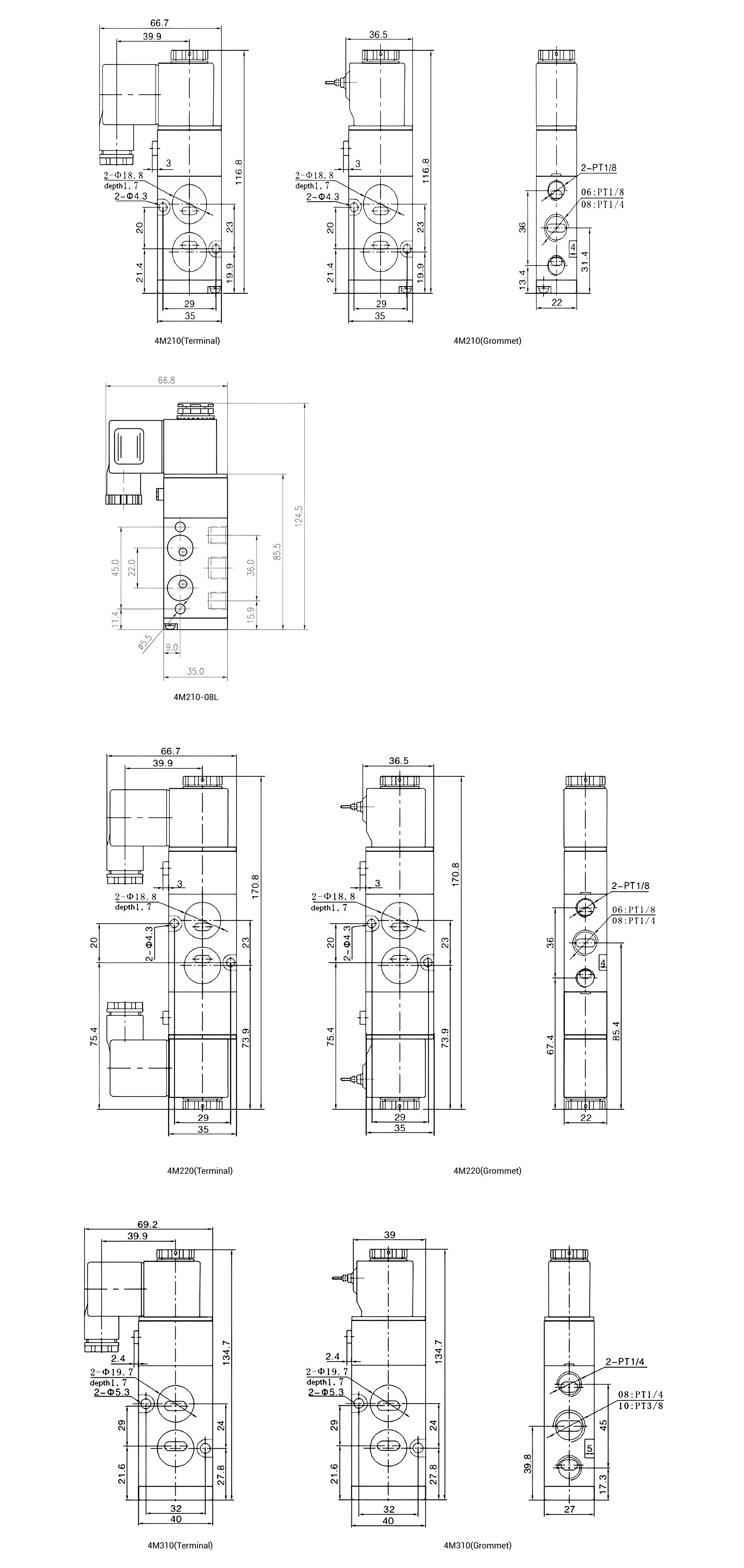

OVERALLDIMENSION&STRUCTURE
