You are here: Home » Products » Air Source Treatment Units » A/B Series » AC BC2000 PT 1/4 Inch Air Source Treatment Pressure Regulator Pressure Reducing Valve Wholesale

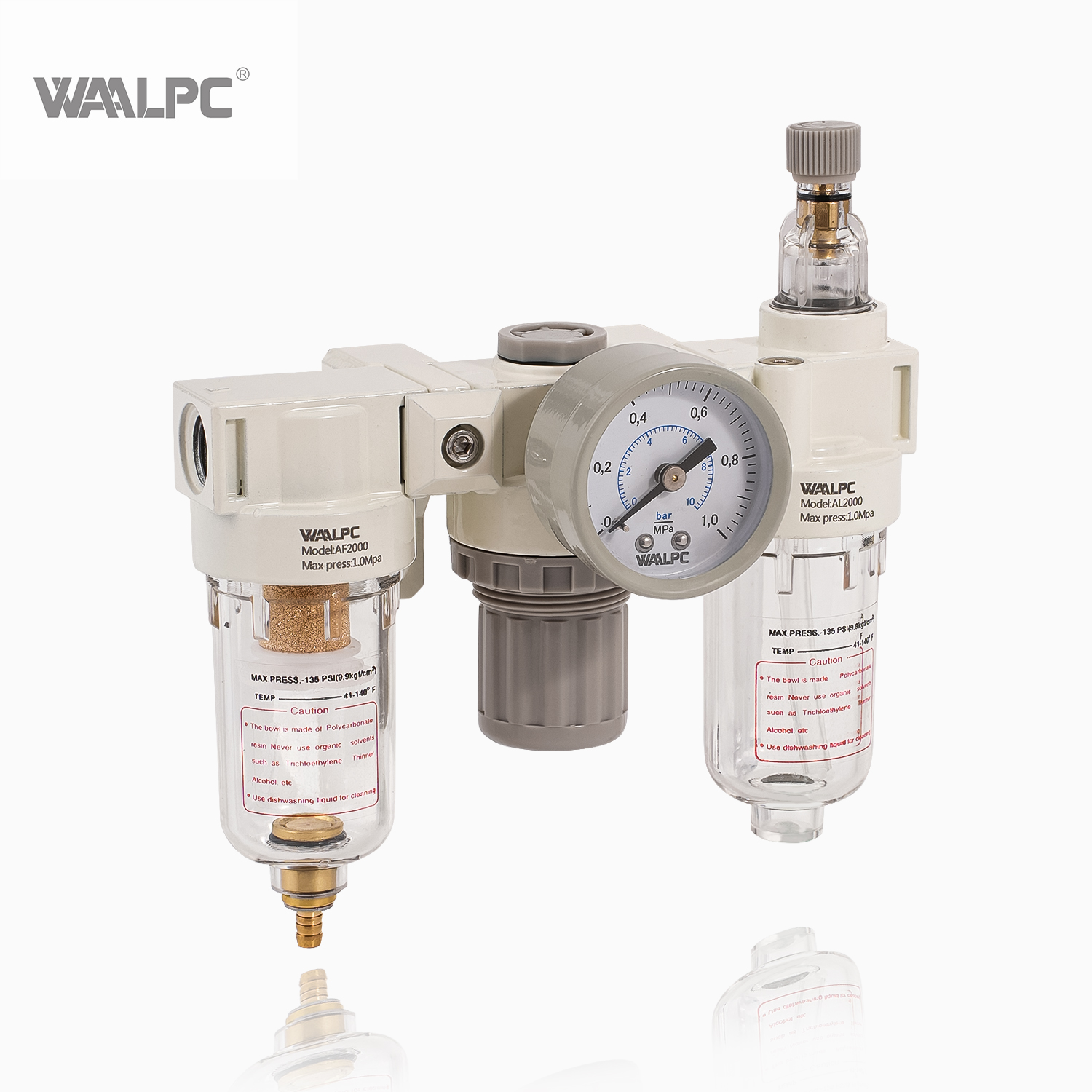

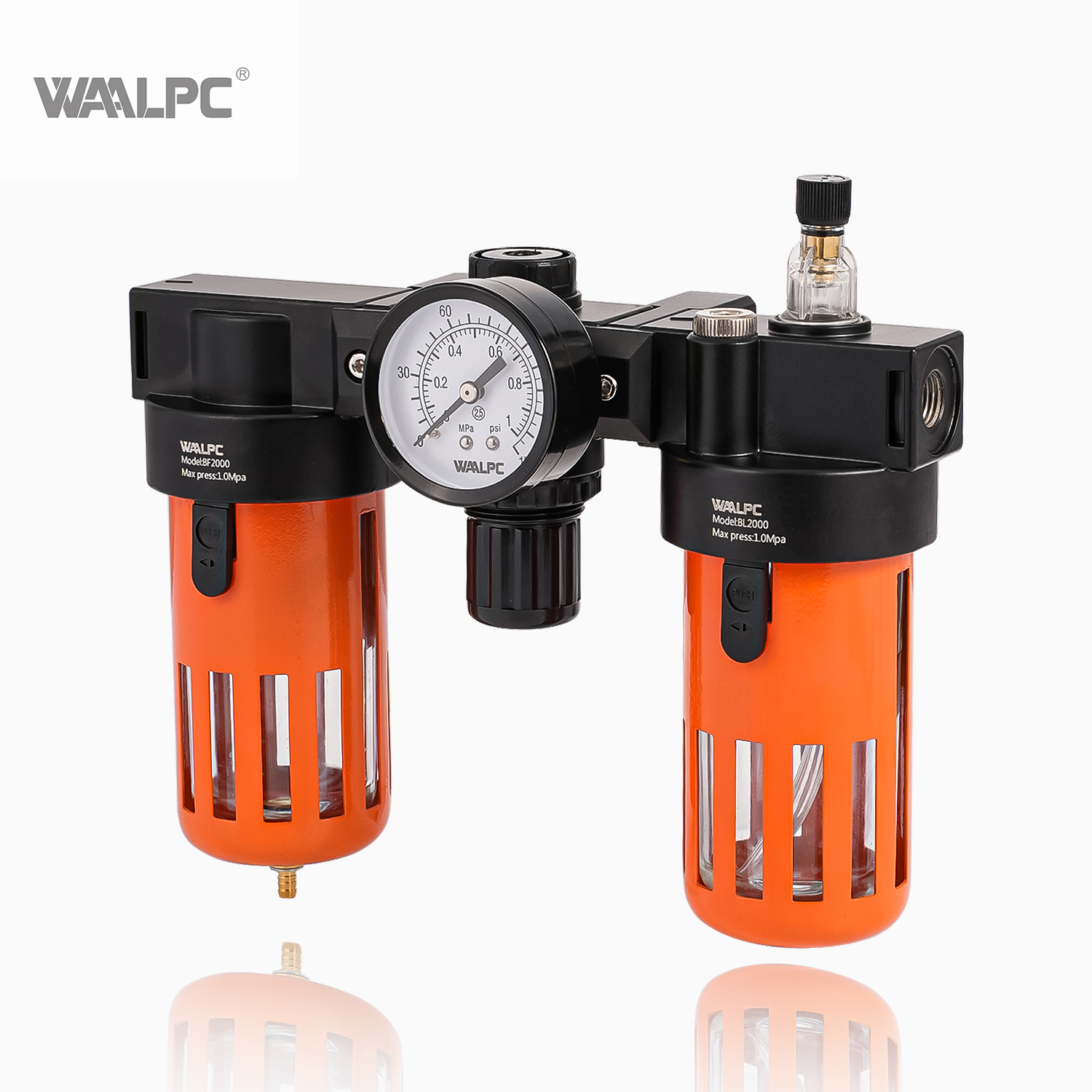

AC2000 PT 1/4 Inch Air Source Treatment Pressure Regulator Pressure Reducing Valve Wholesale

AC BC2000 PT 1/4 Inch Air Source Treatment Pressure Regulator Pressure Reducing Valve Wholesale

AC BC2000 PT 1/4 Inch Air Source Treatment Pressure Regulator Pressure Reducing Valve Wholesale


Color:	AC Black AC White BC White BC Silver&Black BC Black⩔ange
Availability:

Quantity:



Inquiry Add to Basket

AirTAC FRL Combination Units provide complete compressed air preparation by integrating filtration, pressure regulation, and lubrication into a single compact system. Designed for reliability and efficiency, these units ensure clean, stable, and lubricated air supply to maximize the performance and service life of pneumatic equipment.

Model:
AC BC Series
Brand:
WAALPC
Code:
8481804090

Product Description

1.Light and compact structure,easy to install and use

2.Press-in self-locking mechanism, which can prevent the set pressure from external interference

3. Small pressure loss,high efficiency of water separation

4.Transparent housing,the amount of oil dripping can be observed directly

5.In addition to the standard type,there is also a low-pressure type available(the max regulating pressure is 0.4MPa)

Technical Parameters

Type-name	F.R.L Combination
Model	AC1500	AC2000	BC2000	BC3000	BC4000
Working Medium	Air
Grade of Filtration	5μm,25μm,40μm
Port Size	G1/8,G1/4,G3/8,G1/2
Pressure Regulating Range	0.05~0.85MPa
Max. Operating Pressure	0.95MPa
Pressure Resistance	1.5MPa
Operating Temperature Range	5-60℃
Filter Cup Capacity	A Series 15CC		B Series 60CC
Lubricator Cup Capacity	A Series 25CC		B Series 90CC
Recommended Oil	ISO VG32/ equivalent oil
Material	Housing: aluminium die-cast molding;Container Cup:PE;Protective Cover:iron
Weight	700g		900g

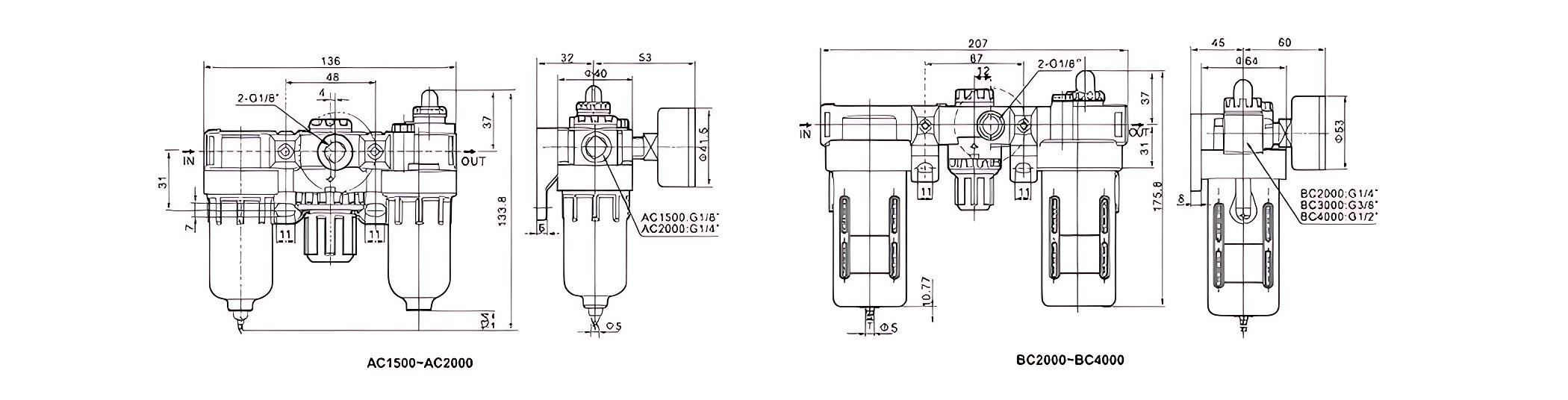

ACBC structure

Specification Download

AIRTAC Series Air Source Treatments.pdf

Superiority

Why choose us? What can we do for you?

♦ Founded in 2011 and professional experienced in the field of producing pneumatic products for over 13+ years.
♦ We have strong production capacity, over 100000 pcs/month.
♦We have rich experience for offering OEM/ODM service
♦ We have strict quality control process with quick response of after sales service.
♦ Management system certification : ISO9001,CE, ROHS
♦ We have 10+ technical experts for researching and developing.
♦ Sales network expands from domestic sales to all over the world.
