You are here: Home » Products » Air Source Treatment Units » A/B Series » 1/8'' 1/4'' 3/8'' 1/2'' OEM ODM Pneumatic Air Mist Lubricator Pressure Lubricator AL BL2000 for Hydraulic Equipments

AR2000 G 1/8'' 1/4'' 3/8'' 1/2'' Compressed Air Regulator Pressure Regulator Reducing Valves for Pneumatic Tools

1/8'' 1/4'' 3/8'' 1/2'' OEM ODM Pneumatic Air Mist Lubricator Pressure Lubricator AL2000 for Hydraulic Equipments

1/8'' 1/4'' 3/8'' 1/2'' OEM ODM Pneumatic Air Mist Lubricator Pressure Lubricator AL BL2000 for Hydraulic Equipments


Color:	AL Black AL White BL White BL Silver&Black BL Black⩔ange
Availability:

Quantity:



Inquiry Add to Basket

AirTAC Series Lubricators deliver reliable and efficient lubrication for pneumatic components, ensuring extended service life and optimal performance of air-driven equipment. Designed with precision engineering and durability in mind, these lubricators automatically inject a fine oil mist into the air stream, reducing friction, wear, and corrosion in valves, cylinders, air motors, and tools.

Model:
AL BL Series
Brand:
WAALPC
Code:
8481100090

Product Description

1. Light and compact structure, easy to install and use

2. Press-in self-locking mechanism, which can prevent the set pressure from external interference

3. Small pressure loss,high efficiency of water separation

4. Transparent housing,the amount of oil dripping can be observed directly

5. In addition to the standard type,there is also a low pressure type available (the max. regulating pressure is 0.4MPa)

Technical Parameters

Type-name	Air Lubricator
Model	AL1500	AL2000	BL2000	BL3000	BL4000
Working Medium	Air
Port Size	G1/8,G1/4,G3/8,G1/2
Pressure Regulating Range	0.05~0.85MPa
Max. Operating Pressure	0.95MPa
Pressure Resistance	1.5MPa
Operating Temperature Range	5-60℃
Filter Cup Capacity	A Series 15CC		B Series 60CC
Lubricator Cup Capacity	A Series 25CC		B Series 90CC
Recommended Oil	ISO VG32/ equivalent oil
Material	Housing: aluminium die-cast molding;Container Cup:PE;Protective Cover:iron
Weight	700g		900g

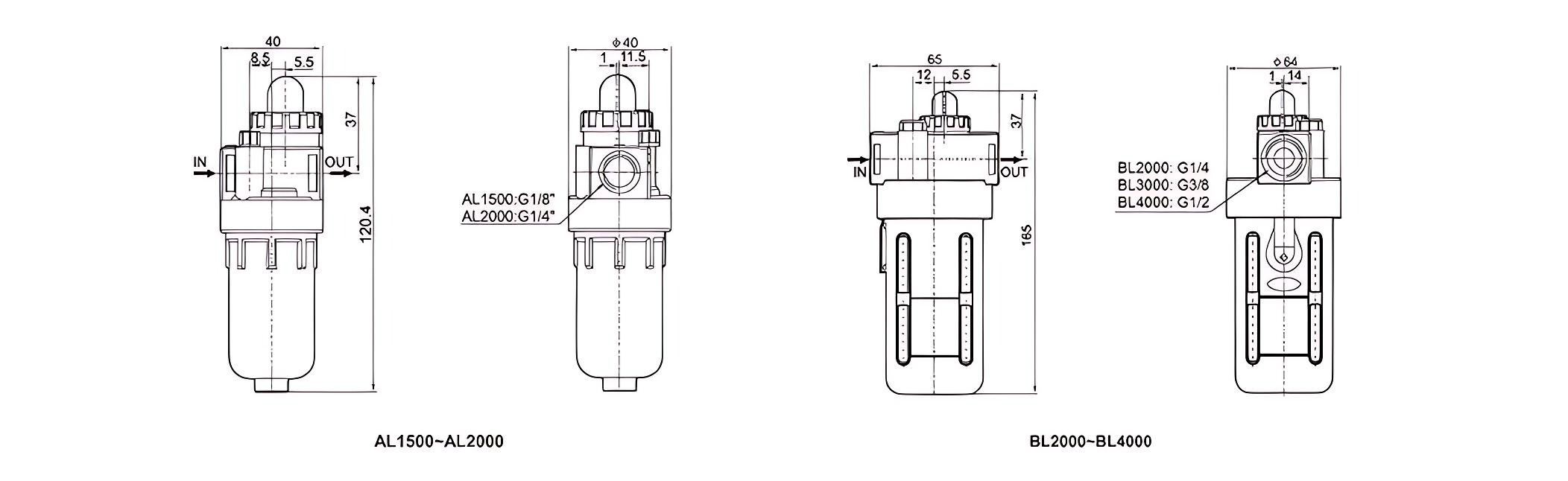

ALBL structure

Specification Download

AIRTAC Series Air Source Treatments.pdf

Superiority

Why choose us? What can we do for you?

♦ Founded in 2011 and professional experienced in the field of producing pneumatic products for over 13+ years.
♦ We have strong production capacity, over 100000 pcs/month.
♦We have rich experience for offering OEM/ODM service
♦ We have strict quality control process with quick response of after sales service.
♦ Management system certification : ISO9001,CE, ROHS
♦ We have 10+ technical experts for researching and developing.
♦ Sales network expands from domestic sales to all over the world.
