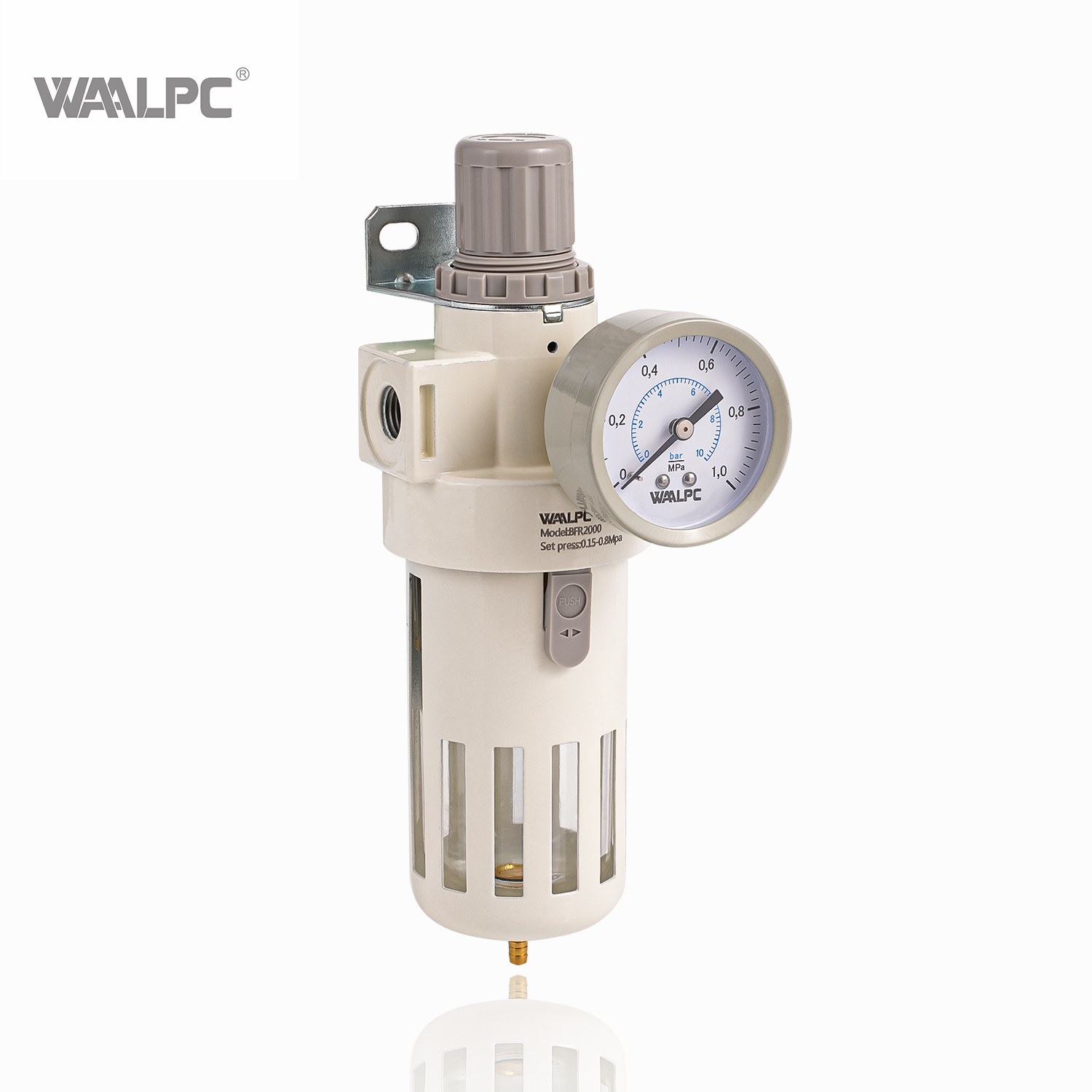

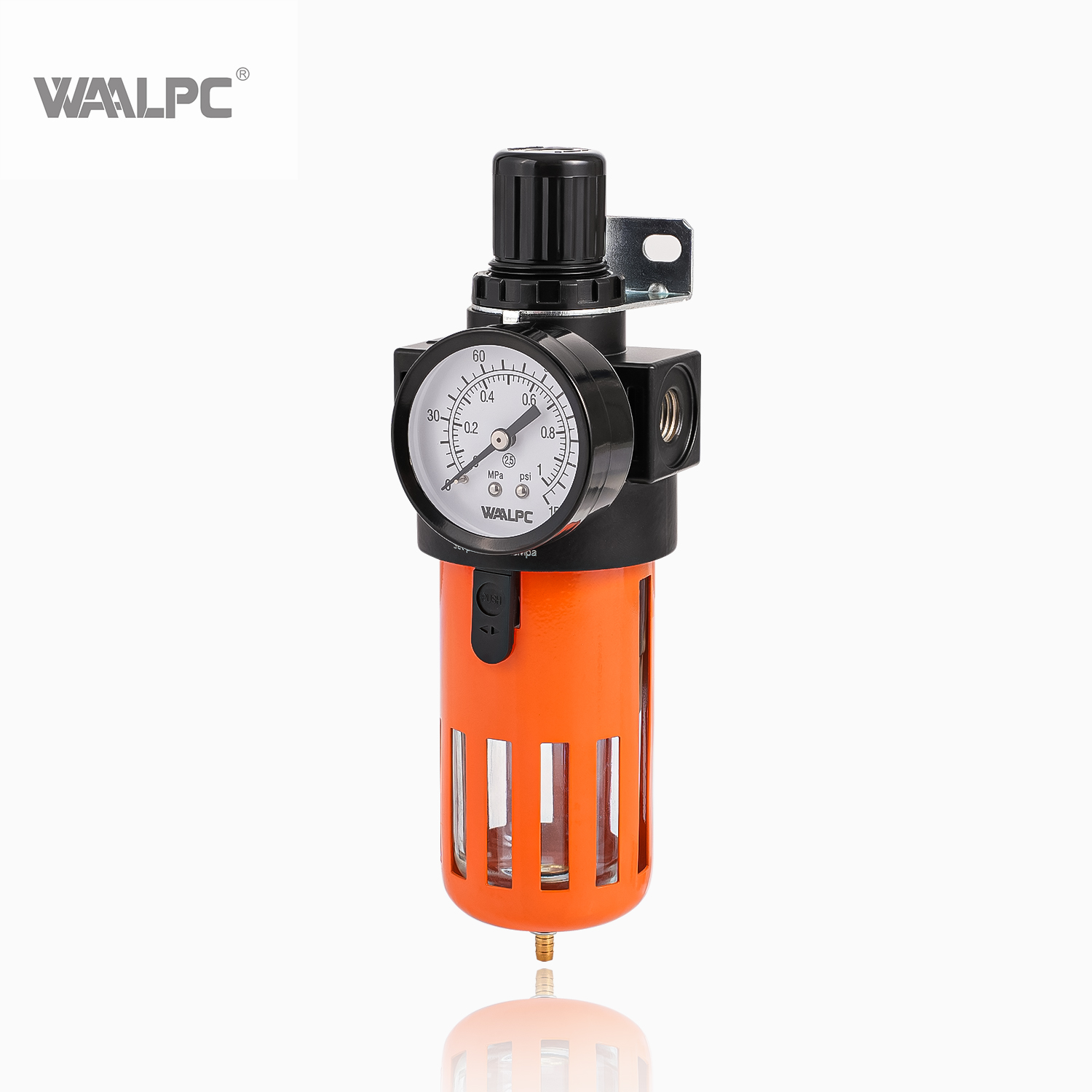

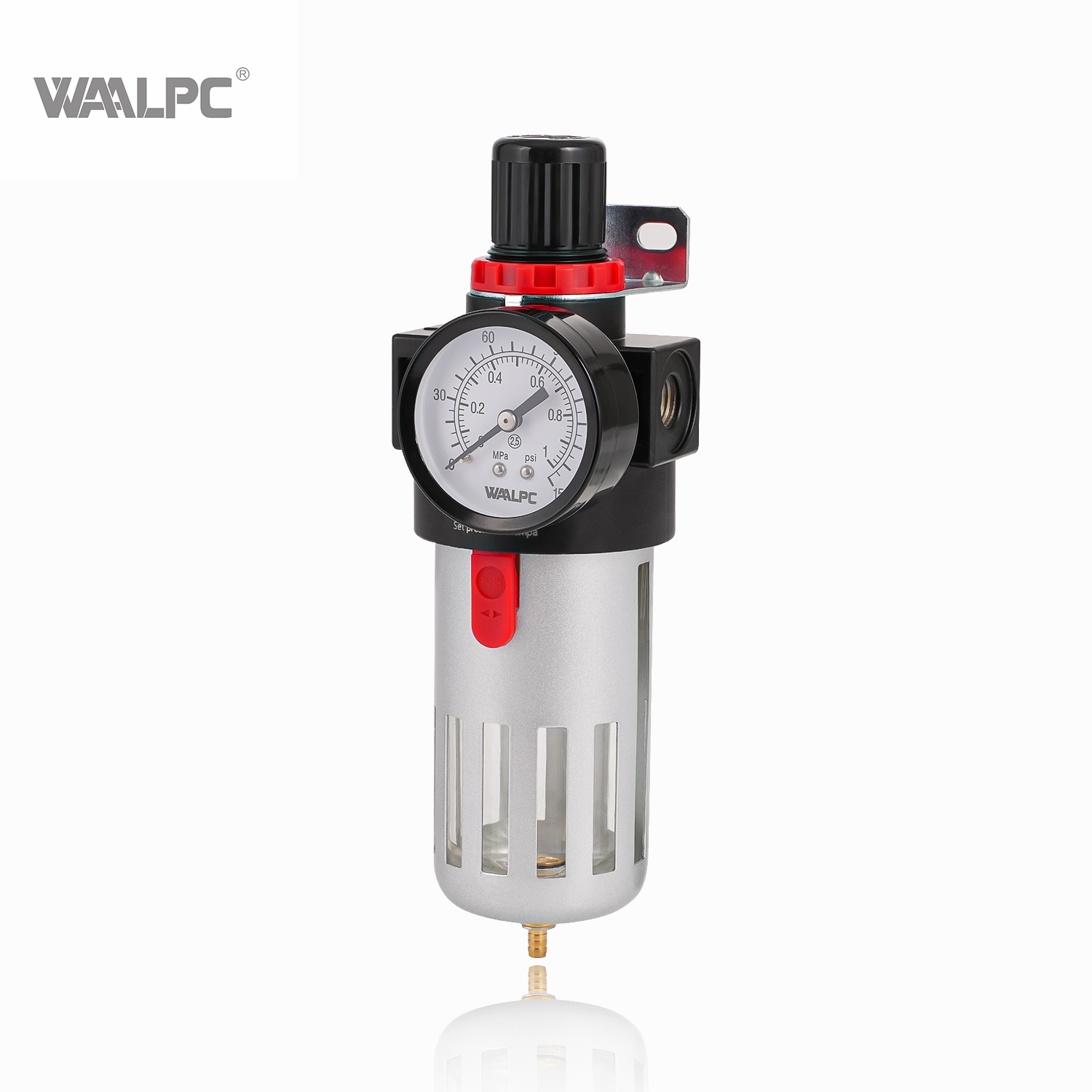

AIRTAC Type AFR BFR2000 PT NPT G 1/8'' 1/4'' 3/8'' 1/2'' Compressed Air Filter Regulator for Pharmaceutical Industry

AIRTAC Type AFR BFR2000 PT NPT G 1/8'' 1/4'' 3/8'' 1/2'' Compressed Air Filter Regulator for Pharmaceutical Industry


Color:	AFR Black AFR White BFR White BFR Silver&Black BFR Black⩔ange
Availability:

Quantity:



Inquiry Add to Basket

The AirTAC AFR Series represents the latest innovation in integrated filter regulator technology, combining superior air filtration with precise pressure regulation in a single compact unit. Designed for reliability and efficiency, these units ensure optimal air quality and pressure stability for pneumatic systems across various industrial applications.

Model:
AFR BFR Series
Brand:
WAALPC
Code:
8481804090

Product Description

1. Light and compact structure, easy to install and use

2. Press-in self-locking mechanism, which can prevent the set pressure from external interference

3. Small pressure loss,high efficiency of water separation

4. Transparent housing,the amount of oil dripping can be observed directly

5. In addition to the standard type,there is also a low pressure type available (the max. regulating pressure is 0.4MPa)

Technical Parameters

ORDERING CODE

DATA SHEET

Type-name	Air Filter & Regulator
Model	AFR1500	AFR2000	BFR2000	BFR3000	BFR4000
Working Medium	Air
Grade of Filtration	5μm,25μm,40μm
Port Size	G1/8,G1/4,G3/8,G1/2
Pressure Regulating Range	0.05~0.85MPa
Max. Operating Pressure	0.95MPa
Pressure Resistance	1.5MPa
Operating Temperature Range	5-60℃
Filter Cup Capacity	A Series 15CC		B Series 60CC
Lubricator Cup Capacity	A Series 25CC		B Series 90CC
Recommended Oil	ISO VG32/ equivalent oil
Material	Housing: aluminium die-cast molding;Container Cup:PE;Protective Cover:iron
Weight	700g		900g

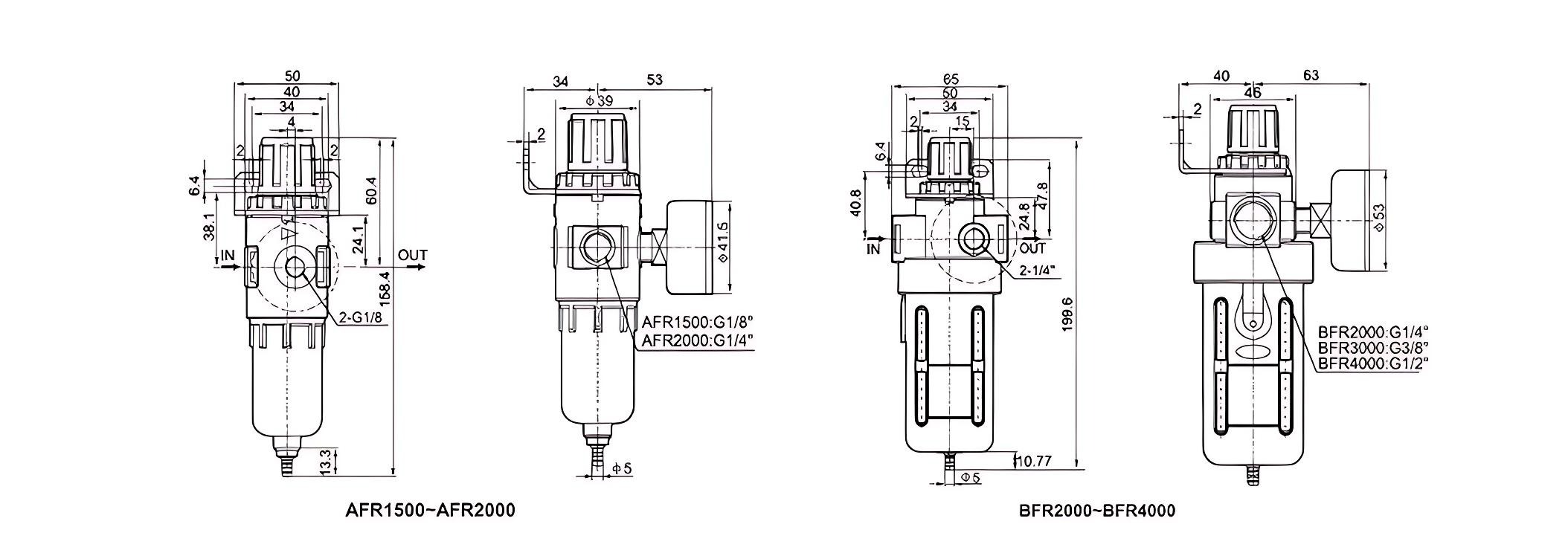

STRUCTURE

Pneumatic air filter regulator

Specification Download

AIRTAC Series Air Source Treatments.pdf
