AR2000 G 1/8'' 1/4'' 3/8'' 1/2'' Compressed Air Regulator Pressure Regulator Reducing Valves for Pneumatic Tools

1/8'' 1/4'' 3/8'' 1/2'' Compressed Air Regulator Pressure Regulator Reducing Valve AR BR2000 for Pneumatic Control Systems

1/8'' 1/4'' 3/8'' 1/2'' Compressed Air Regulator Pressure Regulator Reducing Valve AR BR2000 for Pneumatic Control Systems


Color:	Black White
Availability:

Quantity:



Inquiry Add to Basket

Air source treatments are key components in pneumatic systems. They are mainly used to process compressed air to ensure that it is clean, dry and stable to improve system efficiency and equipment life.

Model:
AR BR Series
Brand:
WAALPC
Code:
8481100090

Product Description

1. Light and compact structure, easy to install and use

2. Press-in self-locking mechanism, which can prevent the set pressure from external interference

3. Small pressure loss,high efficiency of water separation

4. Transparent housing,the amount of oil dripping can be observed directly

5. In addition to the standard type,there is also a low pressure type available (the max. regulating pressure is 0.4MPa)

Technical Parameters

Type-name	Air Regulator

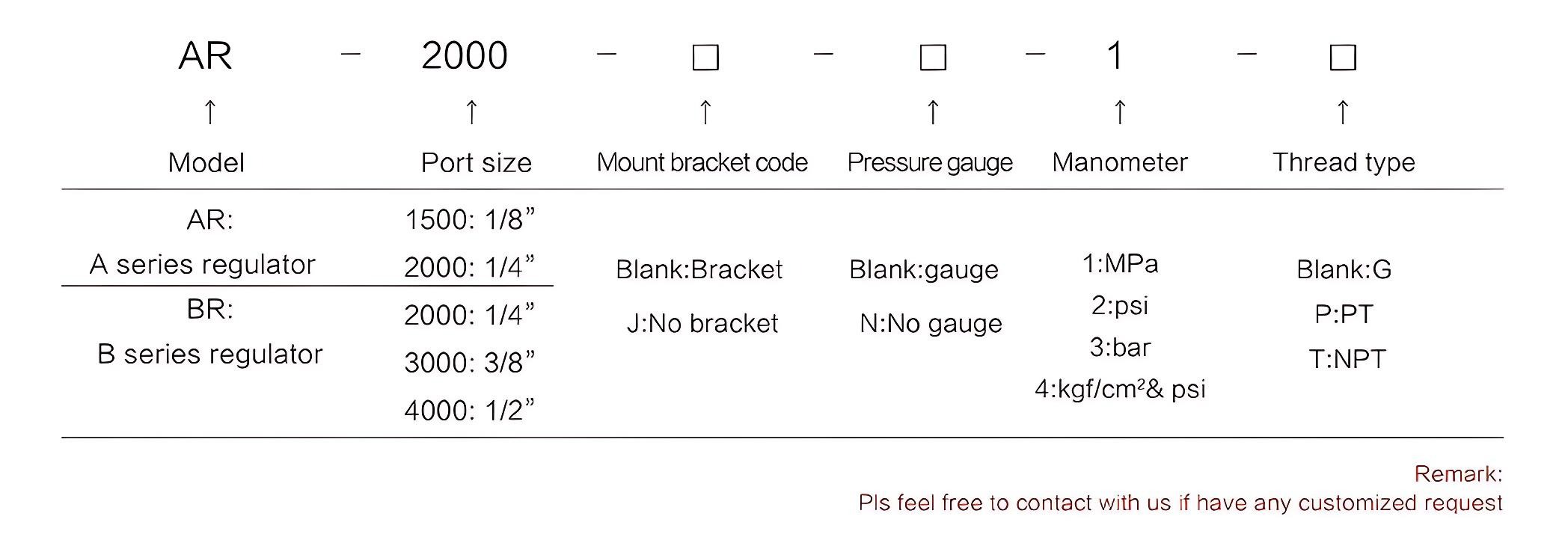

Model	AR1500	AR2000	BR2000	BR3000	BR4000
Working Medium	Air
Port Size	G1/8,G1/4,G3/8,G1/2
Pressure Regulating Range	0.05~0.85MPa
Max. Operating Pressure	0.95MPa
Pressure Resistance	1.5MPa
Operating Temperature Range	5-60℃
Filter Cup Capacity	A Series 15CC		B Series 60CC
Material	Housing: aluminium die-cast molding;Container Cup:PE;Protective Cover:iron
Weight	700g		900g

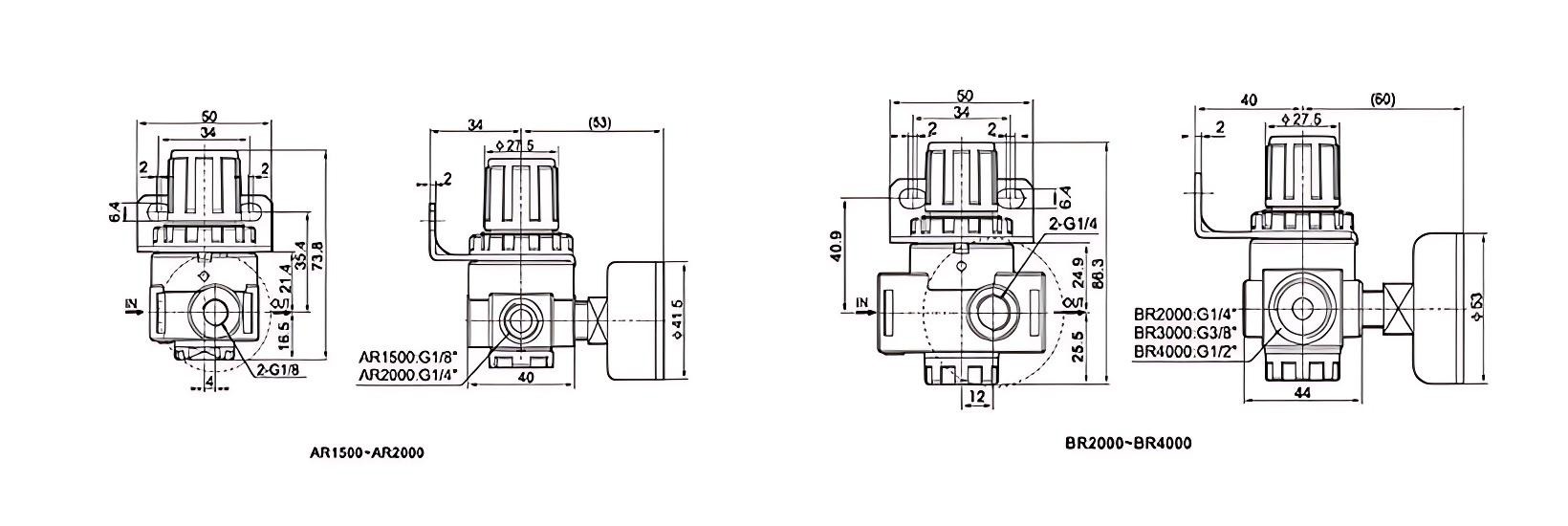

ARBR Structure

Specification Download

AIRTAC Series Air Source Treatments.pdf
