AFC2000 PT NPT 1/4 1/2 Inch Air Filter Regulator Lubricator Combination for Pneumatic Hydraulic Equipments

AIRTAC PT NPT 1/4 1/2'' 2 Combination Air Frl Units Filter Regulator AFC2000 for Pharmaceutical Industry

AIRTAC PT NPT 1/4 1/2'' 2 Combination Air Frl Units Filter Regulator AFC BFC2000 for Pharmaceutical Industry


Color:	AFC Black AFC White BFC White BFC Silver&Black BFC Black⩔ange
Availability:

Quantity:



Inquiry Add to Basket

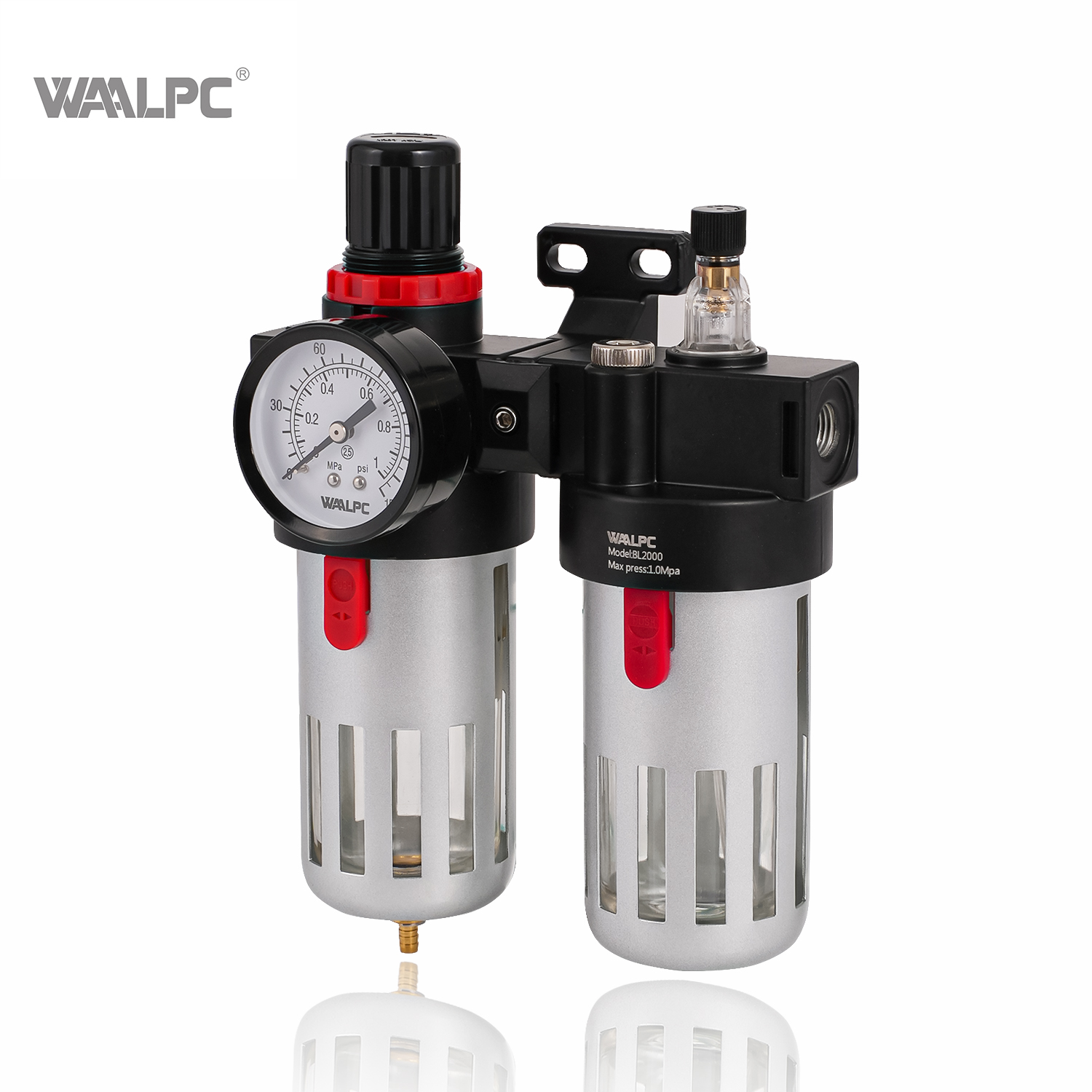

The AirTAC Two-Unit Combination (Filter Regulator + Lubricator) represents an advanced air preparation solution that integrates filtration and regulation functions into a single compact unit. Designed with precision engineering and robust construction, this combination unit ensures optimal air quality and pressure stability for pneumatic systems across various industrial applications.

Model:
AFC BFC Series
Brand:
WAALPC
Code:
8481804090

Product Description

1. Light and compact structure, easy to install and use

2. Press-in self-locking mechanism, which can prevent the set pressure from external interference

3. Small pressure loss,high efficiency of water separation

4. Transparent housing,the amount of oil dripping can be observed directly

5. In addition to the standard type,there is also a low pressure type available (the max. regulating pressure is 0.4MPa)

Technical Parameters

Type-name	FR.L Combination
Model	AFC1500	AFC2000	BFC2000	BFC3000	BFC4000
Working Medium	Air
Grade of Filtration	5μm,25μm,40μm
Port Size	G1/8,G1/4,G3/8,G1/2
Pressure Regulating Range	0.05~0.85MPa
Max. Operating Pressure	0.95MPa
Pressure Resistance	1.5MPa
Operating Temperature Range	5-60℃
Filter Cup Capacity	A Series 15CC		B Series 60CC
Lubricator Cup Capacity	A Series 25CC		B Series 90CC
Recommended Oil	ISO VG32/ equivalent oil
Material	Housing: aluminium die-cast molding;Container Cup:PE;Protective Cover:iron
Weight	700g		900g

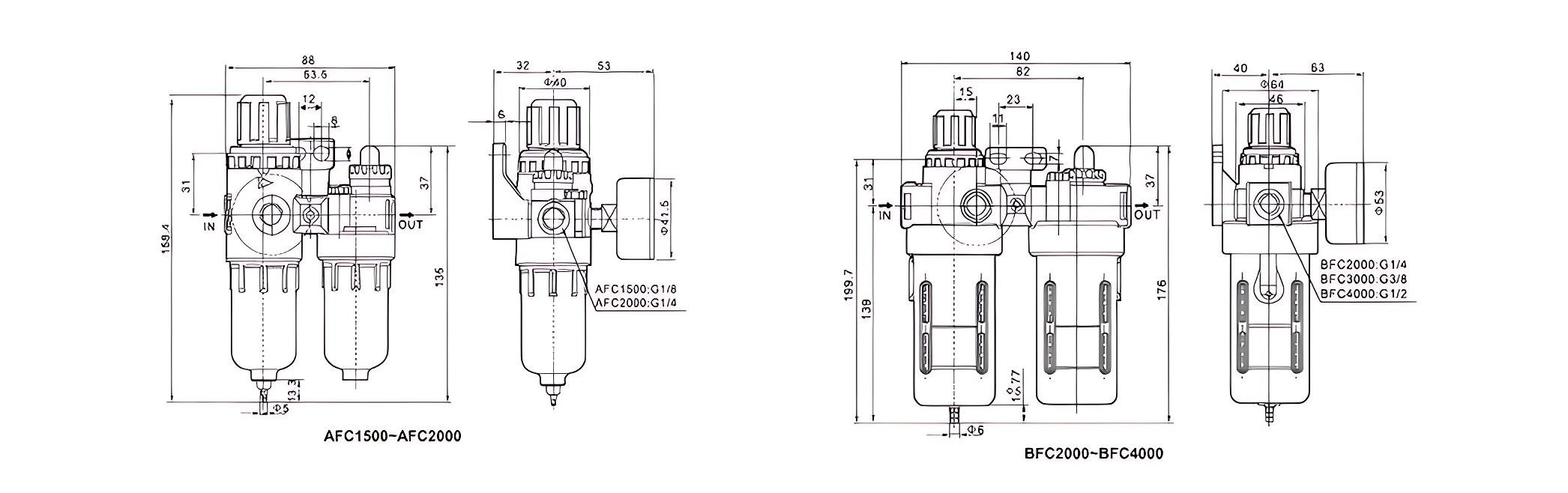

AFCBFC structure

Specification Download

AIRTAC Series Air Source Treatments.pdf
