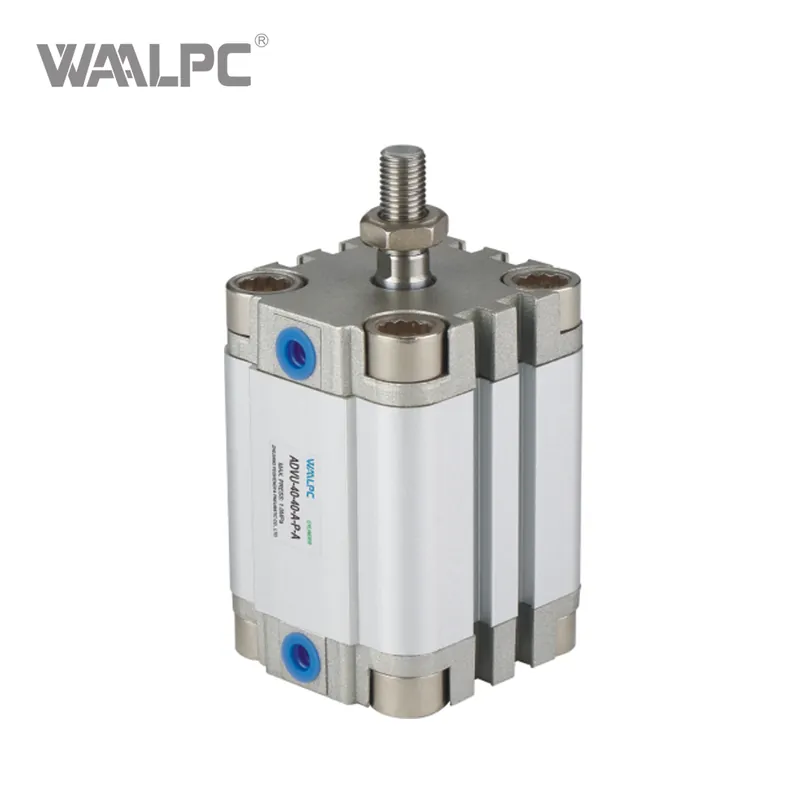

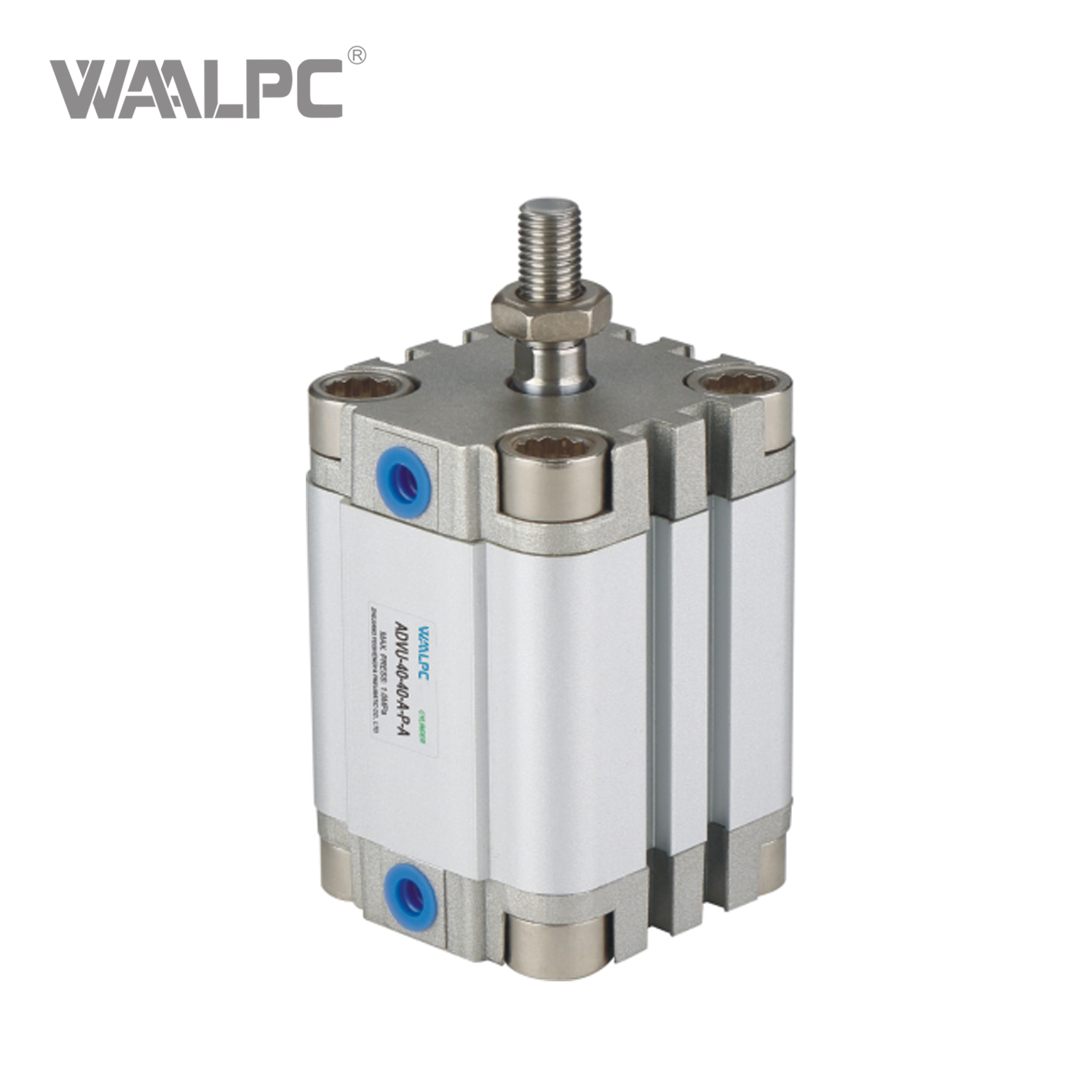

ADVU Series Compact Cylinder Double-Acting with Magnetic Piston And Adjustable Cushioning for Industrial Automation Festo Type

ADVU Series Compact Cylinder Double-Acting with Magnetic Piston And Adjustable Cushioning for Industrial Automation Festo Type


Availability:

Quantity:



Inquiry Add to Basket

The ADVU Series is a line of compact, double-acting pneumatic cylinders designed for space-saving integration in automated systems. A key design advantage is their significantly reduced installation volume, being up to 50% more compact compared to standard cylinders. The series offers a wide range of bore sizes from 12 mm to 125 mm and standard strokes from 1 mm to 500 mm, providing flexibility for various application needs.

Model:
ADVU
Brand:
WAALPC
Code:
8409919990

Product Description

1. Space-Efficient and Compact Design: The ADVU series is engineered with a focus on reducing installation space. Its compact design, particularly in height, allows for easy integration into machinery with spatial constraints.

2. Durable and Corrosion-Resistant Construction: Key components like the cylinder tube and end covers are made from high-strength forged aluminum alloy. The piston rod is constructed from high-alloy steel, offering excellent corrosion resistance (CRC class 2) for demanding industrial environments.

3. Smooth Operation and Flexible Cushioning: The cylinders are equipped with adjustable pneumatic cushioning at both ends, which effectively minimizes impact and noise at the end of the stroke, ensuring stable operation and contributing to a longer service life. Some models may also offer fixed or self-adjusting cushioning options.

4. Convenient Position Detection and Installation: The cylinder barrel features sensor grooves on three sides for easy integration of non-contact proximity sensors, facilitating straightforward position sensing. A variety of mounting options and accessories are available, enabling installation in almost any position.

Technical Parameters

ORDERING CODE

ADVU 12 X 10 - 25 - A B

I I I I I I

Series Code Bore Stroke Adjustable Stroke Magnet Thread

ADVU: Double Acting Blank: Without Magnet Blank: Female Thread

AEVU: Spring Return A: With Magnet B: Male Thread

ACVU: Spring Extend

ADVUD: Double Shaft Acting

ADVUJ: Adjustable cushion type

SPECIFICATION

Bore(mm)		12	16	20	25	32	40	50	63	80	100
Working medium		Clean air(40um Filtration)
Acting type		Double Acting Spring Extend/Spring Return
Pressure range	Double Acting	0.1~1.0Mpa
	Spring Acting	0.2~1.0Mpa
Guaranteed pressure		1.5Mpa
Working Temperature		-5~70℃
Speed range		Double Acting: 30~500mm/s Spring Acting: 50~500mm/s
Tolerance of stroke		0~150+1.00mm >150+1.40mm
Cushion type		Rubber Cushion
Port size		M5x0.8				G1/8					G1/4

OVERALLDIMENSION&STRUCTURE

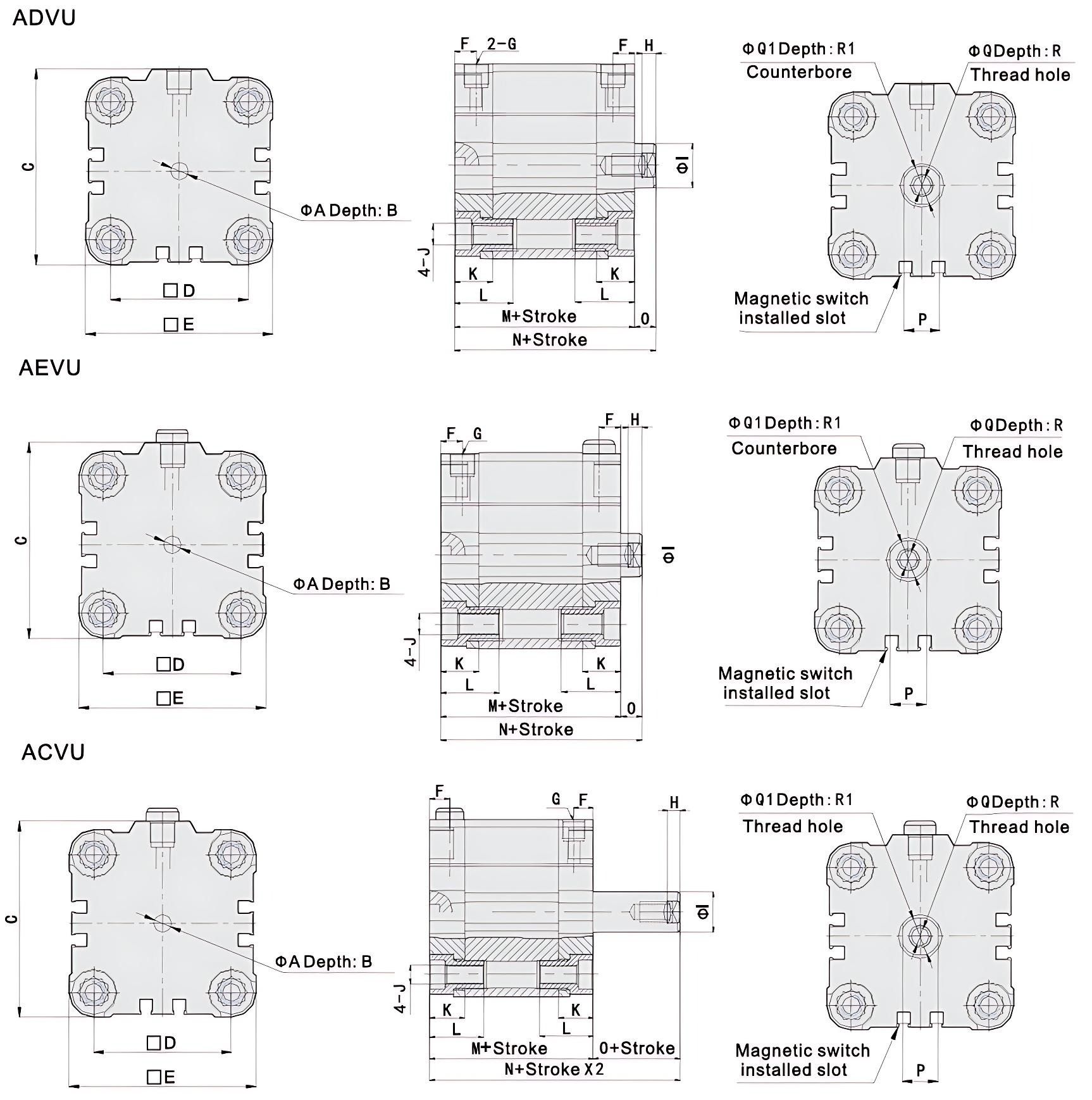

ADVU Series Compact Cylinder

Bore/Sign	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	Q1	R	R1
12	6	4	30	18	29	8	M5X0.8	3	6	M4X0.7	11.5	18	38	42.5	4.5	5	M3X0.5	3.3	8	1.5
16	6	4	30	18	29	8	M5X0.8	3	8	M4X0.7	11.5	18	38	42.5	4.5	7	M4X0.7	4.5	10	1.5
20	6	4	37.5	22	36	8	M5X0.8	3	10	M5X0.8	11.5	18	38	42.5	4.5	9	M5X0.8	5.5	12	2
25	6	4	41.5	26	40	8	M5X0.8	4	10	M5X0.8	11.5	18	39.5	45	5.5	9	M5X0.8	5.5	12	2
32	6	4	52	32	50	8	G1/8	4.5	12	M6X1.0	14	21	44.5	50.5	6	32	M6X1.0	6.5	14	2.6
40	6	4	62.5	42	60	8	G1/8	4.5	12	M6X1.0	14	21	45.5	52	6.5	10	M6X1.0	6.5	14	2.6
50	6	4	71	50	68	8	G1/8	5	16	M8X1.25	14	22	45.5	53	7.5	10	M8X1.25	8.5	16	3.3
63	8	4	91	62	87	8	G1/8	5	16	M10X1.5	15	24	50	57.5	7.5	13	M8X1.25	8.5	16	3.3
80	8	4	111	82	107	8.5	G1/8	5.5	20	M10X1.5	16	27	56	64	8	17	M10X1.5	10.5	20	4.7
100	8.1	4	133	103	128	10.5	G1/8	7	25	M10X1.5	19	32	66.5	76.5	10	22	M12X17.5	12.5	21	6.1

Specification Download

Superiority

Why choose us? What can we do for you?

♦ Founded in 2011 and professional experienced in the field of producing pneumatic products for over 13+ years.
♦ We have strong production capacity, over 100000 pcs/month.
♦We have rich experience for offering OEM/ODM service
♦ We have strict quality control process with quick response of after sales service.
♦ Management system certification : ISO9001,CE, ROHS
♦ We have 10+ technical experts for researching and developing.
♦ Sales network expands from domestic sales to all over the world.
