SC Series ISO 15552 Standard Pneumatic Cylinder, Compact & Space-Saving Design, Double-Acting with Adjustable Cushioning

SC Series ISO 15552 Standard Pneumatic Cylinder, Compact & Space-Saving Design, Double-Acting with Adjustable Cushioning


Availability:

Quantity:



Inquiry Add to Basket

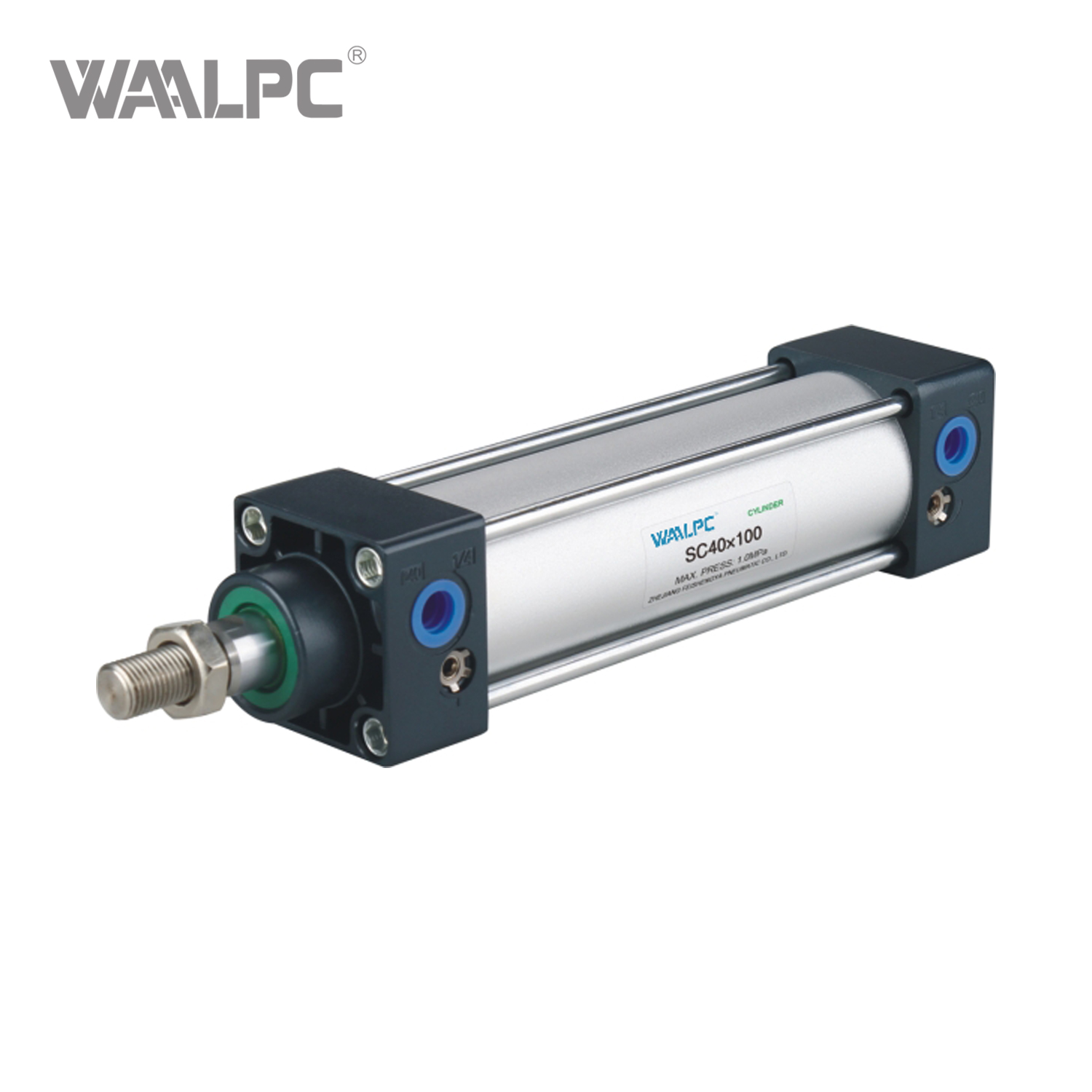

The SC Series Standard Pneumatic Cylinder is a range of double-acting, tie-rod style cylinders designed for robust performance across various industrial automation applications. A key design advantage of the SC series is its compact installation length compared to other cylinders conforming to the ISO 15552 standard.

Model:
SC
Brand:
WAALPC
Code:
8409919990

Product Description

1. Standardised design: conforms to ISO6431 and VDMA24562 standards.

2. Various mounting options: Including basic, trunnion, and swivel eye rose joint mounting options.

3. Cylinder bores from 32 to 200mm and strokes from 10 to 1000+mm to meet various usage requirements.

4. Widely used: Suitable for automation equipment, robotic arms and various industrial occasions.

Technical Parameters

ORDERING CODE

SC 50 X 50 - S - 20 - LB

I I I I I I

Series Code Bore Stroke Magnet Adjustable Stroke Mountin type

SC: Standard cylinder Blank: Without Magnet 10: 10mm Blank: Standard

SCD: Double-shaft type S: With Magnet 20: 20mm LB: Leg mounting

SCJ: Double-shaft, 30: 30mm FA: Front plat mounting

adjustable stroke type 40: 40mm FB: Rear plate mounting

SU: Standard cylinder 50: 50mm CA: Single trunnion mounting

SUD: Double-shaft type 75: 75mm CB: Double trunnion mounting

SUJ: Double-shaft, 100: 100mm CR: Clevis foot

adjustable stroke type TC: Centre trunnion mounting

SPECIFICATION

Bore(mm)		32	40	50	63	80	100	125	160	200
Acting type		Double acting
Working medium		Clean air(40um Filtration)
Mounting type	SU/SC Series	Basic type FA FB CA CB CR LB TC TC-M
	SCD/SUD Series	Basic type FA LB TC TC-M
	SCJ/SUJ Series	Basic type FA LB TC TC-M
Guaranteed pressure		1.5Mpa
Working pressure range		0.1 to 0.9Mpa
Working temperature		-5 to 70℃
Speed range		50 to 800mm/s
Cushion type		Adjustable cushion
Cushion stroke		20mm				32mm			45mm
Port size		G1/8	G1/4		G3/8		G1/2		G3/4

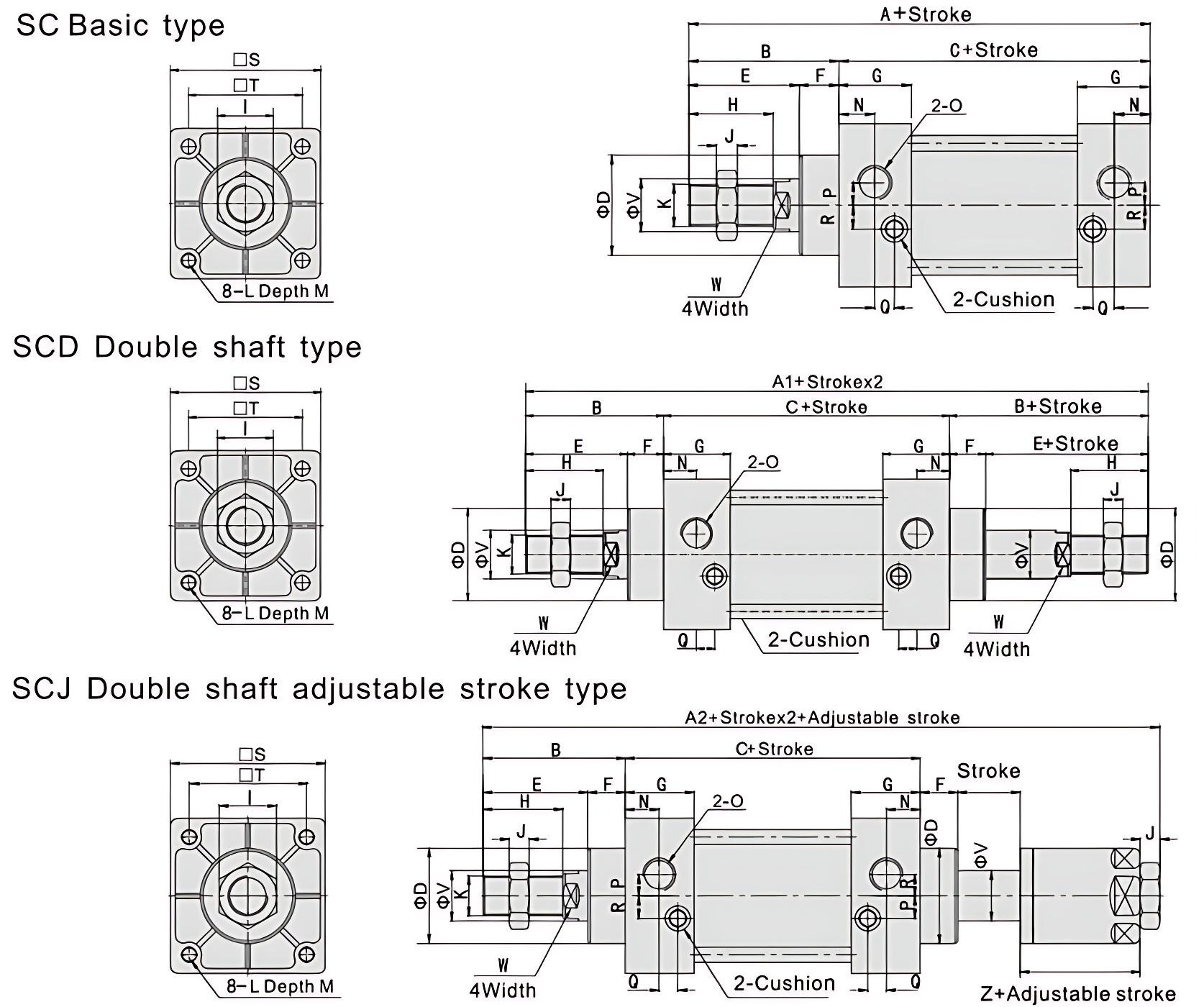

OVERALLDIMENSION&STRUCTURE

The SC Series Standard Pneumatic Cylinder

Bore/Sign	A	A1	A2	B	C	D	E	F	G	H	I	J	K
32	140	187	182	47	93	28	32	15	27.5	22	17	6	M10X1.25
40	142	191	185	48	93	32	34	15	27.5	24	17	7	M12X1.25
50	150	207	195	57	93	38	42	15	27.5	32	23	8	M16X1.5
63	153	210	198	57	96	38	42	15	27.5	32	23	8	M16X1.5
80	183	258	243	75	108	47	54	21	33	40	26	10	M20X1.5
100	188	263	244.5	75	113	47	54	21	33	40	26	10	M20X1.5
125	246	347	315	101	145	60	70	31	40	54	41	13.5	M27X2
160	309	/	/	129	180	63	91	38	50	72	50	15	M36X2
200	347	/	/	167	180	75	100	67	50	72	55	18	M36X2

Bore/Sign	L	M	N	O	P	Q	R	S	T	V	W
32	M6X1	13	13.5	G1/8	3.5	7.5	7	45	33	12	10
40	M6X1	13	15	G1/4	5	5	7.5	50	37	16	14
50	M6X1	13	13.75	G1/4	8.5	4.5	10	62	47	20	17
63	M8X1.25	14	14	G3/8	9	5	8.5	75	56	20	17
80	M10X1.5	15	16.5	G3/8	10	7	13	94	70	25	22
100	M10X1.5	18	16.5	G1/2	10	7	13	112	84	25	22
125	M12X1.75	20	21	G1/2	14.5	7	15	140	110	32	29
160	M16X2	22	25	G3/4	/	/	/	180	140	40	36
200	M16X2	22	23.5	G3/4	/	/	/	220	175	40	36

Specification Download
