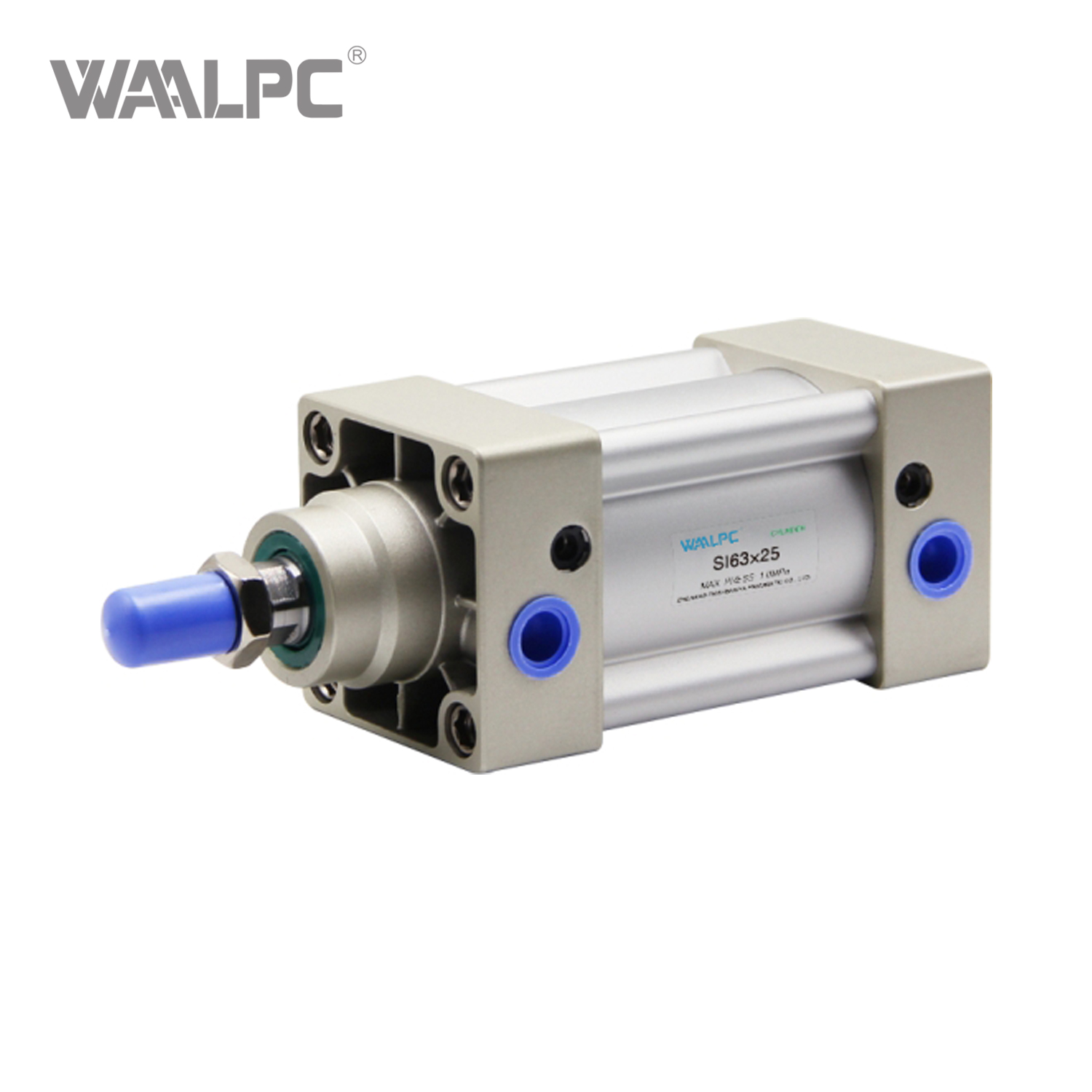

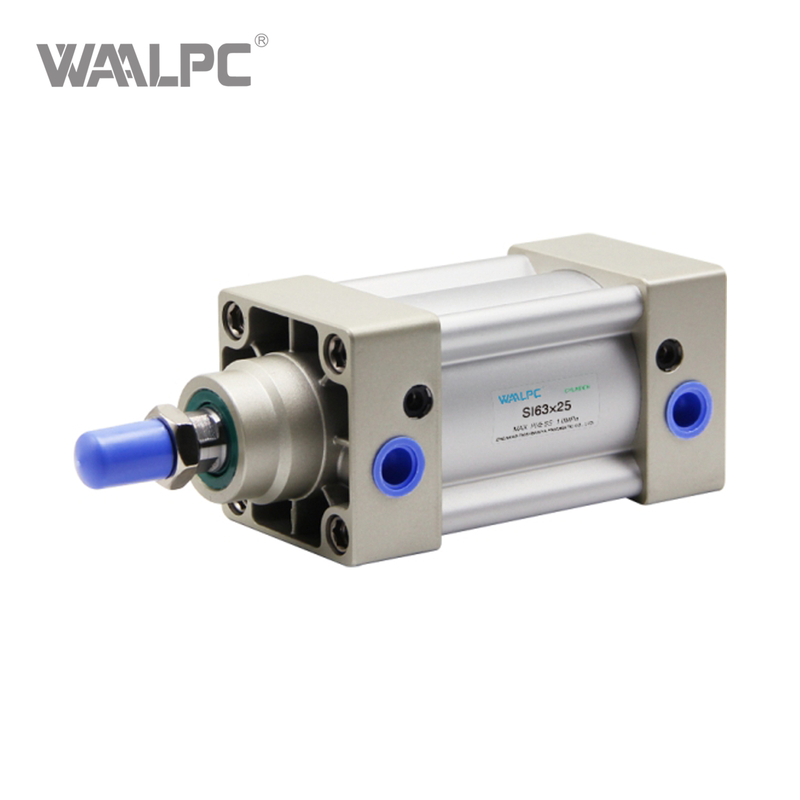

SI
WAALPC
8409919990
1. High-Performance Sealing: The piston is sealed by two single-acting Y-type seals. This design offers a low starting pressure, ensures smooth cylinder operation, and has a self-compensating function for a long service life.
2. Durable and Corrosion-Resistant Construction: The cylinder tube is made of high-strength aluminum alloy with a "rice character" shaped reinforced structure and no tie rods. The inner bore is finely drawn and roller-burnished, resulting in a small friction coefficient. The end covers are sandblasted and anodized to a champagne silver finish, providing excellent aesthetics and corrosion resistance.
3. Smooth and Adjustable Cushioning: The adjustable pneumatic cushioning at both ends allows customers to fine-tune the damping effect, minimizing impact and noise at the end of the stroke and ensuring stable operation.
4. Long Stroke and Customization: The series offers a wide range of standard strokes, with maximum strokes extending up to 2000 mm or even 2300 mm for certain bore sizes . Non-standard items can also be customized to meet specific customer requirements.
5. Versatile Installation: A complete range of cylinder mounting accessories is available, providing adaptability for various installation methods and making disassembly quick and convenient.

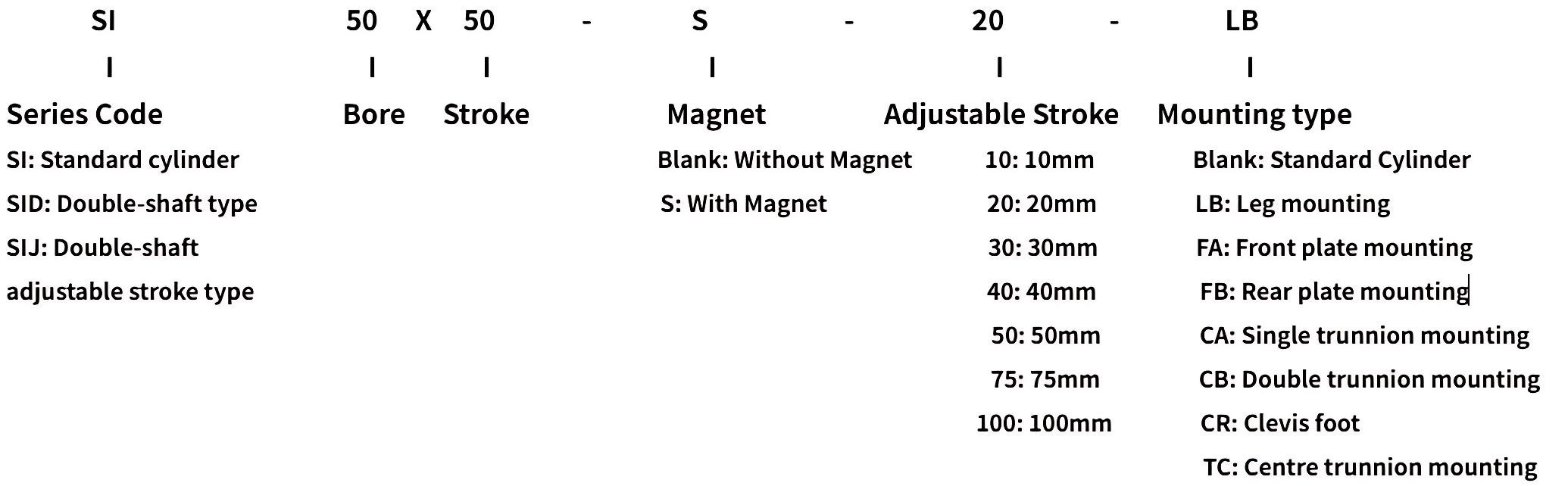

ORDERING CODE
SPECIFICATION
Bore size | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | |
Acting type | Double acting | |||||||||
Working medium | Clean air(40µm Filtration) | |||||||||
Mounting type | SI Series | Basic type FA FB CA CB LB TC TC-M1 TC-M2 | ||||||||
SID Series | Basic type FA LB TC TC-M1 TC-M2 | |||||||||
SIJ Series | Basic type FA LB TC TC-M1 TC-M2 | |||||||||
Working pressure range | 0.1~1.0Mpa | |||||||||
Guaranteed pressure | 1.5Mpa | |||||||||
Working temperature | 5~70℃ | |||||||||
Speed range | SI Series: 50~800mm/s Other-Series: 30-800mm/s | |||||||||
Cushion type | Adjustable cushion | |||||||||
Cushion stroke | 27mm | 30mm | 36mm | 40mm | 50mm | |||||
Port size | G1/8 | G1/4 | G3/8 | G1/2 | G3/4 |

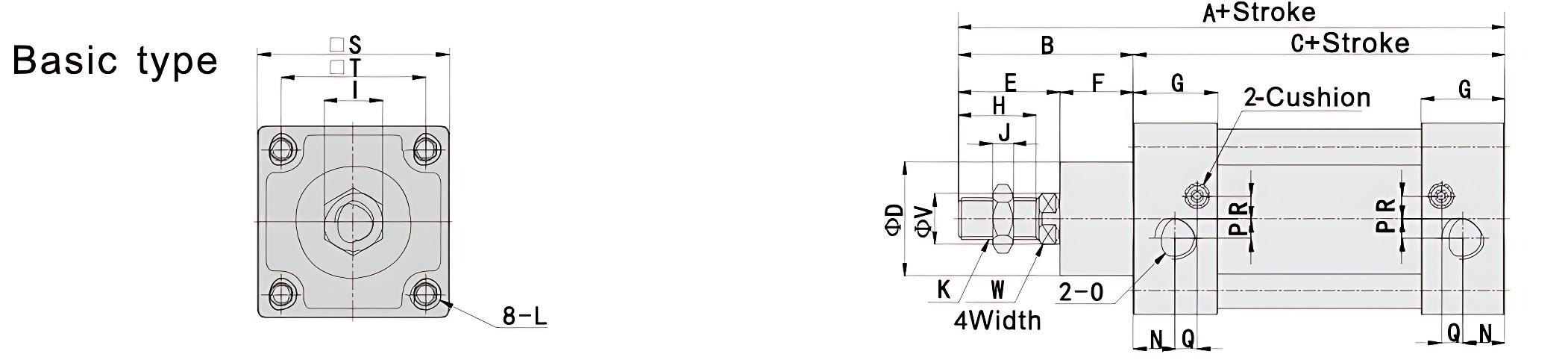

OVERALLDIMENSION&STRUCTURE
Bore/Sign | A | B | C | D | E | F | G | H | I | J | K | L | N | O | P | Q | R | S | T | V | W |
32 | 142 | 48 | 94 | 30 | 32 | 16 | 28 | 22 | 17 | 6 | M10X1.25 | M6 | 13.5 | G1/8 | 4 | 7.5 | 7 | 47 | 32.5 | 12 | 10 |
40 | 159 | 54 | 105 | 35 | 36 | 18 | 29 | 24 | 19 | 7 | M12X1.25 | M6 | 16 | G1/4 | 6 | 9.5 | 9 | 53 | 38 | 16 | 13 |
50 | 175 | 69 | 106 | 40 | 44 | 25 | 31 | 32 | 24 | 8 | M16X1.5 | M8 | 18.5 | G1/4 | 8.5 | 6.7 | 9 | 65 | 46.5 | 20 | 17 |
63 | 190 | 69 | 121 | 45 | 44 | 25 | 32 | 32 | 24 | 8 | M16X1.5 | M8 | 19 | G3/8 | 6 | 7.7 | 9 | 75 | 56.5 | 20 | 17 |
80 | 214 | 86 | 128 | 45 | 56 | 30 | 35 | 40 | 30 | 10 | M20X1.5 | M10 | 19 | G3/8 | 10 | 5 | 13.5 | 95 | 72 | 25 | 22 |
100 | 229 | 91 | 138 | 55 | 59 | 32 | 36 | 40 | 30 | 10 | M20X1.5 | M10 | 18 | G1/2 | 12.5 | 10 | 14.5 | 115 | 89 | 25 | 22 |
125 | 279 | 119 | 160 | 60 | 74 | 45 | 46 | 54 | 41 | 13.5 | M27X2 | M12 | 23 | G1/2 | 14 | 12 | 14 | 140 | 110 | 32 | 27 |
160 | 332 | 152 | 180 | 65 | 94 | 58 | 50 | 72 | 55 | 18 | M36X2 | M16 | 25 | G3/4 | 15 | 12 | 20 | 180 | 140 | 40 | 36 |
200 | 347 | 167 | 180 | 75 | 107 | 60 | 50 | 72 | 55 | 18 | M36X2 | M16 | 25 | G3/4 | 15 | 12 | 20 | 220 | 175 | 40 | 36 |

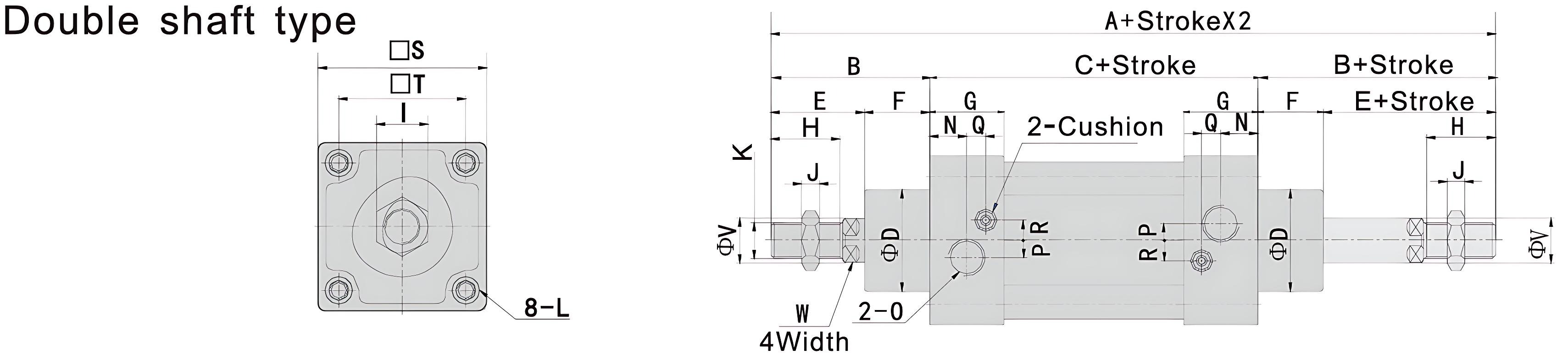

Bore/Sign | A | B | C | D | E | F | G | H | I | J | K | L | N | O | P | Q | R | S | T | V | W |
32 | 190 | 48 | 94 | 30 | 32 | 16 | 28 | 22 | 17 | 6 | M10X1.25 | M6 | 13.5 | G1/8 | 4 | 7.5 | 7 | 47 | 32.5 | 12 | 10 |
40 | 213 | 54 | 105 | 35 | 36 | 18 | 29 | 24 | 19 | 7 | M12X1.25 | M6 | 16 | G1/4 | 6 | 9.5 | 9 | 53 | 38 | 16 | 13 |
50 | 244 | 69 | 106 | 40 | 44 | 25 | 31 | 32 | 24 | 8 | M16X1.5 | M8 | 18.5 | G1/4 | 8.5 | 6.7 | 9 | 65 | 46.5 | 20 | 17 |
63 | 259 | 69 | 121 | 45 | 44 | 25 | 32 | 32 | 24 | 8 | M16X1.5 | M8 | 19 | G3/8 | 6 | 7.7 | 9 | 75 | 56.5 | 20 | 17 |
80 | 300 | 86 | 128 | 45 | 56 | 30 | 35 | 40 | 30 | 10 | M20X1.5 | M10 | 19 | G3/8 | 10 | 5 | 13.5 | 95 | 72 | 25 | 22 |
100 | 320 | 91 | 138 | 55 | 59 | 32 | 36 | 40 | 30 | 10 | M20X1.5 | M10 | 18 | G3/8 | 12.5 | 10 | 14.5 | 115 | 89 | 25 | 22 |
125 | 398 | 119 | 160 | 60 | 74 | 45 | 46 | 54 | 41 | 13.5 | M27X2 | M12 | 23 | G1/2 | 14 | 12 | 14 | 140 | 110 | 32 | 27 |
160 | 484 | 152 | 180 | 65 | 94 | 58 | 50 | 72 | 55 | 18 | M36X2 | M16 | 25 | G3/4 | 15 | 12 | 20 | 180 | 140 | 40 | 36 |
200 | 514 | 167 | 180 | 75 | 107 | 60 | 50 | 72 | 55 | 18 | M36X2 | M16 | 25 | G3/4 | 15 | 12 | 20 | 220 | 175 | 40 | 36 |

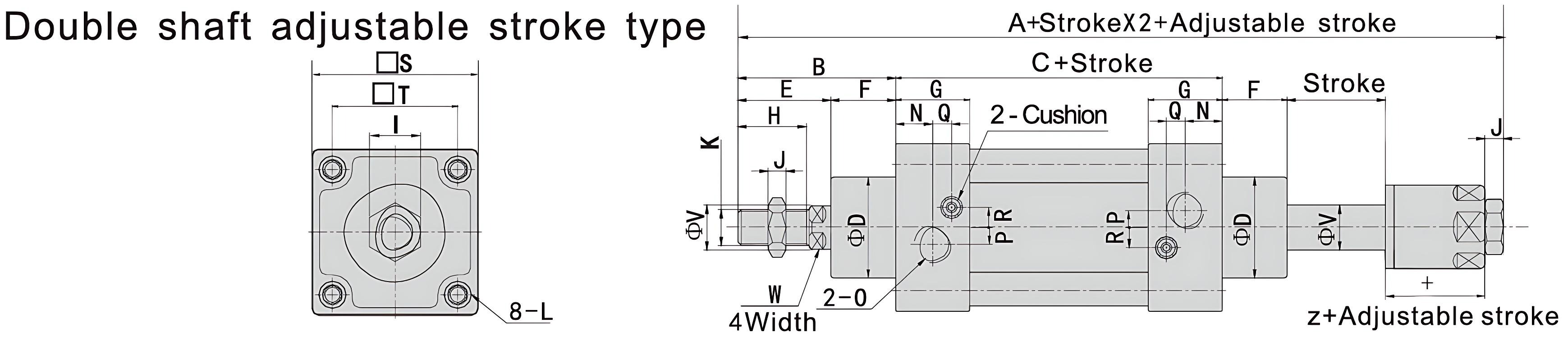

Bore/Sign | A | B | C | D | E | F | G | H | I | J | K | L | N | O | P | Q | R | S | T | V | W | Z |
32 | 187 | 48 | 94 | 30 | 32 | 16 | 28 | 22 | 17 | 6 | M10X1.25 | M6 | 13.5 | G1/8 | 4 | 7.5 | 6.5 | 47 | 32.5 | 12 | 10 | 21 |
40 | 207 | 54 | 105 | 35 | 36 | 18 | 29 | 24 | 19 | 7 | M12X1.25 | M6 | 16 | G1/4 | 6 | 9.5 | 9 | 53 | 38 | 16 | 13 | 21 |
50 | 233 | 69 | 106 | 40 | 44 | 25 | 31 | 32 | 24 | 8 | M16X1.5 | M8 | 18.5 | G1/4 | 8.5 | 6.7 | 7.5 | 65 | 46.5 | 20 | 17 | 23 |
63 | 250 | 69 | 121 | 45 | 44 | 25 | 32 | 32 | 24 | 8 | M16X1.5 | M8 | 19 | G3/8 | 6 | 7.7 | 9 | 75 | 56.5 | 20 | 17 | 23 |
80 | 286 | 86 | 128 | 45 | 56 | 30 | 35 | 40 | 30 | 10 | M20X1.5 | M10 | 19 | G3/8 | 10 | 5 | 13.5 | 95 | 72 | 25 | 22 | 29 |
100 | 308 | 91 | 138 | 55 | 59 | 32 | 36 | 40 | 30 | 10 | M20X1.5 | M10 | 18 | G1/2 | 12.5 | 10 | 14.5 | 115 | 89 | 25 | 22 | 29 |
125 | 373 | 119 | 160 | 60 | 74 | 45 | 46 | 54 | 41 | 13.5 | M27X2 | M12 | 23 | G1/2 | 14 | 12 | 14 | 140 | 110 | 32 | 27 | 35 |
160 | 448 | 152 | 180 | 65 | 94 | 58 | 50 | 72 | 55 | 18 | M36X2 | M16 | 25 | G3/4 | 15 | 12 | 20 | 180 | 140 | 40 | 36 | 40 |
200 | 472 | 167 | 180 | 75 | 107 | 60 | 50 | 72 | 55 | 18 | M36X2 | M16 | 25 | G3/4 | 15 | 12 | 20 | 220 | 175 | 40 | 36 | 40 |
