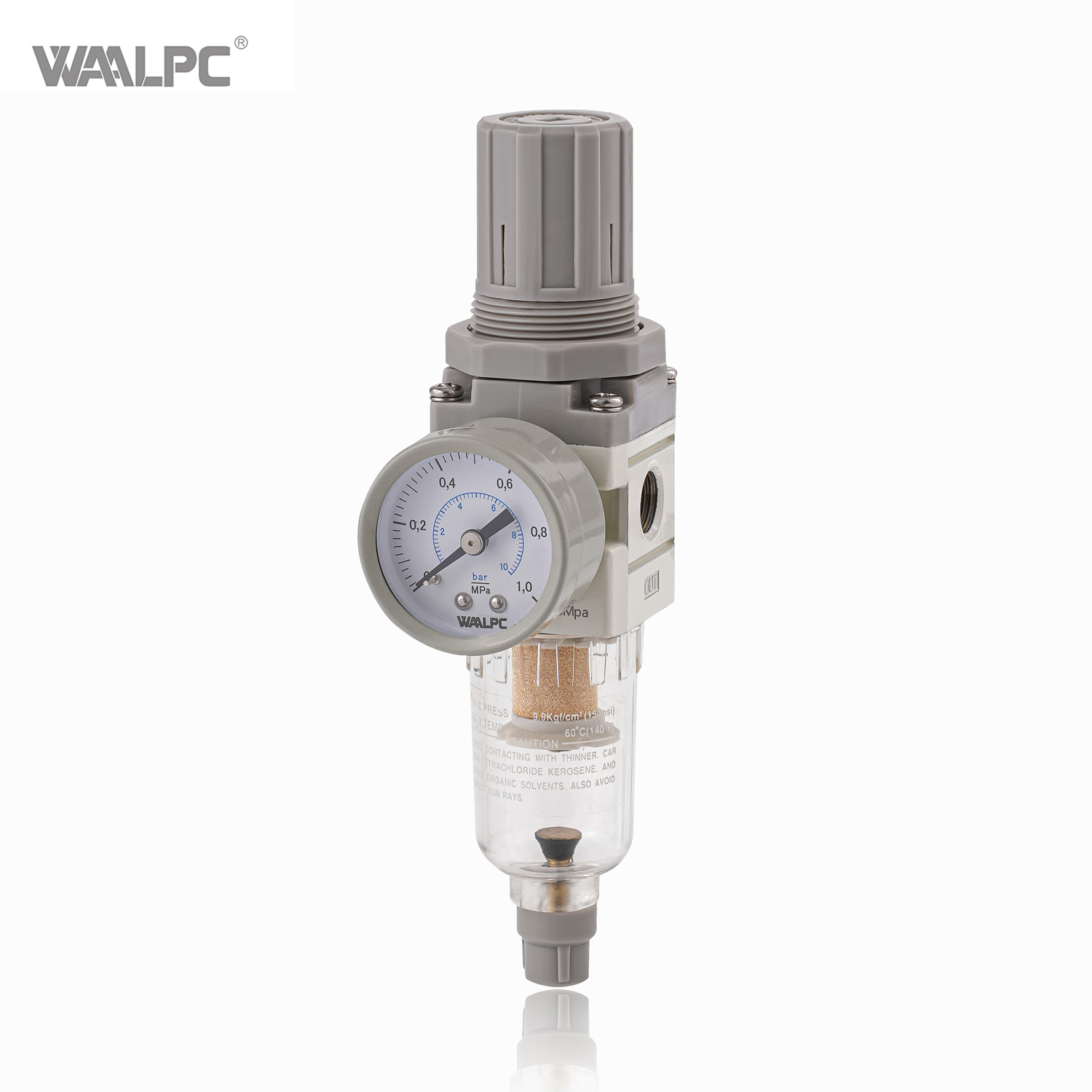

Air Filter Regulator Pressure Reducing Valve with Gauge for Mechanical Equipment AW2000 White SMC 1/8'' 1/4''

Air Filter Regulator Pressure Reducing Valve with Gauge for Mechanical Equipment AW2000 White SMC 1/8'' 1/4''


Color:	Black∨ange White
Availability:

Quantity:



Inquiry Add to Basket

Air filter regulator device is used to process the air source from the air compressor.
It includes two parts with different functions: an air filter for filtering dirt and particles in the air source, a regulator for adjusting the air source pressure.

Model:
AW Series
Brand:
WAALPC
Code:
8421999000

Product Description

1. Light and compact structure, easy to install and use.

2. Press-in self-locking mechanism, which can prevent the set pressure from external interference.

3. Small pressure loss,high efficiency of water separation.

4. Transparent housing,the amount of oil dripping can be observed directly.

5. In addition to the standard type,there is also a low pressure type available (the max. regulating pressure is 0.4MPa).

Technical Parameters

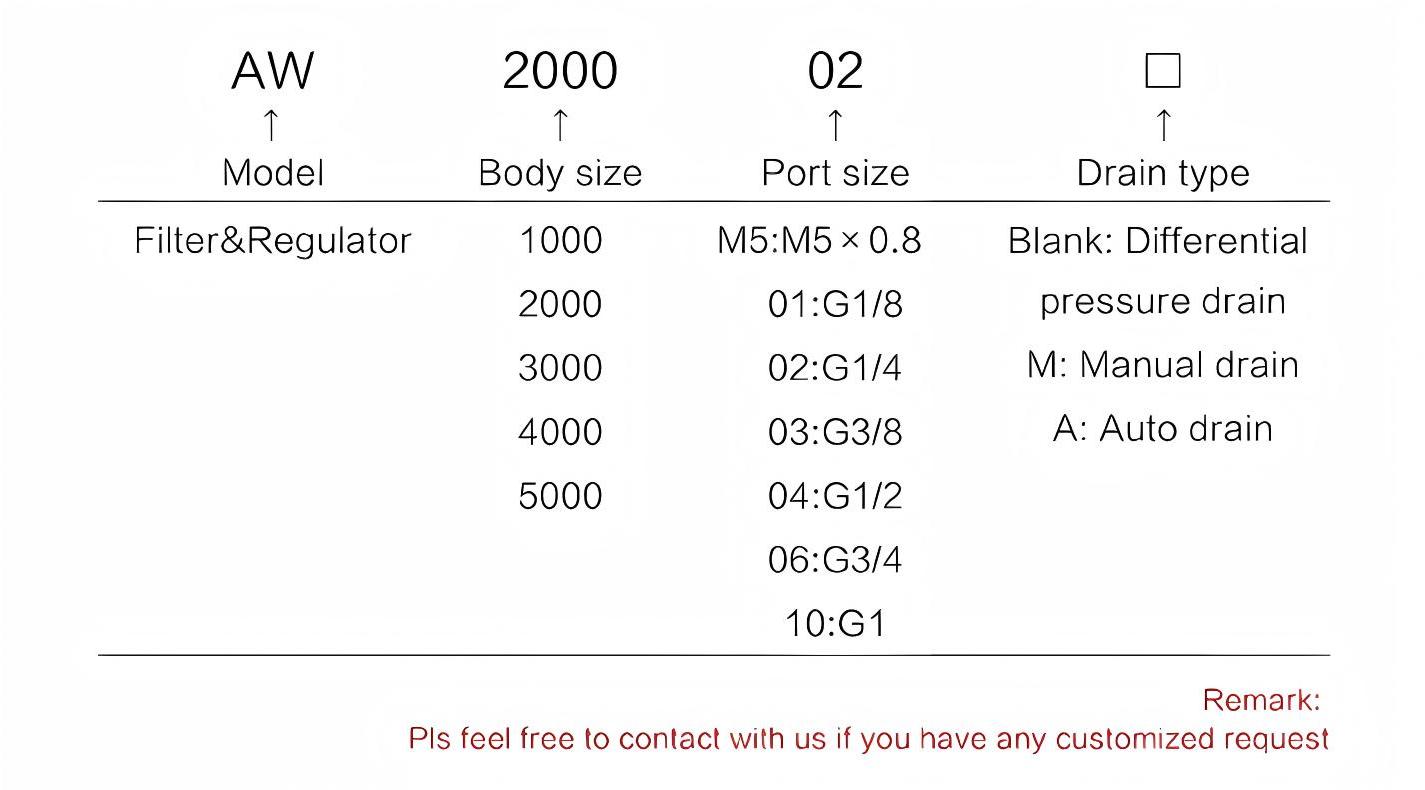

ORDERING CODE

DATA SHEET

Type-name	Filter&Regulator
Model	AW1000-M5	AW2000-01	AW2000-02	AW3000-02	AW3000-03	AW4000-03	AW4000-04	AW4000-06	AW5000-06	AW5000-10
Port Size (G)	M5×*0.8	1/8	1/4	1/4	3/8	3/8	1/2	3/4	3/4	1
Cup Protective Cover	AW1000-2000（W/O）			AW3000-5000（ W）
Drain Type	Manual drain, auto drain and differential pressure drain (optional)
Grade Of Filtration	5µm , 25µm, 40µm
Working Medium	Air
Pressure Regulating Range	0.05-0.07MPa	0.05-0.85MPa
Max. Operating Pressure	1.0MPa（ 145Psi）
Pressure Resistance	1.5MPa（ 215Psi）
Operating Temperature Range	5-60 ℃
Filter Cup Capacity	10	15	15	20	20	45	45	45	130	130
Pressure Gauge	Y40-01				Y50-02
L-type Bracket	L10	L20	L20	L30	L30	L40	L40	L50	L50	L60
Material	Housing: Aluminum die-casting molding; Container cup: PE; Protective cover: iron
Weight	300g	370g	370g	640g	640g	1260g	1260g	1310g	1890g	1890g

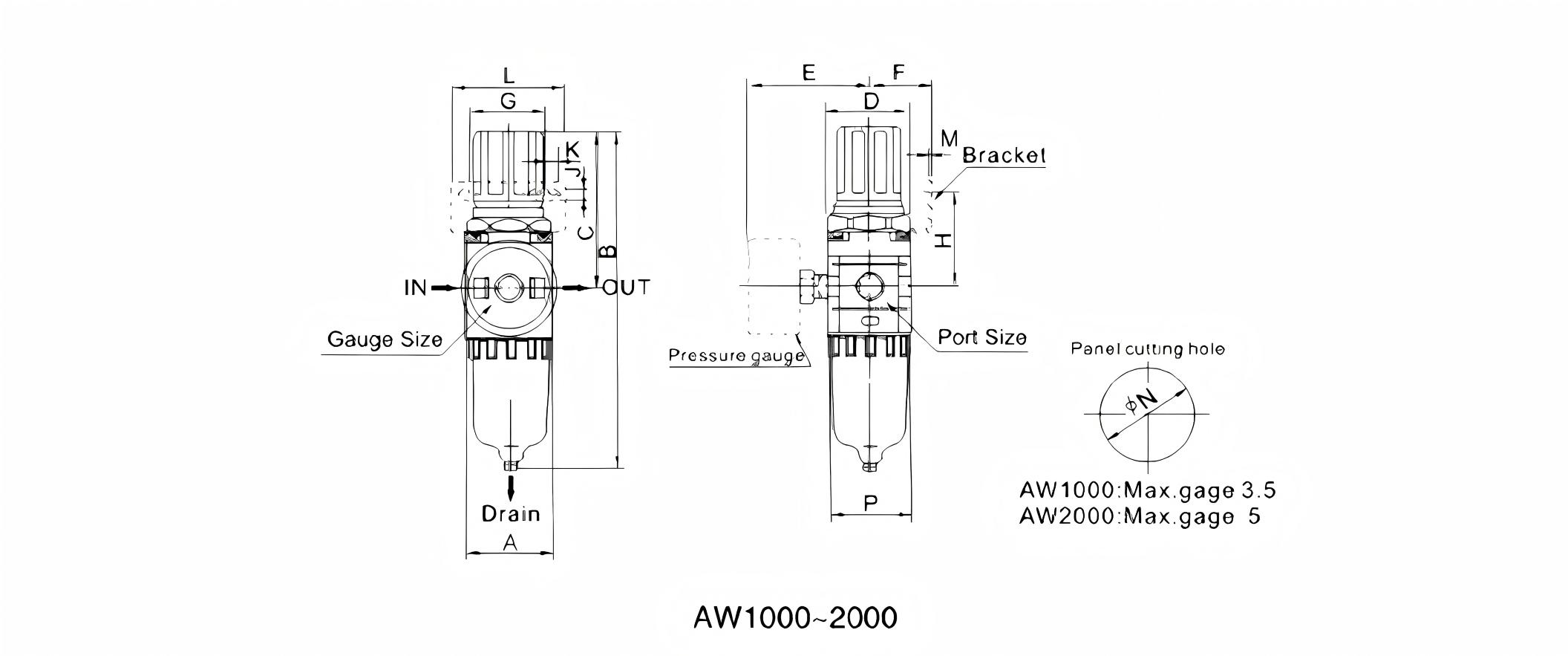

STRUCTURE

Air filter regulator

DIMENSION(MM)

Model	Port size	A	B	C	D	E	F	G	H	J	K	L	M	N	P
AW1000	M5	25	109.5	50.5	25	26	25	28	30	4.5	6.5	40	2	20.5	28
AW2000	G1/8-G1/4	40	164.5	78	40	56.8	30	34	43.5	5.4	15.4	55	2.3	33.5	40
AW3000	G1/4-G3/8	53	211	92.5	53	60.8	39	40	46	6.5	8	53	2.3	42.5	56
AW4000	G3/8-1/2	70	262	112	70	70.5	49.2	54	53.5	8.5	10.5	70	2.3	52.5	73
AW4000-06	G3/4	75	267	114	70	70.5	49.2	54	53.5	8.5	10.5	70	2.3	52.5	73
AW5000	G3/4-G1	90	336	116	90	75.5	49.2	54	62	8.5	10.5	70	2.3	52.5	90
