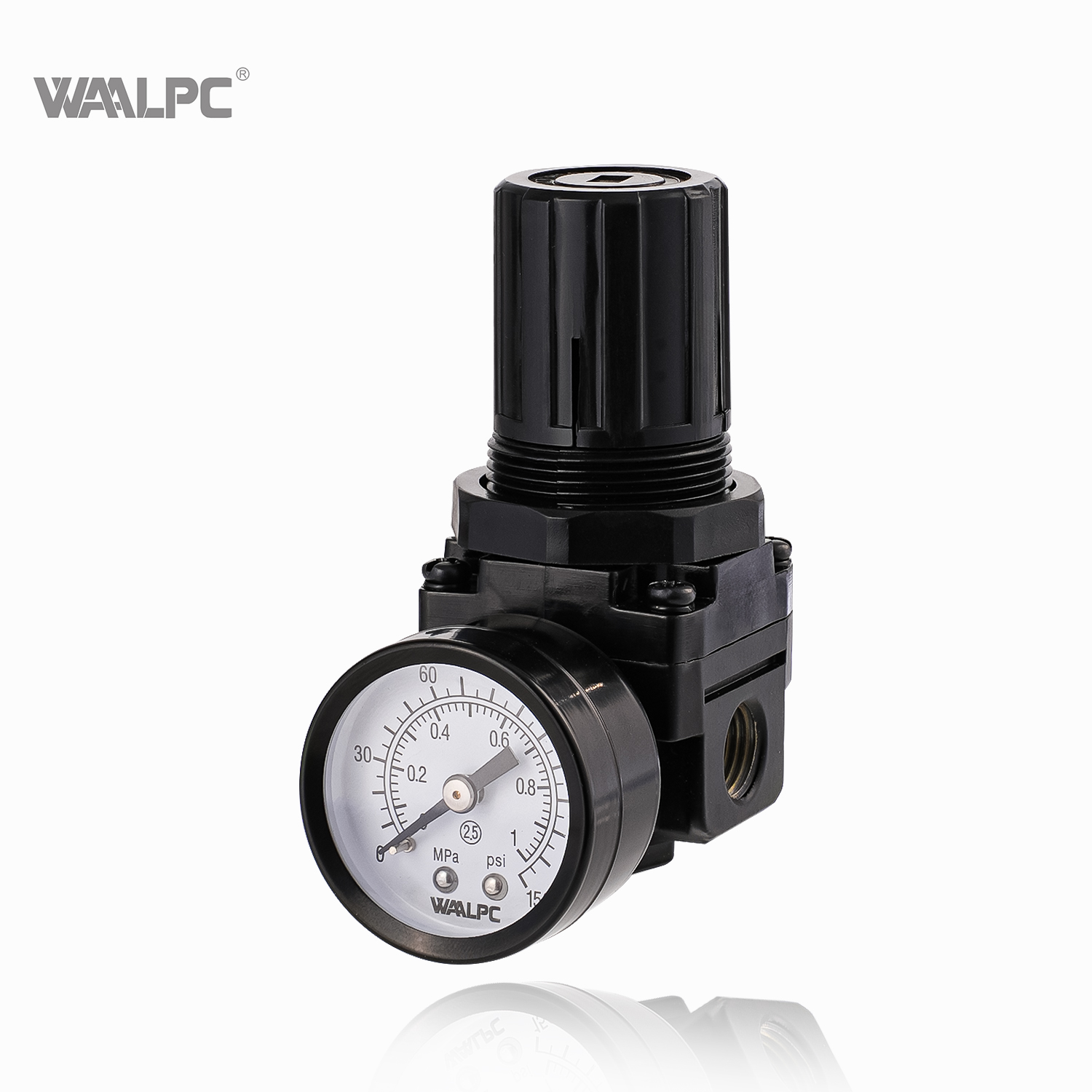

Air Pressure Regulator Valve with TUV for Gas Cylinders AR2000 Black 1/4'' 1/8'' SMC Advanced Leak-Proof Design

AR2000 orange 1/4'' 1/8'' SMC Competitive Offer Advanced Leak-Proof Design Air Pressure Regulator valve with TUV for Gas Cylinders

Air Pressure Regulator Valve with TUV for Gas Cylinders AR2000 Black 1/4'' 1/8'' SMC Advanced Leak-Proof Design


Color:	Black White
Availability:

Quantity:



Inquiry Add to Basket

SMC Series Regulators represent engineering excellence in precision pressure control technology. Designed for reliability and accuracy, these regulators ensure stable air pressure output across diverse industrial applications.

Model:
AR2000
Brand:
WAALPC
Code:
8421999000

Product Description

1. Light and compact structure, easy to install and use.
2. Press-in self-locking mechanism, which can prevent the set pressure from external interference.
3. Small leakage: can effectively reduce the waste of compressed air.
4. Sensitive and precise pressure adjustment.
5. High pressure, high &low temperature resistant.
6. Strong anti-interference ability: strong adaptability to system pressure fluctuations.

7. Port size available: M5, 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''.

Technical Parameters

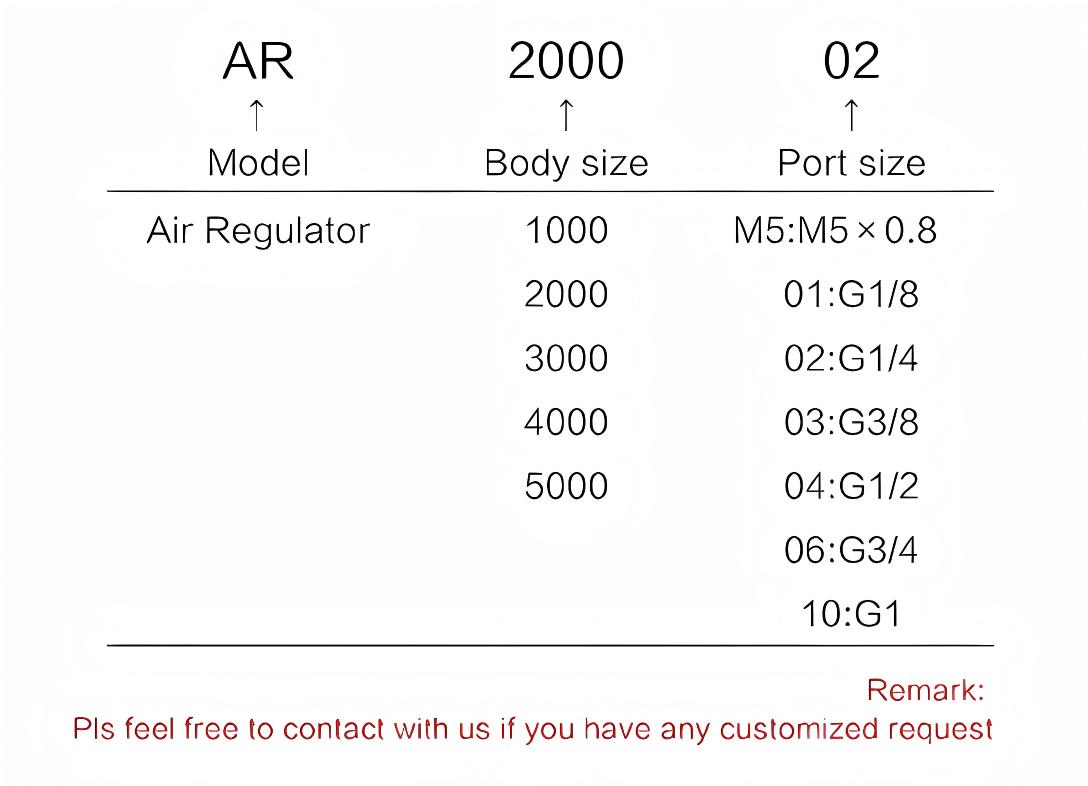

ORDERING CODE

DATA SHEET

Type-name	Air Regulator
Model	AR1000-M5	AR2000-01	AR2000-02	AR3000-02	AR3000-03	AR4000-03	AR4000-04	AR4000-06	AR5000-06	AR5000-10
Port Size (G)	M5×*0.8	1/8	1/4	1/4	3/8	3/8	1/2	3/4	3/4	1
Working Medium	Air
Pressure Regulating Range	0.05-0.07MPa	0.05-0.85MPa
Max. Operating Pressure	1.0MPa（ 145Psi）
Pressure Resistance	1.5MPa（ 215Psi）
Operating Temperature Range	5-60 ℃
Pressure Gauge	Y40-01				Y50-02
L-type Bracket	L10	L20	L20	L30	L30	L40	L40	L50	L50	L60
Material	Aluminum die-casting molding;
Weight	200g	280g	280g	460g	460g	890g	890g	940g	1200g	1200g

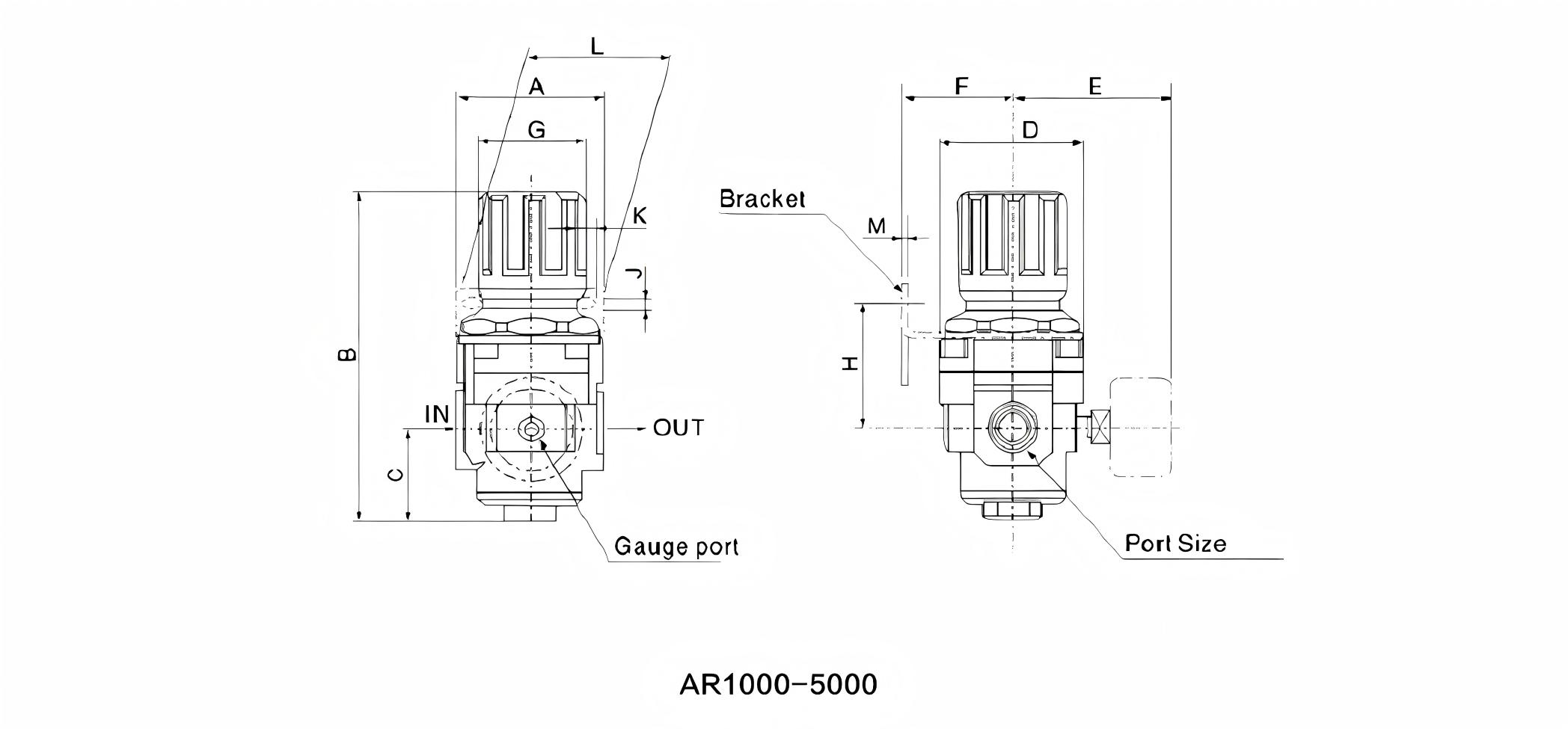

STRUCTURE

SMC Regulator

DIMENSION(MM)

Model	Port size	A	B	C	D	E	F	G	H	J	K	L	M	N
AR1000	M5	25	61.5	11	25	25	25	28	30	4.5	6.5	40	2	20.5
AR2000	1/8-1/4	40	95	17	40	56.6	30	34	44	5.4	15.4	55	2.3	33.5
AR3000	1/4-3/8	53	127.5	35	53	60.8	39	40	46	6.5	8	53	2.3	42.5
AR4000	3/8-1/2	70	149.5	37.5	70	65.5	49.2	54	54	8.5	10.5	70	2.3	52.5
AR4000-06	3/4	75	154	40.5	70	69.5	49.2	54	55.5	8.5	10.5	70	2.3	52.5
AR5000	3/4-1	90	168	48	90	75.5	49.2	54	62	8.5	10.5	70	2.3	52.5

Specification Download
