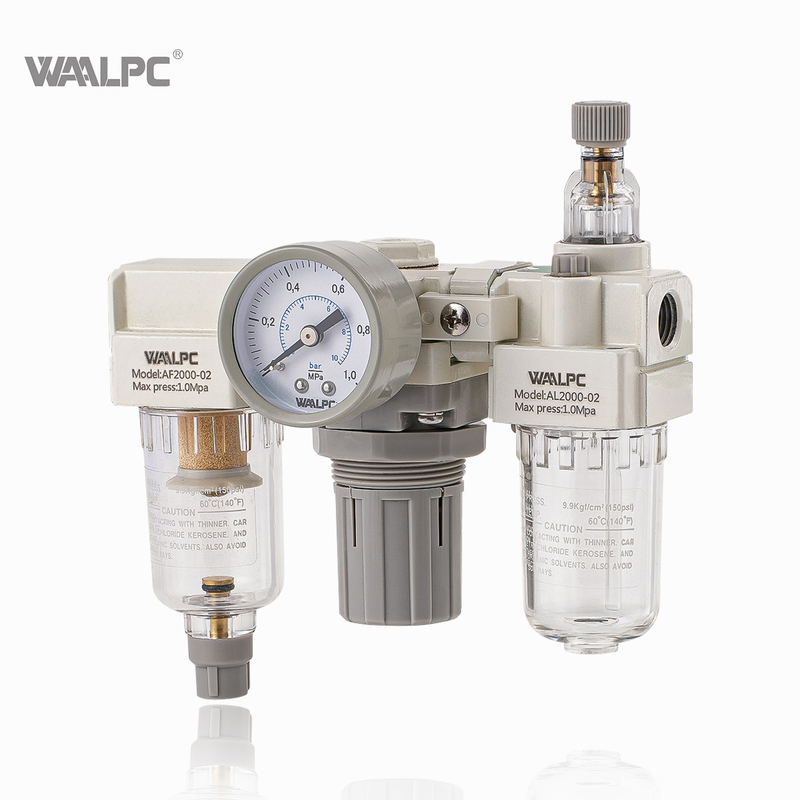

AC2000 white SMC1/8'' 1/4'' SMC Type Pneumatic Compressed Air Filter Regulator Lubricator Valve Gauge Frl Pressure Reducing Valve Automation equipment

SMC Pneumatic Compressed Air Filter Regulator Lubricator Valve Gauge Frl Pressure Reducing Valve Automation Equipment AC2000 White 1/8'' 1/4''

SMC Pneumatic Compressed Air Filter Regulator Lubricator Valve Gauge Frl Pressure Reducing Valve Automation Equipment AC2000 White 1/8'' 1/4''


Color:	Black∨ange White
Availability:

Quantity:



Inquiry Add to Basket

Pneumatic filter regulator lubricator (FRL) is used to deliver clean air, at a fixed pressure, and lubricated (if needed) to ensure proper pneumatic component operation and increase their operation lifetime. Filters, regulators, and lubricators can be bought individually or as a package.

Model:
AC2000 white
Brand:
WAALPC
Code:
8421999000

Product Description

1. Light and compact structure, easy to install and use

2. Press-in self-locking mechanism, which can prevent the set pressure from external interference

3. Small pressure loss,high efficiency of water separation

4. Transparent housing,the amount of oil dripping can be observed directly

5. In addition to the standard type,there is also a low pressure type available (the max. regulating pressure is 0.4MPa)

6. The filter precision includes 5µm and 40µm(optional).

7. Extend the life of the equipment: Filter out particles in the air, reduce wear and tear on the equipment, and extend the life of the equipment.
8. Improved equipment efficiency: Clean air improves the efficiency of equipment operation.
9. Stable output pressure: The pressure regulating valve can accurately adjust the output pressure to ensure the normal operation of downstream equipment.
10. Improve system reliability: Through purification and lubrication, the wear of pneumatic components is reduced and the reliability of the system is improved.
11. High pressure regulation accuracy: It can accurately adjust the output pressure to ensure the normal operation of downstream equipment.
12. Reduced Maintenance: Pneumatic components will need less maintenance due to reduced wear and corrosion.
13. Port size available: M5, 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''.

Technical Parameters

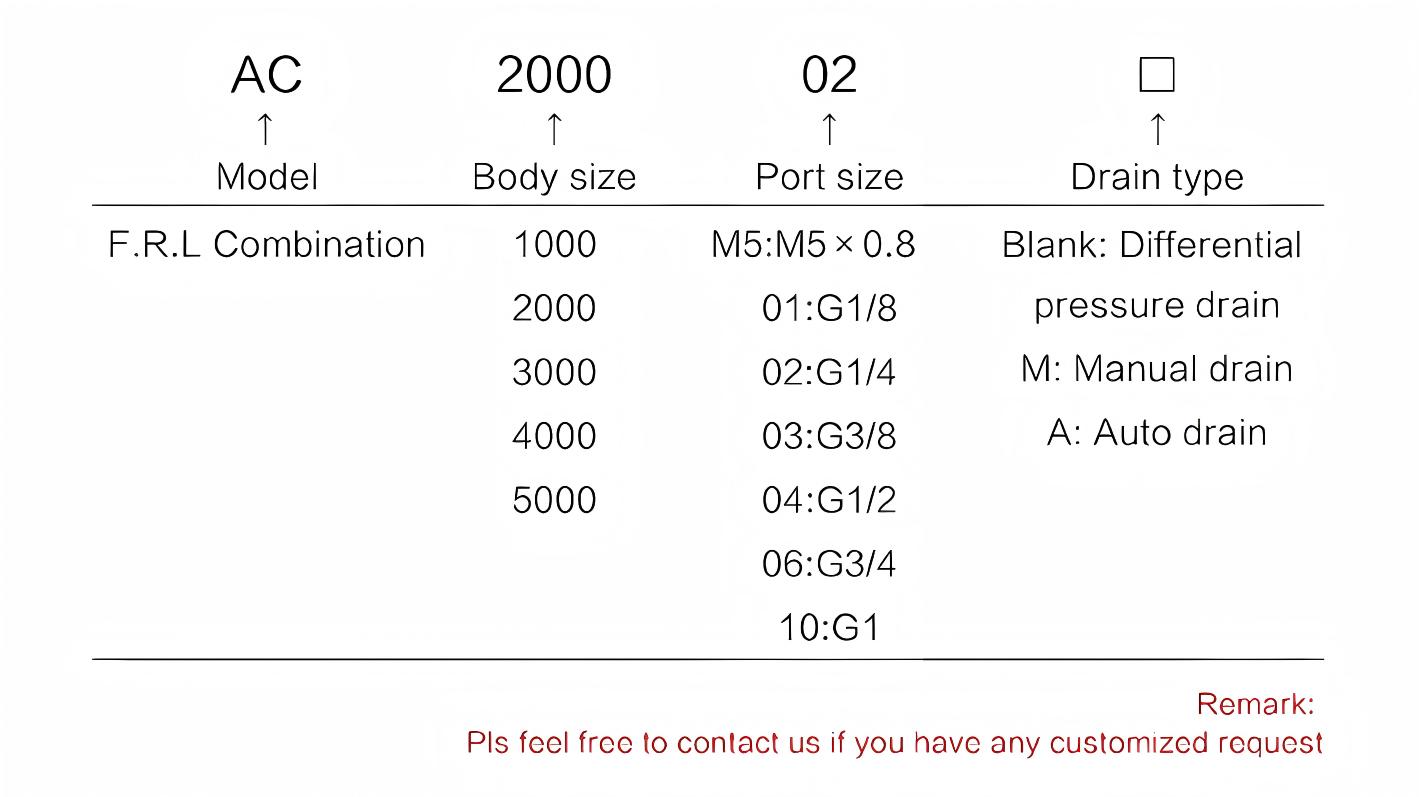

ORDERING CODE

DATA SHEET

Type-name		F.R.L combination
Model		AC1000-M5	AC2000-01	AC2000-02	AC3000-02	AC3000-03	AC4000-03	AC4000-04	AC4000-06	AC5000-06	AC5000-10
Port Size (G)		M5×*0.8	1/8	1/4	1/4	3/8	3/8	1/2	3/4	3/4	1
Cup Protective Cover		AC1000-2000（W/O）			AC3000-5000（ W）
Drain Type		Manual drain, auto drain and differential pressure drain (optional)
Grade Of Filtration		5µm , 25µm, 40µm
Working Medium		Air
Pressure Regulating Range		0.05-0.07MPa	0.05-0.85MPa
Max. Operating Pressure		1.0MPa（ 145Psi）
Pressure Resistance		1.5MPa（ 215Psi）
Operating Temperature Range		5-60 ℃
Filter Cup Capacity		10	15	15	20	20	45	45	45	130	130
Lubricator Cup Capacity		10	15	15	20	20	45	45	45	130	130
Recommended Oil		Oil for turbine 1 ISOVG32
Pressure Gauge		Y40-01				Y50-02
L-type Bracket		L10	L20	L20	L30	L30	L40	L40	L50	L50	L60
Material		Housing: Aluminum die-casting molding; Container cup: PE; Protective cover: iron
Weight		500g	570g	570g	1100g	1100g	2100g	2100g	2250g	3750g	3750g
Components	Filter	AF1000-M5	AF2000-01	AF2000-02	AF3000-02	AF3000-03	AF4000-03	AF4000-04	AF4000-06	AF5000-06	AF5000-10
	Regulating Valve	AR1000-M5	AR2000-01	AR2000-02	AR3000-02	AR3000-03	AR4000-03	AR4000-04	AR4000-06	AR5000-06	AR5000-10
	Lubricator	AL1000-M5	AL2000-01	AL2000-02	AL3000-02	AL3000-03	AL4000-03	AL4000-04	AL4000-06	AL5000-06	AL5000-10

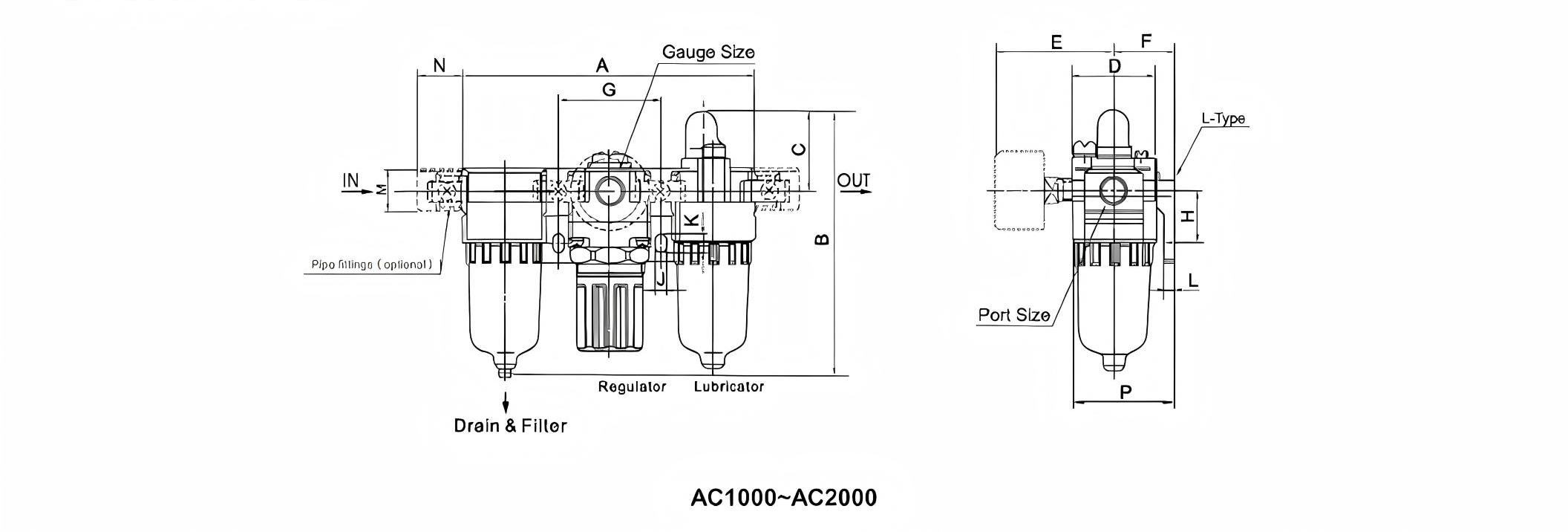

STRUCTURE

Air filter regulator lubricator

DIMENSION(MM)

Model	Port size	A	B	C	D	E	F	G	H	J	K	L	M	N	P
AC1000	M5	91	84.5	25.5	25	26	25	33	20	4.5	7.5	5	17.5	16	38.5
AC2000	1/8-1/4	140	125	38	40	56.8	30	50	24	5.5	8.5	5	22	23	50
AC3000	1/4-3/8	181	156.5	38	53	60.8	41	64	35	7	11	7	34.2	26	70.5
AC4000	3/8-1/2	238	191.5	41	70	65.5	50	84	40	9	13	7	42.2	33	88
AC4000-06	3/4	153	193	40.5	70	69.5	50	89	40	9	13	7	46.2	36	88
AC5000	3/4-1	300	271.5	48	90	75.5	69.8	105	50	12	16	10.5	55.5	40	115
