Air Pressure Reducing Valve Regulator Diecast Aluminium High Flow Compressed for Pneumatic Machinery

Air Pressure Reducing Valve Regulator Diecast Aluminium High Flow Compressed for Pneumatic Machinery


Size:	1 2
Availability:

Quantity:



Inquiry Add to Basket

The Air Filter Regulator Lubricator (FRL) is used to provide clean air at a fixed pressure and, if required, lubricate to ensure proper operation of the pneumatic components and extend their service life. Filters, regulators, and lubricators can be purchased separately or as a set.

Regulator: Adjusts and controls the system's air pressure to ensure that the down-line components do not exceed their maximum working pressure. This is the second step in the FRL system.

Model:
AR825-15
Brand:
WAALPC
Code:
8421999000

Product Description

The Air Filter Regulator Lubricator Advantages

High flow Air regulator manufacturer

1. Large diameter, large flow, pressure reduction without reducing flow

2. Internal pilot and overflow ventilation holes

1. Light and compact structure, easy to install and use.
2. Press-in self-locking mechanism, which can prevent the set pressure from external interference.
3. Small leakage: can effectively reduce the waste of compressed air.
4. Sensitive and precise pressure adjustment.
5. High pressure, high &low temperature resistant.
6. Strong anti-interference ability: strong adaptability to system pressure fluctuations.
7. High pressure, corrosion, high&low temperature ,acid and alkali resistant

The Air Filter Regulator Lubricator Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Type name	Air Regulator

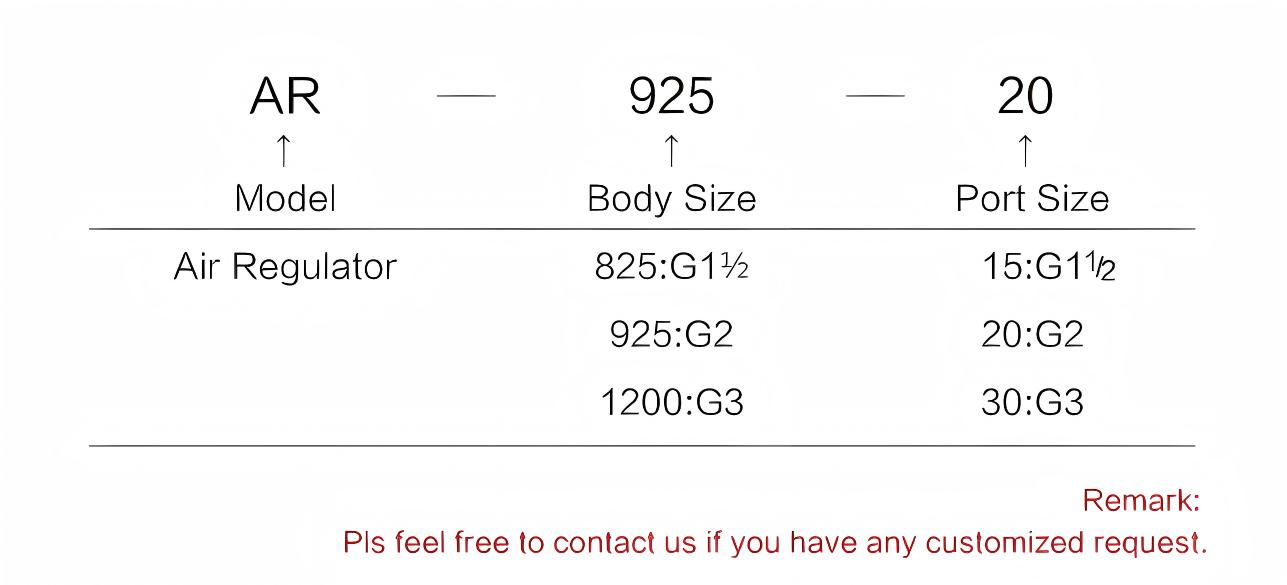

Model	AR825-15	AR925-20	AR1200-30
Port Size	G1½	G2	G3
Working medium	Air
Max. operating pressure	1.0MPa
Pressure Resistance	1.5MPa
Air consumption (for bleed hole)	5 L/min (ANR) (at maximum pressure)
Operating temperature range	-5~60℃ (No freezing)
Construction	Internal pilot relieving type (Pilot air is always bleeding)
Pressure gauge port size	1/4
Pressure regulating range	0.05~0.85Mpa
Pressure gauge	G46-10-02
Related flow	12000L/min	20000L/min	28000L/min
Weight	2500g	4500g	8000g

STRUCTURE

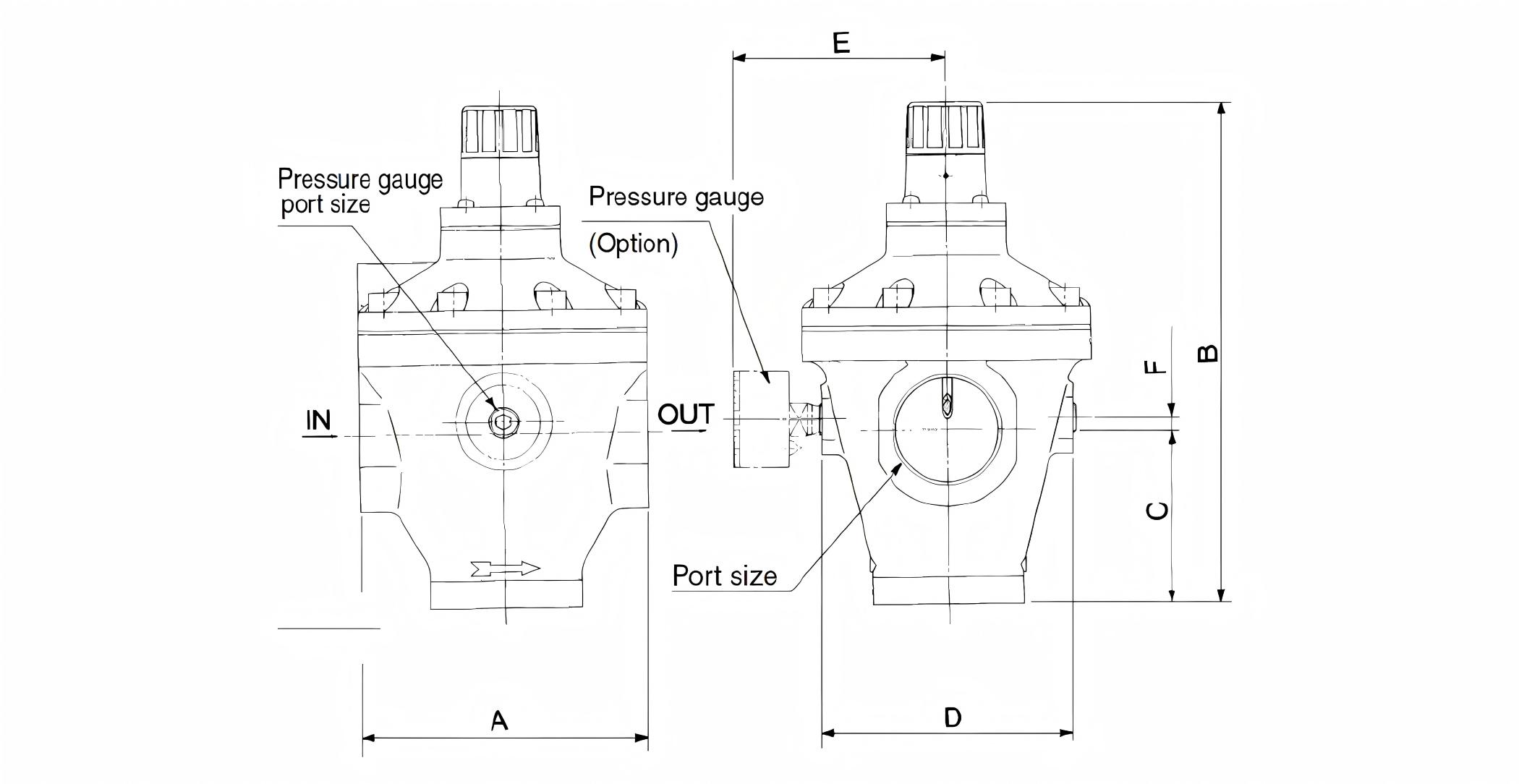

DIMENSION(MM)

Model	Port size		Pressure gauge port size	Dimension(mm)
Model	Port size		Pressure gauge port size	A B C D E F
AR825-15		1½	1/4	126	216	75	110	94.5	5
AR925-20		2	1/4	160	241	90	140	109.5	10
AR1200-30		3	1/4	210	274	125	190	140	25

Specification Download

High Flow Air Source Treatments.pdf
