Large Flow Air Source Filters Superior Filtration for Massive Airflows

Silver High Flow Air Source Components Pneumatic Supply for Manufacturing & Automation

Large Flow Air Source Filters Superior Filtration for Massive Airflows


Color:	Deep gold Shallow gold
Availability:

Quantity:



Inquiry Add to Basket

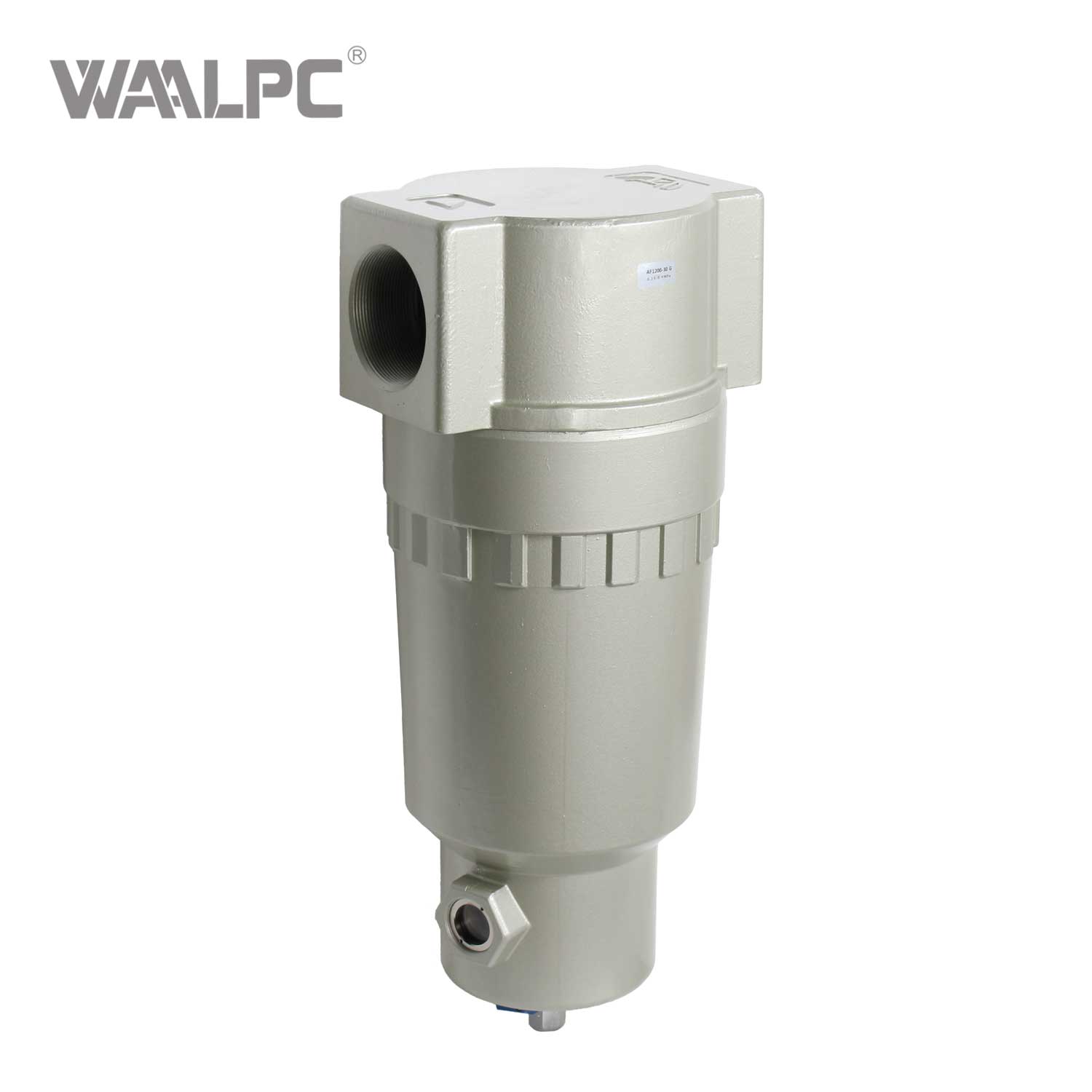

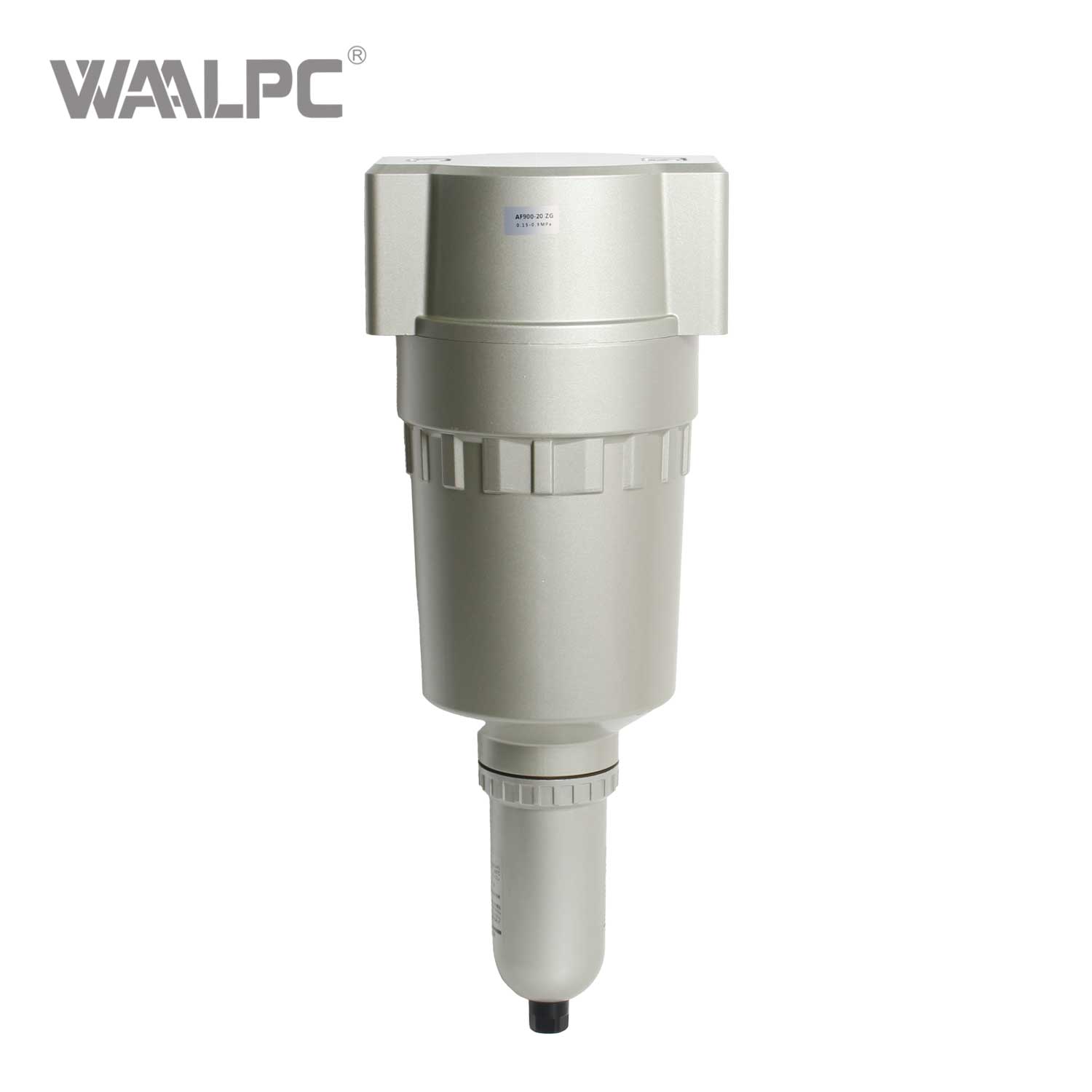

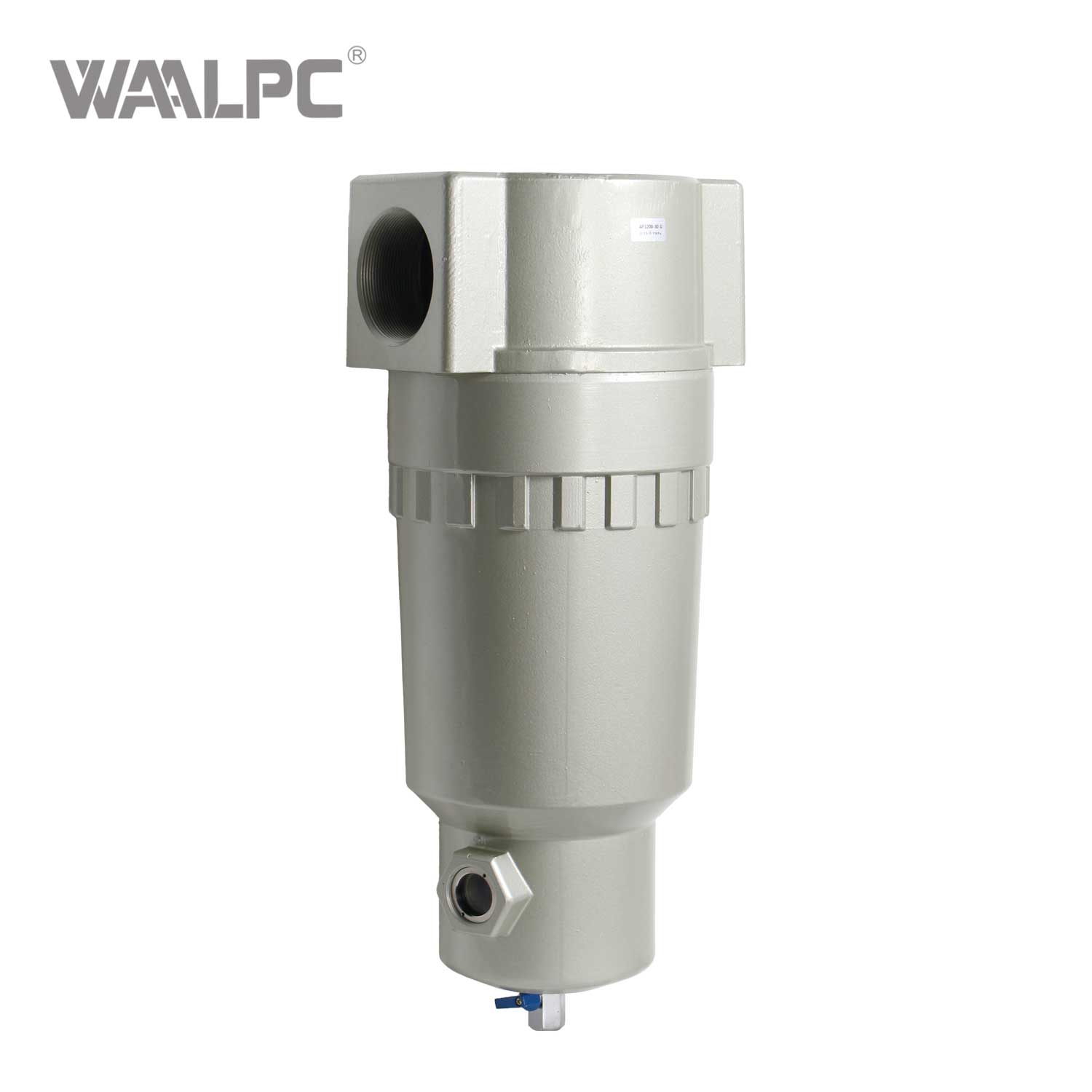

Large Flow Air Filters AF series are meticulously designed to meet the rigorous requirements of large-scale industrial applications. Ideal for sprawling factory compressed air networks, high-intensity pneumatic systems in heavy industries, and high-precision automated production lines, it offers an unparalleled balance of filtration efficiency and flow capacity. Its modular architecture ensures easy integration into existing systems, while the compact design optimizes space utilization. Whether for new installations or system upgrades, the AF1200 series provides a flexible and scalable solution for diverse industrial environments.

Model:
AF Series
Brand:
WAALPC
Code:
8421399090

Product Description

1. Supreme Filtration Precision

Standard 5μm accuracy, customizable 2 - 100μm. Captures fine contaminants, protects equipment, and boosts process quality.

2. Smart Adaptive Drainage System

Sensors monitor moisture, auto-drain valves expel condensate. Digital display aids real-time management, reducing maintenance.

3. Energy-Efficient and Sustainable Operation

Low-pressure-drop design cuts compressor energy use. Long-life, recyclable filters reduce environmental impact.

Technical Parameters

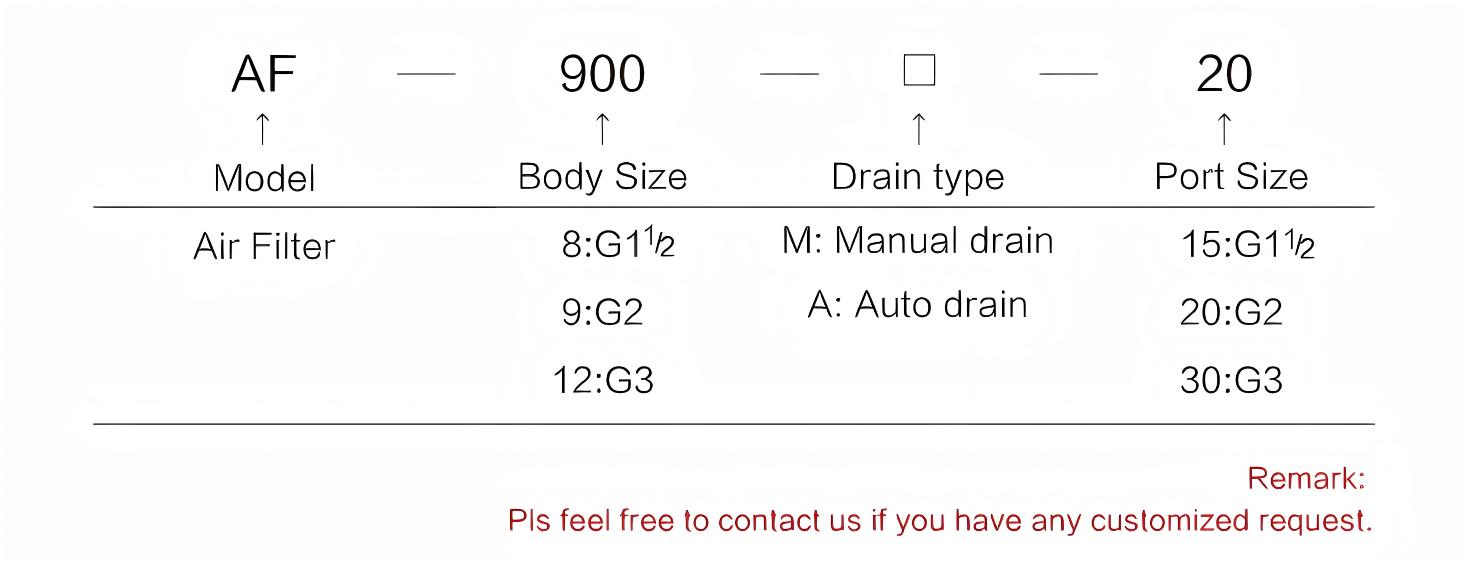

ORDERING CODE

DATA SHEET

Type name	Air Regulator
Model	AF800-15	AF900-20	AF1200-30
Port Size	G1 1/2	G2	G3
Working medium	Air
Max. operating pressure	1.0MPa
Pressure Resistance	1.5MPa
Operating temperature range	-5~60℃ (No freezing)
Grade of Filtration	Standard 5 μm(Option: 2, 10, 20, 40, 70, 100 μm)
Bowl Material	Polycarbonate
Bowl Capacity (cm³)	45 cm3
Related flow	12000L/min	20000L/min	28000L/min
Weight	3150g	7300g	19000g

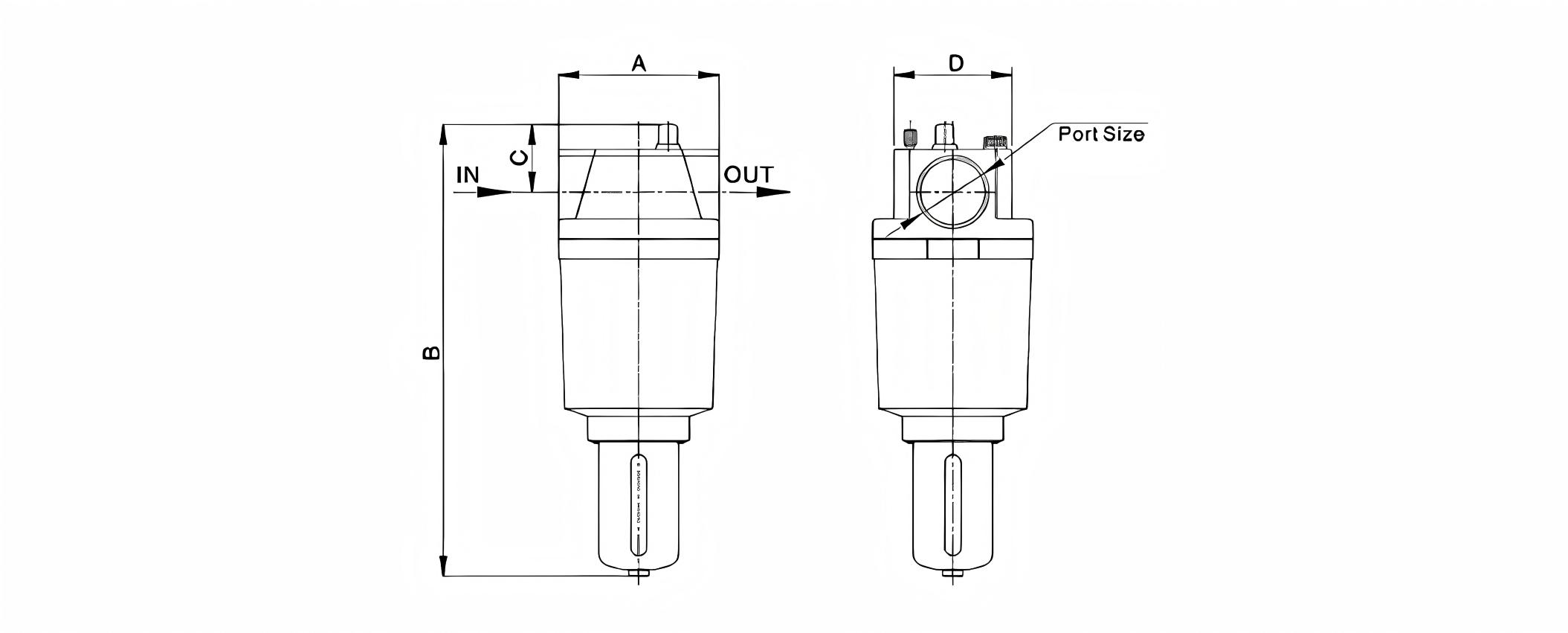

STRUCTURE

AF_structure

OVERALL DIMENSION(MM)

Model	Port Size	Dimension(mm)
Model	Port Size	A	B	C	D
AR800-15	G1 1/2	120	331	31.5	88
AR900-20	G2	200.5	517.5	47	91
AR1200-30	G3	257	600	68	225

Specification Download
