Air Source Connector Hot Sale Competitive Price POC PH PY MINI M5 PU Pneumatic Accessories

POC M5 PH PY MINI Hot Sale Great Quality Competitive Price Air Source Treatment Accessories Poc Model PU Pneumatic Fitting

Air Source Connector Hot Sale Competitive Price POC PH PY MINI M5 PU Pneumatic Accessories

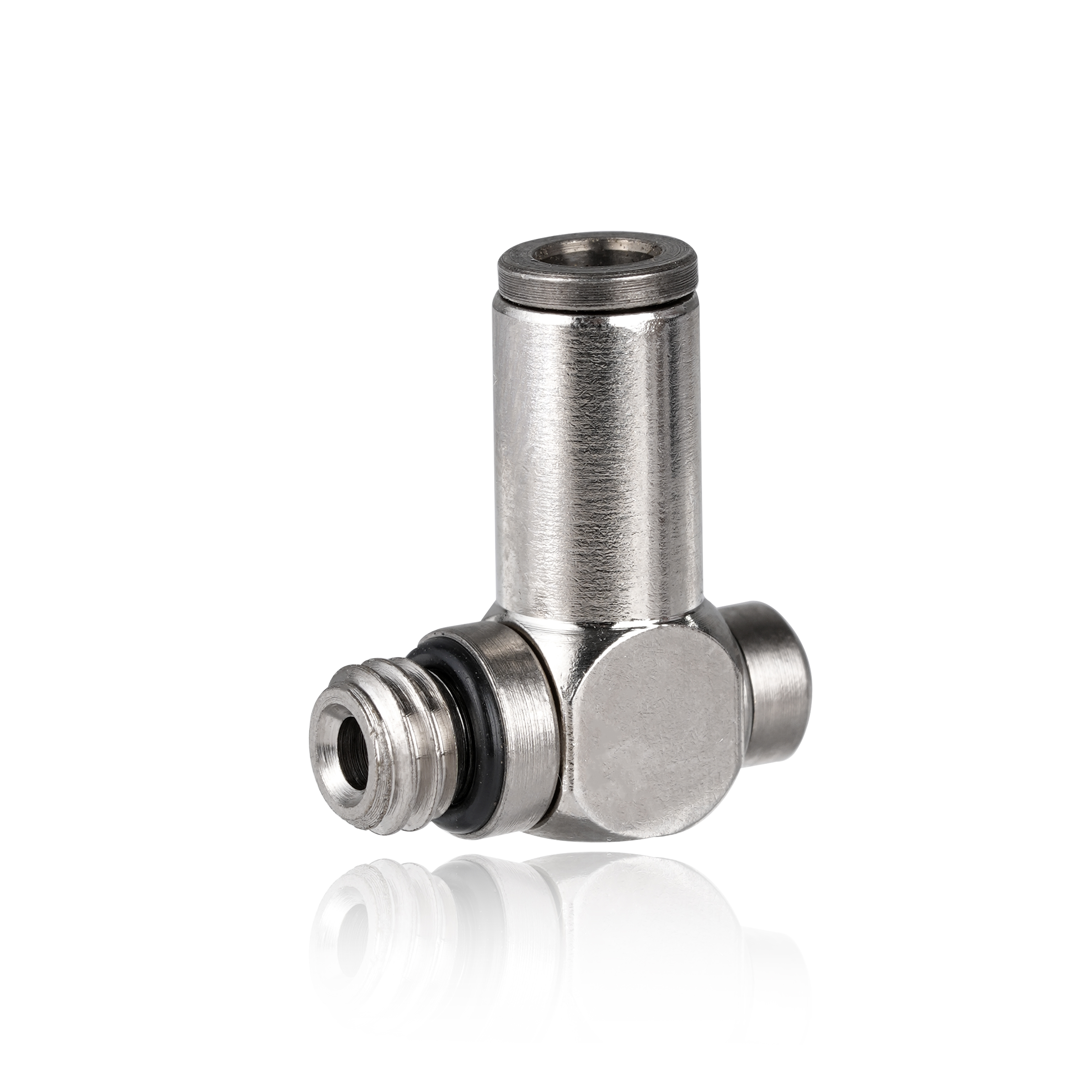

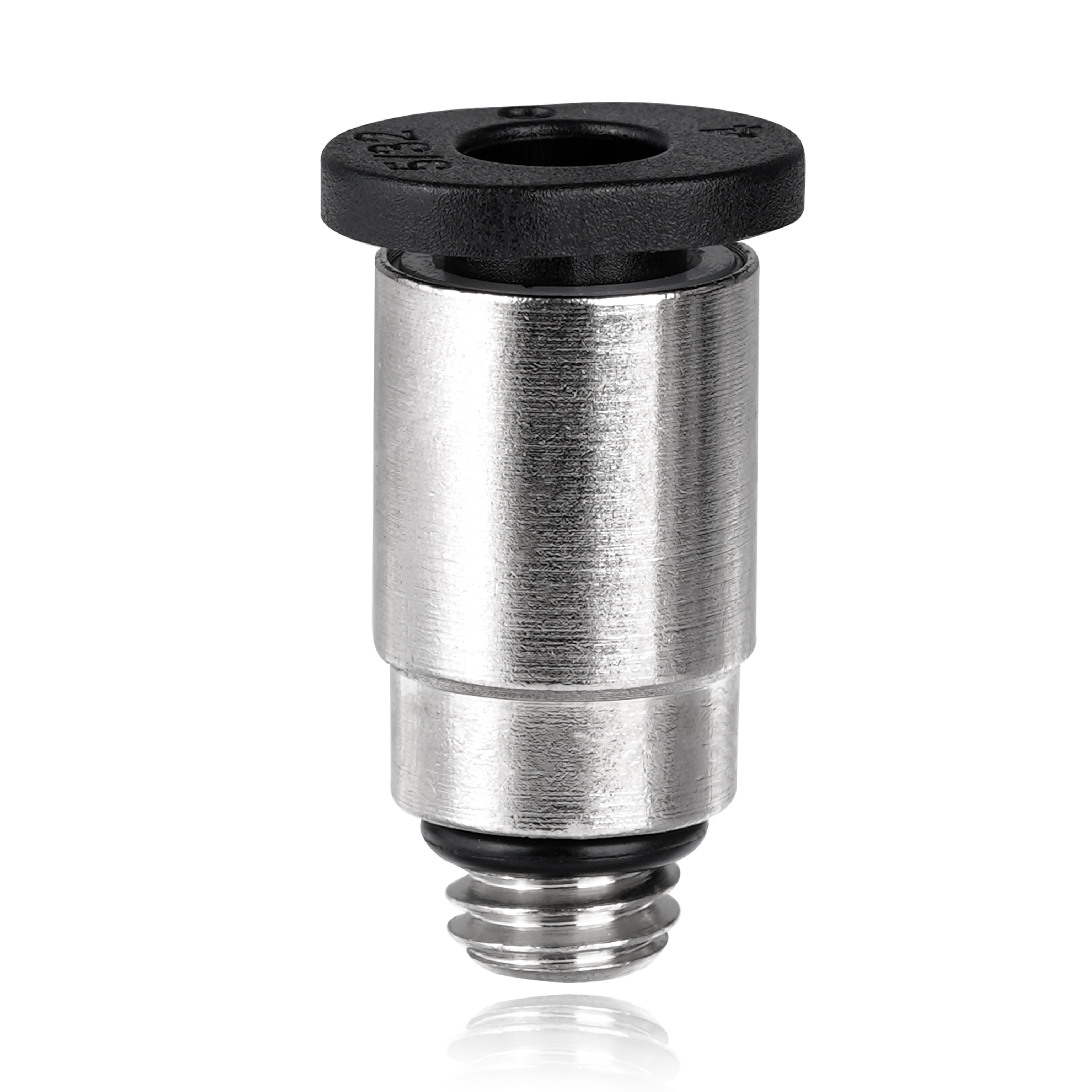

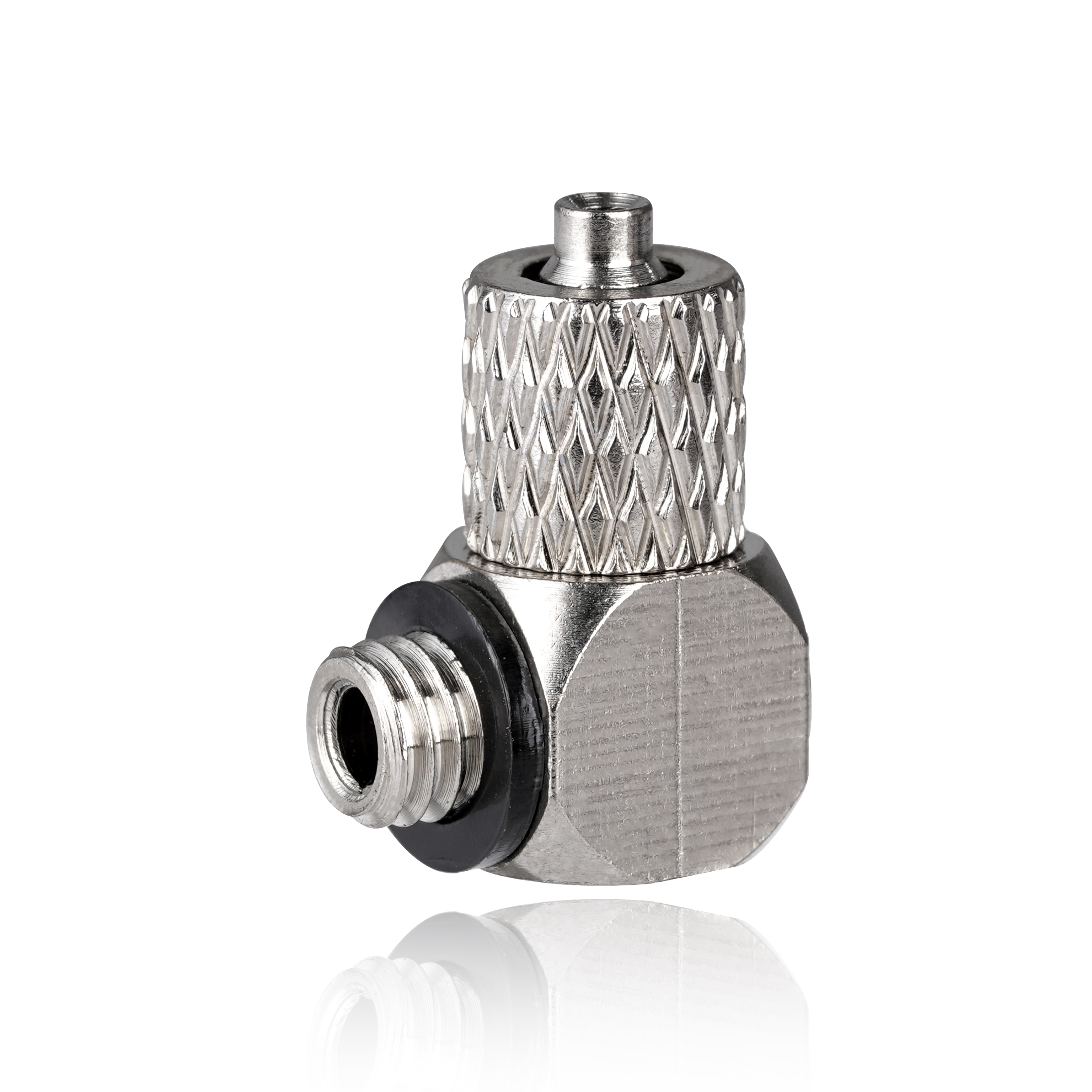

Size:	POC(M54) M53.17 Straight M53.17 Curve M54 Curve
Availability:

Quantity:



Inquiry Add to Basket

The main function of pneumatic fittings is to connect pneumatic components to achieve quick connection and disconnection, thereby improving work efficiency;
Pneumatic fittings are used in various industrial automation equipment, mechanical equipment and process equipment widely.

Used to turn compressed air on and off for pneumatic devices.

Model:
POC M5*3.17 M5*4
Brand:
WAALPC
Code:
7307190000

Product Description

1. The compact one-touch fittings used to the pneumatic tube system.

2. The volume is 40% smaller than the standard pneumatic fittings.

3. The small and oval sleeve is easy to push in and pull out the tube.

Technical Parameters

SPECIFICATIONS

Fluid	Air (No other gases or liquids)
Operating Pressure Range	0~150Psi	0~9.9 Kgf/cm²(0~990KPa)
Negative pressure	-29.5 in Hg	-750mmHg
Operating Temperature Range	32~140F	0~60℃
Applicable Tube	PU and Nylon

TUBE OUTER DIAMETER:MM

Metric Size
Code	4	5	6	7	8	9	10	11	12	13	14	15	16
Tube Outer Diameter: mm	Φ4	Φ5	Φ6	Φ7	Φ8	Φ9	Φ10	Φ11	Φ12	Φ13	Φ14	Φ15	Φ16

Inch Size
Code	5/32	3/16	1/4	5/16	3/8	1/2
Tube Ouler Diameter: mm	Φ5/32	Φ3/16	Φ1/4	Φ5/16	Φ3/8	Φ1/2

Metric Size
Code	M5	M6	M8	M10	M12	M12A	M14	M16	M20
Thread Size	M5*0.8	M6*01	M8*1	M10*01	M12*1.25	M12*1.5	M14*1.5	H16*1.5	M20*1.5

Inch Size	55° Taper Tube Size					55° Straight Tube Size
Code	01	02	03	04	06	G01	G02	G03	G04	G06
Thread Size	R1/8	R1/4	R3/8	R1/2	R3/4	G1/8	G1/4	G3/8	G1/2	G3/4

American Size	60° Taper Tube Size
Code	U10	N01	N02	N03	N04	N06
Thread Size	10-320NF	NPT1/8	NPT1/4	NPT3/8	NPT1/2	NPT3/4

PLASTIC QUICK FITTINGS

mini fittings

Specification Download

Mini Fitting.pdf

Superiority

Why choose us? What can we do for you?

♦ Founded in 2011 and professional experienced in the field of producing pneumatic products for over 13+ years.
♦ We have strong production capacity, over 100000 pcs/month.
♦We have rich experience for offering OEM/ODM service
♦ We have strict quality control process with quick response of after sales service.
♦ Management system certification : ISO9001,CE, ROHS
♦ We have 10+ technical experts for researching and developing.
♦ Sales network expands from domestic sales to all over the world.
