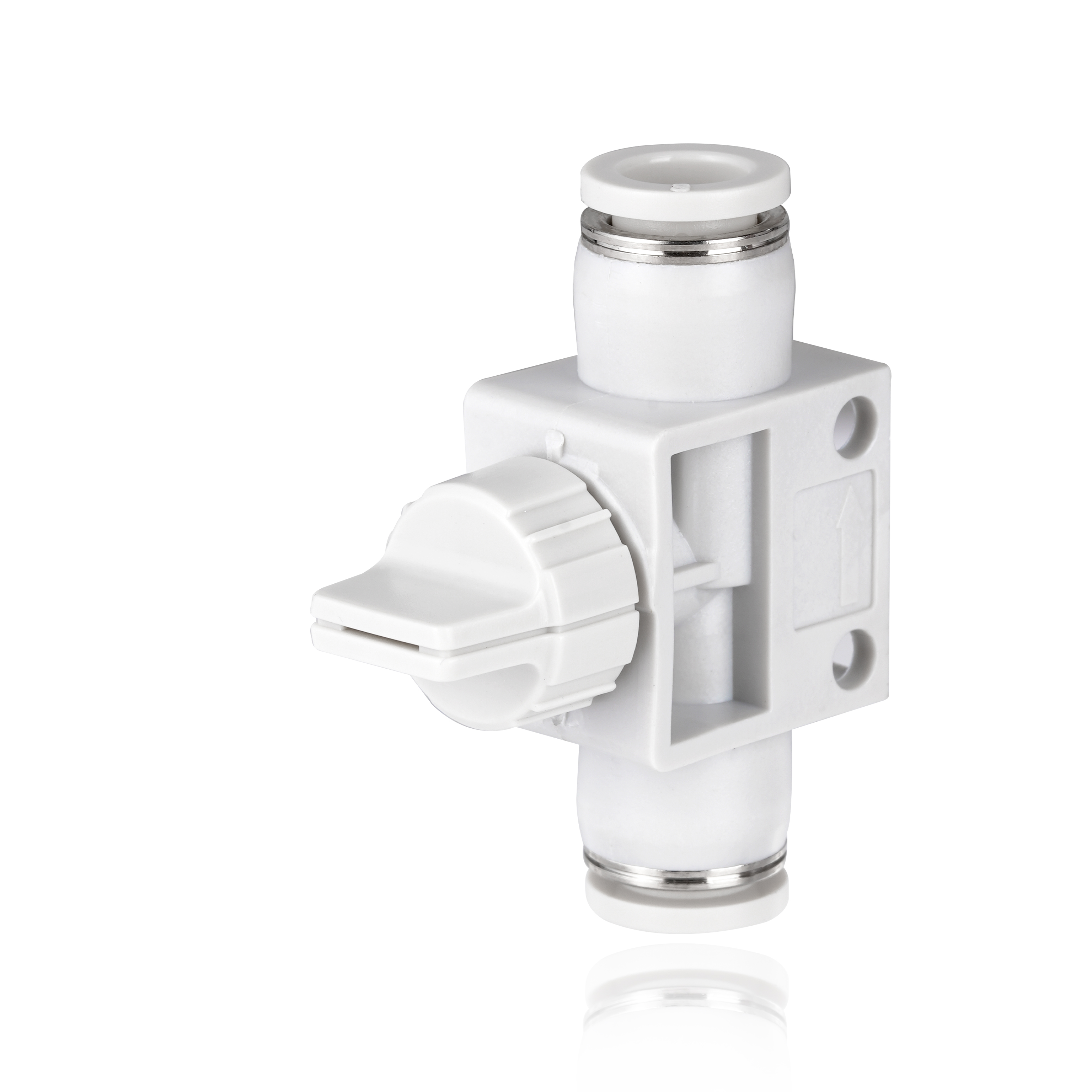

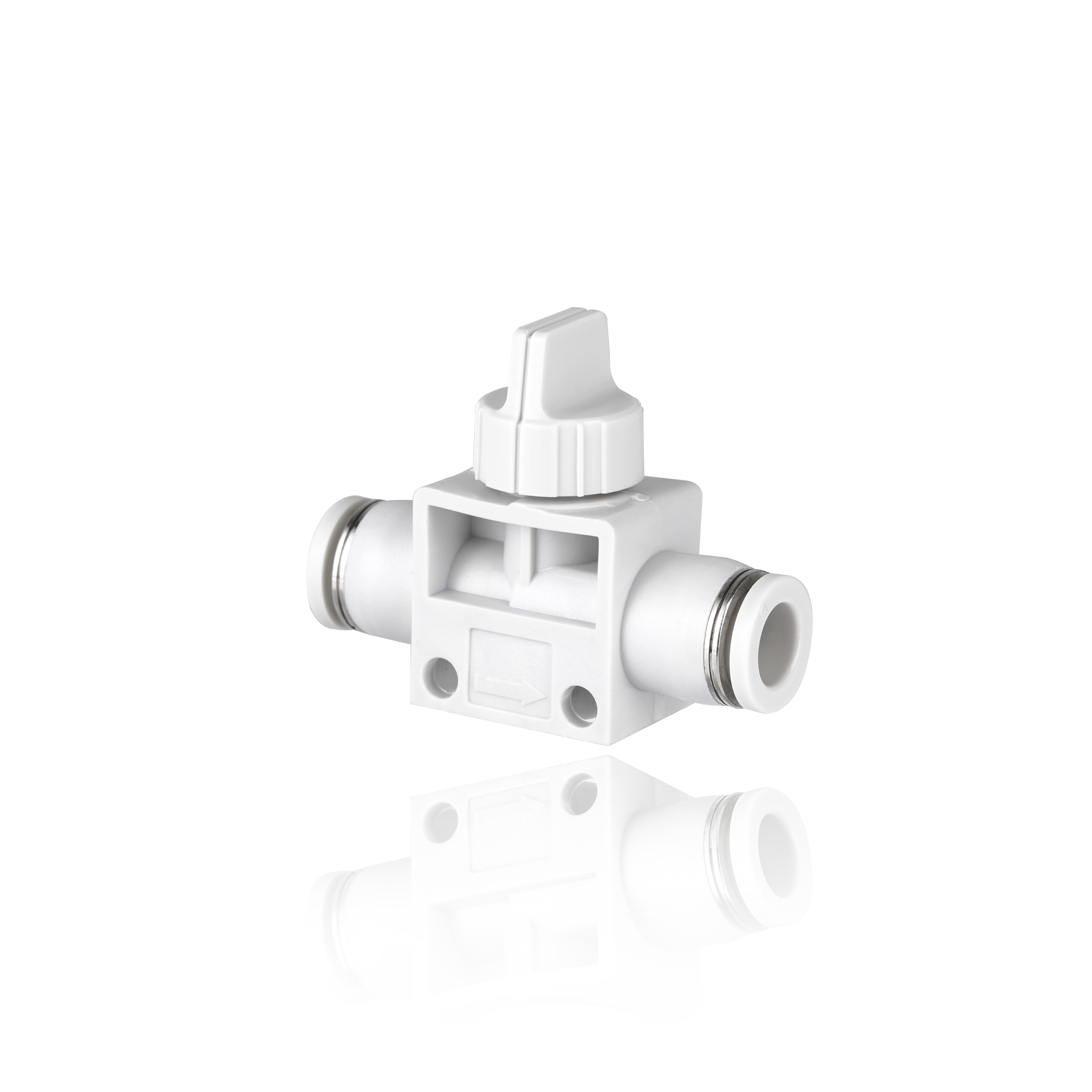

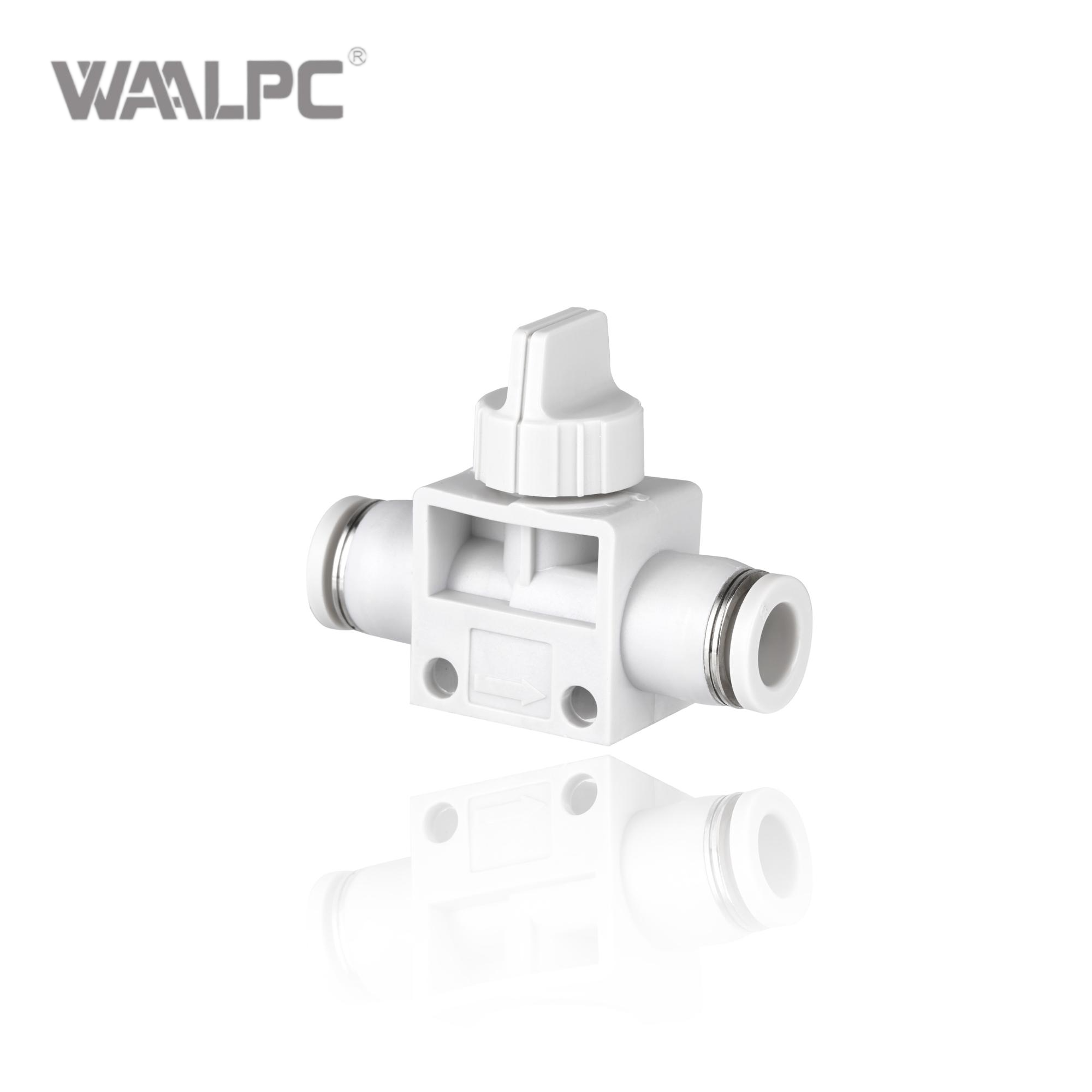

HVFF HVFS HVSS HVSF 04 06 08 10 12 Plastic Pneumatic One Touch Male Threaded Quick Hand Valve Fitting Connector

Manual Valve Connector Aluminum Copper Plastic Pneumatic One-touch External Thread Quick


Size:	HVFF HVFS HVSS HVSF
Availability:

Quantity:



Inquiry Add to Basket

The main function of pneumatic fittings is to connect pneumatic components to achieve quick connection and disconnection, thereby improving work efficiency;
Pneumatic fittings are used in various industrial automation equipment, mechanical equipment and process equipment widely .

Used to turn compressed air on and off for pneumatic devices.

Model:

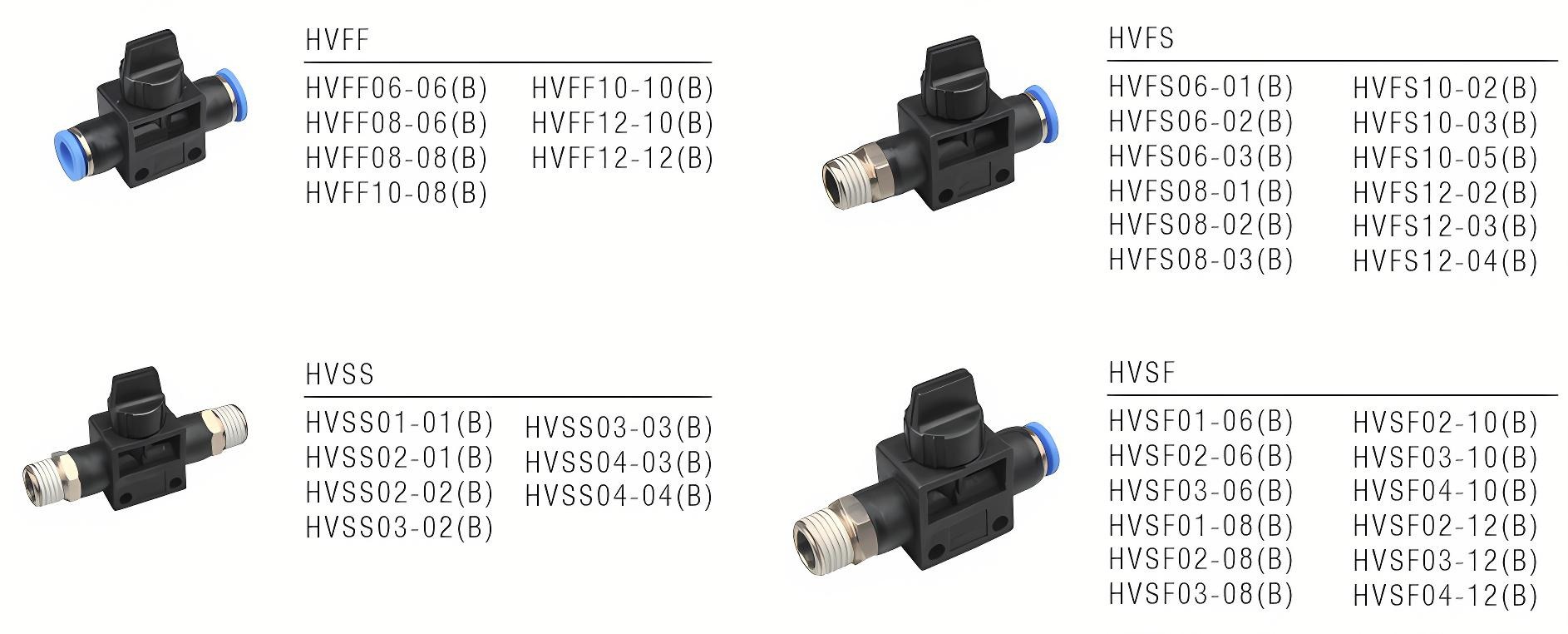

HVFF HVFS HVSS HVSF
Brand:
WAALPC
Code:
3917400000

Product Description

1. When closing the three-way valve,it can cut off the flow of compressed air and also reduce the residual pressure of the pneumatic device,to facilitate maintenance and regular inspections to ensure safety.

2. The two-way valve has no air exhaust function.

3. There are four types of hand valves for choosing.

Technical Parameters

SPECIFICATIONS

Fluid	Air(No other gases or liquids)
Operating Pressure Range	0~150Psi	0~9.9 Kgf/cm²(0~990KPa)
Negative pressure	-29.5 in Hg	-750mmHg
Operating Temperature Range	32~140F	0~60℃
Applicable Tube	PU and Nylon

TUBE OUTER DIAMETER:MM

Metric Size
Code	4	5	6	7	8	9	10	11	12	13	14	15	16
Tube Outer Diameter: mm	Φ4	Φ5	Φ6	Φ7	Φ8	Φ9	Φ10	Φ11	Φ12	Φ13	Φ14	Φ15	Φ16

Inch Size
Code	5/32	3/16	1/4	5/16	3/8	1/2
Tube Ouler Diameter: mm	Φ5/32	Φ3/16	Φ1/4	Φ5/16	Φ3/8	Φ1/2

Metric Size
Code	M5	M6	M8	M10	M12	M12A	M14	M16	M20
Thread Size	M5*0.8	M6*01	M8*1	M10*01	M12*1.25	M12*1.5	M14*1.5	H16*1.5	M20*1.5

Inch Size	55° Taper Tube Size					55° Straight Tube Size
Code	01	02	03	04	06	G01	G02	G03	G04	G06
Thread Size	R1/8	R1/4	R3/8	R1/2	R3/4	G1/8	G1/4	G3/8	G1/2	G3/4

American Size	60° Taper Tube Size
Code	U10	N01	N02	N03	N04	N06
Thread Size	10-320NF	NPT1/8	NPT1/4	NPT3/8	NPT1/2	NPT3/4

PLASTIC QUICK FITTINGS

Manual valve fittings

Specification Download

Manual Valve Fittings.pdf

Packing∇ivery
