SPECIFICATIONS
Fluid | Air, Vacuum |
Operating Pressure Hange | 0~1.0Mpa |
Negathve Prssure | -100Kpa(10Torr) |
Pressure Resistanoe | 1.5Mpa |
Operating Temperature Range | 5~60℃ |
Applicable Tube | PU and Nylon |
TUBE OUTER DIAMETER:MM
| Metric Size | |||||||||||||
Code | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
Tube Outer Diameter: mm | Φ4 | Φ5 | Φ6 | Φ7 | Φ8 | Φ9 | Φ10 | Φ11 | Φ12 | Φ13 | Φ14 | Φ15 | Φ16 |
| Inch Size | ||||||
Code | 5/32 | 3/16 | 1/4 | 5/16 | 3/8 | 1/2 |
Tube Ouler Diameter: mm | Φ5/32 | Φ3/16 | Φ1/4 | Φ5/16 | Φ3/8 | Φ1/2 |
THREAD TYPE AND SIZE
| Metric Size | |||||||||
Code | M5 | M6 | M8 | M10 | M12 | M12A | M14 | M16 | M20 |
Thread Size | M5*0.8 | M6*01 | M8*1 | M10*01 | M12*1.25 | M12*1.5 | M14*1.5 | H16*1.5 | M20*1.5 |
Inch Size | 55°Taper Tube Size | 55°Straight Tube Size | ||||||||
Code | 01 | 02 | 03 | 04 | 06 | G01 | G02 | G03 | G04 | G06 |
Thread Size | R1/8 | R1/4 | R3/8 | R1/2 | R3/4 | G1/8 | G1/4 | G3/8 | G1/2 | G3/4 |
American Size | 60°Taper Tube Size | |||||
Code | U10 | N01 | N02 | N03 | N04 | N06 |
Thread Size | 10-320NF | NPT1/8 | NPT1/4 | NPT3/8 | NPT1/2 | NPT3/4 |

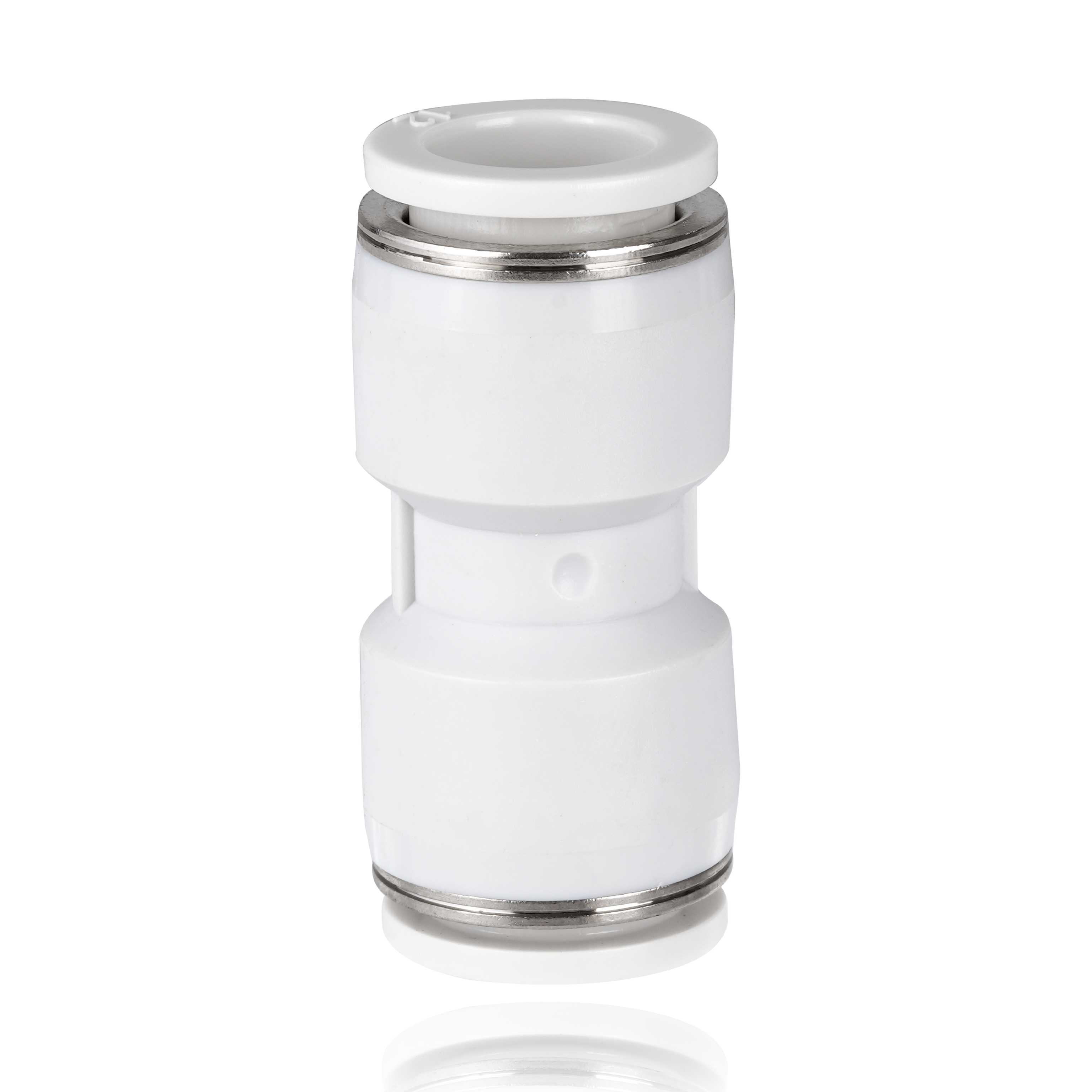

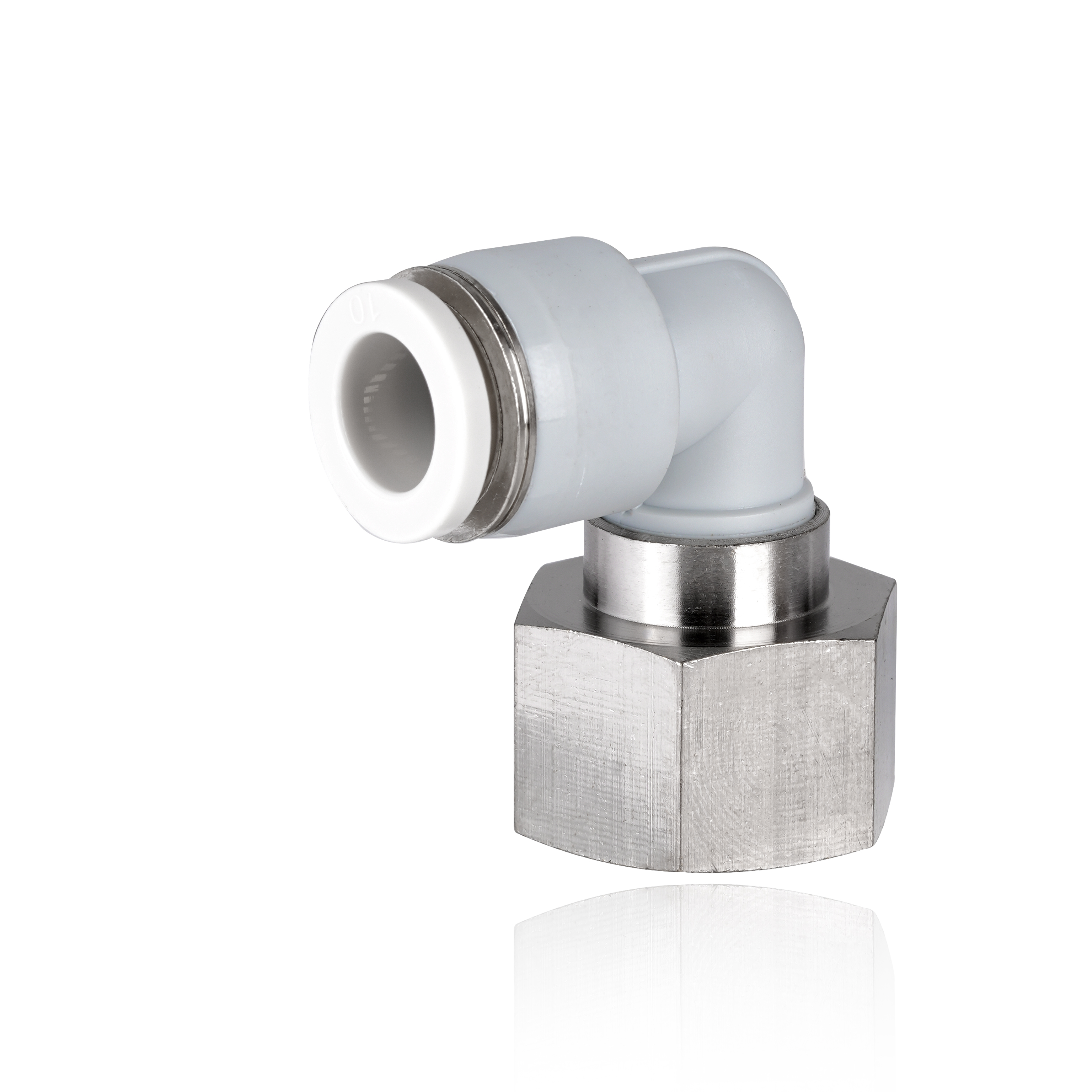

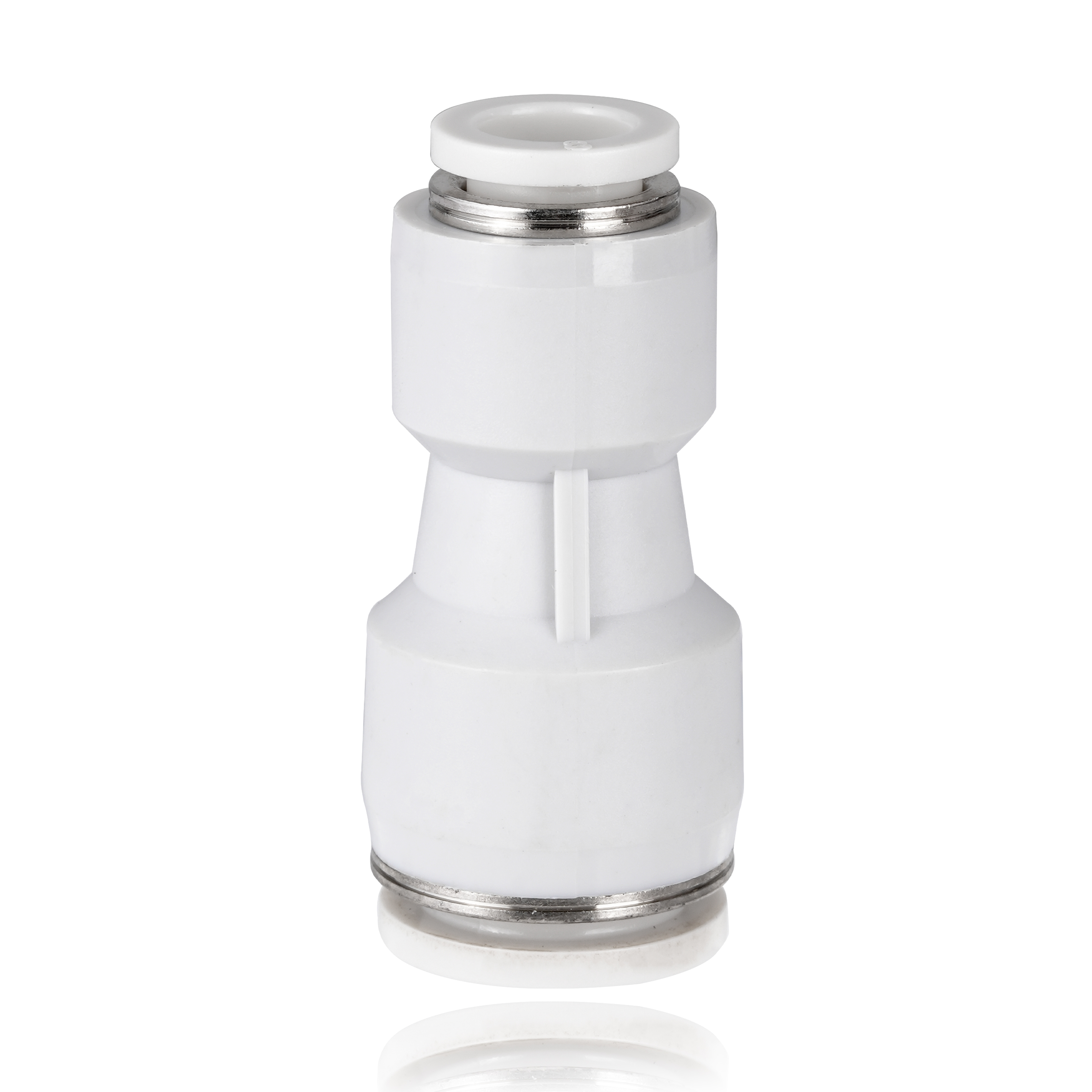

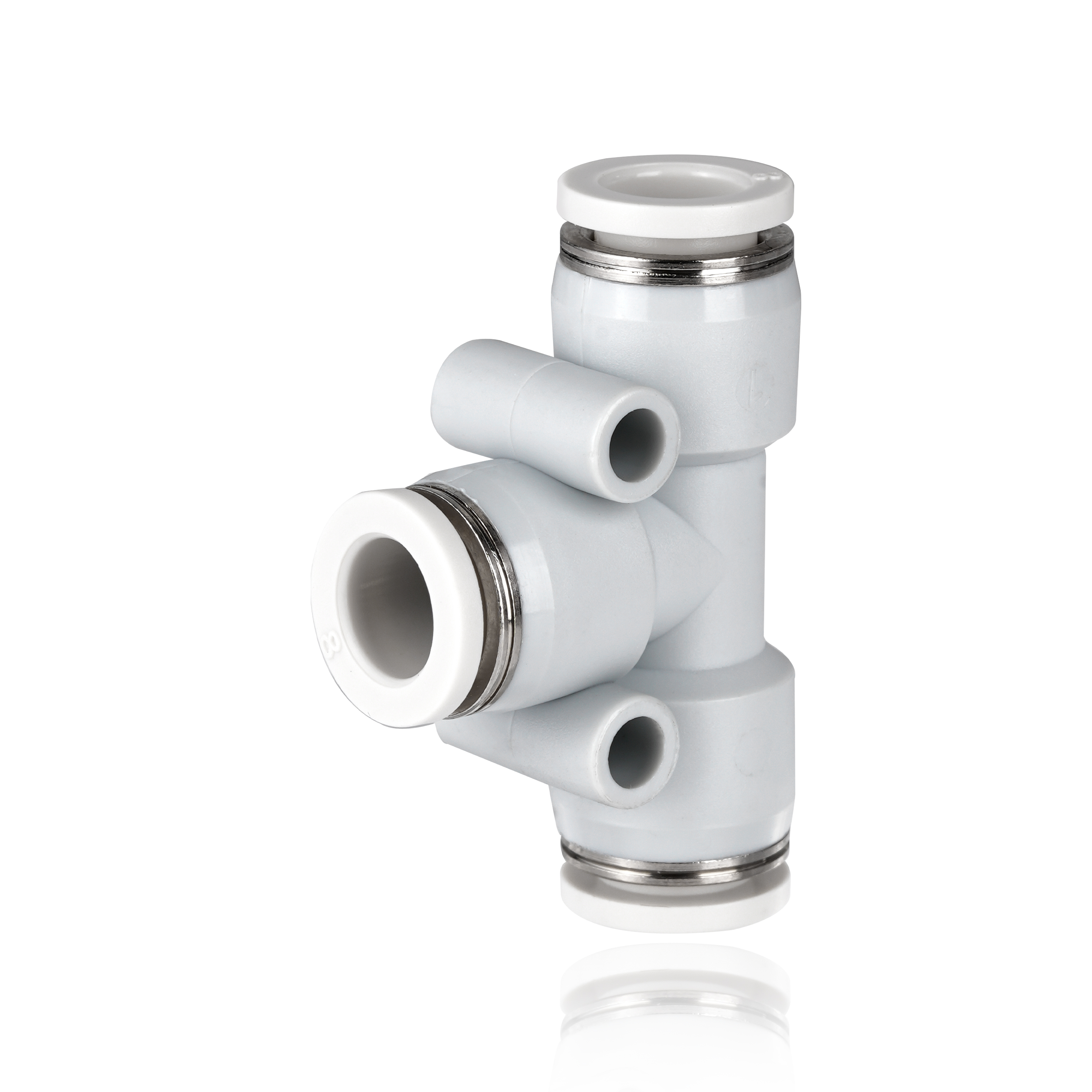

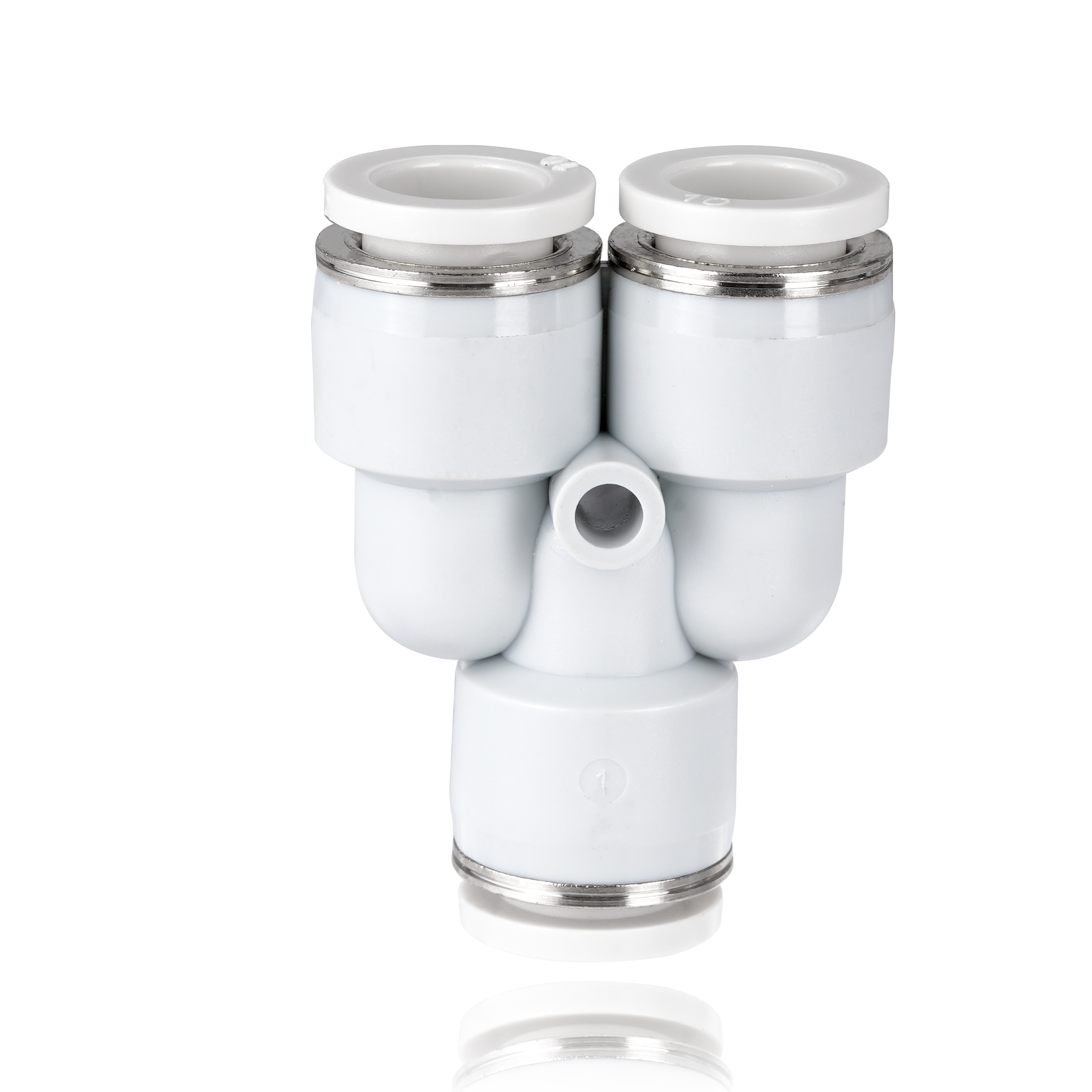

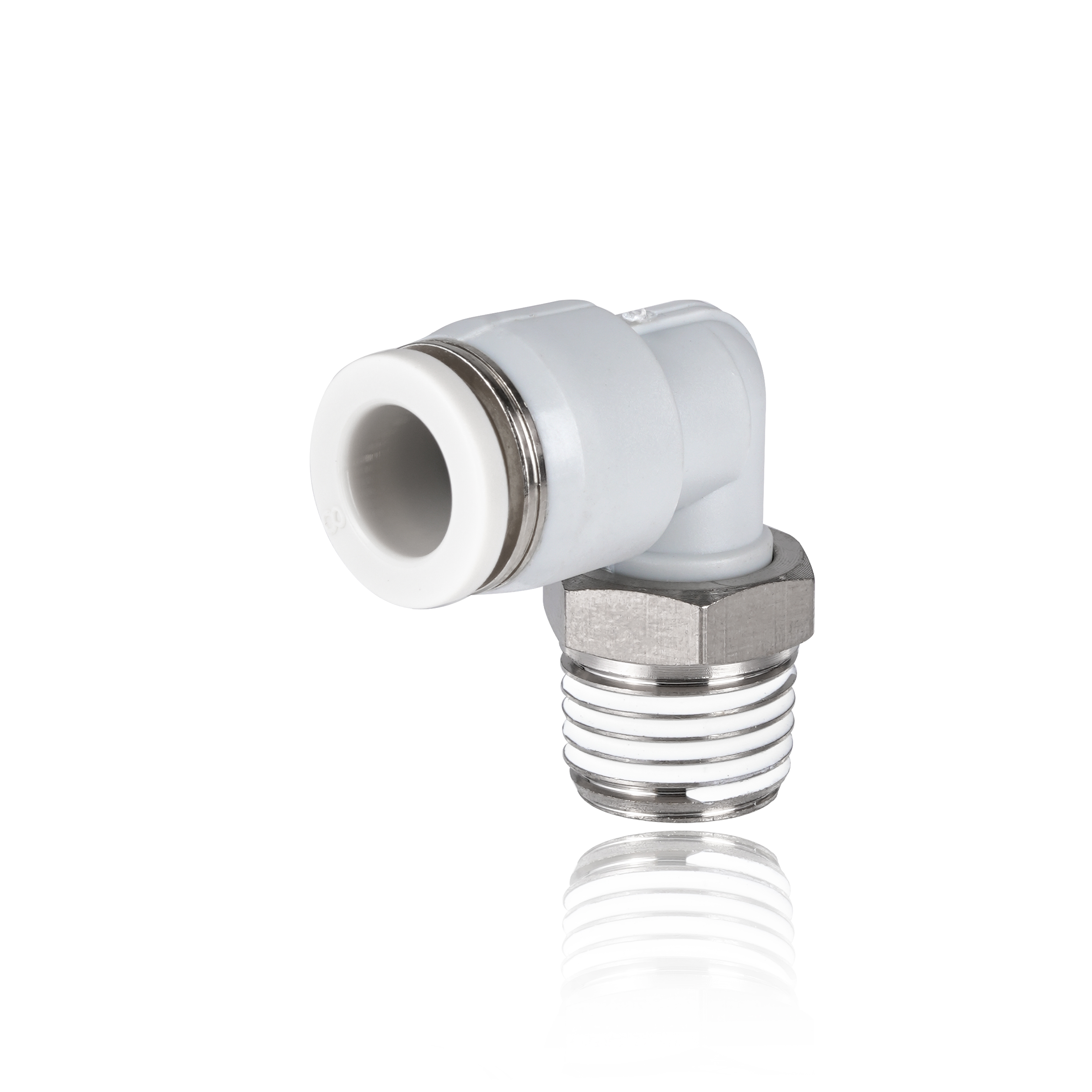

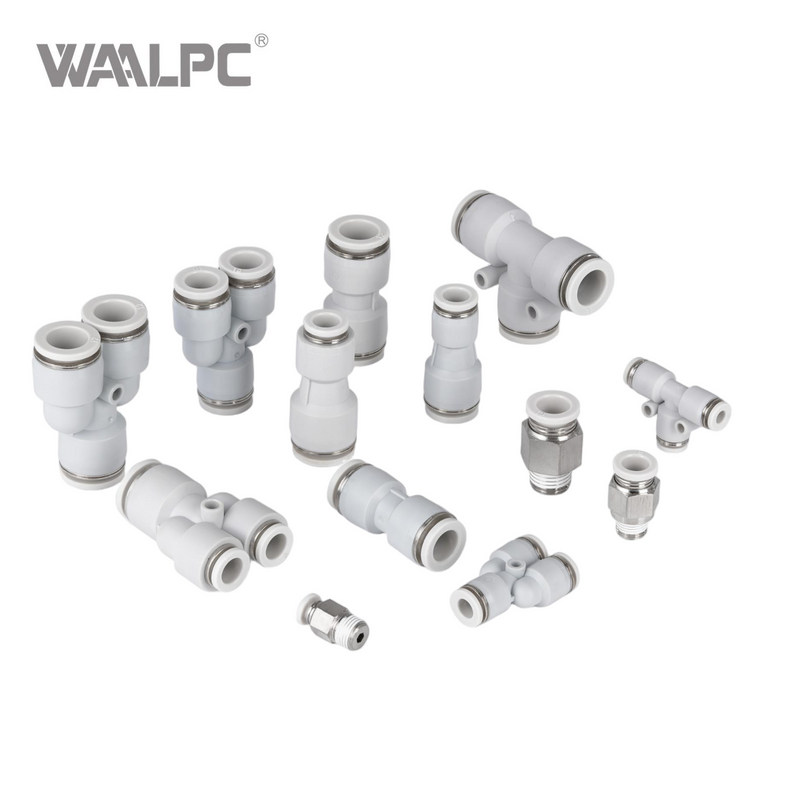

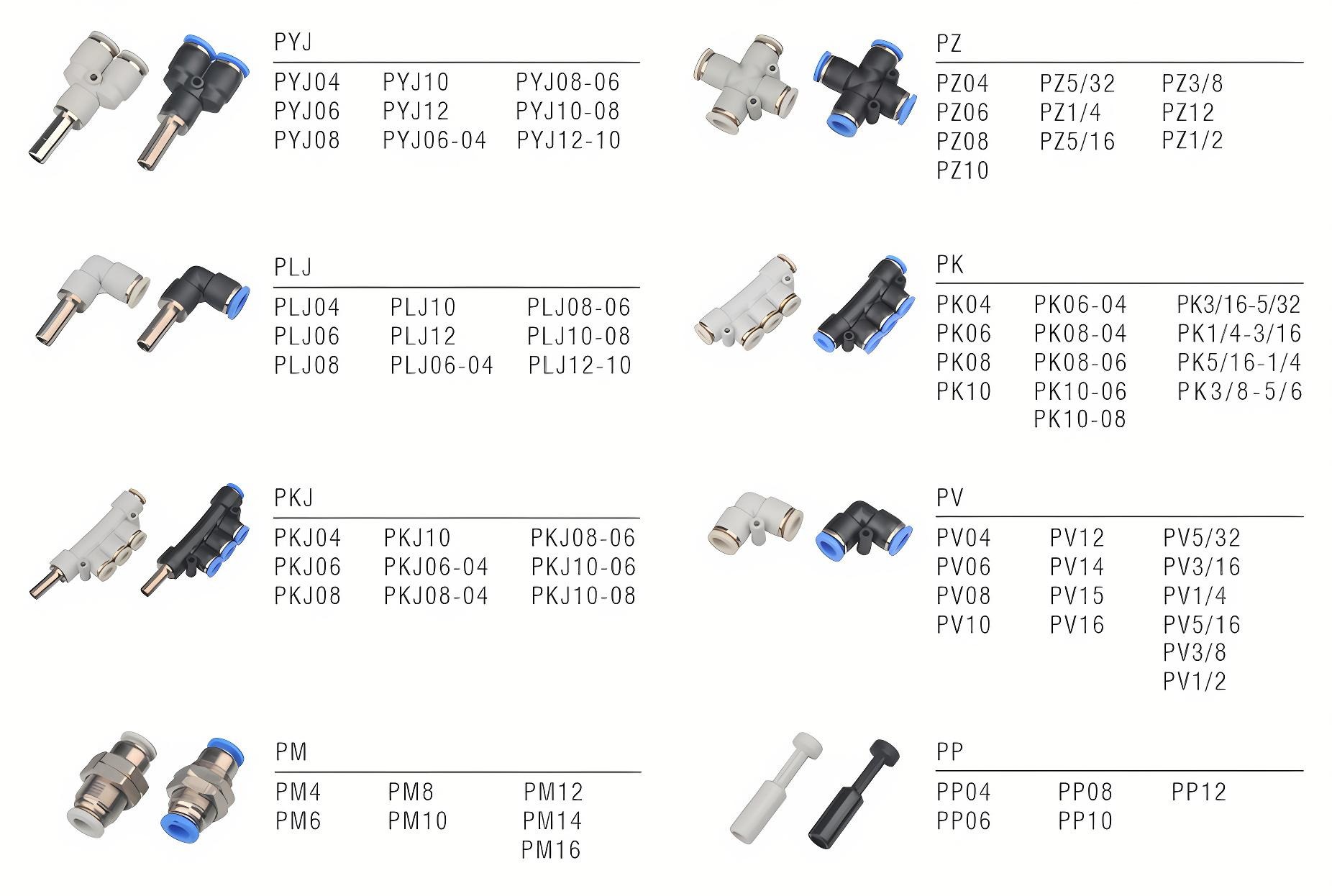

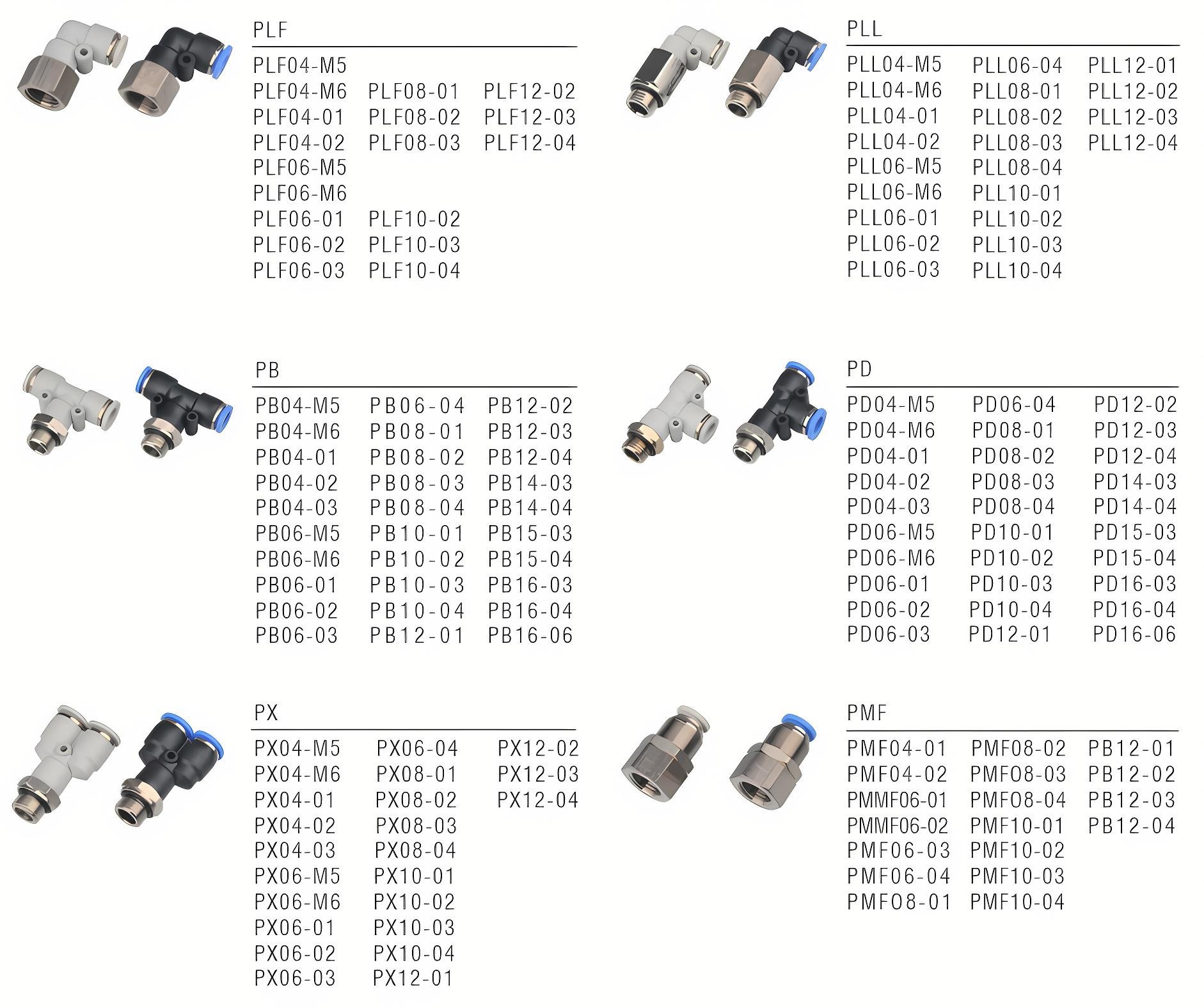

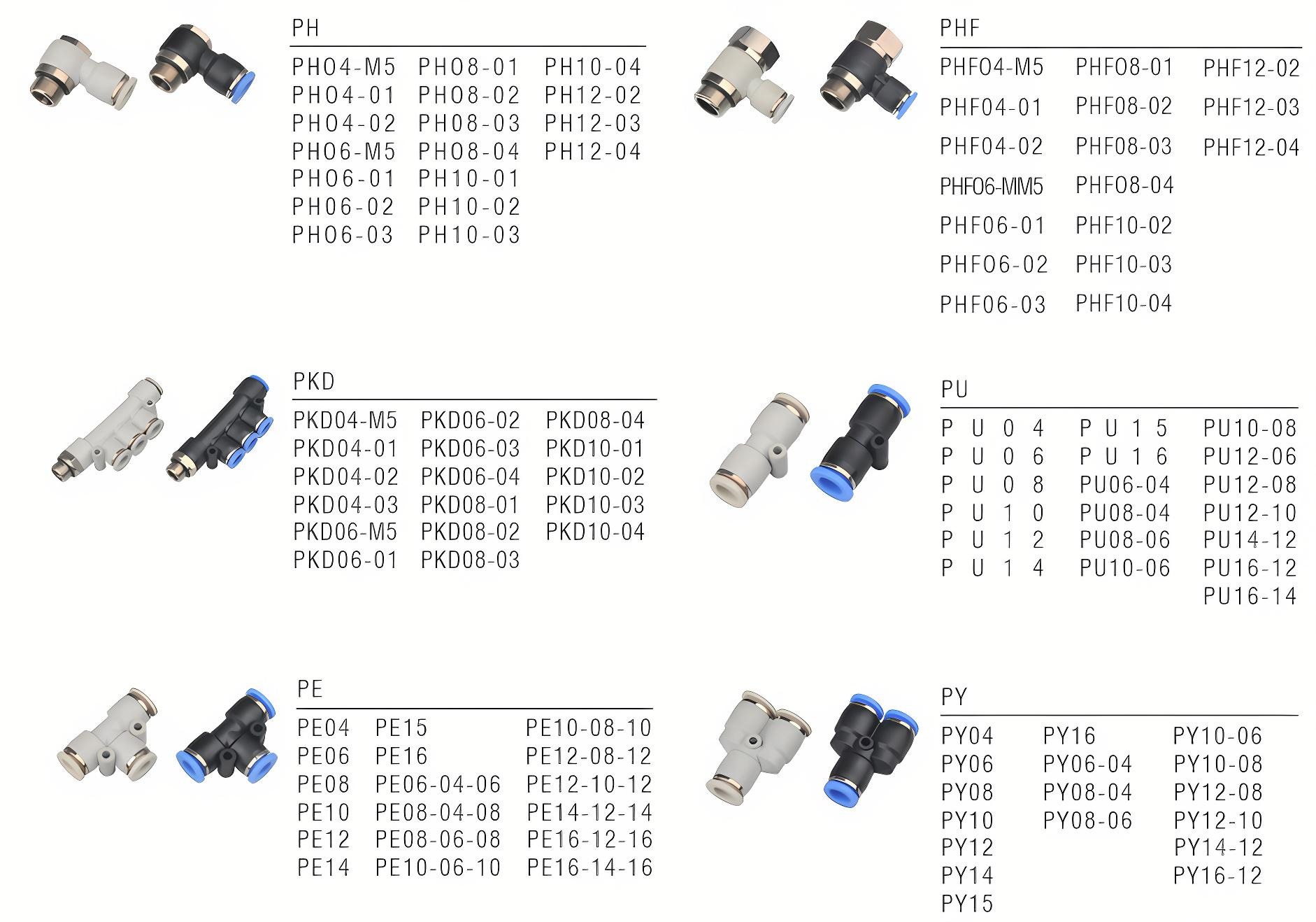

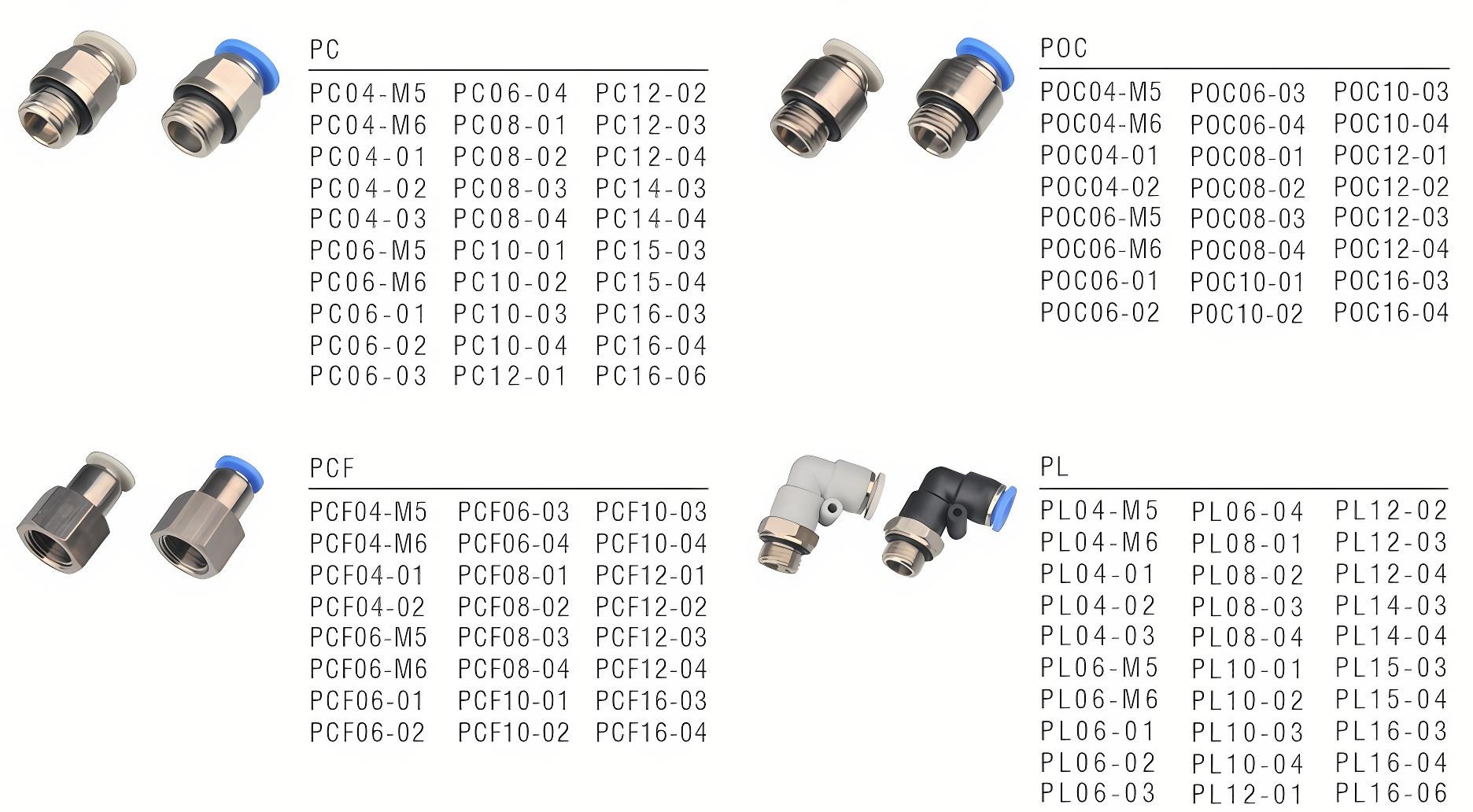

PLASTIC ONE-TOUCH FITTINGS
