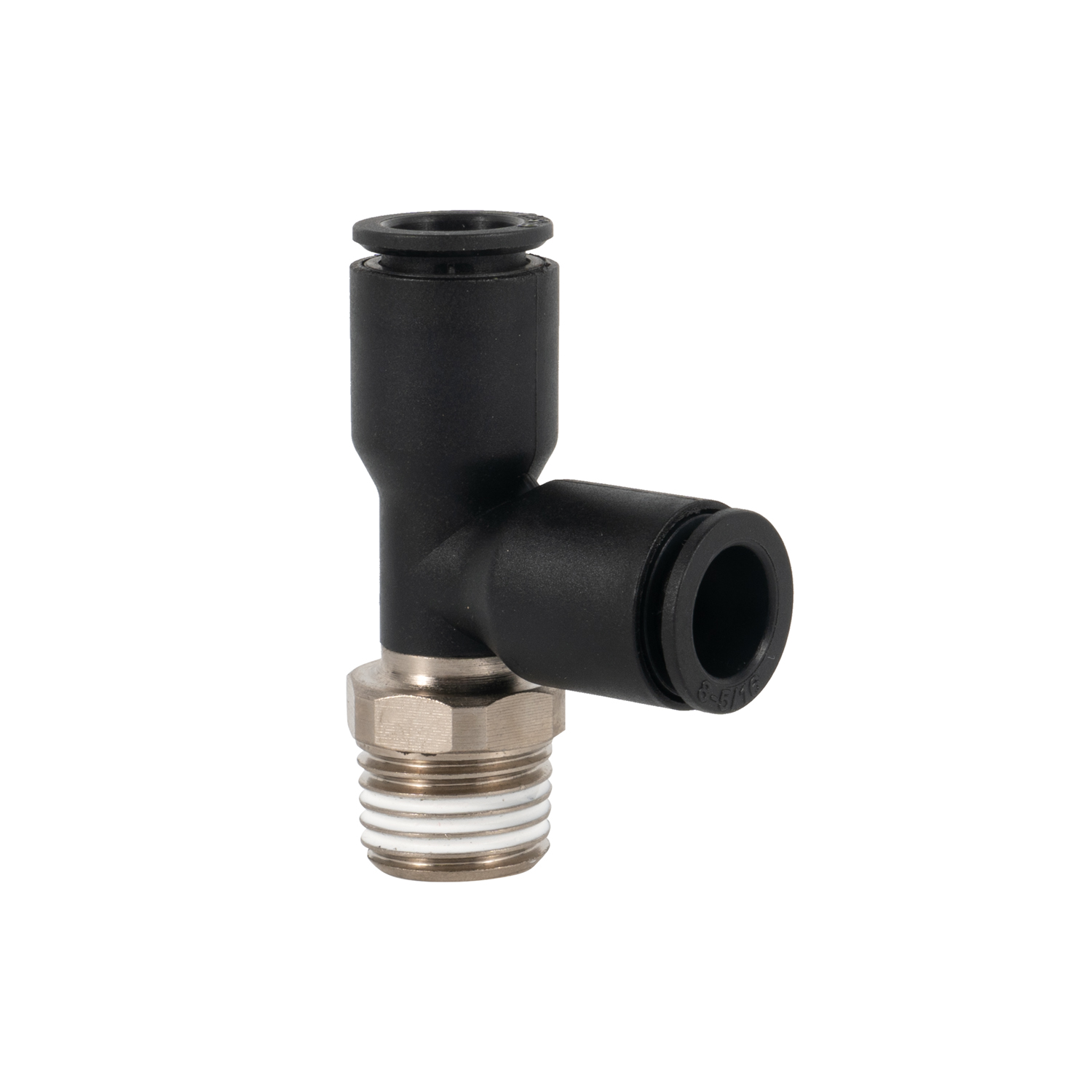

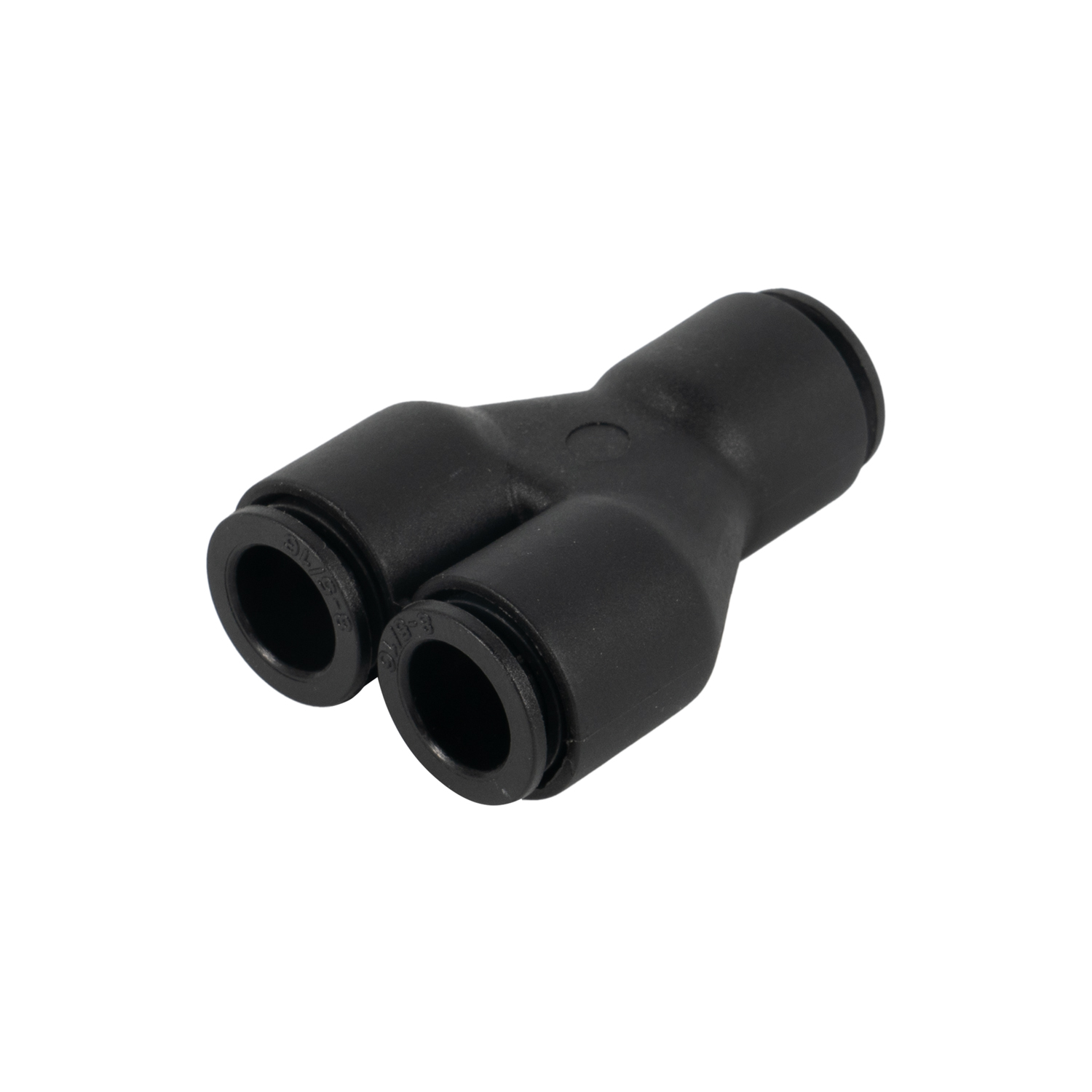

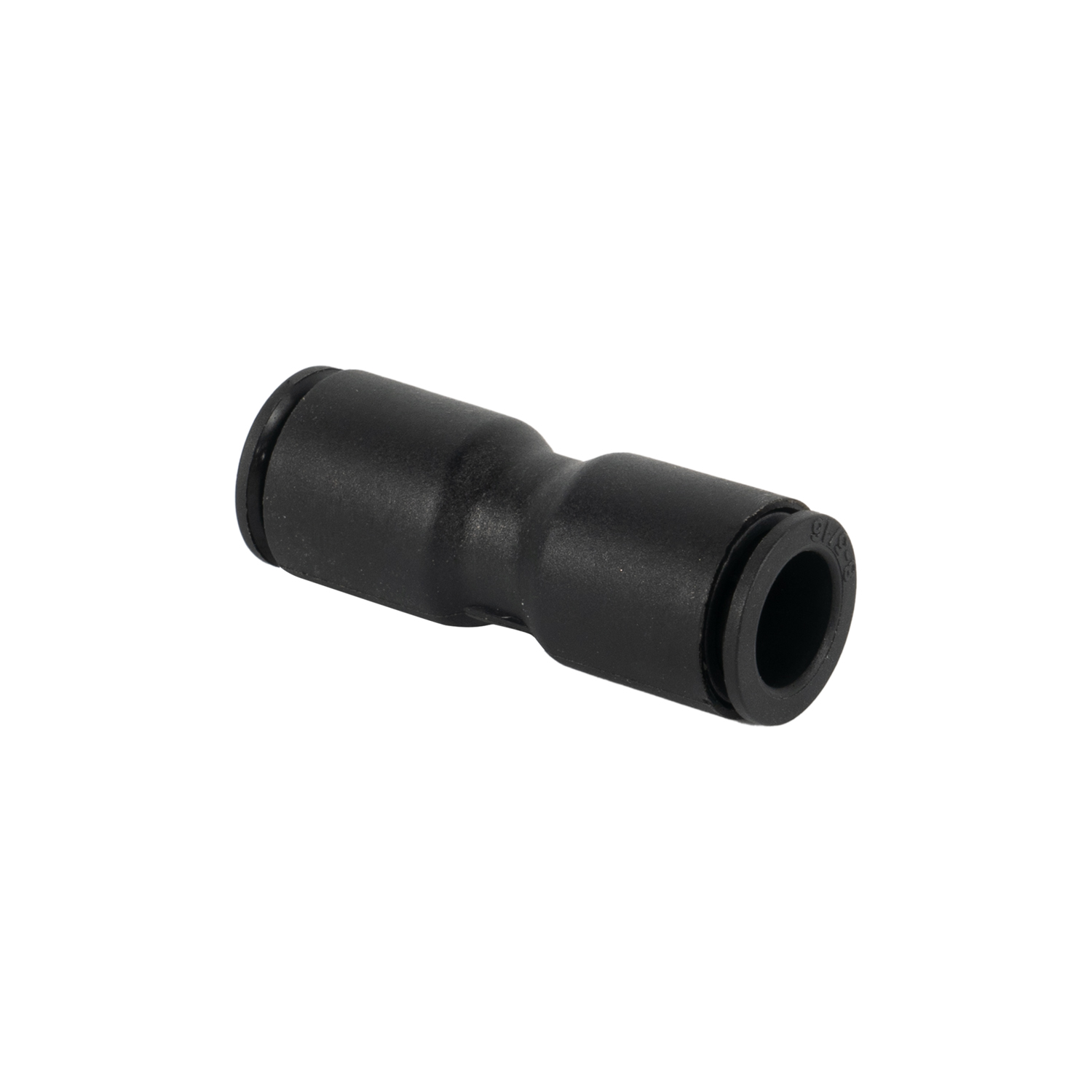

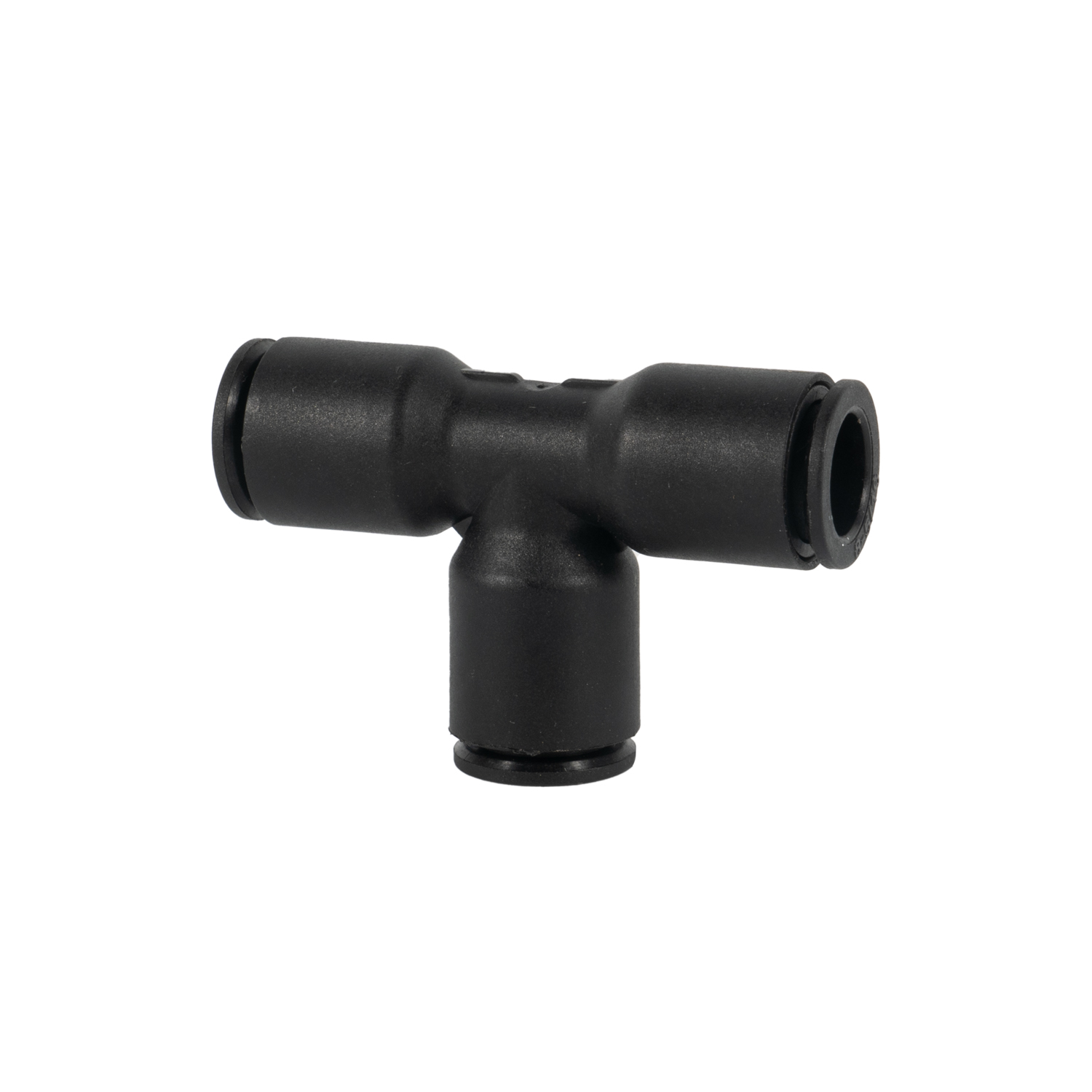

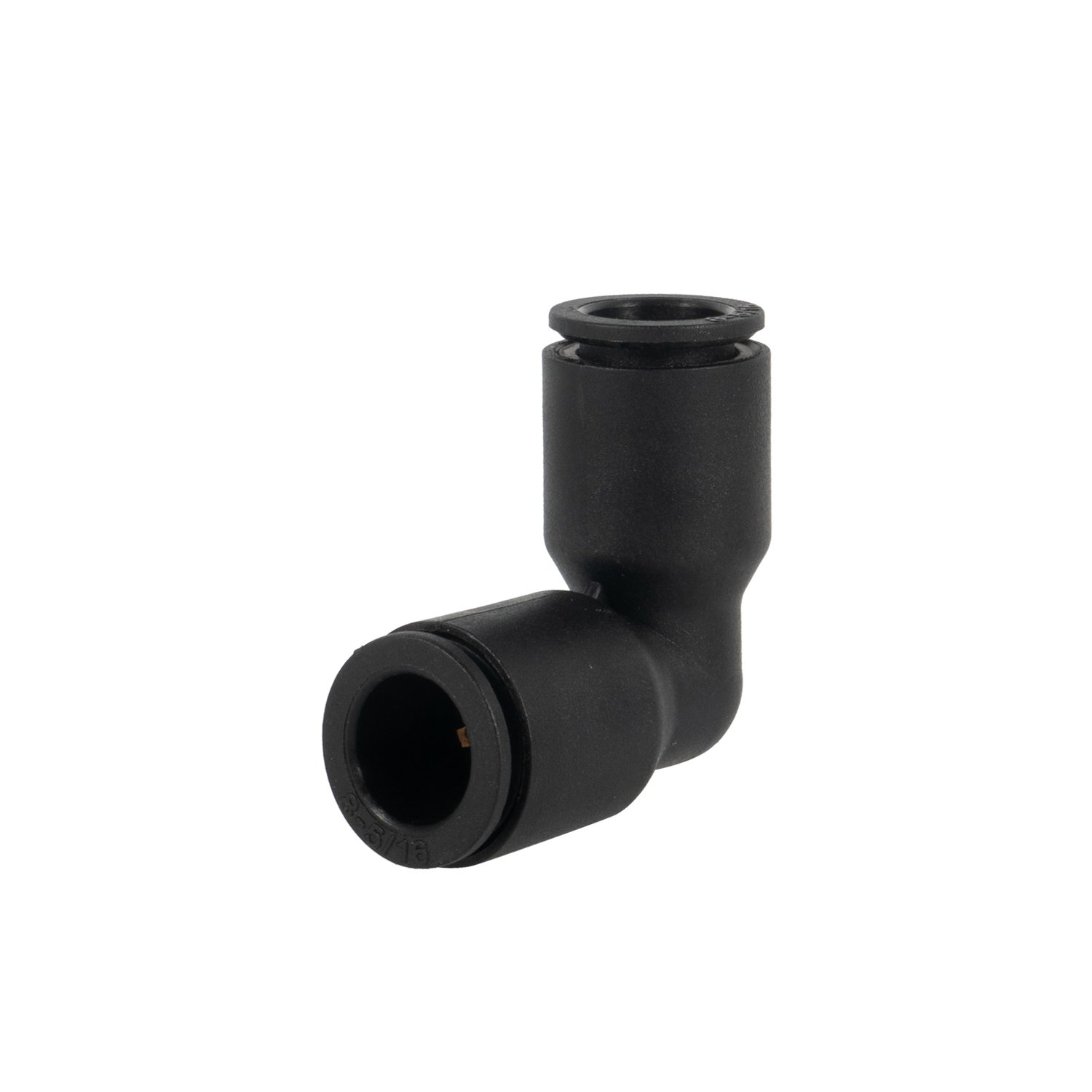

BUC BUL BUT BY BL BST Edit 4mm/6mm/8mm/10mm/12mm Pneumatic Plastic Connector Quick Air Flow Controller Throttle Valve Hose Pipeline Fitting

Pneumatic Plastic Connector Quick Air Flow Controller Throttle Valve Hose Pipeline Fitting


Size:	BUL BUT BY BUC BL BST
Availability:

Quantity:



Inquiry Add to Basket

The main function of pneumatic fittings is to connect pneumatic components to achieve quick connection and disconnection, thereby improving work efficiency;
Pneumatic fittings are used in various industrial automation equipment, mechanical equipment and process equipment widely .

Model:
BUC BUL BUT BY BL BST
Brand:
WAALPC

Product Description

Product Advantages

Connectors Fitting

1.Quick pneumatic tube fiting forpneumatic tube systems.

2.Wide range of tube fiting models to meet all your needs in pneumatic tube systems

3.Even after installation,the direction of the tube can be changed freely.

4.Nickel-Plated metal body ensures anti-corrosion and anti contar mination.

5.All R and NPT threads are precoats sealant.

6.All cylindrical threads are standard with O-ring seals.

Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

SPECIFICATIONS

Fluid	Air,Vaouum
Operating Pressure Hange	0~1.0Mpa
Negathve Prssure	-100Kpa(10Tomm
Pressure Resistanoe	1.5Mpa
Operating Temperature Rang9	5~60℃
Applicable Tube	PU and Nylon

TUBE OUTER DIAMETER:MM

Metric Size
Code	4	5	6	7	8	9	10	11	12	13	14	15	16
TubeOuterDiameter:mm	Φ4	Φ5	Φ6	Φ7	Φ8	Φ9	Φ10	Φ11	Φ12	Φ13	Φ14	Φ15	Φ16

nch Sze
Code	5/32	3/16	1/4	5/16	3/8	1/2
TubeOulerDiameter:mm	Φ5/32	Φ3/16	Φ1/4	Φ5/16	Φ3/8	Φ1/2

Metric Size
Code	M5	M6	M8	M10	M12	M12A	M14	M16	M20
Thread Size	M5*0.8	M6*01	M8*1	M10*01	M12*1.25	M12*1.5	M14*1.5	H16*1.5	M20*1.5

nch Size	55°Taper Tube Sze					55*StraightTube Size
Code	01	02	03	04	06	G01	G02	G03	G04	G06
ThreadSize	R1/8	R1/4	R3/8	R1/2	R3/4	G1/8	G1/4	G3/8	G1/2	G3/4

AmericanSze	60Taper TubeSz8
Code	U10	N01	N02	N03	N04	N06
Thread Size	10-320NF	NPT1/8	NPT1/4	NPT3/8	NPT1/2	NPT3/4

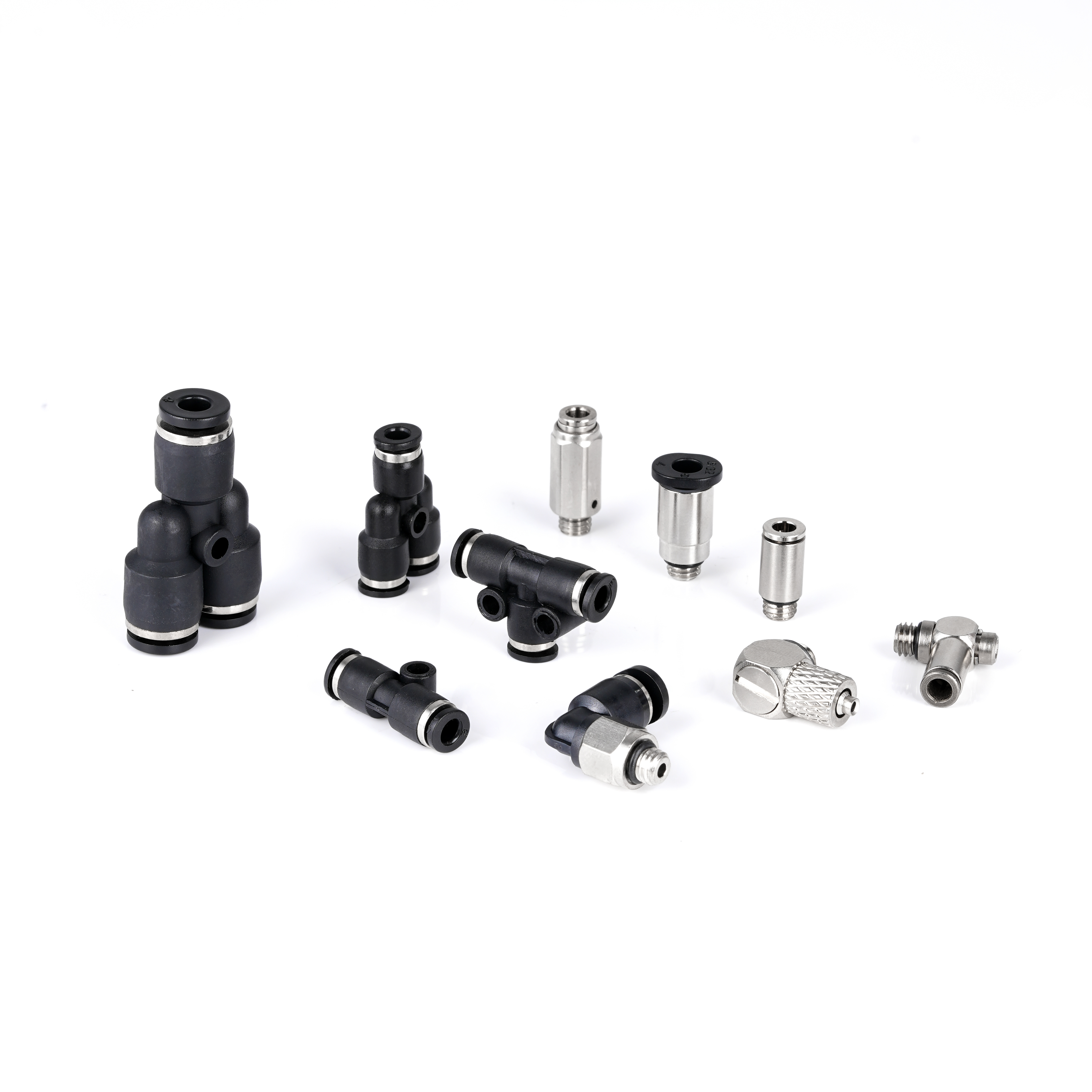

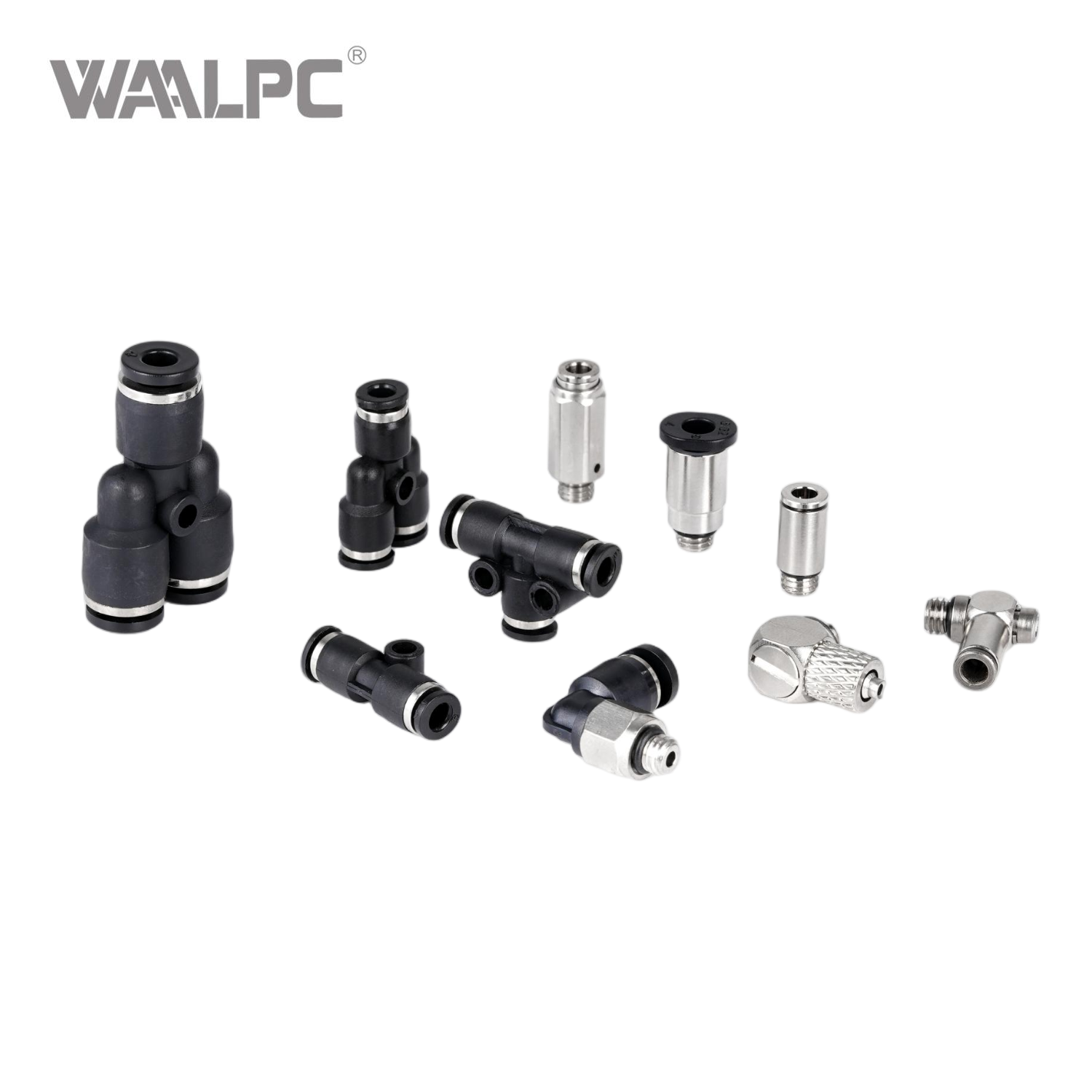

PLASTIC QUICK FITTINGS

Connectors Fitting

Specification Download

Quick fittings.pdf
