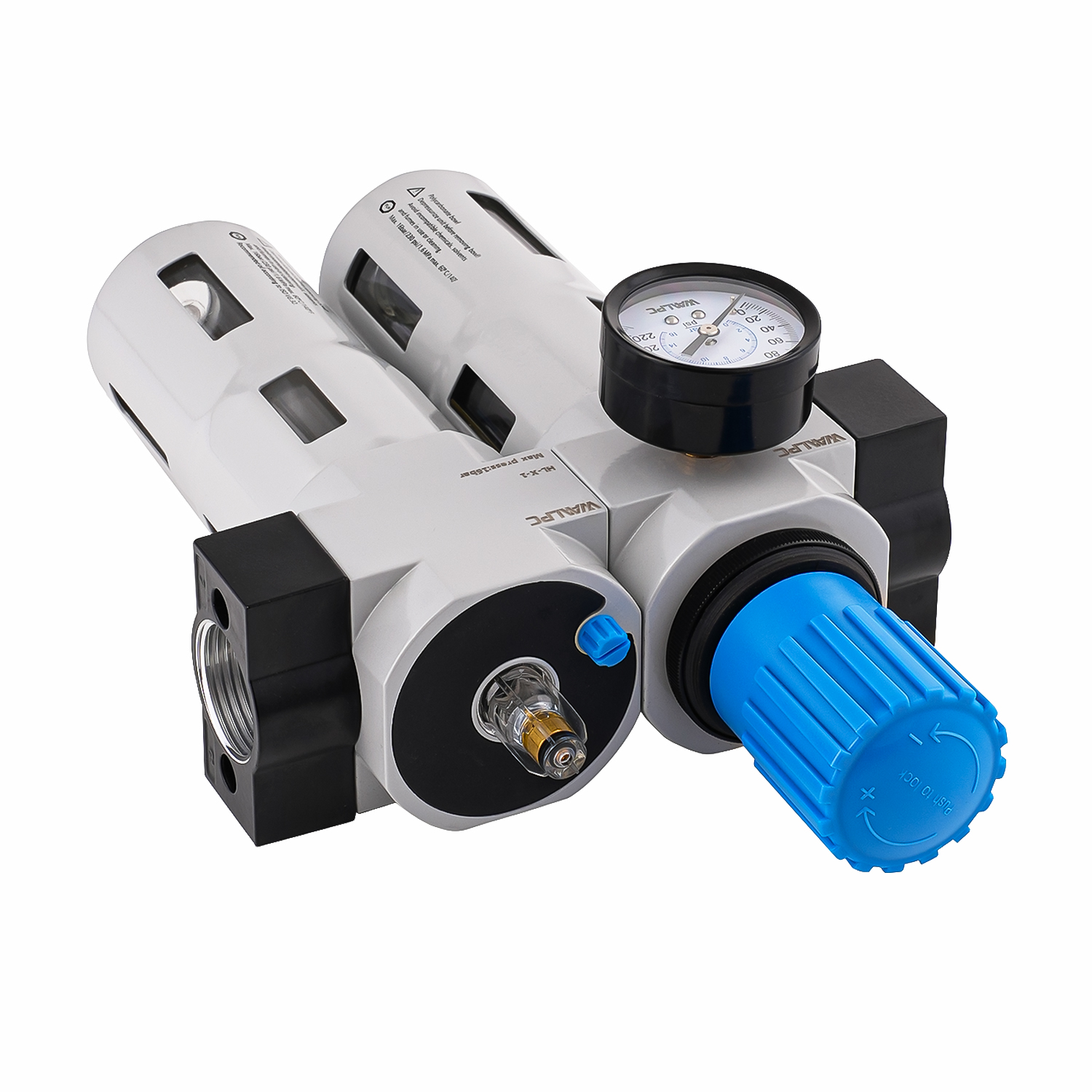

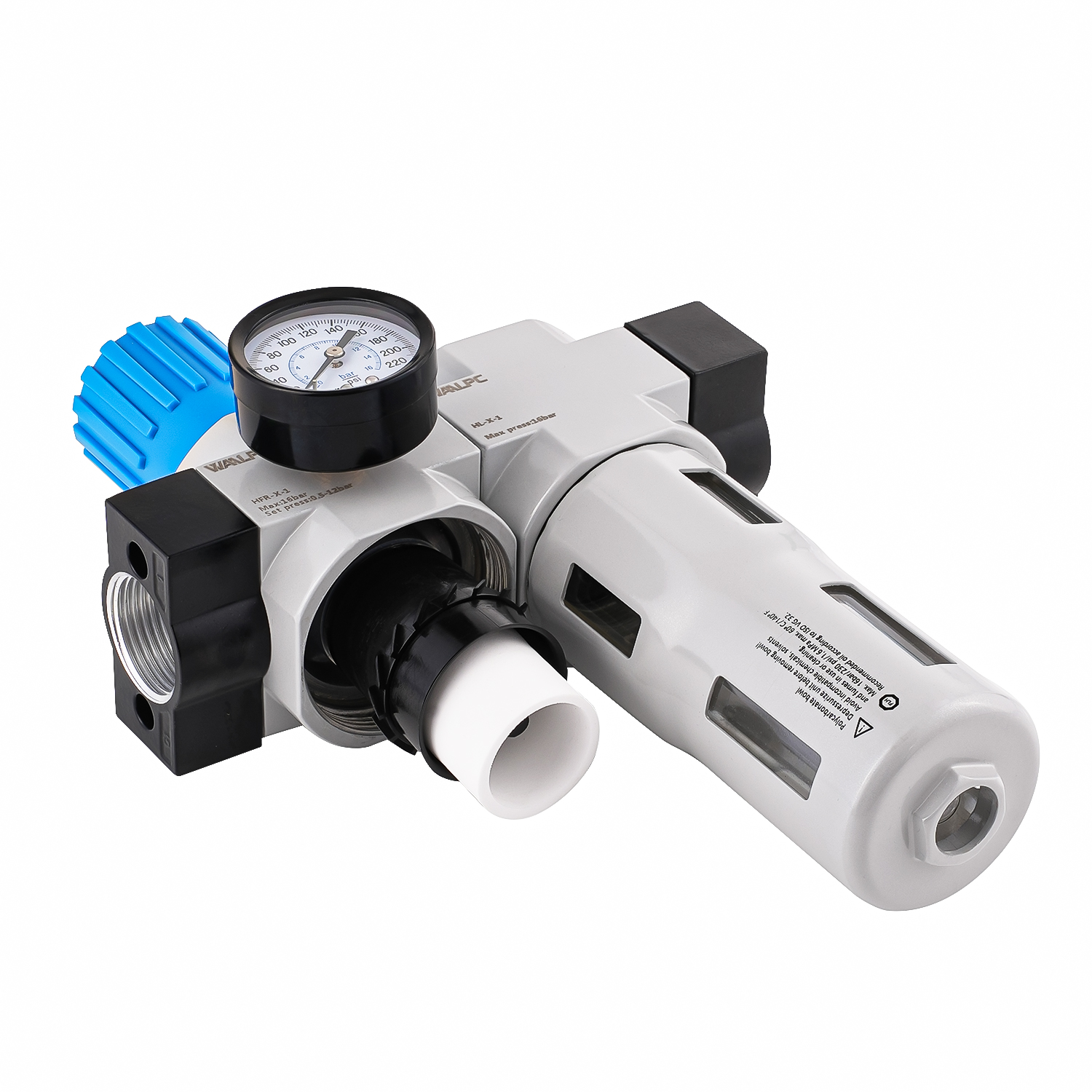

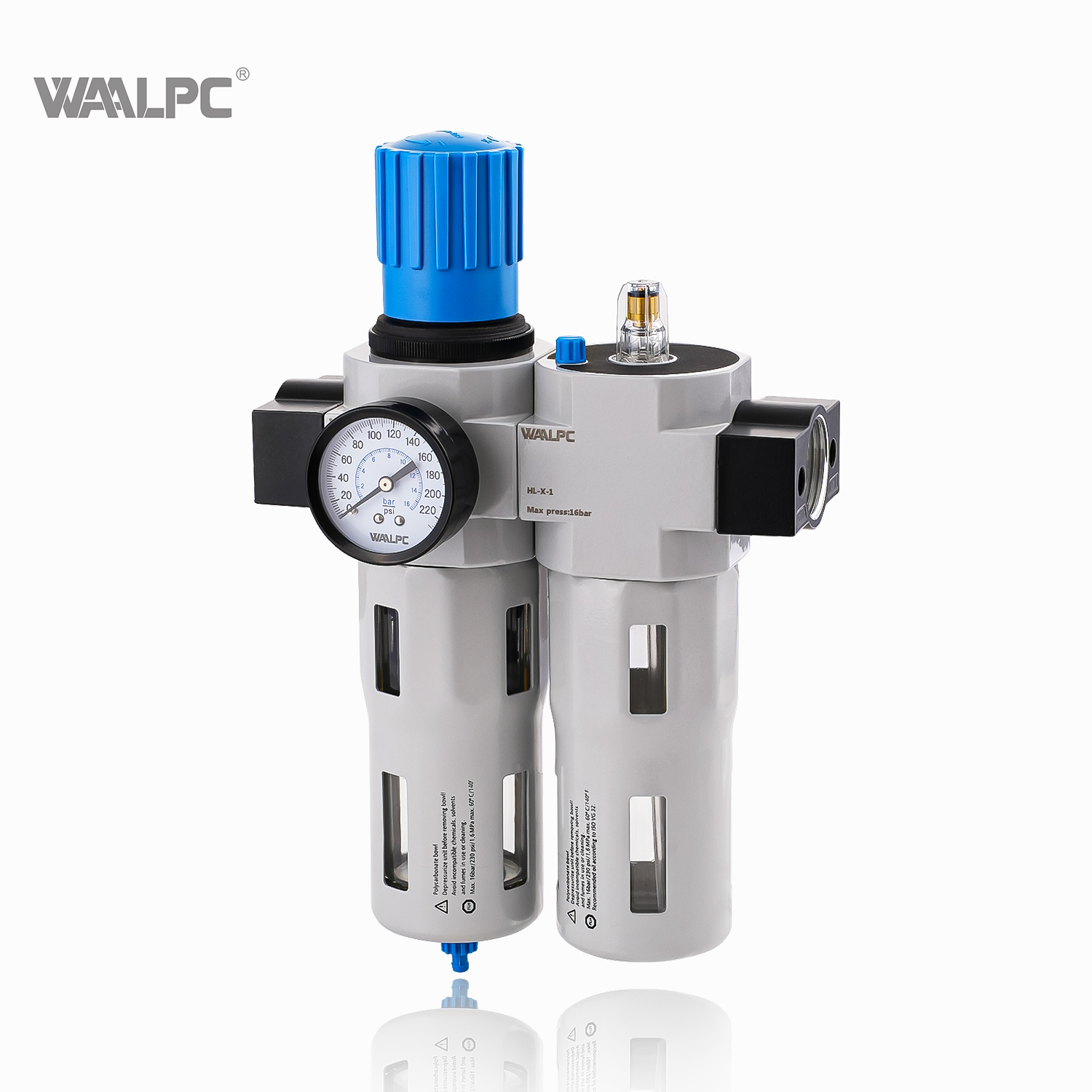

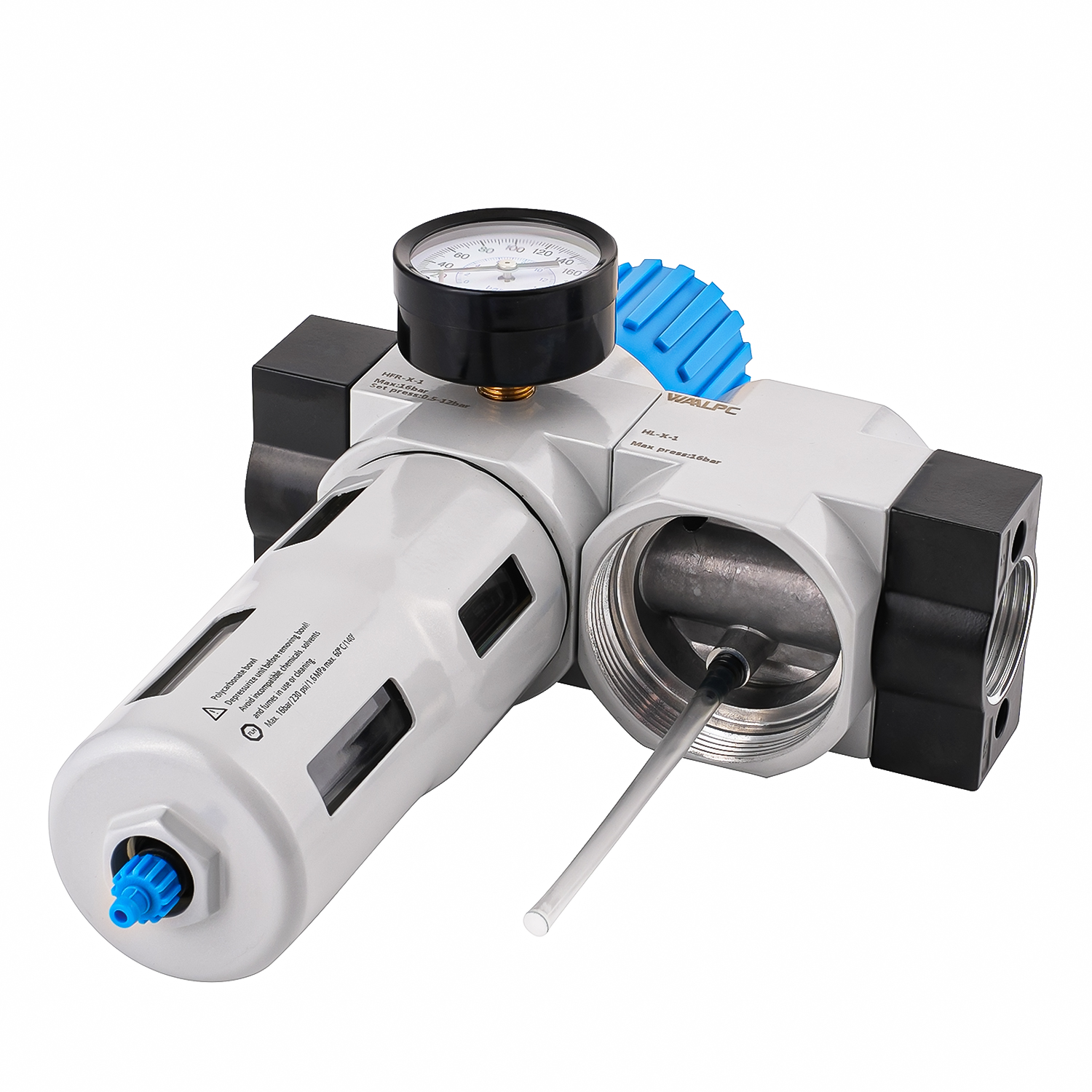

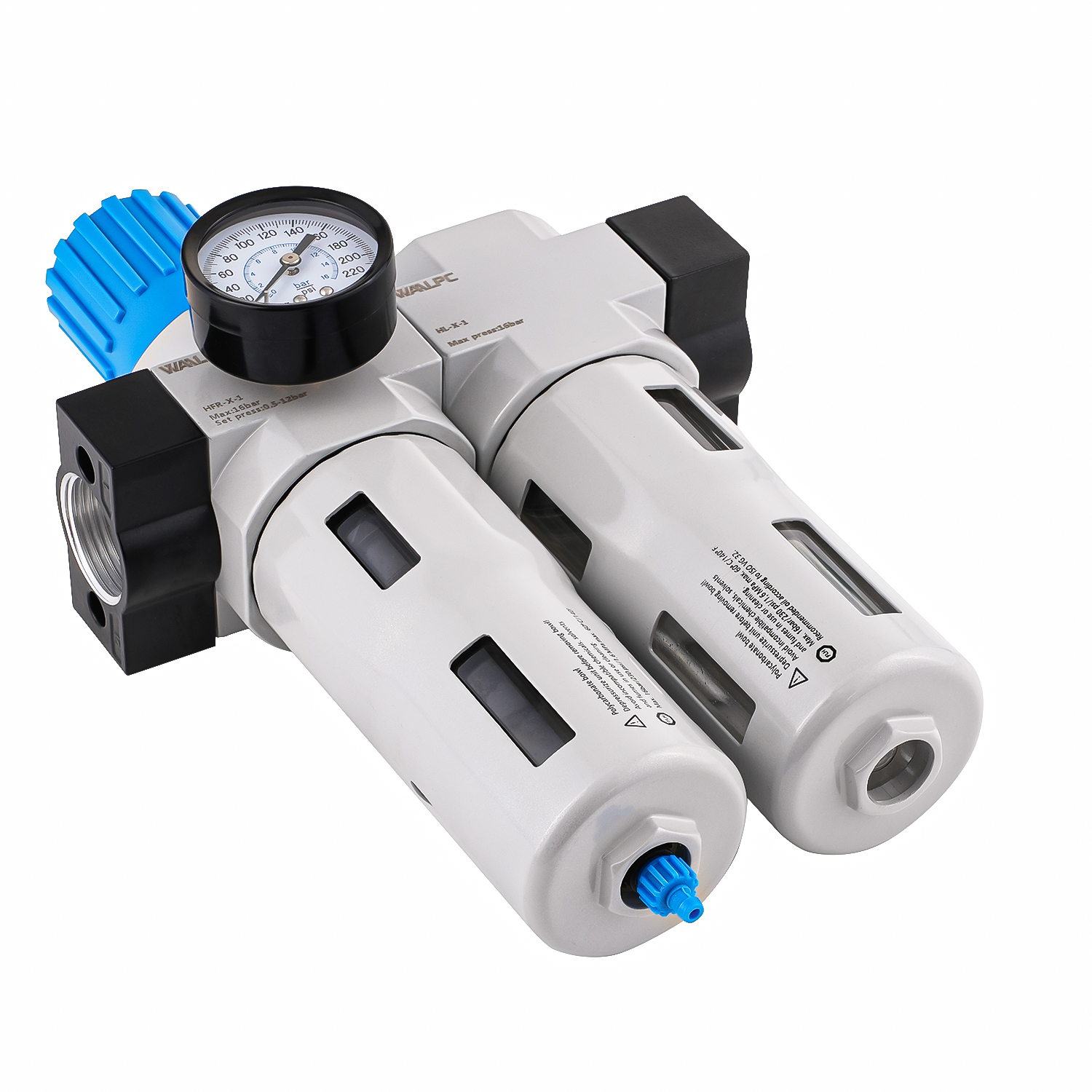

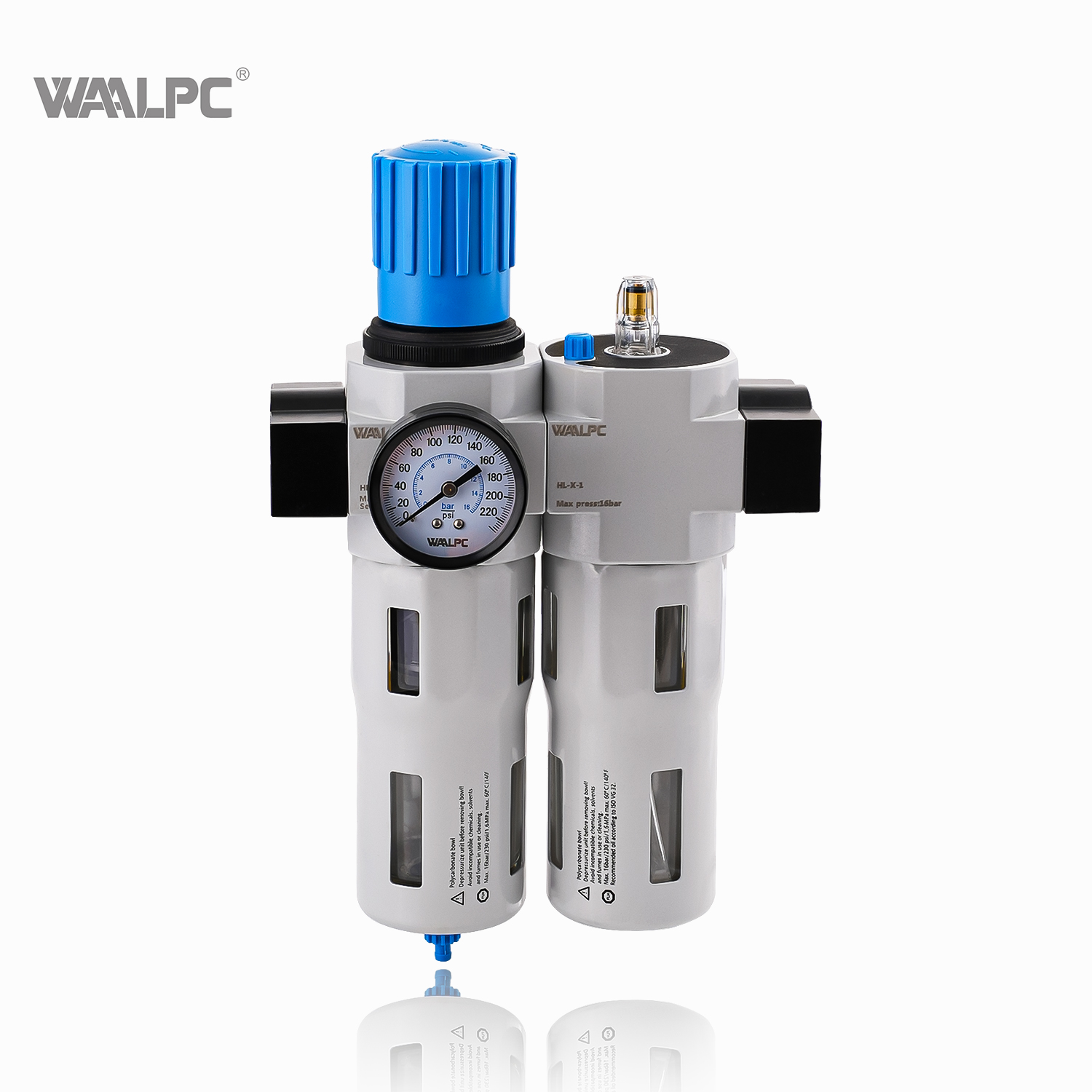

Festo Series HFC-1-Maxi Oil-Water Separator Air Source Treatment Two-Piece Filter FR. L Combination Filter Regulator

Oil-Water Separator Air Source Treatment Two-Piece Filter FR. L Combination Filter Regulator


Size:	Mini Middle Max
Availability:

Quantity:



Inquiry Add to Basket

Festo Combination Units, commonly known as FRLs (Filter, Regulator, Lubricator), are integrated pneumatic components designed to prepare compressed air for use in pneumatic systems. They are essential for ensuring the efficiency, reliability, and longevity of pneumatic equipment.

Model:
HFC-MAXI
Brand:
WAALPC
Code:
8481100090

Product Description

1. The series HC is consisted of filter, regulator and lubricator, each unit can be ordered separately.
2. The air filter with water separate cleans the compressed air of fluid oil, condensation and dirt particles, for special application, the standard 40μm filter element may easily be replaced by a 5μm filter element.

3. The regulator maintain inputting constant operating pressure despite fluctuation in line pressure & the amount of air consumed.

4. The proportional lubricator adds a regulated quantity of oil to the filtered air, the oil-mist content proportional to the flow and oil can be added during operation. The oil drip rate is controlled by the adjustable bolt. Normally, 1 to 12 drops /1000L of the air is sufficient.

5. Different thread type can be offered according to customers' requirements, e.g.PT, NPT etc.

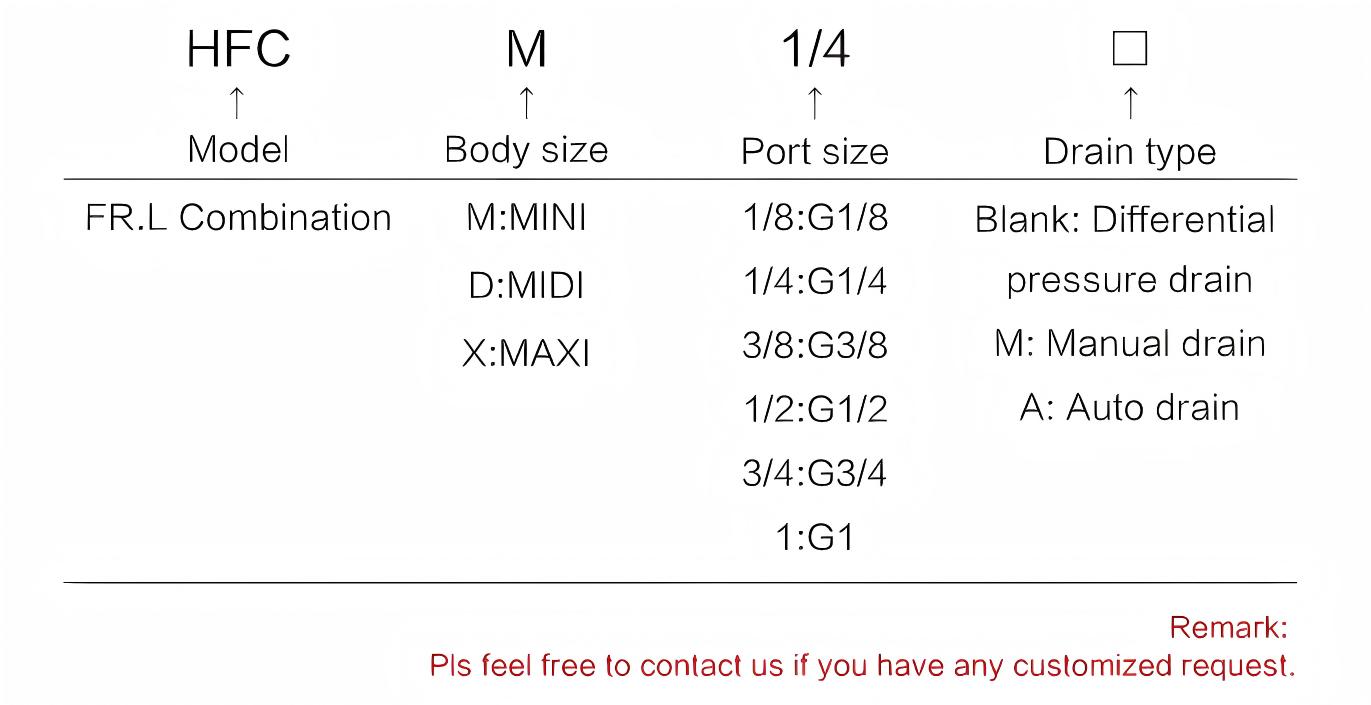

Technical Parameters

DATA SHEET

Type-name		F.R.L combination
Model		MINI			MIDI					MAXI
		HFC-1/8	HFC-1/4	HFC-3/8	HFC-1/4	HFC-3/8	HFC-1/2	HFC-3/4		HFC-3/4	HFC-1
Components	Pressure Regulating Filter	HFR-1/8	HFR-1/4	HFR-3/8	HFR-1/4	HFR-3/8	HFR-1/2	HFR-3/4		HFR-3/4	HFR-1
	Lubricator	HL-1/8	HL-1/4	HL-3/8	HL-1/4	HL-3/8	HL-1/2	HL-3/4		HL-3/4	HL-1
	Port Size (G)	1/8	1/4	3/8	1/4	3/8	1/2	3/4		3/4	1
Rated f low (L/min)	HFC	700	1000	1200	1500	2000	2600	2600		7000	8000
	HFR	750	1400	1600	3100	3100	3400	3400		9000	10000
	HOL	600	850	1050	1700	2200	2700	3200		6500	7200
Cup Protective Cover		With cup protective cover
Drain Type		Manual drain, differential pressure drain and auto drain
Grade of Filtration		5µm, 40µm
Working Medium		Filter compressed air
Structure Features		Sintered filter with moisture clutch; MINI, MIDI: Diaphragm type pressure reducing valve; MAXI: piston type pressure reducing valve; Oil mist automatic variable throttling type.
Installation Type		Pipe installation or foot pedal installation
Operating Pressure		0.5-12bar,0.5-7bar
Input Pressure		Differential pressure drain: 1 16bar, manual drain valve: 1 16bar, auto drain valve: 1.5 12bar
Min. Fogging Flow Rate		3L/min			6L/min				10L/min
Operating Temperature Range		0-60 ℃
Filter Cup Capacity		22ML			43ML				80ML
Lubricator Cup Capacity		22ML			43ML				80ML
Recommended Oil		ISO VG32 or equivalent grade oil
Pressure gauge		Y40-01			Y50-02
Material		Housing: Die cast zinc; Filter cup and oil cup: PC; Metal protective cover: aluminum alloy; Sealing: nitrile rubber; Pressure regulating hand wheel: POM

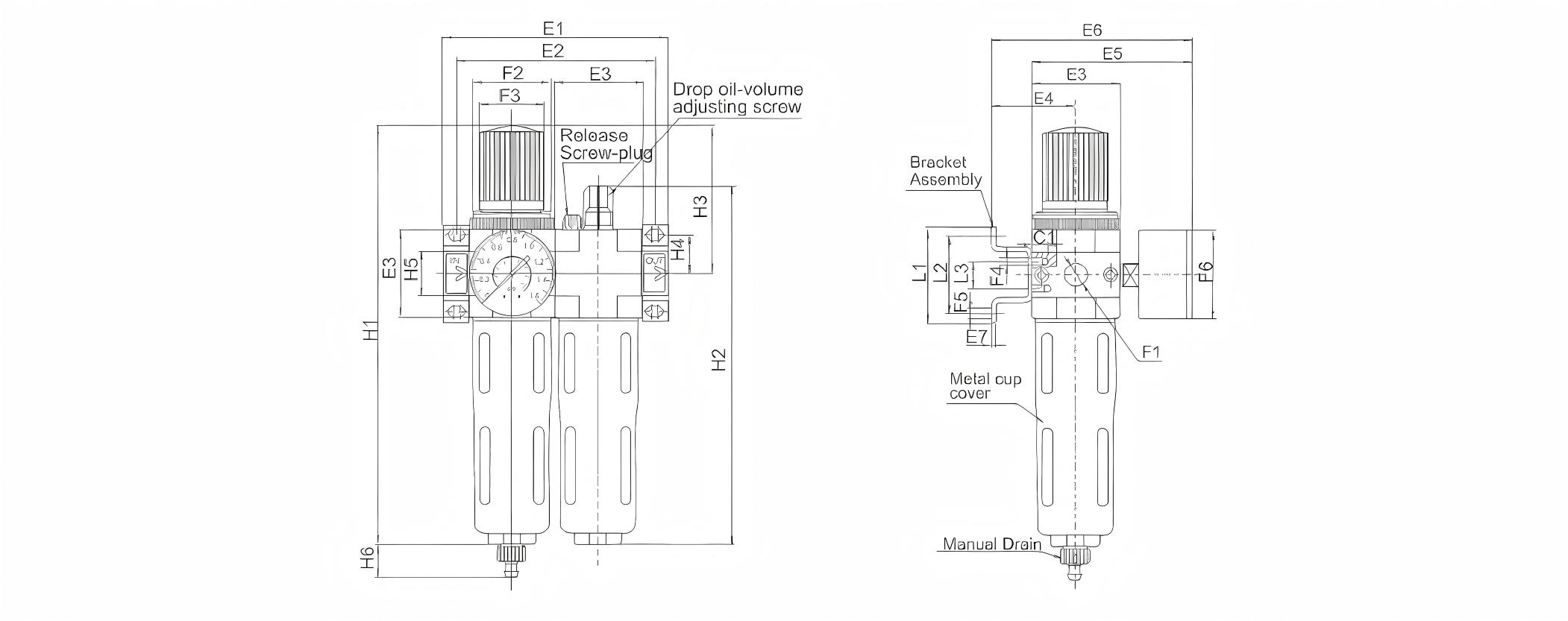

STRUCTURE

Festo pneumatic components

Model	E1	E2	E3	E4	E5	E6	E7	F1	F2
HFC-MINI	104	104	40	39	76	95	2	G1/8,G1/4,G3/8	M36*1.5
HFC-MIDI	140	140	55	47	93	112	3	G3/8,G1/4,G1/2,G3/4	M52*1.5
HFC-MAXI	182	162	66	53	104	124	3	G3/4,G1	M36*1.5

Model	F3Φ	F4	F5Φ	F6Φ	L1	L2	L3	H1	H2	H3	H4	H5	H6
HFC-MINI	31	M4	4.5	40	44	35	11	194	169	69	17.5	20	15
HFC-MIDI	50	M5	5.5	52	71	60	22	250	206	97	24.5	32	15
HFC-MAXI	31	M5	5.5	63	71	60	22	252	223	80	24.5	32,40	15
