HL-MAXI Festo China High Quality Pneumatic Lubricator Air Filter Lubricator Regulator for Mining Industry Air Regulator Lubricator Oil Separator Factory

Festo China High Quality Pneumatic Lubricator Air Filter Lubricator Regulator for Mining Industry Factory

Festo China High Quality Pneumatic Lubricator Air Filter Lubricator Regulator for Mining Industry Factory


Size:	Mini Middle Max
Availability:

Quantity:



Inquiry Add to Basket

The air treatment device is used to process the air source from the air compressor. It includes three parts with different functions: an air filter for filtering dirt and particles in the air source, a regulator for adjusting the air source pressure, and a lubricator for oil lubrication.

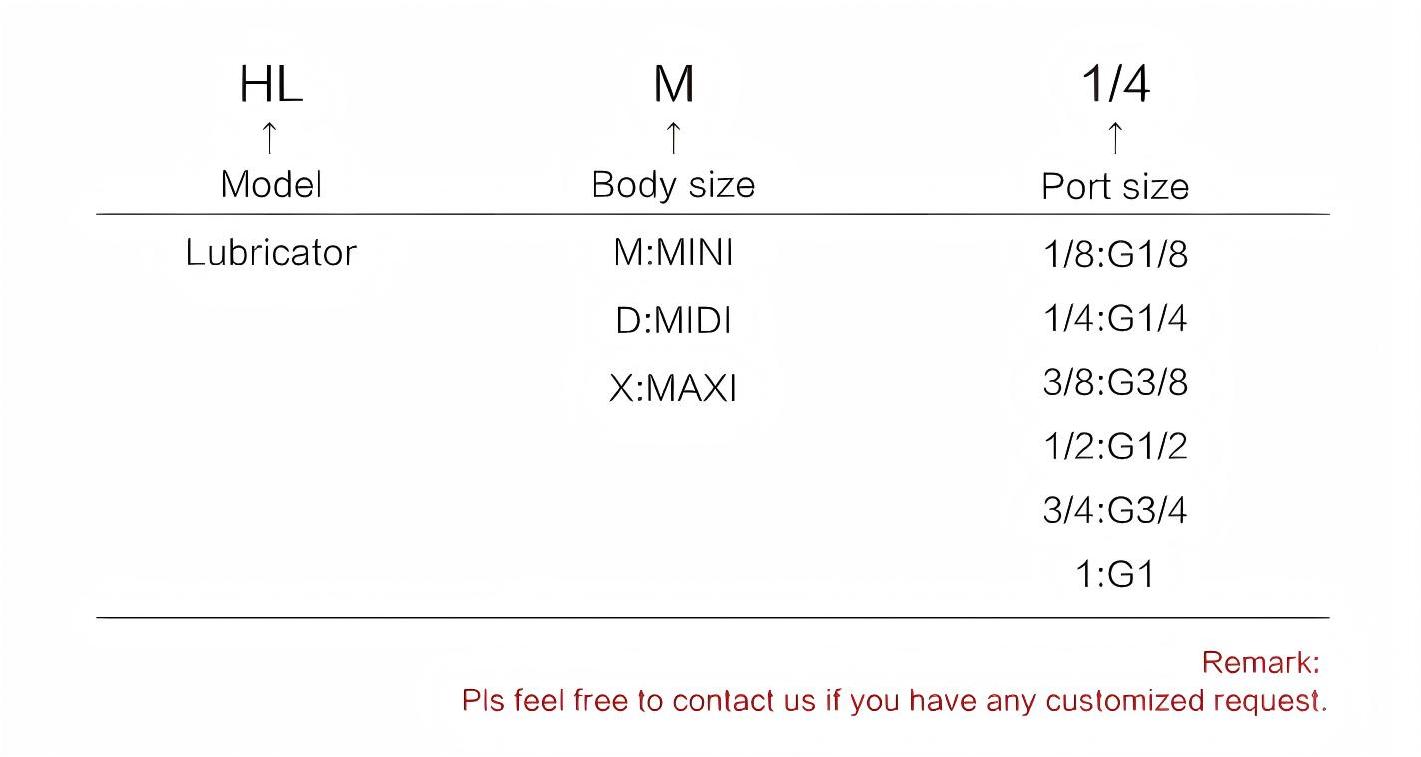

Model:
HL-MAXI
Brand:
WAALPC
Code:
8481100090

Product Description

Product Advantages

1. The proportional lubricator adds a regulated quantity of oil to the filtered air, the oil-mist content proportional to the flow and oil can be added during operation. The oil drip rate is controlled by the adjustable bolt. Normally, 1 to 12 drops /1000L of the air is sufficient.

2. Different thread type can be offered according to customers' requirements, e.g.: PT, NPT etc.

Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Type-name	Lubricator
Model	MINI			MIDI				MAXI
	HL-1/8	HL-1/4	HL-3/8	HL-1/4	HL-3/8	HL-1/2	HL-3/4	HL-3/4	HL-1
Port Size (G)	1/8	1/4	3/8	1/4	3/8	1/2	3/4	3/4	1
Cup Protective Cover	600	850	1050	1700	1700	1800	2100	6500	7200
Cup Protective Cover	With cup protective cover
Working medium	Compressed air
Structure Features	Oil mist automatic variable throttling type
Installation Type	Pipe installation or foot pedal installation
Operating Pressure	0.5-12bar, 0.5-7bar
Min. Fogging Flow Rate	3L/min			6L/min				10L/min
Operating Temperature Range	0-60 ℃
Lubricator Cup Capacity	22ML			43ML				80ML
Recommended Oil	ISO VG32 or equivalent grade oil
Material	Housing: Die cast zinc; Oil cup: PC; Metal protective cover: aluminum alloy; Sealing: nitrile rubber;

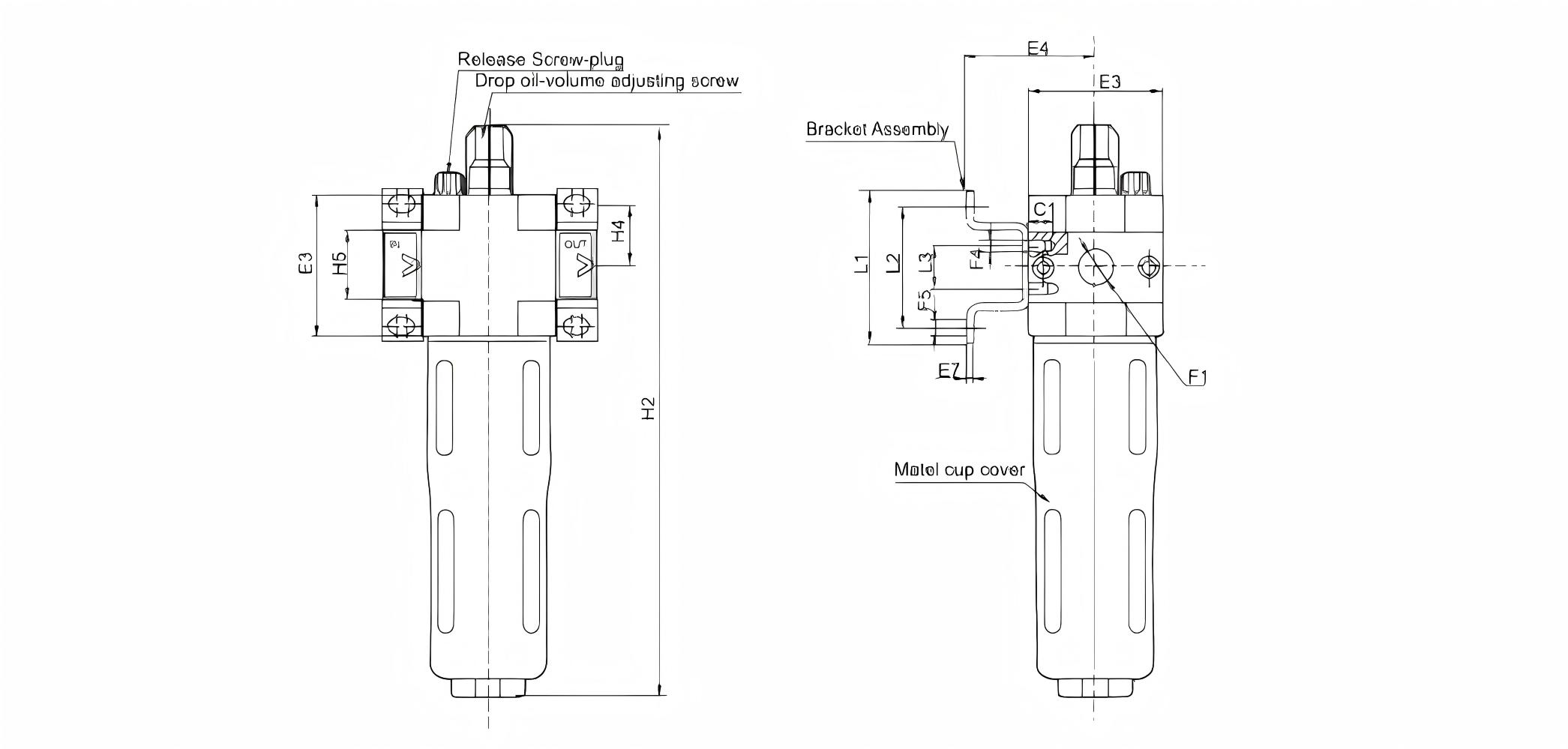

STRUCTURE

Festo pneumatic lubricator

Model	E3	E4	E7	F1	F4	F5Φ	L1	L2	L3	H4	H5
HL-MINI	40	39	2	G1/8,G1/4,G3/8	M4	4.5	44	35	11	17.5	20
HL-MIDI	55	47	3	G3/8,G1/4,G1/2,G3/4	M5	5.5	77	60	22	24.5	32
HL-MAXI	66	53	3	G3/4,G1	M5	5.5	77	60	22	24.5	32,40
