Fest 3/4'' 1'' NPT/PT OEM CE High Pressure Regulating Valve Gauge Compressed Air Regulator for Pneumatic Equipment Compressor

Compressed Air Pressure Reducing Valve High Pressure Regulating Valve Pressure Gauge Suitable for Pneumatic Equipment Compressor

Compressed Air Pressure Reducing Valve High Pressure Regulating Valve Pressure Gauge Suitable for Pneumatic Equipment Compressor


Size:	Mini Middle Max
Availability:

Quantity:



Inquiry Add to Basket

The air treatment device is used to process the air source from the air compressor. It includes three parts with different functions: an air filter for filtering dirt and particles in the air source, a regulator for adjusting the air source pressure, and a lubricator for oil lubrication.

Model:
HR-MAXI
Brand:
WAALPC
Code:
8481100090

Product Description

Product Advantages

Air pressure regulating valve

1. The regulator maintain inputting constant operating pressure despite fluctuation in line pressure & the amount of air consumed.

2. Different thread type can be offered according to customers' requirements, e.g.: PT, NPT etc.

Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Type-name	Regulator

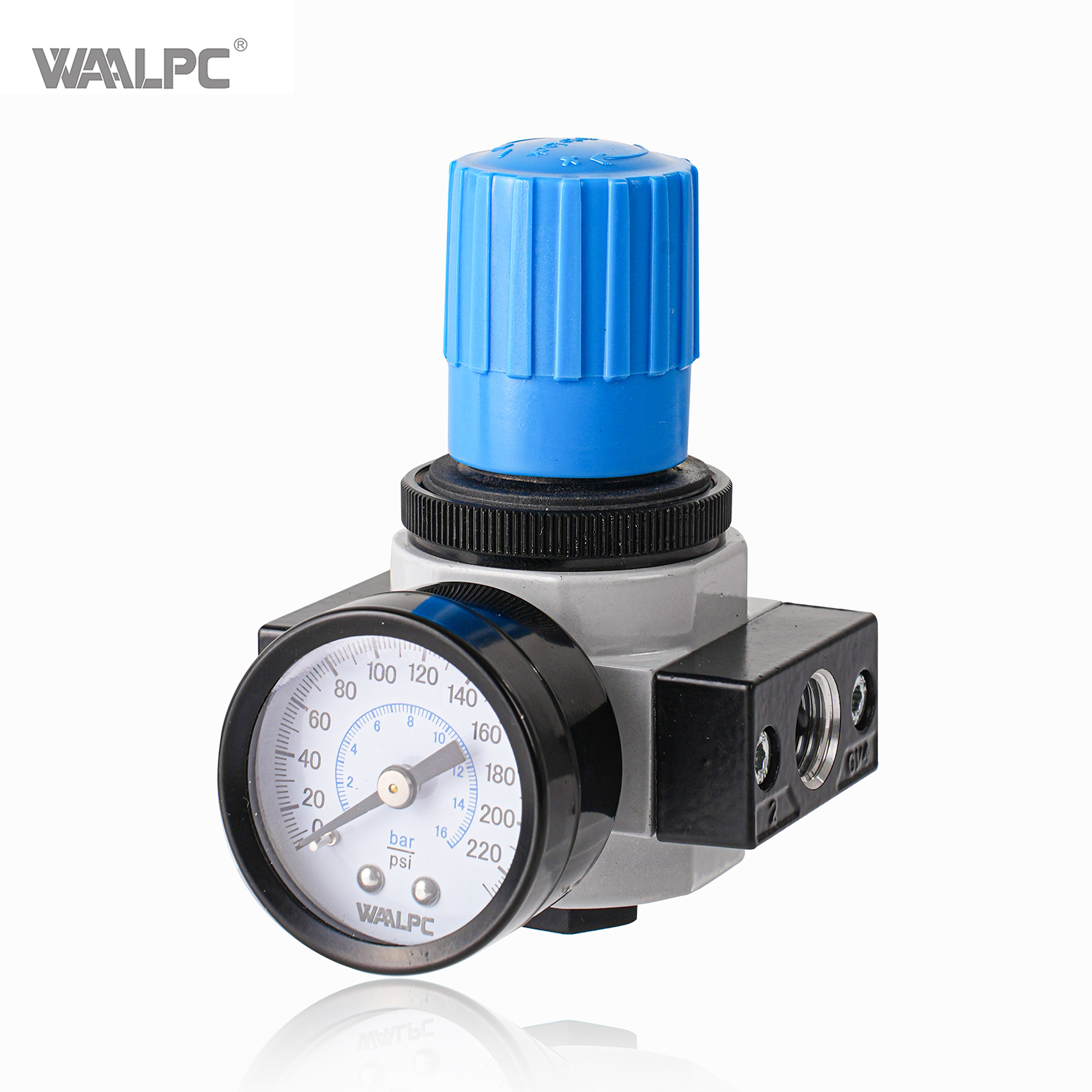

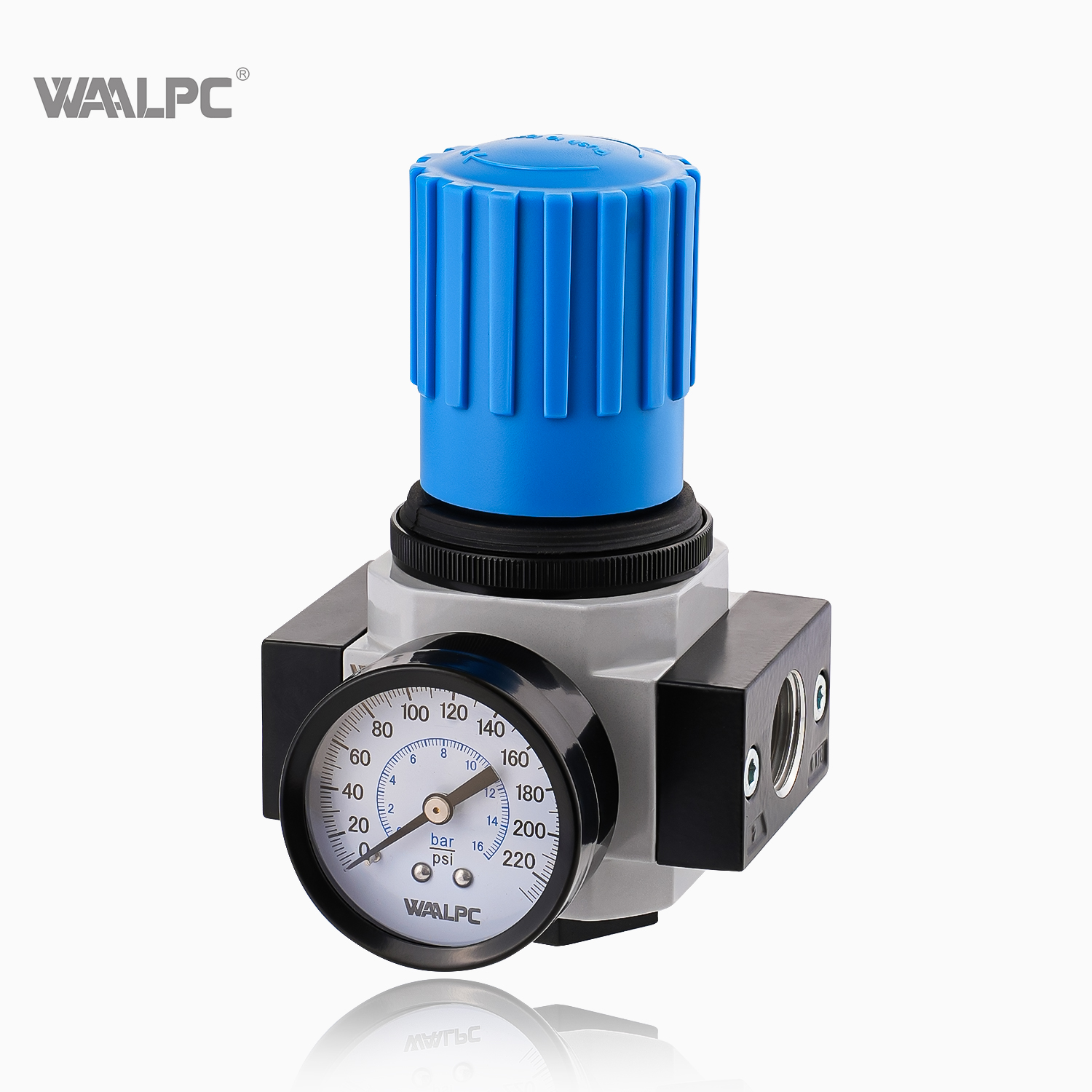

Model	MINI			MIDI				MAXI

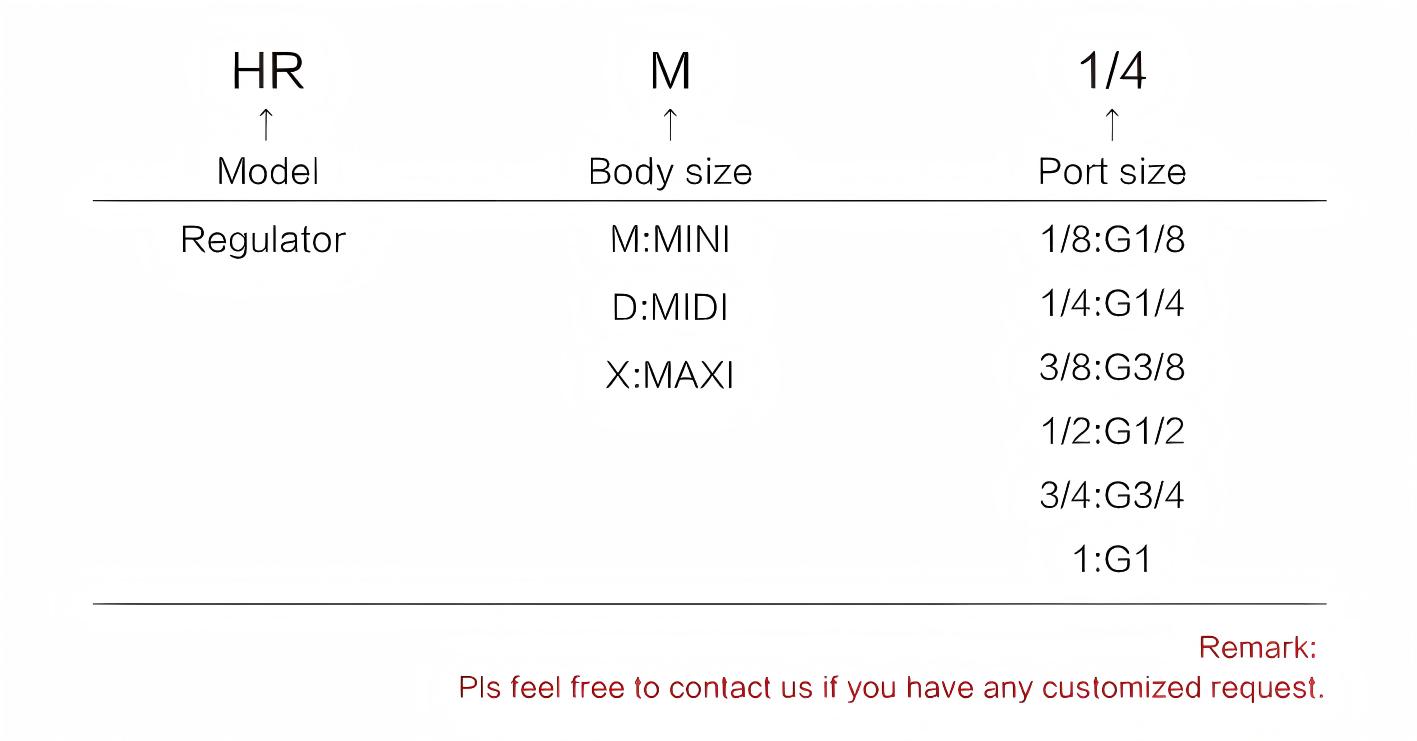

Model	HR-1/8	HR-1/4	HR-3/8	HR-1/4	HR-3/8	HR-1/2	HR-3/4	HR-3/4	HR-1
Port Size (G)	1/8	1/4	3/8	1/4	3/8	1/2	3/4	3/4	1
Rated Flow (L/min)	800	1500	1700	3200	3200	3500	3500	11000	11500
Working Medium	Compressed air
Structure Features	MINI, MIDI: Diaphragm type pressure reducing valve; MAXI: piston type pressure reducing valve
Installation Type	Pipe installation or foot pedal installation
Operating Pressure	0.5-12bar, 0.5-7bar
Operating Temperature Range	0-60 ℃
Pressure Gauge	Y40-01			Y50-02
Material	Housing: Die cast zinc; Sealing: nitrile rubber; Pressure regulating hand wheel: POM

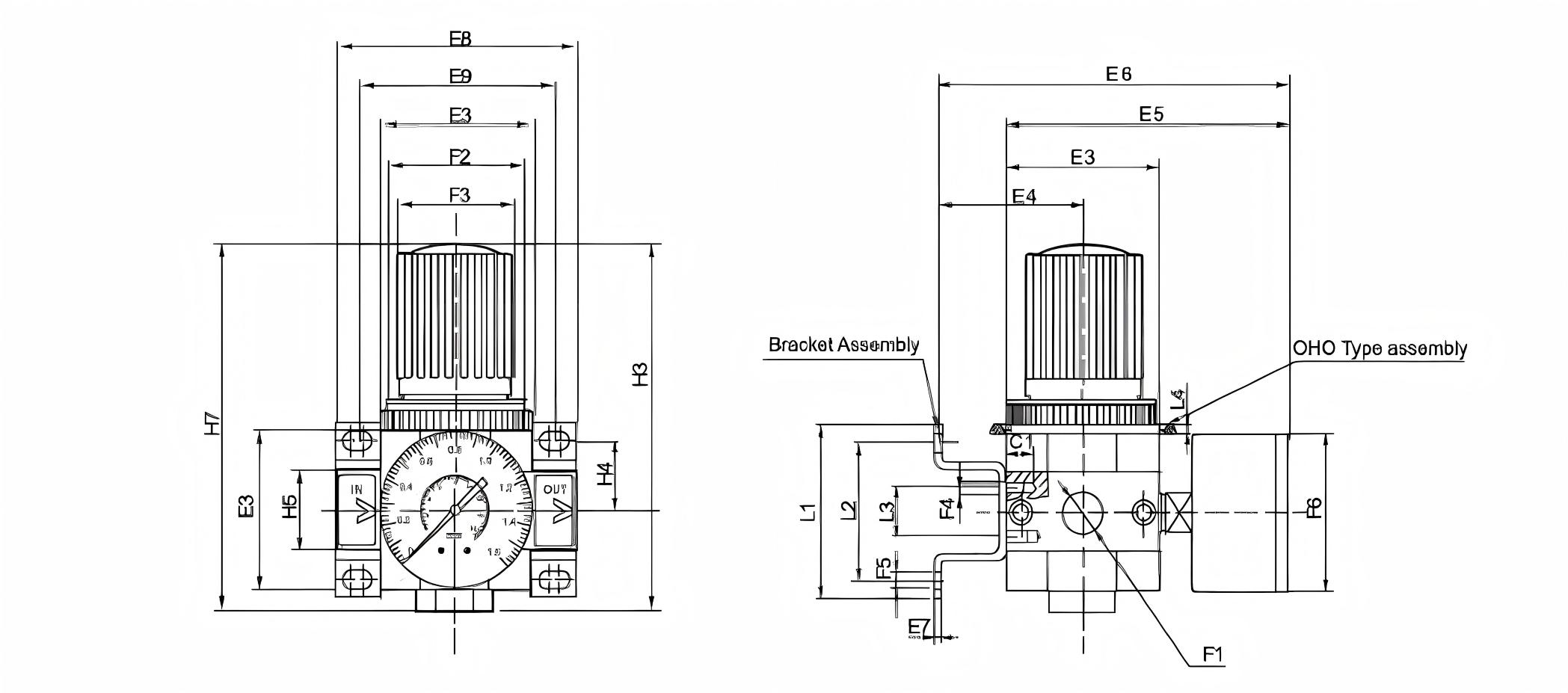

STRUCTURE

Air pressure regulating valve

Model	E3	E4	E5	E6	E8	E9	F1	F2	F3Φ	F4	F5Φ	L1	L2	L3	L4	H3	H4	H7
HR-MINI	40	39	76	95	64	52	G1/8,G1/4,G3/8	M36*1.5	31	M4	M4	44	35	11	Max.3	69	17.5	96
HR-MIDI	55	47	93	112	85	70	G3/8,G1/4,G1/2,G3/4	M52*1.5	50	M5	M5	77	60	22	Max.5	98	24.5	96
HR-MAXI	66	53	104	124	96,116	80,91	G3/4,G1	M36*1.5	31	M5	M5	77	60	22	Max.4	80	24.5	96

Specification Download

H Series.pdf
