Advanced Air Source Treatment Pneumatic Filter Combination Semi-automatic Filter Made in China

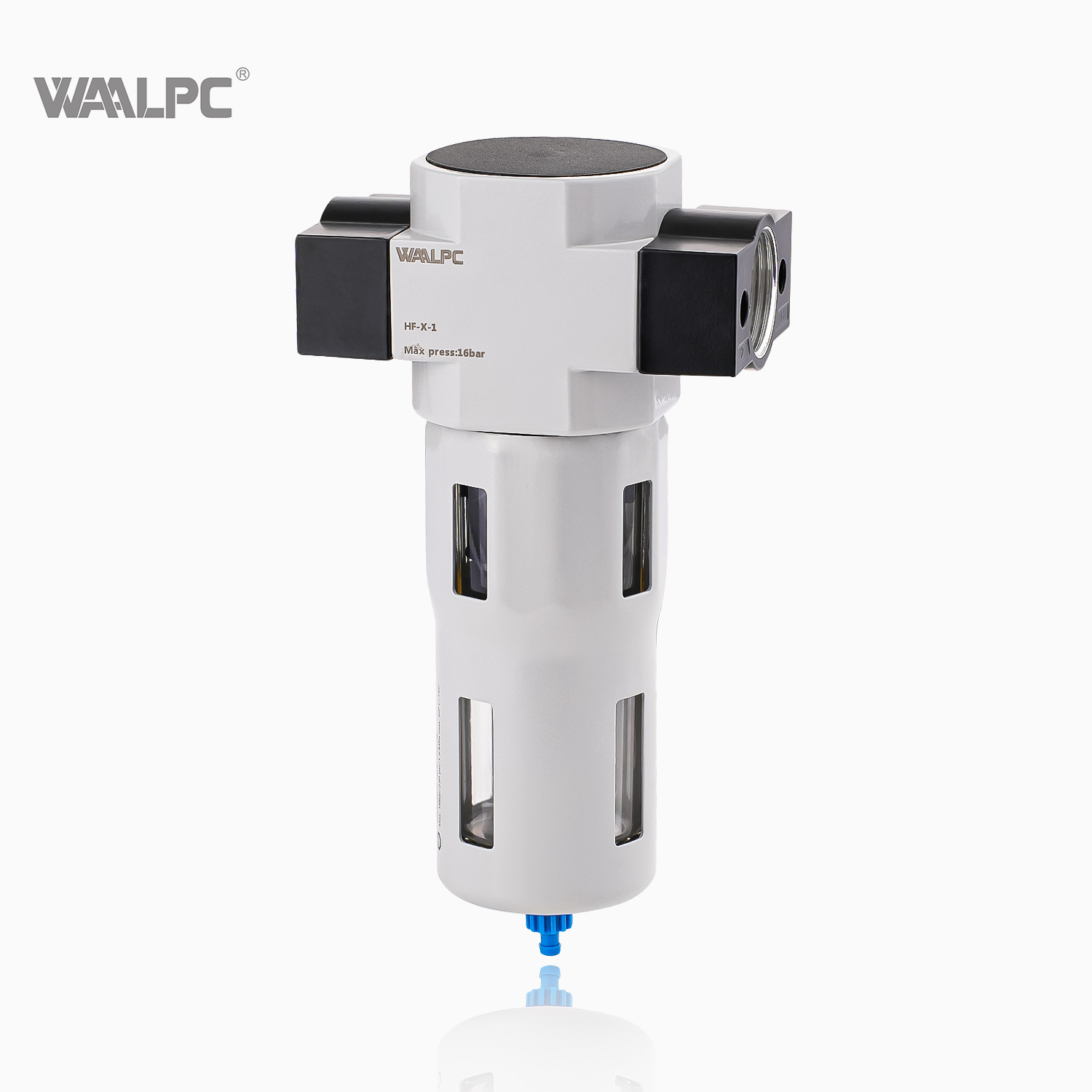

HF-MAXI Festo China Advanced High Quality Air Source Treatment Pneumatic Filter for Intelligent Manufacturing

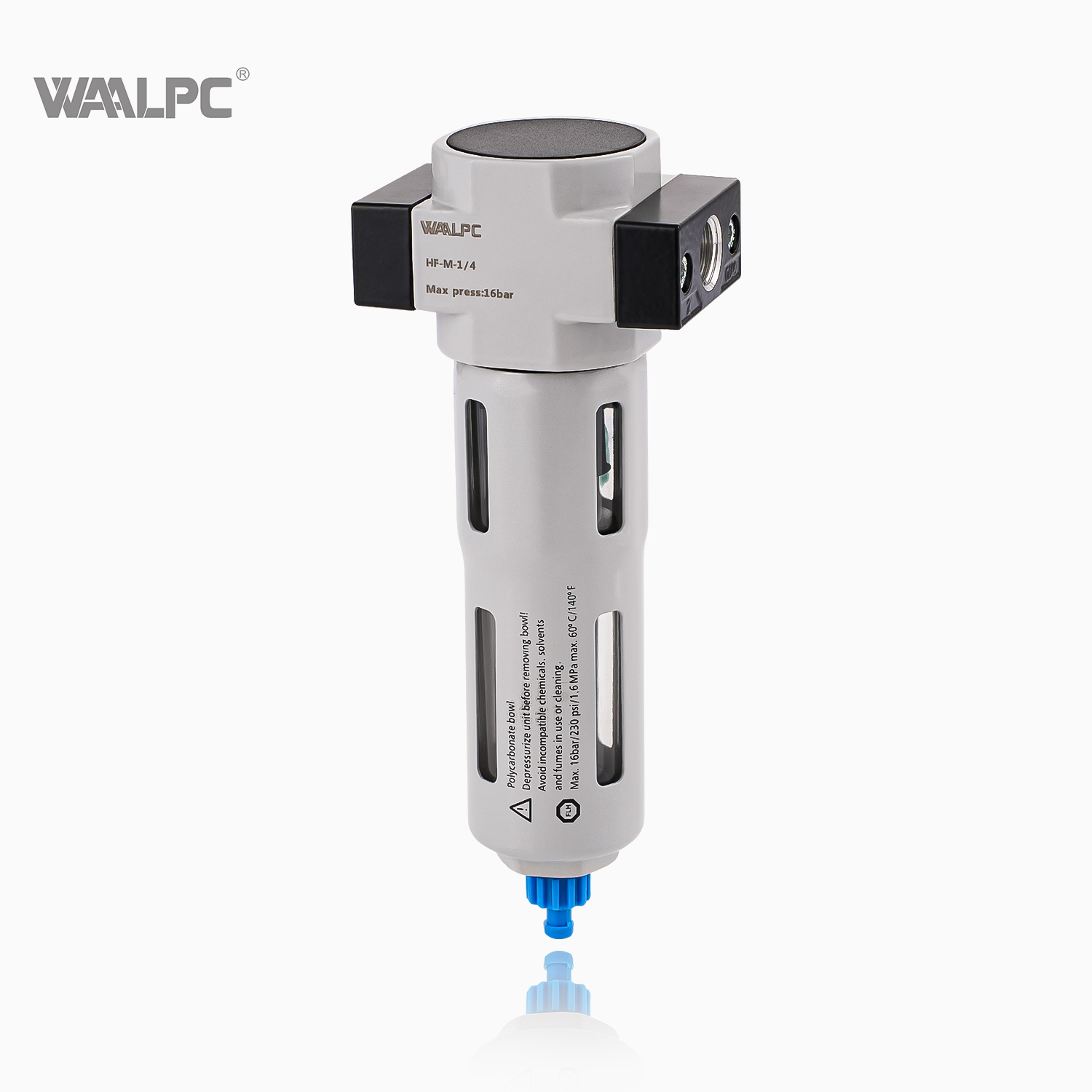

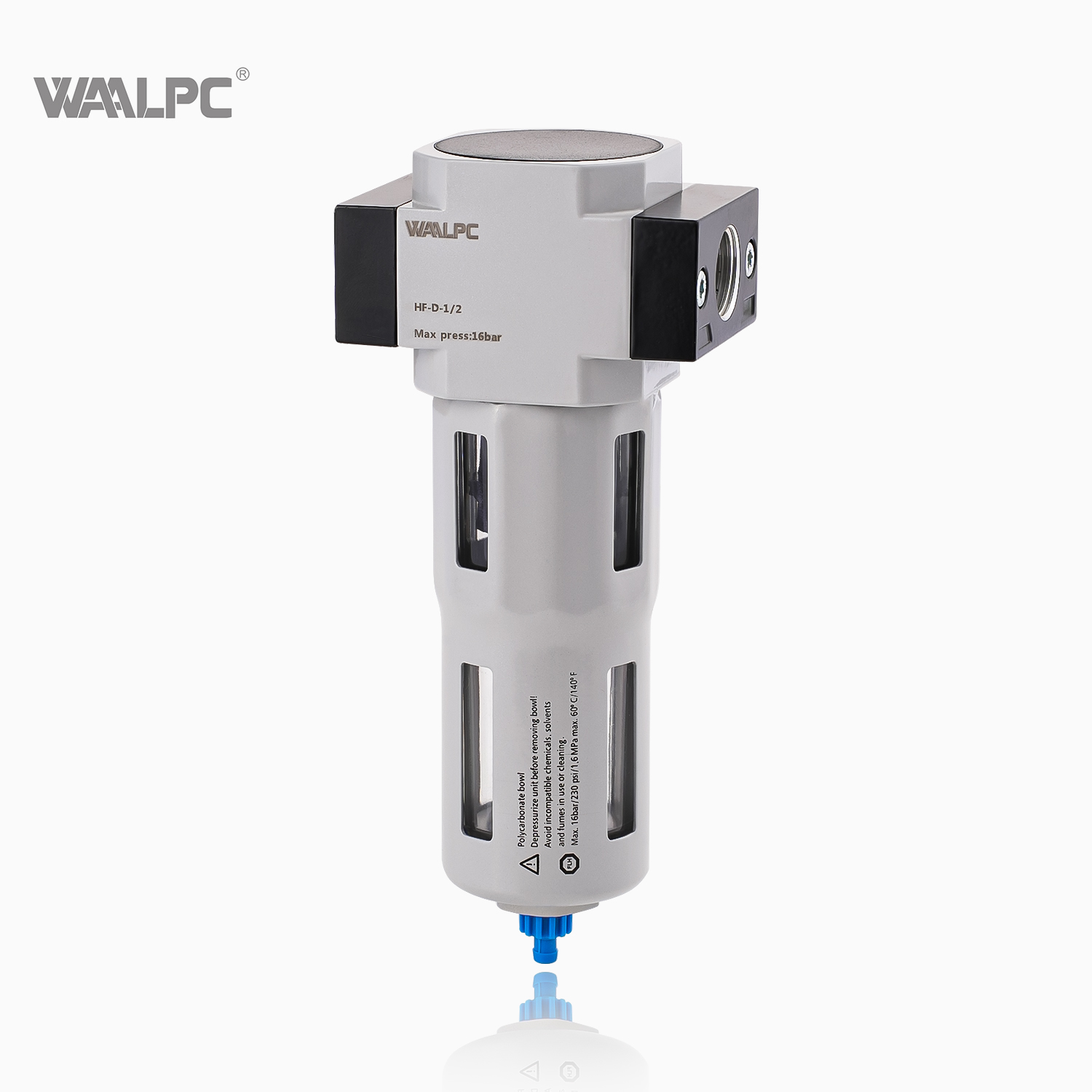

Advanced Air Source Treatment Pneumatic Filter Combination Semi-automatic Filter Made in China


Size:	Mini Middle Max
Availability:

Quantity:



Inquiry Add to Basket

The air treatment device is used to process the air source from the air compressor. It includes three parts with different functions: an air filter for filtering dirt and particles in the air source, a regulator for adjusting the air source pressure, and a lubricator for oil lubrication.

Model:
HF Series
Brand:
WAALPC
Code:
8481100090

Product Description

1. The air filter with water separate cleans the compressed air of fluid oil, condensation and dirt particles, for special application, the standard 40μm filter element may easily be replaced by a 5μm filter element.

2. Different thread type can be offered according to customers' requirements, e.g.: PT, NPT etc.

Technical Parameters

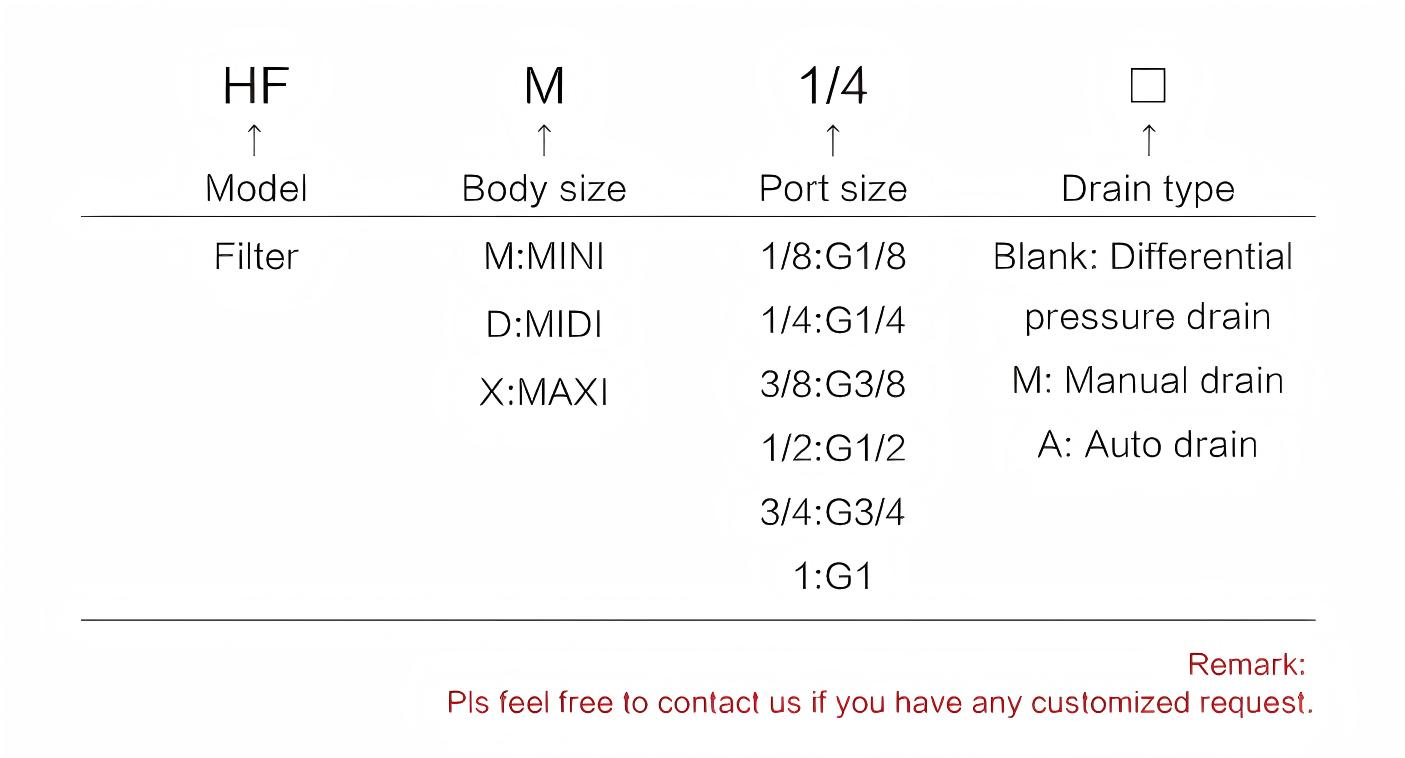

ORDERING CODE

DATA SHEET

Type-name	Filter
Model	MINI			MIDI				MAXI
	HF-1/8	HF-1/4	HF-3/8	HF-1/4	HF-3/8	HF-1/2	HF-3/4	HF-3/4	HF-1
Port Size (G)	1/8	1/4	3/8	1/4	3/8	1/2	3/4	3/4	1
Cup Protective Cover	With cup protective cover
Drain Type	Manual drain, differential pressure drain and auto drain
Grade of Filtration	5µm, 40µm
Working Medium	Filter compressed air
Structure Features	Sintered filter with moisture clutch; MINI, MIDI: Diaphragm type pressure reducing valve; MAXI: piston type pressure reducing valve; Oil mist automatic variable throttling type.
Installation Type	Pipe installation or foot pedal installation
Operating Pressure	0.5-12bar, 0.5-7bar
Operating Temperature Range	0-60 ℃
Filter Cup Capacity	22ML			43ML				80ML
Material	Housing: Die cast zinc; Filter cup: PC; Metal protective cover: aluminum alloy; Sealing: nitrile rubber; Pressure regulating hand wheel: POM

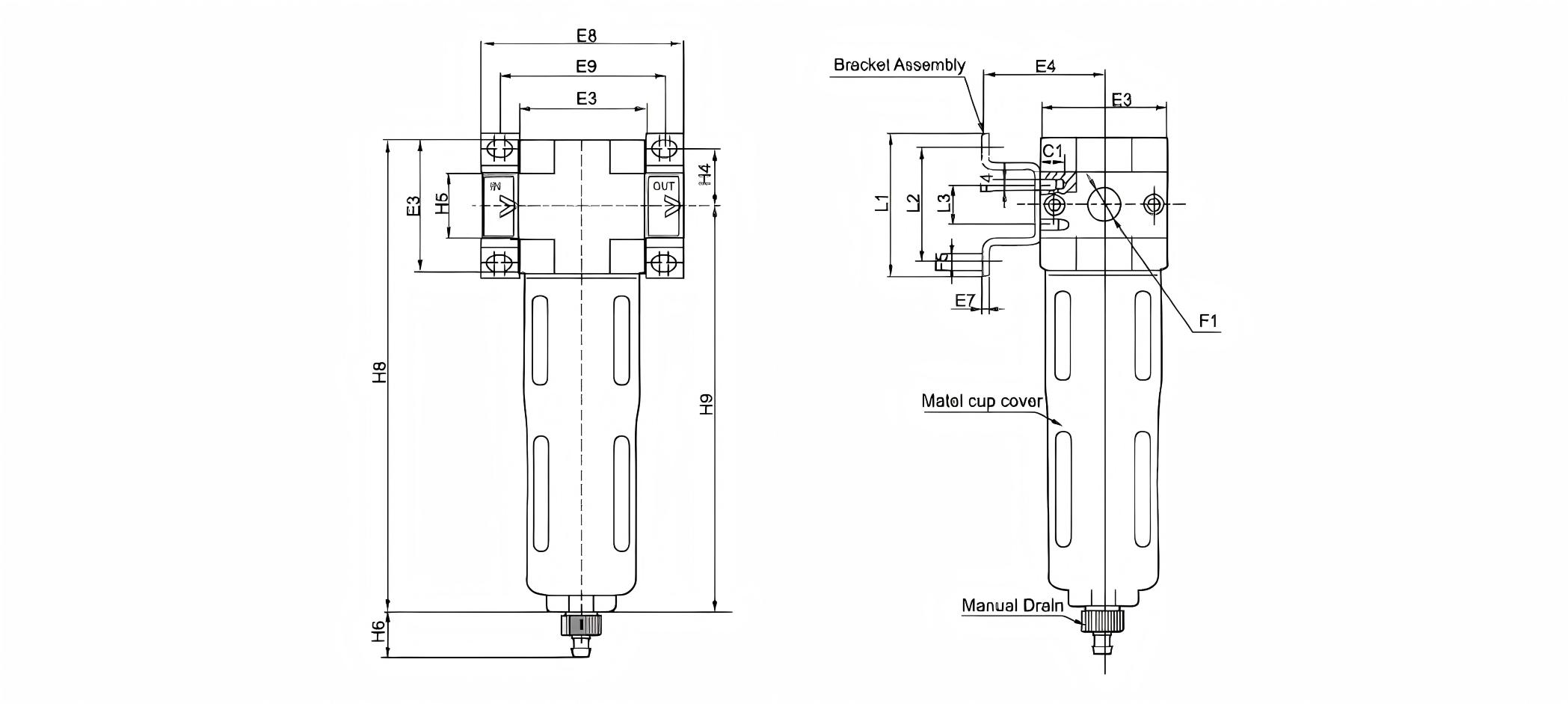

STRUCTURE

Air Pressure Filter

Model	E3	E4	E7	E8	E9	F1	F4	F5Φ	L1	L2	L3	H4	H5	H6	H8	H9
HF-MINI	40	39	2	64	52	G1/8,G1/4,G3/8	M4	4.5	44	35	11	17.5	20	15	144	129
HF-MIDI	55	47	3	85	70	G3/8,G1/4,G1/2,G3/4	M5	5.5	77	60	22	24.5	32	15	179	156
HF-MAXI	66	53	3	96,116	80,91	G3/4,G1	M5	5.5	77	60	22	24.5	32,40	15	203	175

Specification Download

H Series.pdf
